Centos/Redhat_7.9系统vmware虚拟机启动报错Waiting for connection

说明：
  redhat7.9系统安装vmware workstation 17 pro，创建虚拟机后开机卡在Waiting for connection界面。

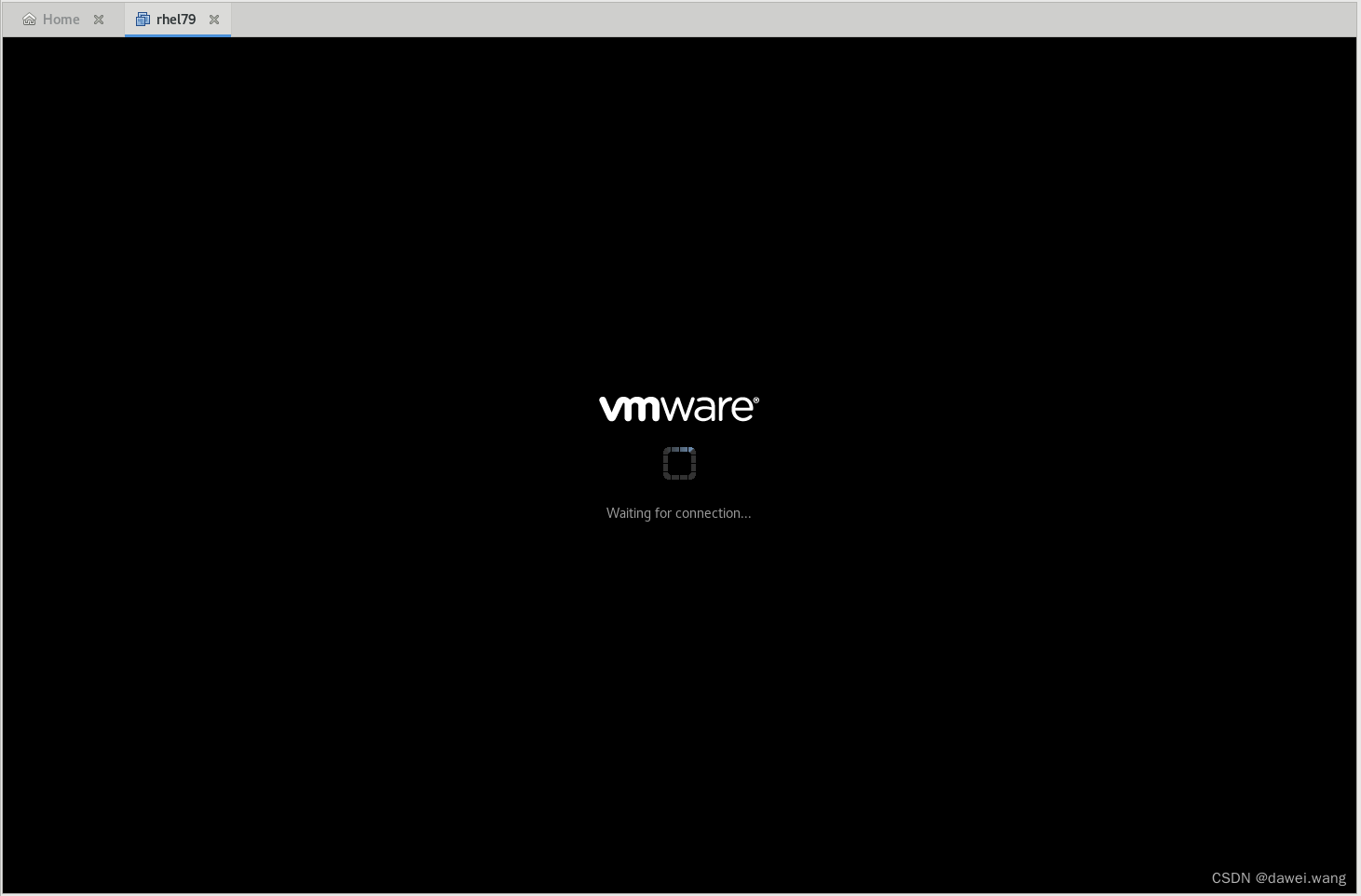

问题截图：
排错：
查看虚拟机日志，在虚拟机存储路径/data/virhosts/rhel79

tail -fn 100 /data/virhosts/rhel79/vmware.log

2024-07-03T19:08:43.832+08:00| vmx| I005: vmm64-modules: [vmm.vmm64, vmce-vmce.vmm64, viommu-none.vmm64, vprobe-none.vmm64, hv-vt.vmm64, gphys-ept.vmm64, callstack-none.vmm64, gi-none.vmm64, gmm-none.vmm64, ahci-ahci.vmm64, !ahciRegs=0x0, !ahciShared=0x1000, !e1000Shared=0x1c00, !vmSamples=0x2480, !theIOSpace=0x2580, !ttGPPerVcpu=0x89c0, {UseUnwind}=0x0, numVCPUsAsAddr=0x8, {SharedAreaReservations}=0x8a40, {rodataSize}=0x21115, {textAddr}=0xfffffffffc000000, {textSize}=0x913ce, <MonSrcFile>]
2024-07-03T19:08:43.832+08:00| vmx| I005: vmm64-vcpus:   8
2024-07-03T19:08:43.837+08:00| vmx| I005: KHZEstimate 2494124
2024-07-03T19:08:43.837+08:00| vmx| I005: MHZEstimate 2494
2024-07-03T19:08:43.837+08:00| vmx| I005: NumVCPUs 8
2024-07-03T19:08:43.838+08:00| vmx| I005: UUID: SMBIOS UUID is reported as '44 45 4c 4c 34 00 10 56-80 33 b4 c0 4f 48 32 34'.
2024-07-03T19:08:43.838+08:00| vmx| I005: UUID: Writing uuid.bios value: '56 4d 45 68 42 8d c1 e3-7e 5f ce f6 5f 9c 59 d5'
2024-07-03T19:08:43.838+08:00| vmx| A000: ConfigDB: Setting uuid.bios = "56 4d 45 68 42 8d c1 e3-7e 5f ce f6 5f 9c 59 d5"
2024-07-03T19:08:43.838+08:00| vmx| I005: UUID: Writing uuid.location value: '56 4d 45 68 42 8d c1 e3-7e 5f ce f6 5f 9c 59 d5'
2024-07-03T19:08:43.838+08:00| vmx| A000: ConfigDB: Setting uuid.location = "56 4d 45 68 42 8d c1 e3-7e 5f ce f6 5f 9c 59 d5"
2024-07-03T19:08:43.839+08:00| vmx| I005: AIOGNRC: numThreads=17 ide=0, scsi=1, passthru=0
2024-07-03T19:08:43.839+08:00| vmx| I005: WORKER: Creating new group with maxThreads=17 (17)
2024-07-03T19:08:43.840+08:00| aioKernelPollWorker| I005: VTHREAD 139936690812672 "aioKernelPollWorker" tid 279275
2024-07-03T19:08:43.840+08:00| vmx| I005: AIOKERN: Manager initialized successfully
2024-07-03T19:08:43.840+08:00| vmx| I005: AIOKERN: PowerOn successfully added the 'Kernel' AIO manager interface
2024-07-03T19:08:43.924+08:00| vmx| I005: WORKER: Creating new group with maxThreads=1 (18)
2024-07-03T19:08:43.924+08:00| vmx| I005: MainMem: CPT Host WZ=0 PF=16384 D=0
2024-07-03T19:08:43.924+08:00| vmx| I005: MainMem: CPT PLS=1 PLR=1 BS=1 BlkP=32 Mult=4 W=50
2024-07-03T19:08:43.924+08:00| vmem| I005: VTHREAD 139936426620672 "vmem" tid 279276
2024-07-03T19:08:46.659+08:00| vmx| I005: MainMem: Opened paging file, '/tmp/vmware-root/564d4568-428d-c1e3-7e5f-cef65f9c59d5/vmem' (swap).
2024-07-03T19:08:46.660+08:00| vmx| I005: MStat: Creating Stat vm.uptime
2024-07-03T19:08:46.660+08:00| vmx| I005: MStat: Creating Stat vm.suspendTime
2024-07-03T19:08:46.660+08:00| vmx| I005: MStat: Creating Stat vm.powerOnTimeStamp
2024-07-03T19:08:46.660+08:00| vmx| I005: VMXAIOMGR: Using: simple=Generic
2024-07-03T19:08:46.661+08:00| vmx| I005: WORKER: Creating new group with maxThreads=1 (19)
2024-07-03T19:08:46.662+08:00| vmx| I005: WORKER: Creating new group with maxThreads=16 (35)
2024-07-03T19:08:46.662+08:00| vmx| I005: FeatureCompat: No VM masks.
2024-07-03T19:08:46.662+08:00| vmx| I005: TimeTracker host to guest rate conversion 7225676756 @ 2494124000Hz -> 0 @ 2494124000Hz
2024-07-03T19:08:46.662+08:00| vmx| I005: TimeTracker host to guest rate conversion ((x * 2147483648) >> 31) + -7225676756
2024-07-03T19:08:46.662+08:00| vmx| I005: Disabling TimeTracker fast path because host TSCs are not synchronized.
2024-07-03T19:08:46.662+08:00| vmx| I005: Disabling TSC offsetting because TimeTracker fast-path is disabled.
2024-07-03T19:08:46.662+08:00| vmx| I005: Disabling TSC scaling since offsetting was not enabled.
2024-07-03T19:08:46.662+08:00| vmx| I005: timeTracker.globalProgressMaxAllowanceMS: 2000
2024-07-03T19:08:46.663+08:00| vmx| I005: timeTracker.globalProgressToAllowanceNS: 1000
2024-07-03T19:08:46.663+08:00| vmx| I005: MKS PowerOn
2024-07-03T19:08:46.663+08:00| mks| I005: VTHREAD 139936426620672 "mks" tid 279282
2024-07-03T19:08:46.664+08:00| mks| I005: MKS thread is alive
2024-07-03T19:08:46.664+08:00| mks| I005: MKS-RenderMain: PowerOn allowed MKSBasicOps GLRenderer GLBasic
2024-07-03T19:08:46.664+08:00| mks| I005: MKS-RenderMain: Collecting RenderOps caps from GLRenderer
2024-07-03T19:08:46.669+08:00| mks| I005: MKSXInput: XI major version 2, minor version 3
2024-07-03T19:08:46.670+08:00| mks| I005: GLHostX11: DISPLAY: "192.168.104.11:228" has a blacklisted driver.
2024-07-03T19:08:46.670+08:00| mks| I005: GLHostX11: GLX ClientString: Mesa Project and SGI
2024-07-03T19:08:46.670+08:00| mks| I005: GLHostX11: Disabling 3D on this display due to presence of an unsupported graphics driver.
2024-07-03T19:08:46.670+08:00| mks| I005: GLHostX11: Set the config option mks.gl.allowBlacklistedDrivers=TRUE to override.
2024-07-03T19:08:46.670+08:00| mks| I005: GLHostX11: Console display (192.168.104.11:228) does not support direct rendering.
2024-07-03T19:08:46.671+08:00| mks| I005: GLHostX11: env DISPLAY (192.168.104.11:228) matches console display.
2024-07-03T19:08:46.672+08:00| mks| I005: GLHostX11: DISPLAY: "unix:0" has a blacklisted driver.
2024-07-03T19:08:46.672+08:00| mks| I005: GLHostX11: GLX ClientString: Mesa Project and SGI
2024-07-03T19:08:46.672+08:00| mks| I005: GLHostX11: Disabling 3D on this display due to presence of an unsupported graphics driver.
2024-07-03T19:08:46.672+08:00| mks| I005: GLHostX11: Set the config option mks.gl.allowBlacklistedDrivers=TRUE to override.
2024-07-03T19:08:46.673+08:00| mks| I005: GLHostX11: DISPLAY: "unix:1" has a blacklisted driver.
2024-07-03T19:08:46.673+08:00| mks| I005: GLHostX11: GLX ClientString: Mesa Project and SGI
2024-07-03T19:08:46.673+08:00| mks| I005: GLHostX11: Disabling 3D on this display due to presence of an unsupported graphics driver.
2024-07-03T19:08:46.673+08:00| mks| I005: GLHostX11: Set the config option mks.gl.allowBlacklistedDrivers=TRUE to override.

如上报多次：

2024-07-03T19:08:46.672+08:00| mks| I005: GLHostX11: Set the config option mks.gl.allowBlacklistedDrivers=TRUE to override.
2024-07-03T19:08:46.673+08:00| mks| I005: GLHostX11: DISPLAY: "unix:1" has a blacklisted driver.
2024-07-03T19:08:46.673+08:00| mks| I005: GLHostX11: GLX ClientString: Mesa Project and SGI
2024-07-03T19:08:46.673+08:00| mks| I005: GLHostX11: Disabling 3D on this display due to presence of an unsupported graphics driver.

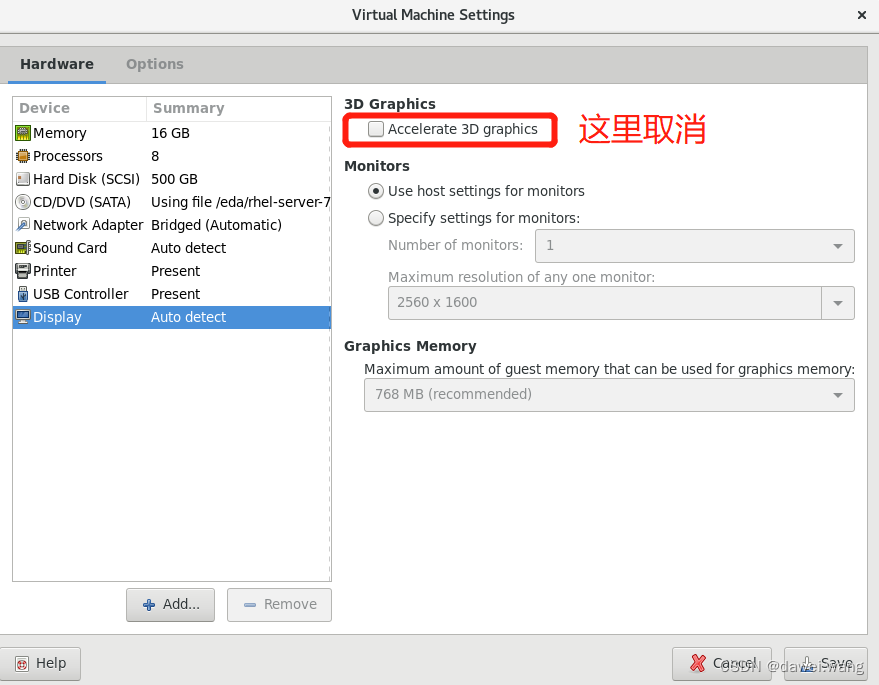

问题描述：缺少图形驱动，需要禁用3D图形驱动；
解决：

ps -ef | grep vmware

root     242008      1  1 18:22 ?        00:00:54 /usr/lib/vmware/bin/vmware-hostd -a /etc/vmware/hostd/config.xml
root     276040 273810  4 19:03 pts/173  00:00:58 /usr/lib/vmware/bin/vmware
root     276390      1  0 19:03 pts/173  00:00:02 /usr/lib/vmware/bin/vmware-tray poweredOn
root     279171      1  0 19:08 pts/173  00:00:02 /usr/lib/vmware/bin/vmware-vmx -s vmx.stdio.keep=TRUE -# product=1;name=VMware Workstation;version=15.5.7;buildnumber=17171714;licensename=VMware Workstation;licenseversion=15.0+; -@ duplex=3;msgs=ui /eda/virhosts/rhel79/rhel79.vmx
root     286909 259406  0 19:23 pts/174  00:00:00 grep --color=auto vmware

kill 279171 276390

修改后保存，重新开机。
