ui版kmeans算法

文章介绍了如何在Java中使用K-means算法对数据进行聚类,包括计算中心点、分配样本到最近的中心点以及更新中心点的过程。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

package com.i9i.rpc;

import java.awt.Color;
import java.awt.Graphics;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;
import java.util.Map;
import java.util.Random;
import java.util.Set;
import java.util.Timer;
import java.util.TimerTask;
import java.util.TreeMap;
import java.util.concurrent.TimeUnit;

import javax.swing.JFrame;
import javax.swing.SwingUtilities;

public class Kmean extends JFrame {
	/***
	 *
	 * @param centerPoints 中心点
	 * @param data         输入样本
	 * @return
	 */
	public static Map<Point, List<Point>> getPointsGroup(List<Point> centerPoints, List<Point> data) {
		Map<Point, List<Point>> kdata = new TreeMap<Point, List<Point>>();
		for (Point jp : centerPoints) {
			kdata.put(jp, new ArrayList<Point>());
		}
		for (Point ip : data) {
			Point spoint = null;
			double lastdistance = 0;
			double currdistance = 0;
			for (Point jp : centerPoints) {
				currdistance = getDistince(jp, ip);
				if (spoint == null || lastdistance > currdistance) {
					lastdistance = currdistance;
					spoint = jp;
				}
			}
			kdata.get(spoint).add(ip);
		}
		return kdata;
	}

	/******
	 * 依据分类,获取新的中心点
	 *
	 * @param mpoints 分类键对
	 * @return
	 */
	public static List<Point> getCenterPoints(Map<Point, List<Point>> mpoints) {
		List<Point> newPoints = new ArrayList<Point>();
		Set<Point> key = mpoints.keySet();
		for (Point p : key) {
			List<Point> lpoints = mpoints.get(p);
			double sumx = 0, sumy = 0;
			for (Point lpoint : lpoints) {
				sumx += lpoint.getX();
				sumy += lpoint.getY();
			}
			Point newcenterPoint = new Point();
			newcenterPoint.setX(sumx / lpoints.size());
			newcenterPoint.setY(sumy / lpoints.size());
			newPoints.add(newcenterPoint);
		}
		return newPoints;
	}

	public static List<Point> initData(int n) {
		List<Point> list = new ArrayList<Point>();
		java.util.Random rd = new Random(3000);
		for (int i = 0; i < n; i++) {
			Point p = new Point();
			p.setX(rd.nextDouble() * 1000);
			p.setY(rd.nextDouble() * 1000);
			list.add(p);
		}
		return list;
	}

	public static void printPair(Map<Point, List<Point>> cpoints) {
		Set<Point> key = cpoints.keySet();
		for (Point p : key) {
			System.out.print(p + "  :{");
			List<Point> list = cpoints.get(p);
			for (Point lp : list) {
				System.out.print(lp + ",");
			}
			System.out.println("}");
		}
	}

	public static void printResult(List<Map<Point, List<Point>>> cpoints) {
		int i = 0;
		for (Map<Point, List<Point>> mp : cpoints) {
			System.out.println("第" + i + "计算分类信息");
			Set<Point> key = mp.keySet();
			for (Point p : key) {
				System.out.print(p + "  :{");
				List<Point> list = mp.get(p);
				for (Point lp : list) {
					System.out.print(lp + ",");
				}
				System.out.println("}");
			}
			i++;
		}
	}

	public static double getDistince(Point p1, Point p2) {
		return Math.sqrt(
				(p1.getX() - p2.getX()) * (p1.getX() - p2.getX()) + (p1.getY() - p2.getY()) * (p1.getY() - p2.getY()));
	}

	public static double sumDistince(Point p1, List<Point> ps) {
		double sum = 0;
		for (Point p : ps) {
			sum = sum + getDistince(p1, p);
		}
		return sum;
	}

	List<Point> data = initData(500);
	List<Point> kpoint = initData(8);
	List<List<Point>> kpoints = new ArrayList<List<Point>>();
	Map<Point, List<Point>> result = new TreeMap<>();

//	List<Map<Point, List<Point>>> cpoints = new ArrayList<Map<Point, List<Point>>>();
	Kmean() {


//		this.resize(1000, 1000);
		this.setVisible(true);
		this.setSize(1000, 1000);
	}

	public void cal() throws InterruptedException {
		double lastDistince = 0;
		double currDistince = 0;
		long count = 1;
		double minDistince = Long.MAX_VALUE;
		while (true) {
			System.out.println("正在进行" + count + "次迭代");
			Map<Point, List<Point>> pair = getPointsGroup(kpoint, data);
			result = pair;
			printPair(pair);
			// cpoints.add(pair);
			Set<Point> key = pair.keySet();
			lastDistince = currDistince;
			currDistince = 0;
			for (Point p : key) {
				currDistince += sumDistince(p, pair.get(p));
			}
			if (currDistince < minDistince) {
				minDistince = currDistince;
			}
			this.update(this.getContentPane().getGraphics());
			TimeUnit.MILLISECONDS.sleep(1800);

			count++;
			if (lastDistince <= currDistince
					&& (currDistince < 0.001 || Math.abs(lastDistince - currDistince) / lastDistince < 0.0001))
				break;
			else
				kpoint = getCenterPoints(pair);
		}
	}

	/**
	 * @param args
	 * @throws InterruptedException
	 */
	public static void main(String[] args) throws InterruptedException {
		Kmean demo = new Kmean();

		demo.cal();

		// printResult(cpoints);
	}

	public void clear(Graphics g) {
		g.setColor(getBackground());
		g.fillRect(0, 0, getWidth(), getHeight());
		paint(g);

	}

	@Override

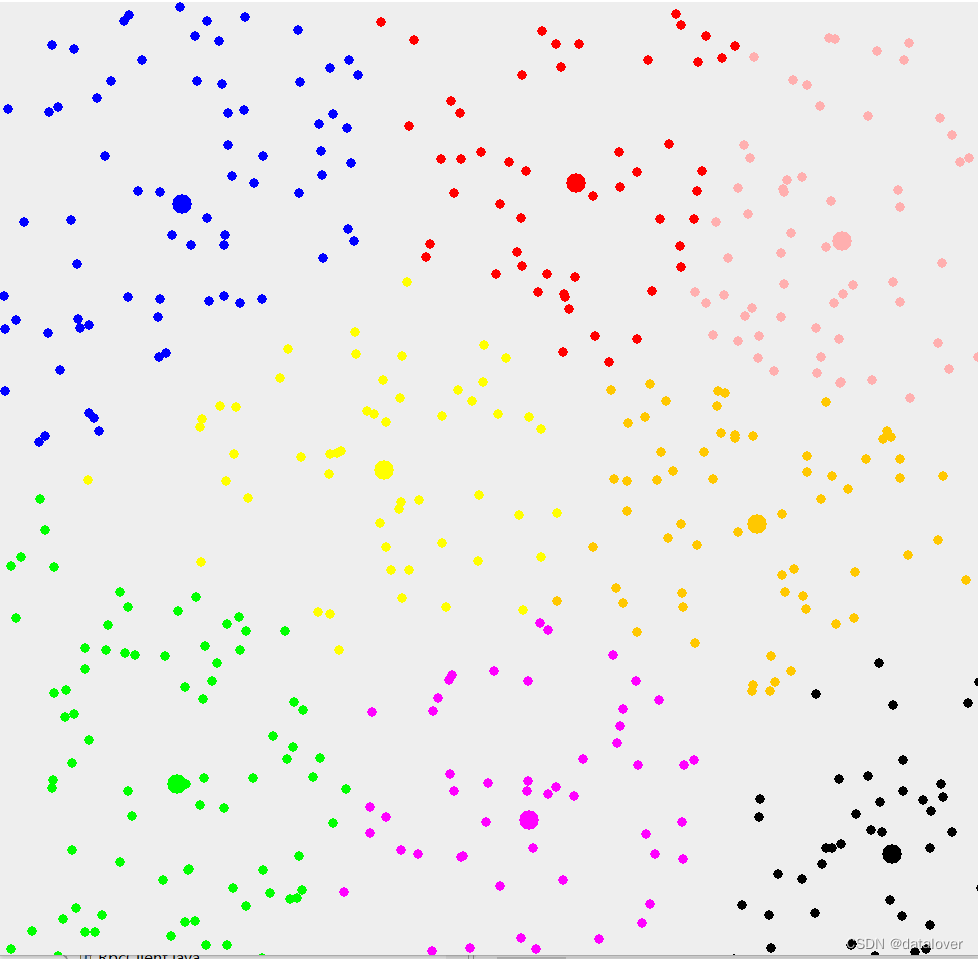

	public void update(Graphics g) {
		super.update(g);
		clear(g);
		Color[] color = { Color.BLUE, Color.RED, Color.yellow, Color.GREEN, Color.PINK, Color.ORANGE, Color.MAGENTA,
				Color.BLACK };
		int i = 0;
		int r = 10;
		for (Point key : result.keySet()) {
			g.setColor(color[i]);
			g.fillArc(key.getX().intValue(), key.getY().intValue(), r * 2, r * 2, 0, 360);
			List<Point> points = result.get(key);
			for (Point p : points) {
				g.fillArc(p.getX().intValue(), p.getY().intValue(), r, r, 0, 360);
			}
			i++;

		}

	}



	static class Point implements Comparable<Point> {
		Double x, y;

		public Double getX() {
			return x;
		}

		public void setX(double x) {
			this.x = x;
		}

		public Double getY() {
			return y;
		}

		public void setY(double y) {
			this.y = y;
		}

		@Override
		public String toString() {
			return "(" + x + ", " + y + ")";
		}

		@Override
		public int compareTo(Point o) {

			return this.getX().intValue() - o.getX().intValue() + this.getY().intValue() - o.getY().intValue();
		}

	}
}
