vue.js 封装绘制canvas图形验证码，包括校验

验证码组件

captcha.vue

<template>
    <div class="captcha-container">
        <canvas ref="canvas" :width="canvasWidth" :height="canvasHeight" @click="generateCaptcha"></canvas>
    </div>
</template>
<script>
export default {
    data() {
        return {
            captchaText: '', // 验证码文本
            canvasWidth: 100,
            canvasHeight: 50
        };
    },
    mounted() {
        this.generateCaptcha(); // 初始化生成验证码
    },
    methods: {
        // 生成随机验证码
        generateCaptcha() {
            const chars = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789';
            this.captchaText = Array.from({ length: 4 })
                .map(() => chars[Math.floor(Math.random() * chars.length)])
                .join('');
            this.drawCaptcha();
            this.$emit('input', this.captchaText);
            this.$emit('onChange', this.captchaText);
        },
        // 绘制验证码到 Canvas
        drawCaptcha() {
            const canvas = this.$refs.canvas;
            const ctx = canvas.getContext('2d');

            // 清空画布
            ctx.clearRect(0, 0, this.canvasWidth, this.canvasHeight);

            // 绘制背景
            ctx.fillStyle = '#f4f4f4';
            ctx.fillRect(0, 0, this.canvasWidth, this.canvasHeight);

            // 添加一些干扰线
            for (let i = 0; i < 5; i++) {
                ctx.strokeStyle = this.getRandomColor();
                ctx.beginPath();
                ctx.moveTo(Math.random() * this.canvasWidth, Math.random() * this.canvasHeight);
                ctx.lineTo(Math.random() * this.canvasWidth, Math.random() * this.canvasHeight);
                ctx.stroke();
            }

            // 绘制验证码文字
            ctx.font = '30px Arial';
            ctx.fillStyle = this.getRandomColor();
            ctx.textAlign = 'center';
            ctx.textBaseline = 'middle';

            const charArray = this.captchaText.split('');
            charArray.forEach((char, index) => {
                const x = (this.canvasWidth / charArray.length) * (index + 0.5);
                const y = this.canvasHeight / 2;
                const angle = (Math.random() - 0.5) * 30; // 随机旋转角度

                ctx.save();
                ctx.translate(x, y);
                ctx.rotate((angle * Math.PI) / 180);
                ctx.fillText(char, 0, 0);
                ctx.restore();
            });

            // 添加一些干扰点
            for (let i = 0; i < 50; i++) {
                ctx.fillStyle = this.getRandomColor();
                ctx.beginPath();
                ctx.arc(Math.random() * this.canvasWidth, Math.random() * this.canvasHeight, 1, 0, 2 * Math.PI);
                ctx.fill();
            }

            console.log(this.captchaText);
        },
        // 生成随机颜色
        getRandomColor() {
            const r = Math.floor(Math.random() * 256);
            const g = Math.floor(Math.random() * 256);
            const b = Math.floor(Math.random() * 256);
            return `rgb(${r},${g},${b})`;
        }
    }
};
</script>

<style scoped>
.captcha-container {
    display: flex;
    align-items: center;
    gap: 10px;
}

canvas {
    border: 1px solid #ccc;
}
</style>

使用和验证

// yzmCode 生成的验证码
<CaptchaCode v-model="yzmCode" ref="CaptchaCodeRef" style="margin-left: 10px" @onChange="yzm = ''" />



// 验证（字母转大写）
// yzm 输入的验证码
 if (this.yzm.toUpperCase() != this.yzmCode.toUpperCase()) {
    this.$refs.CaptchaCodeRef.generateCaptcha();
    return this.$message.error('请输入正确的验证码');
 }

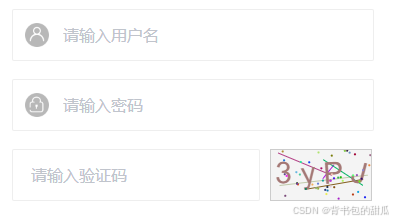

效果图
