Python tkinter自定义多选下拉列表框(带滚动条、全选)

最新推荐文章于 2024-03-27 10:59:26 发布

转载最新推荐文章于 2024-03-27 10:59:26 发布 · 4.9k 阅读

文章标签：

#python

博客介绍了包含的3个Python文件，分别是demo.py、ComBoPicker.py和ComBoPicker1.py文件，并提及展示了相关效果。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

包括3个文件：
1、demo.py文件
2、ComBoPicker.py文件
3、ComBoPicker1.py文件

问题	方法
怎么动态赋值	COMBOPICKER.values = [1,2,3,4]
获取选中值	1.COMBOPICKER.current_value 2.COMBOPICKER.get() 3.COMBOPICKER.entry_var.get()

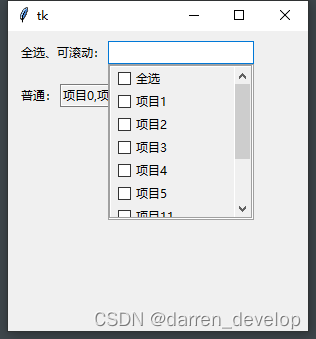

效果如下图：

demo.py文件


from tkinter import *
from ComBoPicker import Combopicker# 导入自定义下拉多选框
from ComBoPicker1 import Combopicker as Combopicker1# 导入自定义下拉多选框
if __name__ == "__main__":


    root = Tk()
    root.geometry("300x300")

    F =Frame(root)
    F.pack(expand=False, fill="both",padx=10,pady=10)
    Label(F,text='全选、可滚动：').pack(side='left')
    COMBOPICKER = Combopicker(F, values = ['全选','项目1','项目2','项目3','项目4','项目5','项目11','项目22','项目33','项目44','项目55'])
    COMBOPICKER.pack(anchor="w")


    F2 =Frame(root)
    F2.pack(expand=False, fill="both",padx=10,pady=10)
    Label(F2,text='普通：').pack(side='left')
    COMBOPICKER1 = Combopicker1(F2, values = [f'项目{i}' for i in range(5)])
    COMBOPICKER1.pack(anchor="w")

    root.mainloop()

ComBoPicker.py文件

'''
	自定义多选下拉列表
'''
import tkinter.font as tkFont
import tkinter.ttk as ttk
from tkinter import *
class Picker(ttk.Frame):

    def __init__(self, master=None,activebackground='#b1dcfb',values=[],entry_wid=None,activeforeground='black', selectbackground='#003eff', selectforeground='white', command=None, borderwidth=1, relief="solid"):

        self._selected_item = None

        self._values = values

        self._entry_wid = entry_wid

        self._sel_bg = selectbackground
        self._sel_fg = selectforeground

        self._act_bg = activebackground
        self._act_fg = activeforeground

        self._command = command
        ttk.Frame.__init__(self, master, borderwidth=borderwidth, relief=relief)

        self.bind("<FocusIn>", lambda event:self.event_generate('<<PickerFocusIn>>'))
        self.bind("<FocusOut>", lambda event:self.event_generate('<<PickerFocusOut>>'))

        self._font = tkFont.Font()

        self.dict_checkbutton = {}
        self.dict_checkbutton_var = {}
        self.dict_intvar_item = {}

        for index,item in enumerate(self._values):

            self.dict_intvar_item[item] = IntVar()
            self.dict_checkbutton[item] = ttk.Checkbutton(self, text = item, variable=self.dict_intvar_item[item],command=lambda ITEM = item:self._command(ITEM))
            self.dict_checkbutton[item].grid(row=index, column=0, sticky=NSEW)
            self.dict_intvar_item[item].set(0)


class Combopicker(ttk.Entry, Picker):
    def __init__(self, master, values= [] ,entryvar=None, entrywidth=None, entrystyle=None, onselect=None,activebackground='#b1dcfb', activeforeground='black', selectbackground='#003eff', selectforeground='white', borderwidth=1, relief="solid"):

        self.values=values

        if entryvar is not None:
            self.entry_var = entryvar
        else:
            self.entry_var = StringVar()

        entry_config = {}
        if entrywidth is not None:
            entry_config["width"] = entrywidth

        if entrystyle is not None:
            entry_config["style"] = entrystyle

        ttk.Entry.__init__(self, master, textvariable=self.entry_var, **entry_config, state = "readonly")

        self._is_menuoptions_visible = False

        self.picker_frame = Picker(self.winfo_toplevel(), values=values,entry_wid = self.entry_var,activebackground=activebackground, activeforeground=activeforeground, selectbackground=selectbackground, selectforeground=selectforeground, command=self._on_selected_check)

        self.bind_all("<1>", self._on_click, "+")

        self.bind("<Escape>", lambda event: self.hide_picker())

    @property
    def current_value(self):
        try:
            value = self.entry_var.get()
            return value
        except ValueError:
            return None

    @current_value.setter
    def current_value(self, INDEX):
        self.entry_var.set(self.values.index(INDEX))

    def _on_selected_check(self, SELECTED):

        value = []
        if self.entry_var.get() != "" and self.entry_var.get() != None:
            temp_value = self.entry_var.get()
            value = temp_value.split(",")

        if str(SELECTED) in value:
            value.remove(str(SELECTED))

        else:
            value.append(str(SELECTED))

        value.sort()

        temp_value = ""
        for index,item in enumerate(value):
            if item!= "":
                if index != 0:
                    temp_value += ","
                temp_value += str(item)

        self.entry_var.set(temp_value)

    def _on_click(self, event):
        str_widget = str(event.widget)

        if str_widget == str(self):
            if not self._is_menuoptions_visible:
                self.show_picker()
        else:
            if not str_widget.startswith(str(self.picker_frame)) and self._is_menuoptions_visible:
                self.hide_picker()

    def show_picker(self):
        if not self._is_menuoptions_visible:
            self.picker_frame.place(in_=self, relx=0, rely=1, relwidth=1 )
            self.picker_frame.lift()

        self._is_menuoptions_visible = True

    def hide_picker(self):
        if self._is_menuoptions_visible:
            self.picker_frame.place_forget()

        self._is_menuoptions_visible = False

ComBoPicker1.py文件

'''
	自定义多选下拉列表
'''
import tkinter.font as tkFont
import tkinter.ttk as ttk
from tkinter import *
class Picker(ttk.Frame):

    def __init__(self, master=None,activebackground='#b1dcfb',values=[],entry_wid=None,activeforeground='black', selectbackground='#003eff', selectforeground='white', command=None, borderwidth=1, relief="solid"):

        self._selected_item = None

        self._values = values

        self._entry_wid = entry_wid

        self._sel_bg = selectbackground
        self._sel_fg = selectforeground

        self._act_bg = activebackground
        self._act_fg = activeforeground

        self._command = command
        ttk.Frame.__init__(self, master, borderwidth=borderwidth, relief=relief)

        self.bind("<FocusIn>", lambda event:self.event_generate('<<PickerFocusIn>>'))
        self.bind("<FocusOut>", lambda event:self.event_generate('<<PickerFocusOut>>'))

        self._font = tkFont.Font()

        self.dict_checkbutton = {}
        self.dict_checkbutton_var = {}
        self.dict_intvar_item = {}

        for index,item in enumerate(self._values):

            self.dict_intvar_item[item] = IntVar()
            self.dict_checkbutton[item] = ttk.Checkbutton(self, text = item, variable=self.dict_intvar_item[item],command=lambda ITEM = item:self._command(ITEM))
            self.dict_checkbutton[item].grid(row=index, column=0, sticky=NSEW)
            self.dict_intvar_item[item].set(0)


class Combopicker(ttk.Entry, Picker):
    def __init__(self, master, values= [] ,entryvar=None, entrywidth=None, entrystyle=None, onselect=None,activebackground='#b1dcfb', activeforeground='black', selectbackground='#003eff', selectforeground='white', borderwidth=1, relief="solid"):

        self.values=values

        if entryvar is not None:
            self.entry_var = entryvar
        else:
            self.entry_var = StringVar()

        entry_config = {}
        if entrywidth is not None:
            entry_config["width"] = entrywidth

        if entrystyle is not None:
            entry_config["style"] = entrystyle

        ttk.Entry.__init__(self, master, textvariable=self.entry_var, **entry_config, state = "readonly")

        self._is_menuoptions_visible = False

        self.picker_frame = Picker(self.winfo_toplevel(), values=values,entry_wid = self.entry_var,activebackground=activebackground, activeforeground=activeforeground, selectbackground=selectbackground, selectforeground=selectforeground, command=self._on_selected_check)

        self.bind_all("<1>", self._on_click, "+")

        self.bind("<Escape>", lambda event: self.hide_picker())

    @property
    def current_value(self):
        try:
            value = self.entry_var.get()
            return value
        except ValueError:
            return None

    @current_value.setter
    def current_value(self, INDEX):
        self.entry_var.set(self.values.index(INDEX))

    def _on_selected_check(self, SELECTED):

        value = []
        if self.entry_var.get() != "" and self.entry_var.get() != None:
            temp_value = self.entry_var.get()
            value = temp_value.split(",")

        if str(SELECTED) in value:
            value.remove(str(SELECTED))

        else:
            value.append(str(SELECTED))

        value.sort()

        temp_value = ""
        for index,item in enumerate(value):
            if item!= "":
                if index != 0:
                    temp_value += ","
                temp_value += str(item)

        self.entry_var.set(temp_value)

    def _on_click(self, event):
        str_widget = str(event.widget)

        if str_widget == str(self):
            if not self._is_menuoptions_visible:
                self.show_picker()
        else:
            if not str_widget.startswith(str(self.picker_frame)) and self._is_menuoptions_visible:
                self.hide_picker()

    def show_picker(self):
        if not self._is_menuoptions_visible:
            self.picker_frame.place(in_=self, relx=0, rely=1, relwidth=1 )
            self.picker_frame.lift()

        self._is_menuoptions_visible = True

    def hide_picker(self):
        if self._is_menuoptions_visible:
            self.picker_frame.place_forget()

        self._is_menuoptions_visible = False
