Oracle通过PowerDesigner逆向工程的方式导出pdm

本文介绍了PowerDesigner逆向工程导出PDM文件的详细步骤,包括选择数据库、配置数据源等。还指出导出后name项无中文备注的问题,并给出解决方法,即通过执行Vb script代码,将数据库中comment脚本赋值到PDM的name。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

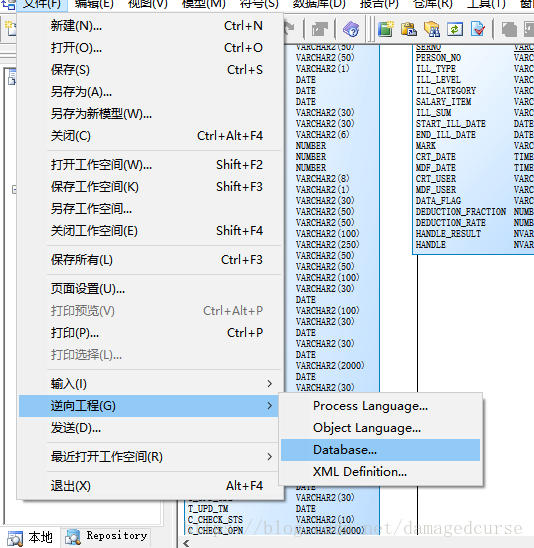

安装好powerDesigner后,点击"文件",选择"逆向工程",选择"Database"

显示如下界面:

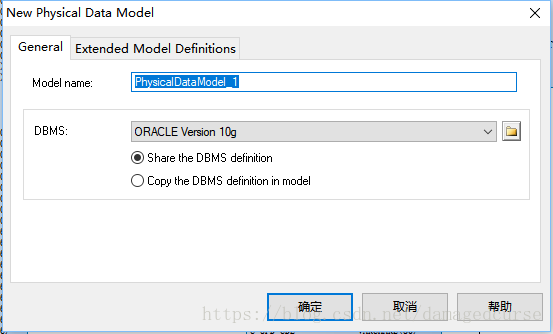

Model name:可以自定义输入;

DBMS:选择"数据库";

点击"确定"

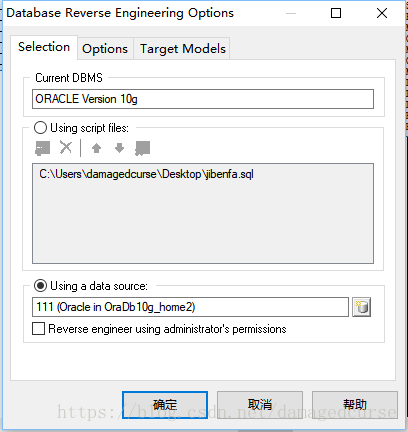

从数据导出pdm文件,选择"Using a data source",点击"Connect to a Data Souce"图标,会弹出"Connect to a Data Source"窗口,

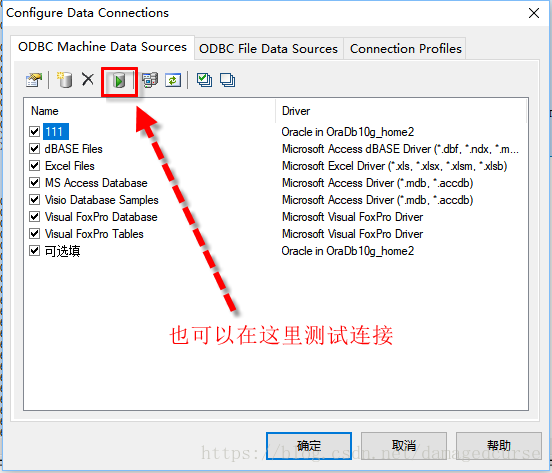

然后点击"Configure"弹出"Configure Data Connections"

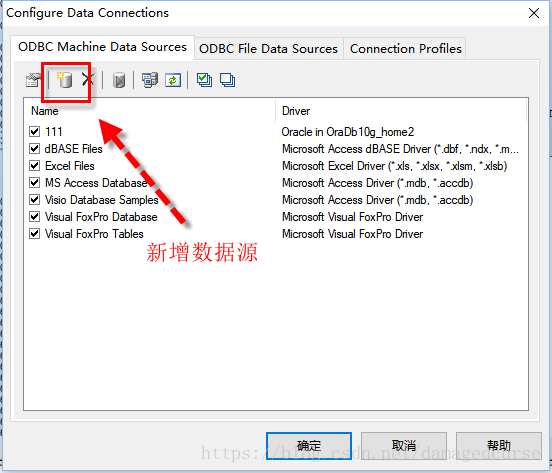

点击图标,新增数据源,

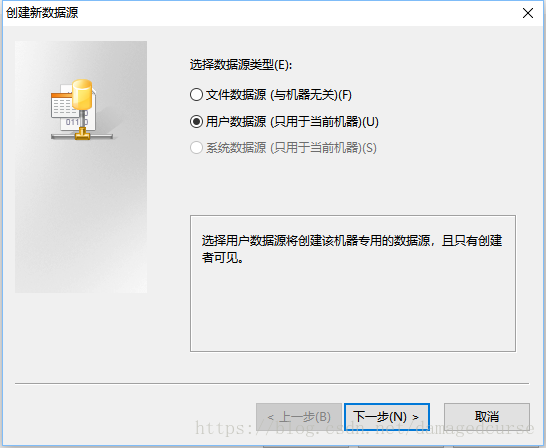

系统管理员账户可以选择"系统数据源",没有系统管理员权限的用户,可以选择"用户数据源"

点击"下一步"

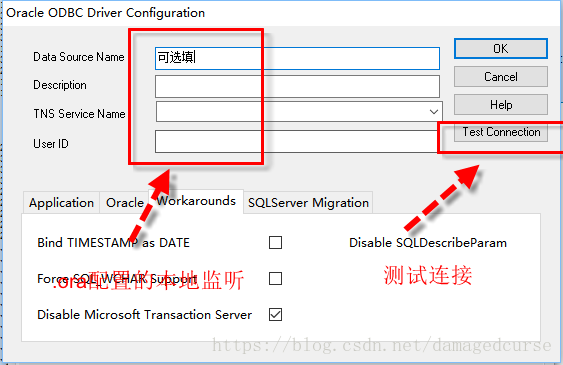

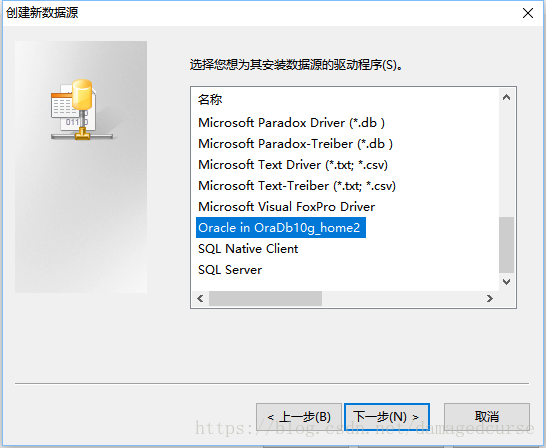

选择自己要用的数据源,点击"下一步"

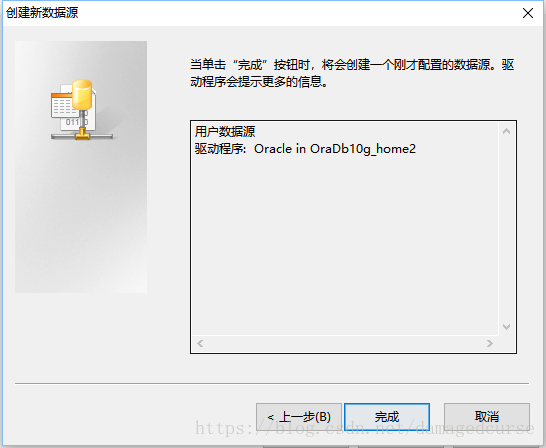

点击"完成".

选择需要的数据源,点击"确定"

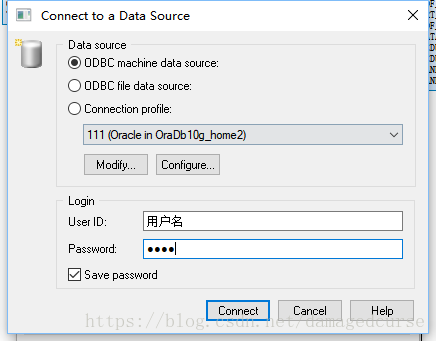

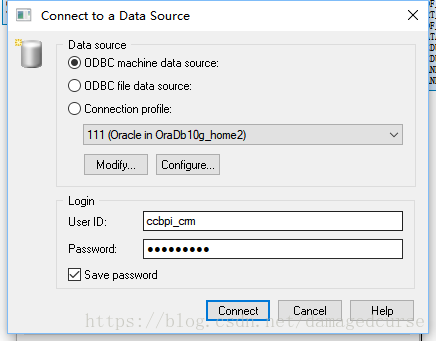

点击"Connect",点击"确定"

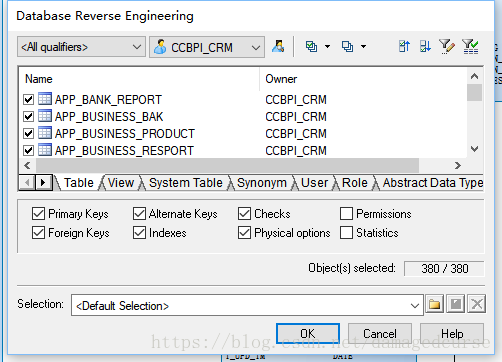

点击"ok"就开始导出pdm了.

导出后发现name项没有显示中文备注,看起来不方便.

 补充:PowerDesigner中逆向工程将数据库中comment脚本赋值到PDM的name

执行方法:Open PDM -- Tools -- Execute Commands -- Run Script


Vb script代码:
Option Explicit
ValidationMode = True
InteractiveMode = im_Batch

Dim mdl 'the current model

'get the current active model
Set mdl = ActiveModel
If (mdl Is Nothing) Then
MsgBox "There is no current Model"
ElseIf Not mdl.IsKindOf(PdPDM.cls_Model) Then
MsgBox "The current model is not an Physical Data model."
Else
ProcessFolder mdl
End If

'This routine copy name into code for each table, each column and each view
'of the current folder
Private sub ProcessFolder(folder)

Dim Tab 'running table
for each Tab in folder.tables
if not tab.isShortcut then
if len(tab.comment) <> 0 then
tab.name = tab.comment
end if
On Error Resume Next
Dim col 'running column
for each col in tab.columns
if len(col.comment) <>0 then
col.name =col.comment
end if
On Error Resume Next
next
end if
next
end sub
