openstack dns

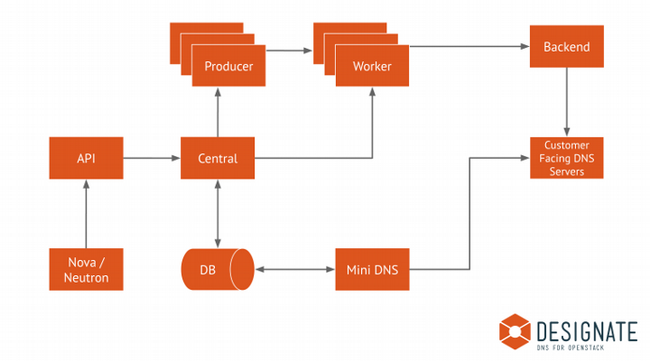

Designate是一个多租户DNS即服务，包括用于域和记录管理的REST API，用于与Neutron集成的框架以及对Bind9的集成支持。

您可能需要考虑以下DNSaaS：

干净的REST API，用于管理区域和记录
自动生成记录（与OpenStack集成）
支持多个权威名称服务器
主持多个项目/组织

本文介绍了如何在CentOS或Red Hat Enterprise Linux 7（RHEL 7）上手动安装和配置最新版本的Designate服务，但是您可以在其他发行版上使用相同的配置。

在OpenStack上安装Designate

我具有用于绑定和指定的Ansible角色，这些角色演示了GitHub存储库中的设置。

此设置假定绑定服务在OpenStack控制器节点上是外部的（即使您可以在本地安装绑定）。

安装Designate的软件包并绑定（在OpenStack控制器上）：
```
 # yum install openstack-designate-* bind bind-utils -y
```

创建指定数据库和用户：







       MariaDB [(none)]> CREATE DATABASE designate CHARACTER SET utf8 COLLATE utf8_general_ci;







MariaDB [(none)]> GRANT ALL PRIVILEGES ON designate.* TO \



'designate'@'localhost' IDENTIFIED BY 'rhlab123';







MariaDB [(none)]> GRANT ALL PRIVILEGES ON designate.* TO 'designate'@'%' \



IDENTIFIED BY 'rhlab123';

注意：必须在控制器端安装绑定程序包，远程名称守护程序控制（RNDC）才能正常运行。

配置绑定（DNS服务器）

生成RNDC文件：







       rndc-confgen -a -k designate -c /etc/rndc.key -r /dev/urandom







cat <<EOF> etcrndc.conf



include "/etc/rndc.key";



options {



   default-key "designate";



   default-server {{ DNS_SERVER_IP }};



   default-port 953;



};



EOF

将以下内容添加到named.conf中 ：

include "/etc/rndc.key";
controls {
        inet {{ DNS_SERVER_IP }}  allow { localhost;{{ CONTROLLER_SERVER_IP }}; } keys { "designate"; };
  };

在选项部分中，添加：







       options {



...



 allow-new-zones yes;



 request-ixfr no;



 listen-on port 53 { any; };



 recursion no;



 allow-query { 127.0.0.1; {{ CONTROLLER_SERVER_IP }}; };



};

添加正确的权限：







        chown named:named /etc/rndc.key



 chown named:named /etc/rndc.conf



 chmod 600 /etc/rndc.key



 chown -v root:named /etc/named.conf



 chmod g+w /var/named











# systemctl restart named



# setsebool named_write_master_zones 1

将rndc.key和rndc.conf推入OpenStack控制器：

 # scp -r /etc/rndc* {{ CONTROLLER_SERVER_IP }}:/etc/

创建OpenStack Designate服务和端点

输入：







     # openstack user create --domain default --password-prompt designate



# openstack role add --project services --user designate admin



# openstack service create --name designate --description "DNS" dns







# openstack endpoint create --region RegionOne dns public http://{{ CONTROLLER_SERVER_IP }}:9001/



# openstack endpoint create --region RegionOne dns internal http://{{ CONTROLLER_SERVER_IP }}:9001/



# openstack endpoint create --region RegionOne dns admin http://{{ CONTROLLER_SERVER_IP }}:9001/

配置指定服务

编辑/etc/designate/designate.conf ：

在[service：api]部分中，配置auth_strategy ：







         [service:api]



listen = 0.0.0.0:9001



auth_strategy = keystone



api_base_uri = http://{{ CONTROLLER_SERVER_IP }}:9001/



enable_api_v2 = True



enabled_extensions_v2 = quotas, reports

在[keystone_authtoken]部分中，配置以下选项：







         [keystone_authtoken]



auth_type = password



username = designate



password = rhlab123



project_name = service



project_domain_name = Default



user_domain_name = Default



www_authenticate_uri = http://{{ CONTROLLER_SERVER_IP }}:5000/



auth_url = http://{{ CONTROLLER_SERVER_IP }}:5000/

在[service：worker]部分中，启用worker模型：







         enabled = True



notify = True

在[storage：sqlalchemy]部分中，配置数据库访问权限：







         [storage:sqlalchemy]



connection = mysql+pymysql://designate:rhlab123@{{ CONTROLLER_SERVER_IP }}/designate

填充“指定”数据库：

 # su -s /bin/sh -c "designate-manage database sync" designate

创建Designate的pools.yaml文件（具有目标和绑定详细信息）：

编辑/etc/designate/pools.yaml ：







         - name: default



  # The name is immutable. There will be no option to change the name after



  # creation and the only way will to change it will be to delete it



  # (and all zones associated with it) and recreate it.



  description: Default Pool







  attributes: {}







  # List out the NS records for zones hosted within this pool



  # This should be a record that is created outside of designate, that



  # points to the public IP of the controller node.



  ns_records:



    - hostname: {{Controller_FQDN}}. # Thisis mDNS



      priority: 1







  # List out the nameservers for this pool. These are the actual BIND servers.



  # We use these to verify changes have propagated to all nameservers.



  nameservers:



    - host: {{ DNS_SERVER_IP }}



      port: 53







  # List out the targets for this pool. For BIND there will be one



  # entry for each BIND server, as we have to run rndc command on each server



  targets:



    - type: bind9



      description: BIND9 Server 1







      # List out the designate-mdns servers from which BIND servers should



      # request zone transfers (AXFRs) from.



      # This should be the IP of the controller node.



      # If you have multiple controllers you can add multiple masters



      # by running designate-mdns on them, and adding them here.



      masters:



        - host: {{ CONTROLLER_SERVER_IP }}



          port: 5354







      # BIND Configuration options



      options:



        host: {{ DNS_SERVER_IP }}



        port: 53



        rndc_host: {{ DNS_SERVER_IP }}



        rndc_port: 953



        rndc_key_file: /etc/rndc.key



        rndc_config_file: /etc/rndc.conf

填充Designate的池：

 su -s /bin/sh -c "designate-manage pool update" designate

开始指定中央和API服务：

 systemctl enable --now designate-central designate-api

验证Designate的服务是否正常运行：







       # openstack dns service list







+--------------+--------+-------+--------------+



| service_name | status | stats | capabilities |



+--------------+--------+-------+--------------+



| central      | UP     | -     | -            |



| api          | UP     | -     | -            |



| mdns         | UP     | -     | -            |



| worker       | UP     | -     | -            |



| producer     | UP     | -     | -            |



+--------------+--------+-------+--------------+

使用外部DNS配置OpenStack Neutron

为指定服务配置iptables：







       # iptables -I INPUT -p tcp -m multiport --dports 9001 -m comment --comment "designate incoming" -j ACCEPT







# iptables -I INPUT -p tcp -m multiport --dports 5354 -m comment --comment "Designate mdns incoming" -j ACCEPT







# iptables -I INPUT -p tcp -m multiport --dports 53 -m comment --comment "bind incoming" -j ACCEPT











# iptables -I INPUT -p udp -m multiport --dports 53 -m comment --comment "bind/powerdns incoming" -j ACCEPT







# iptables -I INPUT -p tcp -m multiport --dports 953 -m comment --comment "rndc incoming - bind only" -j ACCEPT







# service iptables save; service iptables restart



# setsebool named_write_master_zones 1

编辑/etc/neutron/neutron.conf的[default]部分：
```
 external_dns_driver = designate
```

在/_etc/_neutron/neutron.conf中添加[指定]部分：







       [designate]



url = http://{{ CONTROLLER_SERVER_IP }}:9001/v2  ## This end point of designate



auth_type = password



auth_url = http://{{ CONTROLLER_SERVER_IP }}:5000



username = designate



password = rhlab123



project_name = services



project_domain_name = Default



user_domain_name = Default



allow_reverse_dns_lookup = True



ipv4_ptr_zone_prefix_size = 24



ipv6_ptr_zone_prefix_size = 116

编辑dns_domain的在neutron.conf：







       dns_domain = rhlab.dev.







# systemctl restart neutron-*

将dns添加到/etc/neutron/plugins/ml2/ml2_conf.ini中的Modular Layer 2（ML2）驱动程序列表中 ：
```
 extension_drivers=port_security,qos,dns
```

在“指定”中添加区域：

 # openstack zone create –email=admin@rhlab.dev rhlab.dev.

在rhlab.dev区域添加新记录：

 # openstack recordset create --record '192.168.1.230' --type A rhlab.dev. Test

现在应安装并配置“指定”。
