安卓主板与pc主板通信

Whether you need to update drivers, check hardware compatibility, or you’re just curious, it’s way easier to check your motherboard model number with these simple tricks than to crack open your case to check the board itself. Here’s how to check your motherboard model number from the comfort of your keyboard.

无论您是需要更新驱动程序，检查硬件兼容性还是只是好奇，使用这些简单的技巧来检查主板型号都比打开机箱检查主板本身更容易。 这是从键盘舒适度检查主板型号的方法。

我为什么要这样做？ (Why Do I Want To Do This?)

Knowing your motherboard’s model number is important if you’re thinking of upgrading your drivers, buying new hardware (you’ll need the proper expansion or memory slots, for example), or just checking the capabilities of your board if you’re considering upgrading your whole rig.

如果您打算升级驱动程序，购买新硬件(例如，您需要适当的扩展或内存插槽)，或者只是考虑检查主板的功能，则知道主板的型号非常重要。您的整个装备。

If you kept the paperwork that came with your computer (or the individual components, if you built it yourself), you can often times reference that. Even then, it’s best to check to make sure the documentation is correct. Rather than open the case and search for the model number on the board itself, use tools within Windows to check things out instead.

如果您保留计算机随附的文书工作(或单个组件，如果您自己构建的话)，则通常可以参考。 即使那样，最好还是检查以确保文档正确。 与其打开盒子并在板子上搜索型号，不如使用Windows中的工具进行检查。

从命令提示符(或PowerShell)检查您的型号 (Check Your Model Number from the Command Prompt (or PowerShell))

If you’re comfortable using the Command Prompt (or PowerShell, where these commands also work), you can easily check a variety of motherboard and hardware stats using the handy Windows Management Instrumentation Command-line (WMIC)—a command-line interface for Microsoft’s powerful WMI tool.

如果您习惯使用命令提示符(或PowerShell，这些命令也可以在其中使用)，则可以使用方便的Windows Management Instrumentation命令行(WMIC)轻松检查各种主板和硬件统计信息-Windows的命令行界面Microsoft强大的WMI工具。

With the WMIC, you can entry the query baseboard to check motherboard stats, and then use additional modifiers like get Manufacturer, Model, Name, PartNumber, slotlayout, serialnumber, or poweredon to get more detailed information about the motherboard.

使用WMIC，您可以输入查询baseboard以检查主板状态，然后使用其他修饰符，例如get Manufacturer, Model, Name, PartNumber, slotlayout, serialnumber, or poweredon以获取有关主板的更多详细信息。

As an example, let’s check a motherboard’s manufacturer, model number, and serial number using WMIC.

例如，让我们使用WMIC检查主板的制造商，型号和序列号。

Open up the command prompt in Windows via either the run dialog (Windows+R) or by searching for “cmd” on the Start menu—no need to run the Command Prompt as an administrator. And, as we mentioned, you could also use PowerShell here, if you prefer. The command works the same in both shells. At the command line, type the following text (noting that there are no spaces between the modifiers—just commas), and then hit Enter:

通过运行对话框(Windows + R)或在“开始”菜单上搜索“ cmd”在Windows中打开命令提示符-无需以管理员身份运行命令提示符。 而且，正如我们提到的，如果愿意，也可以在此处使用PowerShell。 该命令在两个shell中的工作原理相同。 在命令行中，键入以下文本(请注意，修饰符之间没有空格，只是逗号)，然后按Enter键：

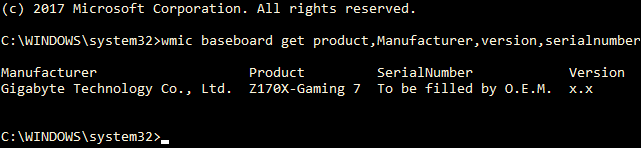

wmic baseboard get product,Manufacturer,version,serialnumber

The information returned checks out for the motherboard we’re using: the manufacturer is Gigabyte, the board is the Z170X-Gaming 7, and while the WMIC tool tried to check the serial number, Gigabyte left that particular bit unfilled for whatever reason. Nonetheless, the WMIC tool functioned just as it should, and without opening the case or using any third party tools, we have the basic information we’re looking for.

返回的信息将检查出我们正在使用的主板：制造商是技嘉，主板是Z170X-Gaming 7，而WMIC工具试图检查序列号，而技嘉则出于某种原因未填充该特定位。 尽管如此，WMIC工具仍能正常工作，并且无需打开外壳或使用任何第三方工具，我们就能获得所需的基本信息。

检查您的型号 (Check Your Model Number with Speccy)

If you’d prefer a GUI-based way to check your motherboard’s model number (as well as a method that yields more information at a glance than the WMIC tool), you can grab the free tool Speccy. It’s a handy app to have around.

如果您希望使用基于GUI的方法来检查主板的型号(以及比WMIC工具一目了然地获得更多信息的方法)，则可以使用免费工具Speccy 。 这是一个方便的应用程序。

After downloading and installing Speccy, go ahead and fire it up.

下载并安装Speccy之后，继续进行操作。

You can see the motherboard model number right on the summary page, along with it’s current operating temperature (assuming your board includes that). You can also see basic details about other system components.

您可以在摘要页面上直接看到主板型号，以及当前的工作温度(假设您的主板上包含该温度)。 您还可以查看有关其他系统组件的基本详细信息。

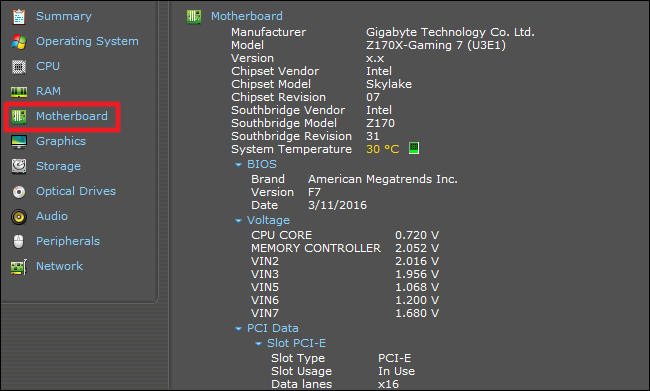

Click over to the “Motherboard” tab on the left to see even more information about your motherboard, including details about the chipset and voltages, along with the types of slots included on the board and whether or not they’re currently in use.

单击左侧的“主板”选项卡，以查看有关主板的更多信息，包括有关芯片组和电压的详细信息，以及主板上包含的插槽类型以及当前是否正在使用它们。

翻译自: https://www.howtogeek.com/208420/how-to-check-your-motherboard-model-number-on-your-windows-pc/
