之前写过一个通过redis 存储token的文章,又兴趣的可以去看看,地址为:oauth2.0 之redis 存储token

redis存储的不足就是,每一个令牌oauth2.0 都会给我生成9个key,这样我觉得会浪费内存资源,接下就在该文章的基础上修改一下,使用jwt来生成token,但是,我想说的是,redis方式,虽然存了很多数据在缓存中,但是他的token很短,就像uuid ,jwt 会很长,尤其是如果某个用户拥有很多权限的时候,生成的jwt 也会格外的长,另jwt,还有很多其他缺点,就不啰嗦了, 各位可以根据自己需要进行选择,最终我还是选择了redis形式...... 哈哈哈



需要创建 的三个模块,分别是认证服务器,资源服务器,还有就是网关,这里就简单做这几个模块分别为uaa,order,gateway

1.创建一个父工程

 其pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.yyc.platform</groupId>
    <artifactId>spring-security-oauth2.0</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>uaa</module>
        <module>gateway</module>
        <module>order</module>
    </modules>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <properties>
        <java.version>1.8</java.version>
        <druid.version>1.0.25</druid.version>
        <lombok.version>1.18.8</lombok.version>
        <mybatis.version>1.3.2</mybatis.version>
        <fasthson.version>1.2.41</fasthson.version>
        <mybatis-plus.version>3.0.3</mybatis-plus.version>
        <commons-lang.version>2.6</commons-lang.version>
        <mysql.version>8.0.19</mysql.version>
        <hutool.version>5.1.4</hutool.version>
        <commons-beanutils.version>1.9.4</commons-beanutils.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>commons-beanutils</groupId>
                <artifactId>commons-beanutils</artifactId>
                <version>${commons-beanutils.version}</version>
            </dependency>

            <dependency>
                <groupId>cn.hutool</groupId>
                <artifactId>hutool-all</artifactId>
                <version>${hutool.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>${mybatis-plus.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>${fasthson.version}</version>
            </dependency>

            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
            </dependency>
            <!--springcloud的依赖-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.2.0.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

2.搭建认证服务器

 2.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-security-oauth2.0</artifactId>
        <groupId>org.yyc.platform</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>uaa</artifactId>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
    </dependencies>
</project>

2.2 配置文件

server:
  port: 8001
spring:
  application:
    name: uaa
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    username: root
    password: root
    url: jdbc:mysql://127.0.0.1/oauth2?useSSL=false&serverTimezone=GMT%2B8
    type: com.alibaba.druid.pool.DruidDataSource
    druid:
      filters: stat,wall
  redis:
    host: 127.0.0.1
    port: 6379
    password: 123456
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
  cloud:
    nacos:
      server-addr: 127.0.0.1:8848



2.3 认证配置类

package com.yyc.platform.uaa.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.ClientDetailsService;
import org.springframework.security.oauth2.provider.client.JdbcClientDetailsService;
import org.springframework.security.oauth2.provider.token.DefaultTokenServices;
import org.springframework.security.oauth2.provider.token.TokenEnhancer;
import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import org.springframework.security.oauth2.provider.token.store.JwtTokenStore;
import org.springframework.security.oauth2.provider.token.store.redis.RedisTokenStore;

import javax.sql.DataSource;
import java.util.Arrays;

/**
 * @Auther: yangyongcui
 * @Date: 2020/7/13: 10:02
 * @Description:
 */
@Configuration
@EnableAuthorizationServer
public class AuthorizationServerConfiguration extends AuthorizationServerConfigurerAdapter {
    @Autowired
    private DataSource dataSource;

    @Autowired
    private RedisConnectionFactory redisConnectionFactory;

    @Autowired
    private AuthenticationManager authenticationManager;


    @Bean
    public JwtAccessTokenConverter jwtAccessTokenConverter() {
        JwtAccessTokenConverter jwtAccessTokenConverter = new JwtAccessTokenConverter();
        jwtAccessTokenConverter.setSigningKey("123");//对称加密,资源服务器需要和这个一致
        return jwtAccessTokenConverter;
    }

    @Bean
    public TokenStore tokenStore() {
        return new JwtTokenStore(jwtAccessTokenConverter());
        //return new RedisTokenStore(redisConnectionFactory);
        // return new JdbcTokenStore(dataSource);
    }

    /**
     * 使用数据库存储第三方信息(客户端信息), 比如我们自己写的前端页面,对于认证系统来说也称之为第三方
     * 会有个专门的表与之对应
     *
     * @return
     */
    @Bean
    public ClientDetailsService clientDetailsService() {
        return new JdbcClientDetailsService(dataSource);
    }

    /**
     * 关于token的详细配置
     *
     * @return
     */
    @Bean
    public DefaultTokenServices defaultTokenServices() {
        DefaultTokenServices defaultTokenServices = new DefaultTokenServices();
        defaultTokenServices.setClientDetailsService(clientDetailsService());
        //access_token 的有效期,如果数据库中配置了的话,会覆盖该值,如果想通过数据库的值来覆盖下面这俩值的话
        //需要有上面的配置defaultTokenServices.setClientDetailsService(clientDetailsService()),否则无法覆盖
        defaultTokenServices.setAccessTokenValiditySeconds(60 * 60);// 一小时
        //refresh_token 的有效期,如果数据库中配置了的话,会覆盖该值
        defaultTokenServices.setRefreshTokenValiditySeconds(60 * 60 * 24 * 7);//7天

        //是否支持返回refresh_token,false 将不会返回refresh_token
        defaultTokenServices.setSupportRefreshToken(true);
        //对应上面的token存储配置
        defaultTokenServices.setTokenStore(tokenStore());
        //配置返回jwt格式的token 转换
        defaultTokenServices.setTokenEnhancer(tokenEnhancerChain());
        return defaultTokenServices;
    }

    //配置返回jwt格式的token 转换
    public TokenEnhancerChain tokenEnhancerChain() {
        TokenEnhancerChain tokenEnhancerChain = new TokenEnhancerChain();
        tokenEnhancerChain.setTokenEnhancers(Arrays.asList(jwtAccessTokenConverter()));
        return tokenEnhancerChain;
    }

    /**
     * 用来配置授权以及令牌的访问端点和令牌服务
     *
     * @param endpoints
     * @throws Exception
     */
    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        endpoints.tokenServices(defaultTokenServices());
        //密码模式下 该配置必须有
        endpoints.authenticationManager(authenticationManager);
        endpoints.exceptionTranslator(myWebResponseExceptionTranslator());

    }

    @Bean
    public MyWebResponseExceptionTranslator myWebResponseExceptionTranslator() {
        return new MyWebResponseExceptionTranslator();
    }

    /**
     * 用来配置客户端详情信息,  也就是第三方,比如我们的自己的前端页面,app
     *
     * @param clients
     * @throws Exception
     */
    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        clients.withClientDetails(clientDetailsService());
    }

    /**
     * 用来配置令牌断点的安全约束
     *
     * @param security
     * @throws Exception
     */
    @Override
    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
        security.tokenKeyAccess("permitAll()").checkTokenAccess("permitAll()").allowFormAuthenticationForClients();
    }
}

2.4 Spring Security 的配置

package com.yyc.platform.uaa.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;

/**
 * @Auther: yangyongcui
 * @Date: 2020/7/13: 10:07
 * @Description:
 */
@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true, securedEnabled = true, jsr250Enabled = true)
public class WebSecurityConfiguration extends WebSecurityConfigurerAdapter {
    @Autowired
    private UserDetailsService userDetailsService;

    /**
     * 密码的加密方式
     * @return
     */
    @Bean
    public BCryptPasswordEncoder bCryptPasswordEncoder() {
        return new BCryptPasswordEncoder();
    }

    /**
     * 给认证管理器,配置userDetailsService ,这个接口是spring security提供的,我们需要实现它
     * @param auth
     * @throws Exception
     */
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.userDetailsService(userDetailsService);
    }

    /**
     * 这个配置 是需要在密码模式下,注入的时候需要的这个bean
     * @return
     * @throws Exception
     */
    @Override
    @Bean
    public AuthenticationManager authenticationManager() throws Exception {
        return super.authenticationManager();
    }


}

2.5 上一步提到的UserDetailsService 的实现类如下,其实就是根据用户名查询我们数据库中的用户,并查询对应的权限进行封装

具体的mapper啊,啥的就不贴了,就是基本的用户角色权限管理查询

package com.yyc.platform.uaa.service.impl;

import com.yyc.platform.uaa.model.TbPermission;
import com.yyc.platform.uaa.model.TbUser;
import com.yyc.platform.uaa.service.TbPermissionService;
import com.yyc.platform.uaa.service.TbUserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.List;


/**
 * @Auther: yangyongcui
 * @Date: 2020/7/13: 10:10
 * @Description:
 */
@Service
public class UserDetailsServiceImpl implements UserDetailsService {
    @Autowired
    private TbUserService tbUserService;
    @Autowired
    private TbPermissionService tbPermissionService;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        TbUser tbUser = tbUserService.getTbUserByUserName(username);
        if (tbUser == null) {
            throw new RuntimeException("无效用户");
        }
//通过用户id 查询对应的权限数据
        List<TbPermission> permissionByUserId = tbPermissionService.getPermissionByUserId(tbUser.getId());
        List<GrantedAuthority> grantedAuthorities = new ArrayList<>();
        permissionByUserId.forEach(p -> {
            if (p!=null&&p.getEnname() != null) {
                SimpleGrantedAuthority simpleGrantedAuthority = new SimpleGrantedAuthority(p.getEnname());
                grantedAuthorities.add(simpleGrantedAuthority);
            }
        });
        return new User(tbUser.getUsername(), tbUser.getPassword(), grantedAuthorities);
    }
}

2.6 启动类

@SpringBootApplication
@EnableDiscoveryClient
@MapperScan("com.yyc.platform.uaa.mapper")
public class UaaApp {
    public static void main(String[] args) {
        SpringApplication.run(UaaApp.class, args);
    }
}

2.7 关于oauth2.0 的存储第三方信息的数据库语句如下,数据库名和字段名不要变这是 oauth2.0 提供的

CREATE TABLE `oauth2`.`oauth_client_details`  (
  `client_id` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `resource_ids` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `client_secret` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `scope` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `authorized_grant_types` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `web_server_redirect_uri` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `authorities` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `access_token_validity` int(11) NULL DEFAULT NULL,
  `refresh_token_validity` int(11) NULL DEFAULT NULL,
  `additional_information` varchar(4096) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `autoapprove` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`client_id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

2.8 新增一条第三方(客户端)信息,比如我们的web 前端

INSERT INTO `oauth2`.`oauth_client_details`(`client_id`, `resource_ids`, `client_secret`, `scope`, `authorized_grant_types`, `web_server_redirect_uri`, `authorities`, `access_token_validity`, `refresh_token_validity`, `additional_information`, `autoapprove`) VALUES ('web', 'order', '$2a$10$pIrnSEMSih7YZqcKs/jWS.JEBoU8QeKLMxCyl5rGouFD4.ojpnVde', 'all', 'authorization_code,refresh_token,password', 'http://www.baidu.com', NULL, 300, 3600, NULL, 'false');

2.9 说明几个常用字段的意思

client_id 我们的app,web 等第三方服务的id,唯一,后面获取token的时候需要

resource_ids 是我们的资源服务器的名称,远程鉴权的时候需要

client_secret 客户端秘钥, 是需要密文的,根据上面我们配置的BCryptPasswordEncoder 进行加密之后的

scope 访问范围,比如read write all 等

authorized_grant_types 支持的授权模式, 这里有授权码模式authorization_code,密码模式password,还有就是需要加上refresh_token,支持我们刷新token

web_server_redirect_uri 回调地址,这里随便写的百度的,实际中写上自己的应用可访问的地址,授权码模式下需要根据这个地址返回授权码,然后拿着授权码去获取token

authorities 指定客户端所拥有的Spring Security的权限值,可选,

access_token_validity access_token的有效期.上面说过,这里有值的话,会覆盖程序中的有效期,更加灵活配置, 可选

refresh_token_validity 刷新token的有效期,上面说过,这里有值的话,会覆盖程序中的有效期,更加灵活配置, 可选

autoapprove 是否自动返回授权码,如果为true ,将会不需要有确认授权那一步,直接判断是否登录成功,登录成功的话之后根据回调地址返回授权码, 可选

2.10 至此,认证服务器就算配置完成了



3.order(资源服务器的创建)

 3.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-security-oauth2.0</artifactId>
        <groupId>org.yyc.platform</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>order</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>
</project>

3.2 配置文件

server:
  port: 8003
spring:
  application:
    name: order
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    username: root
    password: root
    url: jdbc:mysql://127.0.0.1/oauth2?useSSL=false&serverTimezone=GMT%2B8
    type: com.alibaba.druid.pool.DruidDataSource
    druid:
      filters: stat,wall

  redis:
    host: 127.0.0.1
    port: 6379
    password: 123456
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
  cloud:
    nacos:
      server-addr: 127.0.0.1:8848

3.3 资源配置类

package com.yyc.platform.order.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configurers.ResourceServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import org.springframework.security.oauth2.provider.token.store.JwtTokenStore;
import org.springframework.security.oauth2.provider.token.store.redis.RedisTokenStore;

/**
 * @Auther: yangyongcui
 * @Date: 2020/7/13: 14:12
 * @Description:
 */
@Configuration
@EnableResourceServer
public class ResourceServerConfiguration extends ResourceServerConfigurerAdapter {


    @Override
    public void configure(ResourceServerSecurityConfigurer resources) throws Exception {
        resources.resourceId("order").stateless(true).tokenStore(tokenStore());
    }

    @Bean
    public JwtAccessTokenConverter jwtAccessTokenConverter() {
        JwtAccessTokenConverter tokenConverter = new JwtAccessTokenConverter();
        tokenConverter.setSigningKey("123");
        return tokenConverter;
    }

    @Bean
    public TokenStore tokenStore() {
        return new JwtTokenStore(jwtAccessTokenConverter());
    }

    @Override
    public void configure(HttpSecurity http) throws Exception {
        http.csrf().disable().authorizeRequests()
                .anyRequest().authenticated()
                .and().sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS);
    }

}

3.4 启动类

package com.yyc.platform.order;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

/**
 * @Auther: yangyongcui
 * @Date: 2020/7/10: 17:08
 * @Description:
 */
@SpringBootApplication
@EnableDiscoveryClient
@MapperScan("com.yyc.platform.order.mapper")
public class OrderApp {
    public static void main(String[] args) {
        SpringApplication.run(OrderApp.class,args);
    }
}

3.5 测试controller

package com.yyc.platform.order.controller;

import lombok.extern.slf4j.Slf4j;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Auther: yangyongcui
 * @Date: 2020/7/13: 14:04
 * @Description:
 */
@RestController
@Slf4j
public class OrderController {

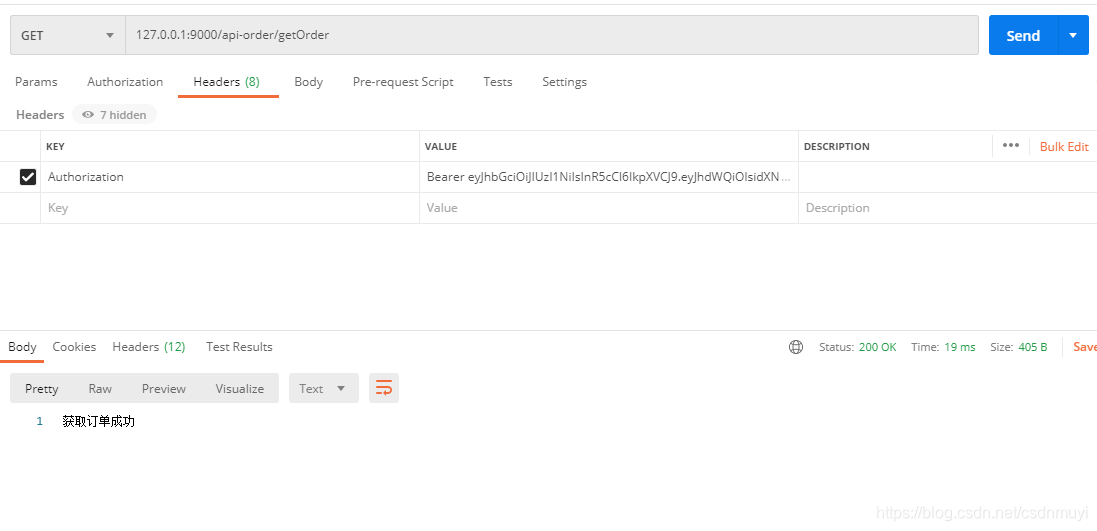

    @GetMapping("getOrder")
    public String getOrder() {
        Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
        log.info("用户信息:{}",authentication);
        return "获取订单成功";
    }
}

3.6 至此order 服务就搭建完了

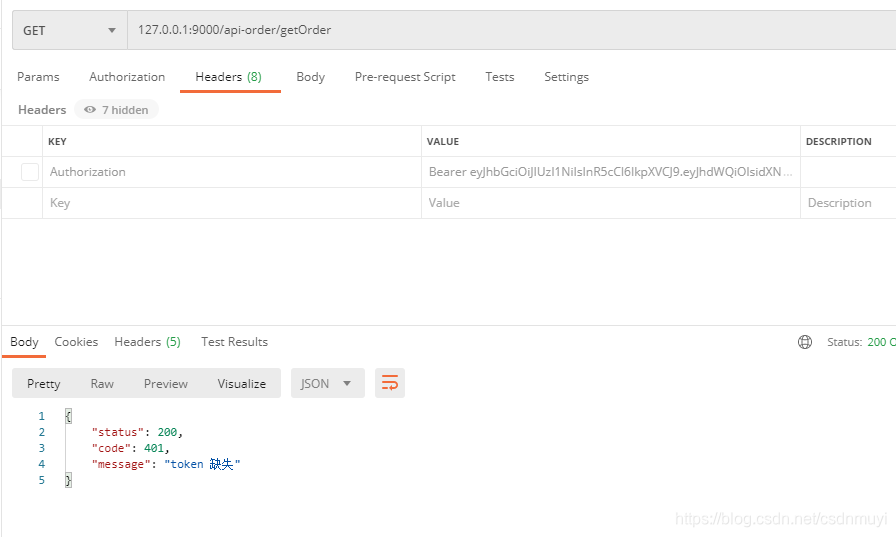

4.网关搭建 ,这里的网关只是做了个跳转,然后判断了有没有携带token,并没有进行token是否可用的校验

 4.1 pom.xml



<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-security-oauth2.0</artifactId>
        <groupId>org.yyc.platform</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>gateway</artifactId>

    <dependencies>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-nacos-discovery</artifactId>
        </dependency>
    </dependencies>
</project>

4.2 配置文件

server:
  port: 9000
spring:
  application:
    name: gateway
  cloud:
    nacos:
      server-addr: 127.0.0.1:8848
    gateway:
      routes:
        - id: uaa
          uri: lb://uaa
          predicates:
            - Path=/api-uaa/**
          filters:
            - StripPrefix=1
            - PreserveHostHeader
        - id: auth-login-process
          uri: lb://uaa
          predicates:
            - Path=/login
          filters:
            - PreserveHostHeader
        - id: auth-login-token
          uri: lb://uaa
          predicates:
            - Path=/oauth/token
          filters:
            - PreserveHostHeader
        - id: auth-login-authorize
          uri: lb://uaa
          predicates:
            - Path=/oauth/authorize
          filters:
            - PreserveHostHeader
        - id: auth-check-process
          uri: lb://uaa
          predicates:
            - Path=/oauth/check_token
          filters:
            - PreserveHostHeader
        - id: order
          uri: lb://order
          predicates:
            - Path=/api-order/**
          filters:
            - StripPrefix=1
            - PreserveHostHeader

4.3 跨域设置

package com.yyc.platform.gateway.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.reactive.CorsWebFilter;
import org.springframework.web.cors.reactive.UrlBasedCorsConfigurationSource;
import org.springframework.web.util.pattern.PathPatternParser;

@Configuration
public class CorsConfig {
    private static final String ALL = "*";
    @Bean
    public CorsWebFilter corsFilter() {
        CorsConfiguration config = new CorsConfiguration();
        config.setAllowCredentials(true);
        config.addAllowedMethod(ALL);
        config.addAllowedOrigin(ALL);
        config.addAllowedHeader(ALL);
        config.addExposedHeader("setToken");
        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource(new PathPatternParser());
        source.registerCorsConfiguration("/**", config);

        return new CorsWebFilter(source);
    }
}

4.4 启动类

package com.yyc.platform.gateway;

import com.yyc.platform.gateway.exception.MyErrorAttributes;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.context.annotation.Bean;

/**
 * @Auther: yangyongcui
 * @Date: 2020/7/10: 17:05
 * @Description:
 */
@SpringBootApplication
@EnableDiscoveryClient
public class GatewayApp {
    public static void main(String[] args) {
        SpringApplication.run(GatewayApp.class, args);
    }

    @Bean
    public MyErrorAttributes errorAttributes() {
        return new MyErrorAttributes();
    }
}

4.5 过滤器,校验是否携带了token

package com.yyc.platform.gateway.filter;

import com.yyc.platform.gateway.exception.TokenMissingException;
import org.apache.commons.lang3.StringUtils;
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.core.Ordered;
import org.springframework.http.server.reactive.ServerHttpRequest;
import org.springframework.stereotype.Component;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import javax.annotation.PostConstruct;
import java.net.URI;
import java.util.ArrayList;
import java.util.List;

/**
 * @Auther: yangyongcui
 * @Date: 2020/7/14: 17:14
 * @Description:
 */
@Component
public class MyGlobalFilter implements GlobalFilter, Ordered {
    private static final List<String> ignoeUrl = new ArrayList<>();

    @PostConstruct
    public void add() {
        ignoeUrl.add("/oauth/token");
        ignoeUrl.add("/oauth/authorize");
        ignoeUrl.add("/oauth/check_token");
    }

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
        ServerHttpRequest request = exchange.getRequest();
        String path = request.getPath().toString();
        Mono<Void> mono = null;
        if (ignoeUrl.contains(path)) {
            mono = chain.filter(exchange);
        } else {
            String authorization = exchange.getRequest().getHeaders().getFirst("Authorization");
            String access_token = exchange.getRequest().getQueryParams().getFirst("access_token");
            if (StringUtils.isBlank(authorization) && StringUtils.isBlank(access_token)) {
                throw new TokenMissingException();
            }
            if (StringUtils.isNotBlank(authorization)) {
                String bearer = authorization.replace("Bearer", "").trim();
                if (StringUtils.isBlank(bearer)) {
                    throw new TokenMissingException();
                }
            }
            mono = chain.filter(exchange);
        }
        return mono;
    }

    @Override
    public int getOrder() {
        return 0;
    }
}

4.6 过滤器中用到的 自定义的 TokenMissingException类

package com.yyc.platform.gateway.exception;

import lombok.Data;
import org.springframework.http.HttpStatus;

/**
 * @Auther: yangyongcui
 * @Date: 2020/7/16: 08:54
 * @Description:
 */
@Data
public class TokenMissingException extends RuntimeException {
    private static final long serialVersionUID = 1675869806237187647L;
    private String msg;
    private HttpStatus status;

    public TokenMissingException() {
        this.status = HttpStatus.UNAUTHORIZED;
        this.msg = "token 缺失";
    }


}

4.7 自定义的 MyErrorAttributes 当网关抛出异常之后,给前端一个合适的返回结构

package com.yyc.platform.gateway.exception;

import org.springframework.boot.web.reactive.error.DefaultErrorAttributes;
import org.springframework.boot.web.reactive.error.ErrorAttributes;
import org.springframework.core.annotation.MergedAnnotation;
import org.springframework.core.annotation.MergedAnnotations;
import org.springframework.http.HttpStatus;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.ResponseStatus;
import org.springframework.web.bind.support.WebExchangeBindException;
import org.springframework.web.reactive.function.server.ServerRequest;
import org.springframework.web.server.ResponseStatusException;
import org.springframework.web.server.ServerWebExchange;

import java.io.PrintWriter;
import java.io.StringWriter;
import java.util.LinkedHashMap;
import java.util.Map;

/**
 * @Auther: yangyongcui
 * @Date: 2020/7/16: 09:51
 * @Description:
 */
public class MyErrorAttributes implements ErrorAttributes {
    private static final String ATTRIBUTE_ERROR = DefaultErrorAttributes.class.getName() + ".ERROR";
    private final boolean includeException;


    public MyErrorAttributes() {
        this(false);
    }


    public MyErrorAttributes(boolean includeException) {
        this.includeException = includeException;
    }

    @Override
    public Map<String, Object> getErrorAttributes(ServerRequest request, boolean includeStackTrace) {
        Map<String, Object> errorAttributes = new LinkedHashMap<>();
        Throwable error = getError(request);
        MergedAnnotation<ResponseStatus> responseStatusAnnotation = MergedAnnotations
                .from(error.getClass(), MergedAnnotations.SearchStrategy.TYPE_HIERARCHY).get(ResponseStatus.class);
        HttpStatus errorStatus = getHttpStatus(error, responseStatusAnnotation);
        //status 需要为200
        errorAttributes.put("status", 200);
        //异常code
        errorAttributes.put("code", errorStatus.value());
        //自定义的信息
        errorAttributes.put("message", getMessage(error, responseStatusAnnotation));
        handleException(errorAttributes, getException(error), includeStackTrace);
        return errorAttributes;
    }

    private HttpStatus getHttpStatus(Throwable error, MergedAnnotation<ResponseStatus> responseStatusAnnotation) {
        if (error instanceof ResponseStatusException) {
            return ((ResponseStatusException) error).getStatus();
        }else if (error instanceof TokenMissingException){
            return ((TokenMissingException) error).getStatus();
        }
        return responseStatusAnnotation.getValue("code", HttpStatus.class).orElse(HttpStatus.INTERNAL_SERVER_ERROR);
    }

    private String getMessage(Throwable error, MergedAnnotation<ResponseStatus> responseStatusAnnotation) {
        if (error instanceof WebExchangeBindException) {
            return error.getMessage();
        }
        if (error instanceof ResponseStatusException) {
            return ((ResponseStatusException) error).getReason();
        }
        if (error instanceof TokenMissingException){
            return ((TokenMissingException) error).getMsg();
        }
        return responseStatusAnnotation.getValue("reason", String.class).orElseGet(error::getMessage);
    }

    private Throwable getException(Throwable error) {
        if (error instanceof ResponseStatusException) {
            return (error.getCause() != null) ? error.getCause() : error;
        }
        return error;
    }

    private void addStackTrace(Map<String, Object> errorAttributes, Throwable error) {
        StringWriter stackTrace = new StringWriter();
        error.printStackTrace(new PrintWriter(stackTrace));
        stackTrace.flush();
        errorAttributes.put("trace", stackTrace.toString());
    }

    private void handleException(Map<String, Object> errorAttributes, Throwable error, boolean includeStackTrace) {
        if (this.includeException) {
            errorAttributes.put("exception", error.getClass().getName());
        }
        if (includeStackTrace) {
            addStackTrace(errorAttributes, error);
        }
        if (error instanceof BindingResult) {
            BindingResult result = (BindingResult) error;
            if (result.hasErrors()) {
                errorAttributes.put("errors", result.getAllErrors());
            }
        }
    }

    @Override
    public Throwable getError(ServerRequest request) {
        return (Throwable) request.attribute(ATTRIBUTE_ERROR)
                .orElseThrow(() -> new IllegalStateException("Missing exception attribute in ServerWebExchange"));
    }

    @Override
    public void storeErrorInformation(Throwable error, ServerWebExchange exchange) {
        exchange.getAttributes().putIfAbsent(ATTRIBUTE_ERROR, error);
    }
}

4.5 至此网关就搭建完了

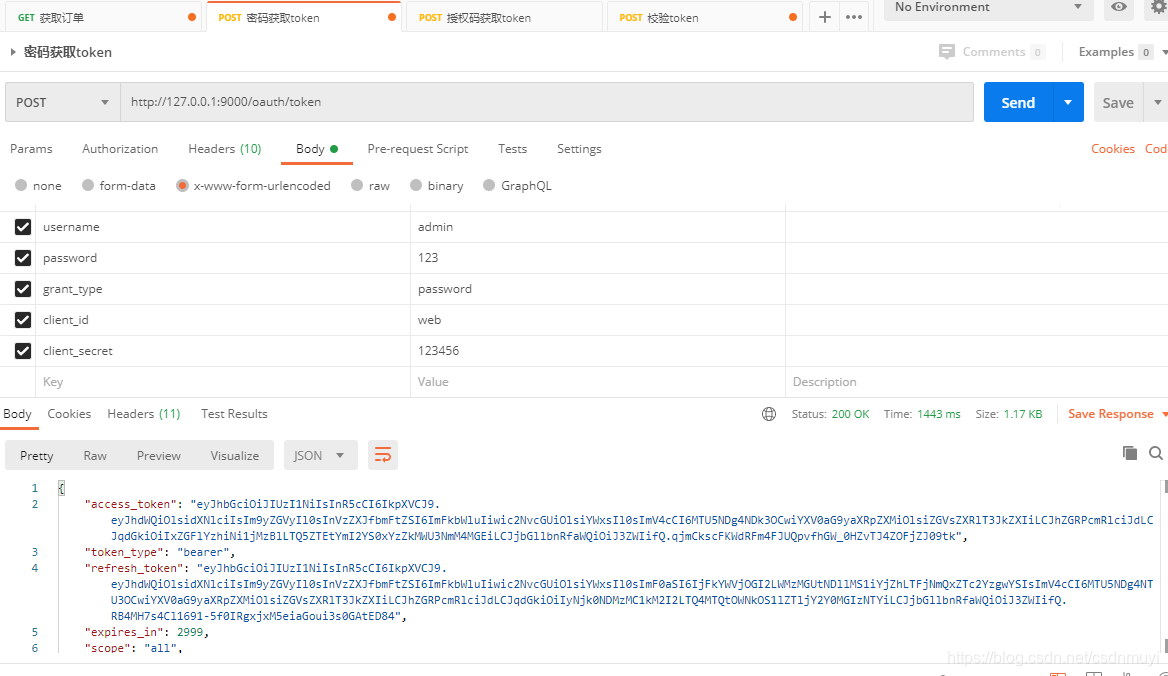

测试调用资源服务器

测试不带token ,网关进行了拦截

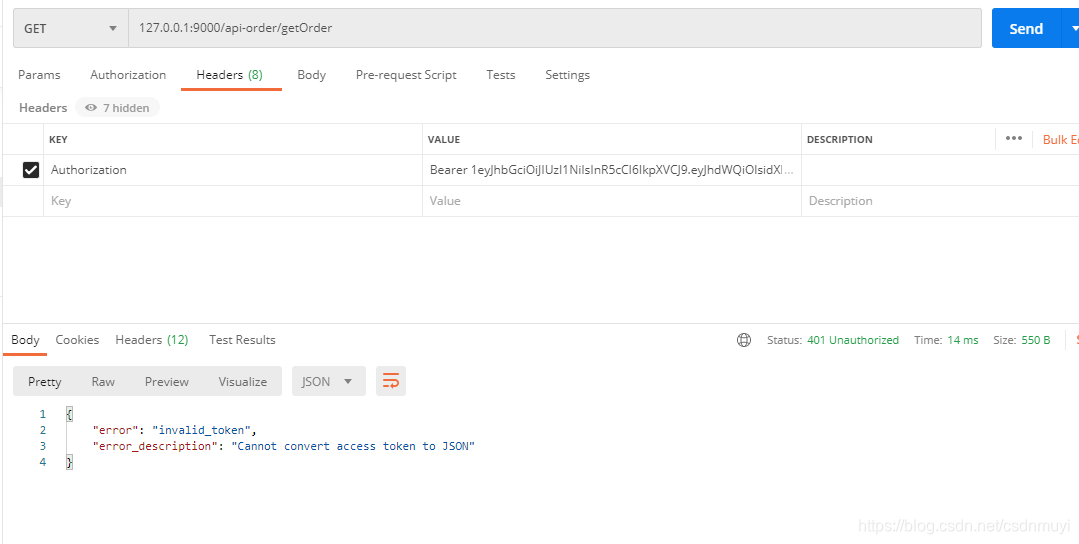

 测试携带错误的token,在token前添加个1





OAuth2.0协议原理与实现：TOKEN生成算法
weixin_34419321的博客
03-11 5157
2019独角兽企业重金招聘Python工程师标准>>> ...
Spring Security Oauth2使用JWT生成Token
LiaoHongHB的博客
11-13 7944
转载务必说明出处：https://blog.csdn.net/LiaoHongHB/article/details/84031281 在我们平时使用oauth2的协议中，生成的token是基于oauth2协议本身的生成策略，如下面的代码（一般在登陆成功的handler中生成token）.： package com.car.springsecurity.handle; import com....
springcloud oauth2 授权码模式.密码模式之redis存储token
csdnmuyi的博客
07-14 3557
授权码模式 需要创建 的三个模块,分别是认证服务器,资源服务器,还有就是网关,这里就简单做这几个模块分别为uaa,order,gateway 1.创建一个父工程 其pom.xml: <?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instanc.
手把手带你学扣子Coze之使用JWT获取Access Token
最新发布
落笔画忧愁
03-15 1301
授权流程如下：在扣子平台创建 OAuth 应用。应用程序通过公钥和私钥签署 JWT。应用程序通过API，获取访问令牌。应用程序根据访问令牌调用扣子 API。
OAuth2.0实现自定义颁发token
doinbb的博客
03-18 5915
一. 底层原理 通过浏览器/外部服务传入账号密码，以及clientId以及secret申请token，底层实现token颁发的类： org.springframework.security.oauth2.provider.endpoint.TokenEndpoint -- postAccessToken()方法 二. 自定义实现 /** * 生成 oauth2...
FastAPI 基于OAuth2和JWT的Token认证机制(一)生成token
高压锅博客
06-18 1161
1. OAuth2PasswordBearer OAuth2PasswordBearer是接收URL作为参数的一个类：客户端会向该URL发送username和password参数，然后得到一个token值。 OAuth2PasswordBearer并不会创建相应的URL路径操作，只是指明了客户端用来获取token的目标URL。 当请求到来的时候，FastAPI会检查请求的Authorization头信息，如果没有找到Authorization头信息，或者头信息的内容不是Bearer token，它会返
关于OAUTH2.0自定义JWT生成TOKEN实现
奋斗
08-03 1449
记录一下OAUTH2.0配置自己定义的JWT生成的TOKEN
基于springboot+oauth2.0+jwtToken鉴权认证开发的后台接口，整套架构采用restful风格，车牌识别，阿里云消息推送，短信接口等
04-04
内容只为接口开发，配合前端和移动app调用使用，不包含html页面，基于springboot+oauth2.0+jwttoken鉴权（内有怎么使用redistoken和数据库token注释）+restful风格+阿里短信+阿里消息推送+车牌识别等。该项目为工作...
OAuth 2.0 （二）Bearer Token
w_t_y_y的博客
11-26 859
是 OAuth 2.0 和其他授权框架中常用的一种认证机制。它是一种访问令牌，用于在客户端和服务器之间进行身份验证和授权。Bearer Token 通常用于通过 HTTP 请求头（）传递，以便服务器验证客户端的请求是否有权限访问某些资源。
oauth2使用jwt生成token
weixin_32445909的博客
06-18 1273
1，依赖 <?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-
Jwt.zip_jwt_oauth2.0_oauth2.0 加解密_php解密工具
09-14
使用这个库，你可以轻松地在 OAuth 2.0 流程中生成 JWT 访问令牌，并在接收请求时验证它们。 从提供的压缩包文件名 "Jwt.php" 来看，这可能是一个 PHP 类或函数库，用于处理 JWT 相关的操作，包括但不限于创建、...
自定义的方式，使用oauth2生成token+token续命
m0_56356631的博客
05-14 6877
使用oauth2生成 token 的流程+续命
OAuth2.0实战，使用JWT令牌认证
终码一生
12-15 5857
点击“终码一生”，关注，置顶公众号 每日技术干货，第一时间送达！ 今天这篇文章介绍一下OAuth2.0如何集成JWT颁发令牌，这也是目前企业中主流的令牌形式。 文章目录如下： 什么是JWT？ OAuth2.0体系中令牌分为两类，分别是透明令牌、不透明令牌。 不透明令牌则是令牌本身不存储任何信息，比如一串UUID，上篇文章中使用的InMemoryTokenStore就类似这种。 因此资源服务拿到这个令牌必须调调用认证授权服务的接口进行令牌的校验，高并发的情况下延迟很高，性能很低，正如上篇
Spring Security OAuth2.0认证授权三：使用JWT令牌
狂盗一枝梅的专栏
01-11 1040
Spring Security OAuth2.0系列文章： Spring Security OAuth2.0认证授权一：框架搭建和认证测试 Spring Security OAuth2.0认证授权二：搭建资源服务 前面两篇文章详细讲解了如何基于spring boot + oath2.0搭建认证中心和资源中心，本篇文章将会讲解集成jwt以及将客户端信息和授权码信息保存到数据库。 一、 JWT 1. JWT简介 JSON Web Token（JWT）是一个开放的行业标准（RFC 7519），它定义了一种简介
Spring Security+Oauth2+JWT实现用户登录逻辑，以及使用login接口登录成功返回token获取
z132411的博客
05-07 4938
目录 pom引入 配置Spring Security 1.实现UserDetailsService接口 2.登录成功处理 3.登录失败处理 4.登出处理 5.没有权限处理设置 6.匿名用户访问处理 7.指定加密方式 8.WebSecurityConfig配置 oauth2处理 配置授权服务器 配置资源服务器 jwt配置 jwt转换器 jwt扩展存储 本文整合了前两篇文章，再结合Oauth2实现了单点登录的基本处理。 之前的文章： SpringBoot整合Spring
springboot2.0整合OAuth2并使用JWT作为token。
光滑的秃头
12-02 4338
之前实现了Springboot之Security前后端分离登录 刚好这段时间有空，乘机整合下OAuth2。记录下当中遇到的问题和处理方式。 什么是OAuth2? OAuth 2.0 的一个简单解释 具体代码实现 POM文件 <dependency> <groupId>org.springframework.security.oauth.boot</groupId> <artifactId>spr
springsecurity-oauth2集成，jwt生成token，源码解析
做技术，贵在学习与坚持！
08-14 1402
springsecurity-oauth2集成，jwt生成token 认证 @Configuration @EnableAuthorizationServer public class AuthorizationServerConfiguration extends AuthorizationServerConfigurerAdapter { @Autowired private DataSource dataSource; @Autowired private JwtAccessToke
源码分析 - Spring Security OAuth2 生成 token 的执行流程
nimo10050的博客
06-29 7105
前言 本文内容基于 Spring Security OAuth2(2.3.5.RELEASE) 源码进行分析. 正文 获取 token 的默认请求路径是 /oauth/token 获取 token 的入口是 TokenEndpoint 类 该请求接收的参数有两个 Principal principal Map<String, String> parameters 详细流程 当一个请求打到 oauth/token 时: 调用 ClientDetailsService 类的 loadClie
Spring Security OAuth2.0 token生成与刷新机制源码阅读
Mr1ght的博客
07-09 2791
一.介绍 Spring Security Oauth2是目前市面上非常流行的实现了OAuth2.0协议的权限框架。本文会介绍其是如何获取token以及刷新token的。 二.AbstractEndPoint Spring Security OAuth2的获取token、校验token等接口均配置在EndPoint中的 AuthorizationEndpoint主要是第三方授权模式中的 获取code的流程接口 http://localhost:xxxx/auth/oauth/authorize Toke
oauth2.0如何验验证 jwttoken
08-23
在OAuth2.0中，验证JWT Token的方式可以通过配置RemoteTokenServices来实现。当资源服务与授权服务不在同一处时，资源服务可以通过远程请求授权服务来验证JWT Token的有效性。这种方式可以避免资源服务直接解析和验证Token带来的性能压力。 具体实现步骤如下： 1. 在资源服务的配置文件中，配置RemoteTokenServices，设置授权服务的URL、ClientId和ClientSecret等信息。 2. 当资源服务收到请求时，从请求Header中获取JWT Token。 3. 调用RemoteTokenServices的方法，将JWT Token传递给授权服务进行验证。 4. 授权服务验证JWT Token的有效性，并返回验证结果给资源服务。如果Token有效，则资源服务可以继续处理请求；如果Token无效，则资源服务可以拒绝请求或者重新进行身份认证。 通过以上步骤，资源服务可以通过远程请求授权服务来验证JWT Token的有效性，从而确保接收到的Token是合法的。这种方式可以提高系统的性能，尤其在访问量较大时能够减轻资源服务的负担。<span class="em">1</span><span class="em">2</span><span class="em">3</span> #### 引用[.reference_title] - *1* [OAuth2.0实战 使用JWT令牌认证](https://blog.csdn.net/Pastxu/article/details/124538331)[target="_blank" data-report-click={"spm":"1018.2226.3001.9630","extra":{"utm_source":"vip_chatgpt_common_search_pc_result","utm_medium":"distribute.pc_search_result.none-task-cask-2~all~insert_cask~default-1-null.142^v93^chatsearchT3_1"}}] [.reference_item style="max-width: 50%"] - *2* *3* [OAuth2.0 - 使用JWT替换Token 及 JWT内容增强](https://blog.csdn.net/qq_43692950/article/details/122525414)[target="_blank" data-report-click={"spm":"1018.2226.3001.9630","extra":{"utm_source":"vip_chatgpt_common_search_pc_result","utm_medium":"distribute.pc_search_result.none-task-cask-2~all~insert_cask~default-1-null.142^v93^chatsearchT3_1"}}] [.reference_item style="max-width: 50%"] [ .reference_list ]
评论 2
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
