Eclipse maven版ssh整合

环境：windows+Tomcat v8.0 +jdk1.8
开发工具：Eclipse
框架：spring + struts2（2.5.13） + hibernate

下面开始进入项目整合：

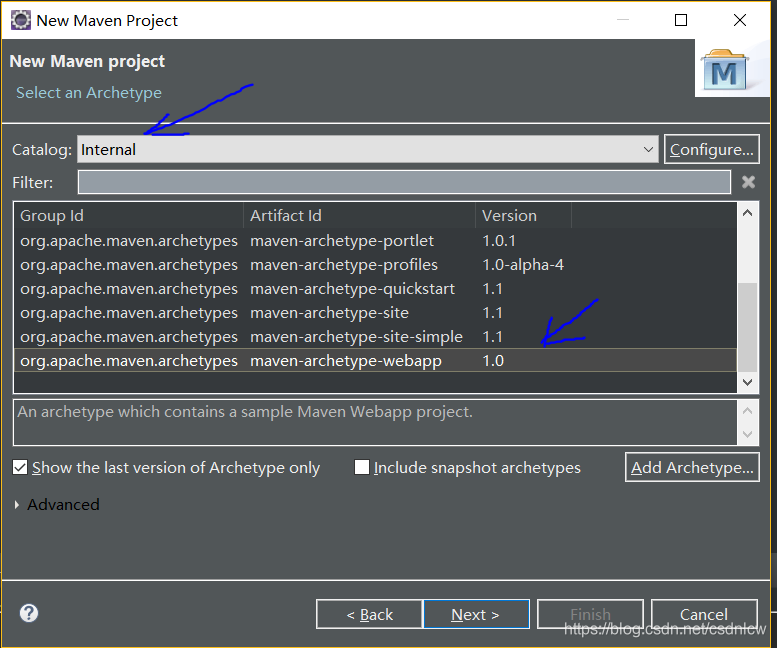

1，创建maven项目：

2

3

4
到这一步点击finish就行了!!!

开始搭建项目：

pom.xml
<!--第一步就是配置maven-compiler-plugin插件-->
注意:如果是jdk1.7需要改成1.7
<plugins>
<plugin>
	<groupId>org.apache.maven.plugins</groupId>
	<artifactId>maven-compiler-plugin</artifactId>
	<version>3.7.0</version>
	<configuration>
		<source>1.8</source>
		<target>1.8</target>
		<encoding>UTF-8</encoding>
	</configuration>
</plugin>
</plugins>

修改web.xml

<!-- 第二步修改web.xml由2.3至3.0 -->
jdk1.8对应3.0    jdk1.7对应3.0
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://java.sun.com/xml/ns/javaee"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_1.xsd"
	id="WebApp_ID" version="3.1">
</web-app>

在右击项目选择properties



右击项目选择build path点击Apply and Close

导入pom依赖jar包
<properties>
		<hibernate.version>5.2.12.Final</hibernate.version>
		<mysql.version>5.1.44</mysql.version>
		<spring.version>5.0.1.RELEASE</spring.version>
		<struts2.version>2.5.13</struts2.version>
		<slf4j.version>1.7.7</slf4j.version>
		<log4j.version>2.9.1</log4j.version>
		<disruptor.version>3.2.0</disruptor.version>
		<junit.version>4.12</junit.version>
		<servlet.version>4.0.0</servlet.version>
		<jstl.version>1.2</jstl.version>
		<standard.version>1.1.2</standard.version>
		<tomcat-jsp-api.version>8.0.47</tomcat-jsp-api.version>
	</properties>

		<!-- 1、hibernate相关(5.2.12.Final) -->
		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-core</artifactId>
			<version>${hibernate.version}</version>
		</dependency>

		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-c3p0</artifactId>
			<version>${hibernate.version}</version>
		</dependency>

		<dependency>
			<groupId>org.hibernate</groupId>
			<artifactId>hibernate-ehcache</artifactId>
			<version>${hibernate.version}</version>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>${mysql.version}</version>
		</dependency>

		<!-- 2、spring相关(5.0.1.RELEASE) -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-orm</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aspects</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<!-- 3、struts2相关(2.5.13) -->
		<dependency>
			<groupId>org.apache.struts</groupId>
			<artifactId>struts2-core</artifactId>
			<version>${struts2.version}</version>
		</dependency>

		<dependency>
			<groupId>org.apache.struts</groupId>
			<artifactId>struts2-spring-plugin</artifactId>
			<version>${struts2.version}</version>
		</dependency>

		<!-- 4、log配置 -->
		<!-- log配置：Log4j2 + Slf4j -->
		<!-- slf4j核心包 -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${slf4j.version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>${slf4j.version}</version>
			<scope>runtime</scope>
		</dependency>

		<!--用于与slf4j保持桥接 -->
		<dependency>
			<groupId>org.apache.logging.log4j</groupId>
			<artifactId>log4j-slf4j-impl</artifactId>
			<version>${log4j.version}</version>
		</dependency>

		<!--核心log4j2jar包 -->
		<dependency>
			<groupId>org.apache.logging.log4j</groupId>
			<artifactId>log4j-api</artifactId>
			<version>${log4j.version}</version>
		</dependency>
		<dependency>
			<groupId>org.apache.logging.log4j</groupId>
			<artifactId>log4j-core</artifactId>
			<version>${log4j.version}</version>
		</dependency>

		<!--web工程需要包含log4j-web，非web工程不需要 -->
		<dependency>
			<groupId>org.apache.logging.log4j</groupId>
			<artifactId>log4j-web</artifactId>
			<version>${log4j.version}</version>
			<scope>runtime</scope>
		</dependency>
		<!--需要使用log4j2的AsyncLogger需要包含disruptor -->
		<dependency>
			<groupId>com.lmax</groupId>
			<artifactId>disruptor</artifactId>
			<version>${disruptor.version}</version>
		</dependency>

		<!-- 5、other -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>${junit.version}</version>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>javax.servlet-api</artifactId>
			<version>${servlet.version}</version>
			<scope>provided</scope>
		</dependency>

		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>${jstl.version}</version>
		</dependency>
		<dependency>
			<groupId>taglibs</groupId>
			<artifactId>standard</artifactId>
			<version>${standard.version}</version>
		</dependency>

		<dependency>
			<groupId>org.apache.tomcat</groupId>
			<artifactId>tomcat-jsp-api</artifactId>
			<version>${tomcat-jsp-api.version}</version>
		</dependency>

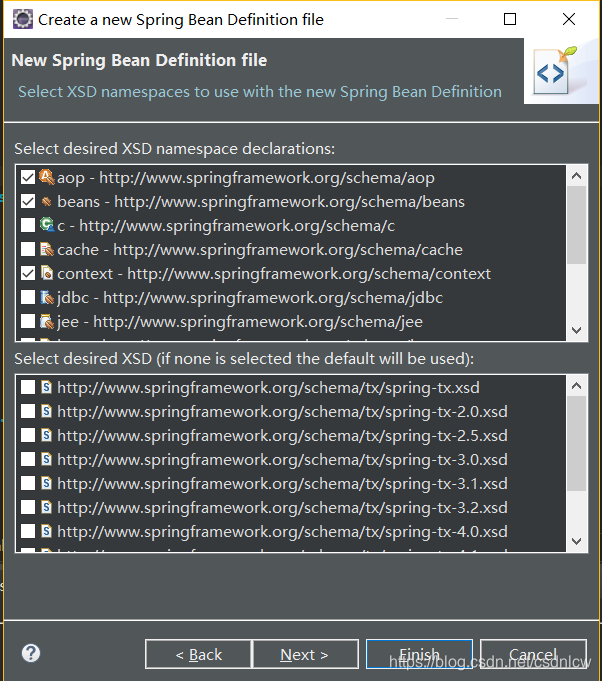

右击src目录下的resources创建spring-context

选择aop切面，beans类工具,context上下文,tx事物
