Activiti6测试数据观察——并行网关

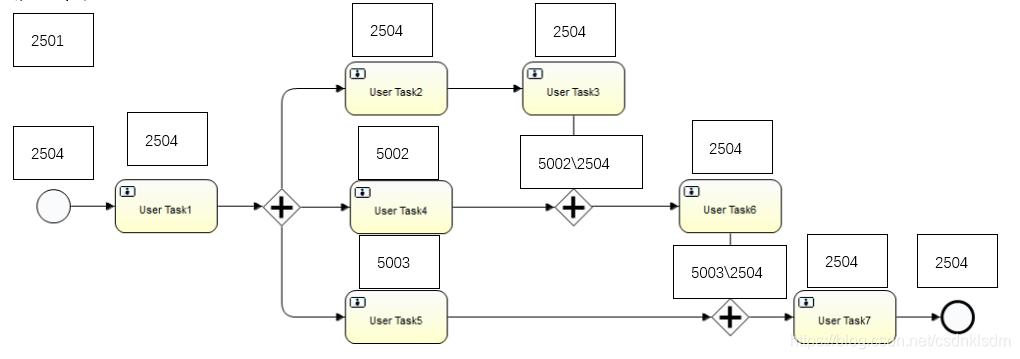

流程图:1-4-2-3-5-6-7

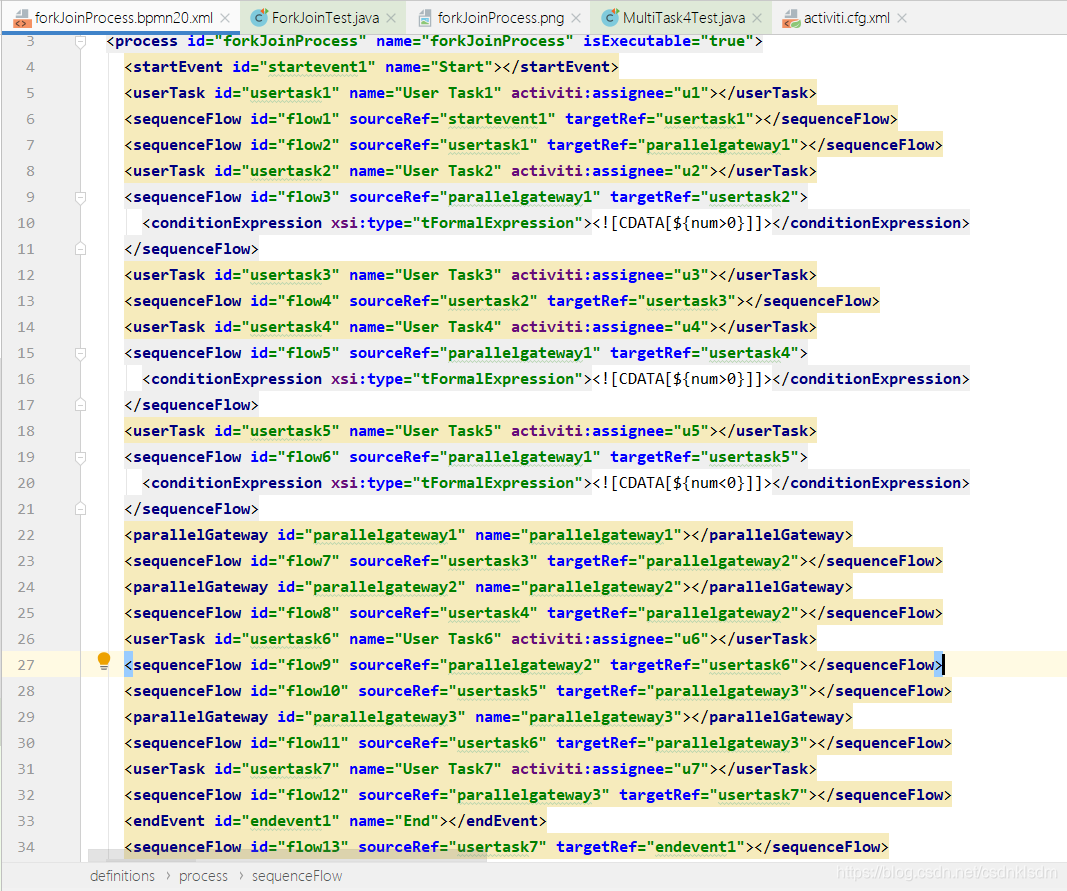

流程文档:

1.部署流程:

略,可参考请假流程

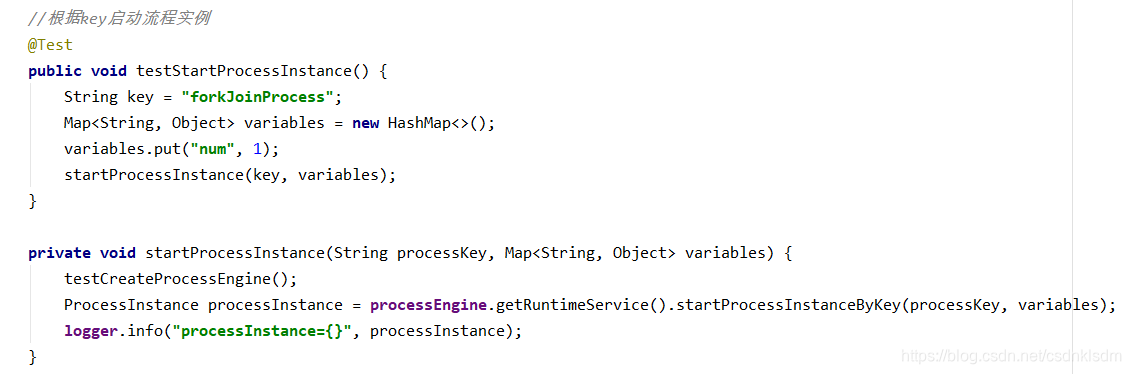

2.启动流程

select * from act_ru_execution;



select * from act_ru_task;

select * from act_ru_variable;

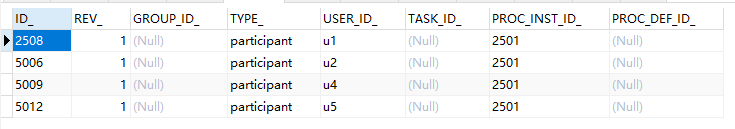

select * from act_ru_identitylink;

select * from act_hi_procinst;

select * from act_hi_actinst;

select * from act_hi_taskinst;

select * from act_hi_varinst;

select * from act_hi_identitylink;

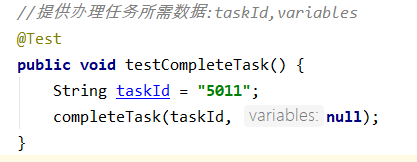

3.办理流程

select * from act_ru_execution;

select * from act_ru_task;

select * from act_ru_variable;

select * from act_ru_identitylink;

select * from act_hi_procinst;

select * from act_hi_actinst;

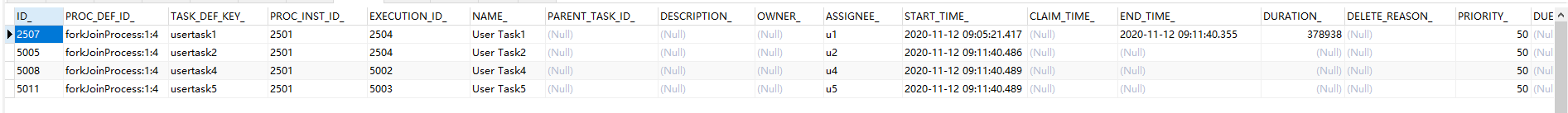

select * from act_hi_taskinst;

select * from act_hi_varinst;

select * from act_hi_identitylink;



4.办理流程

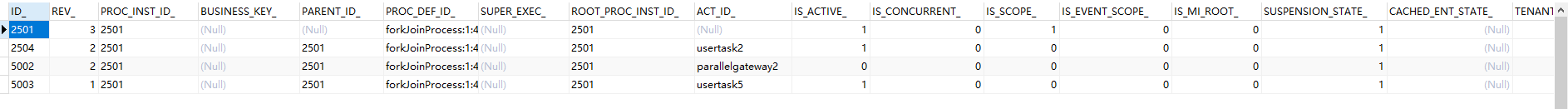

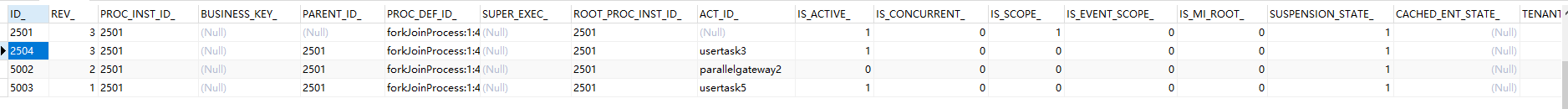

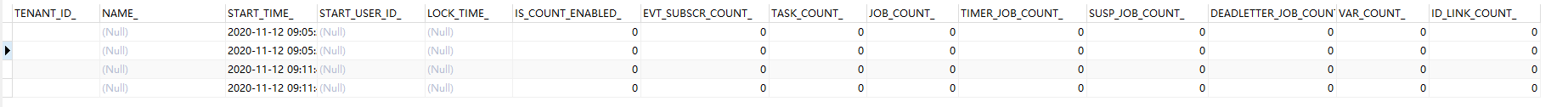

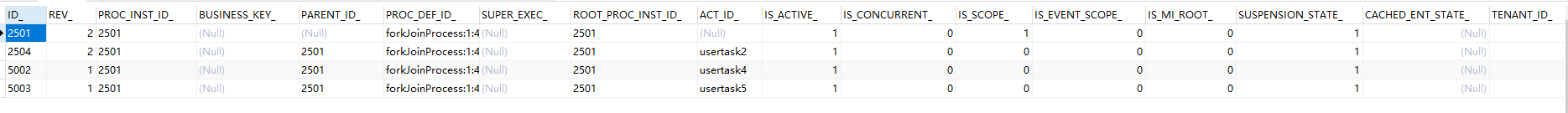

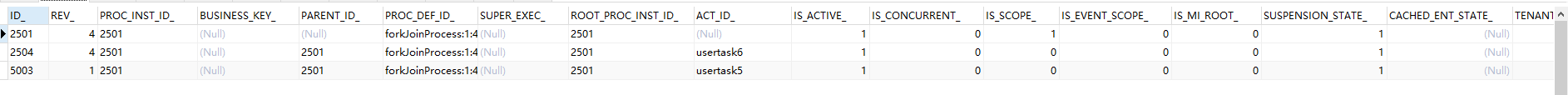

select * from act_ru_execution;

此时parallelgateway2的IS_ACTIVE_字段为0

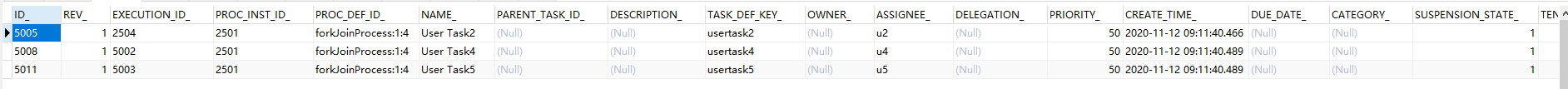

select * from act_ru_task;

select * from act_ru_variable;

select * from act_ru_identitylink;

select * from act_hi_procinst;

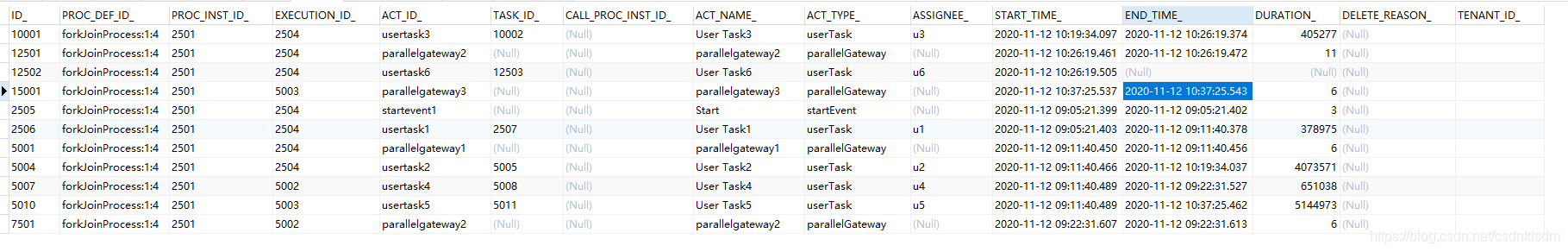

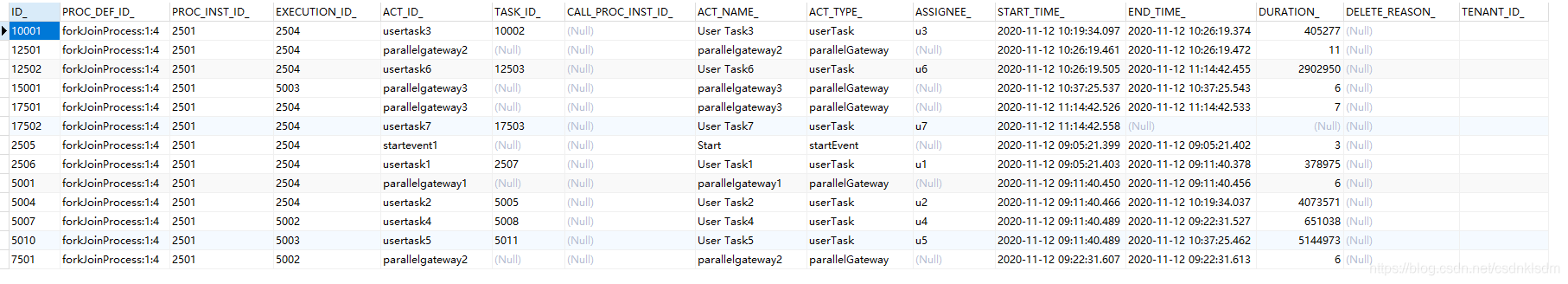

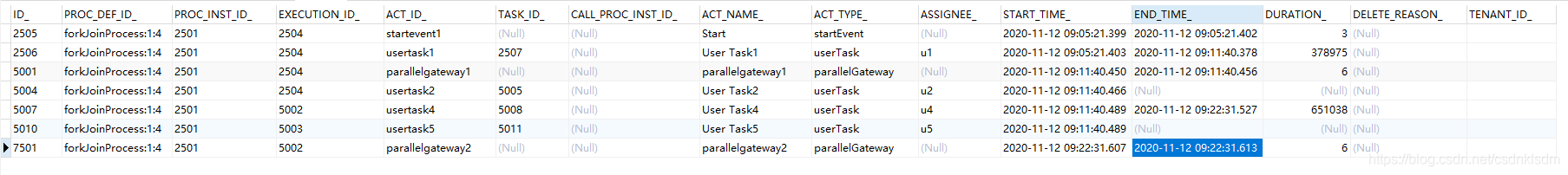

select * from act_hi_actinst;

此时parallelgateway2的END_TIME_字段已经有值了,是否合理?

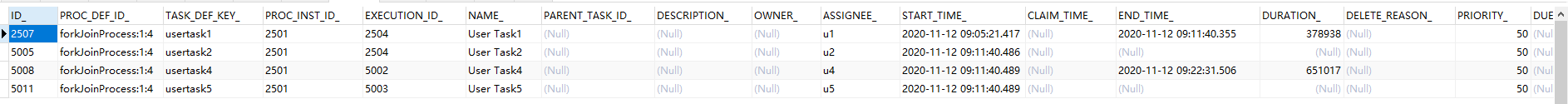

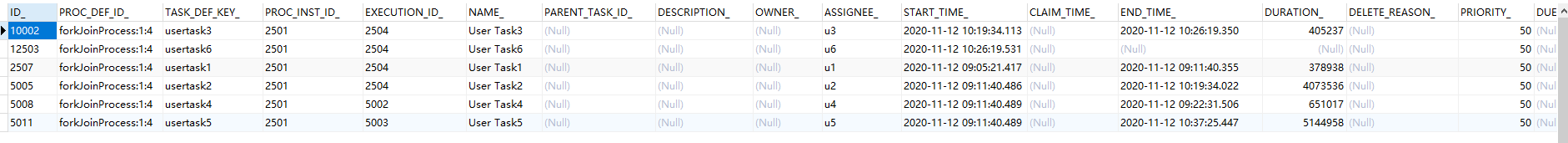

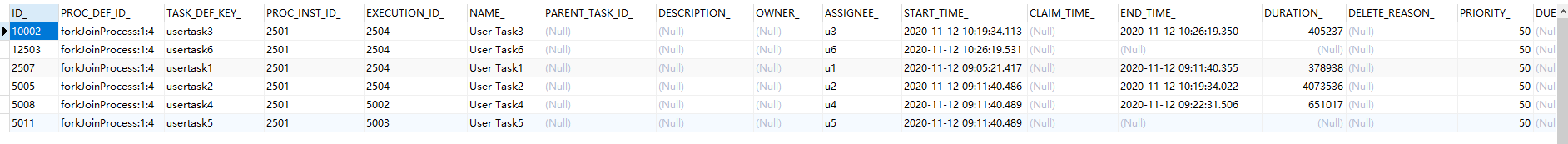

select * from act_hi_taskinst;

select * from act_hi_varinst;

select * from act_hi_identitylink;



5.办理流程

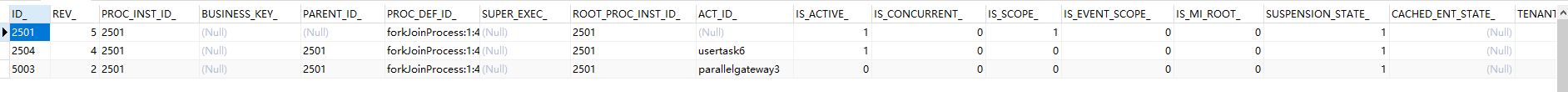

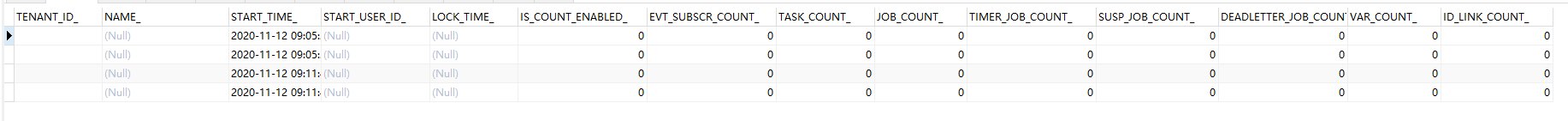

select * from act_ru_execution;

select * from act_ru_task;



select * from act_ru_variable;

同上

select * from act_ru_identitylink;

select * from act_hi_procinst;

select * from act_hi_actinst;

select * from act_hi_taskinst;

select * from act_hi_varinst;

select * from act_hi_identitylink;



6.办理流程

select * from act_ru_execution;

select * from act_ru_task;

select * from act_ru_variable;

同上

select * from act_ru_identitylink;

select * from act_hi_procinst;

select * from act_hi_actinst;

select * from act_hi_taskinst;

select * from act_hi_varinst;

同上

select * from act_hi_identitylink;



7.办理流程

select * from act_ru_execution;

select * from act_ru_task;

select * from act_ru_variable;

同上

select * from act_ru_identitylink;

同上

select * from act_hi_procinst;

select * from act_hi_actinst;

select * from act_hi_taskinst;

select * from act_hi_varinst;

同上

select * from act_hi_identitylink;

同上



8.办理流程

select * from act_ru_execution;

select * from act_ru_task;

select * from act_ru_variable;

同上

select * from act_ru_identitylink;

select * from act_hi_procinst;

select * from act_hi_actinst;

select * from act_hi_taskinst;

select * from act_hi_varinst;

select * from act_hi_identitylink;



9.办理流程

select * from act_ru_execution;

select * from act_ru_task;

select * from act_ru_variable;

select * from act_ru_identitylink;



select * from act_hi_procinst;

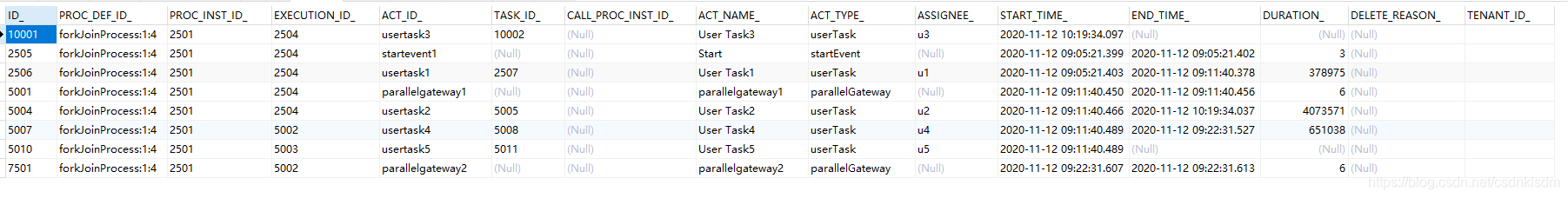

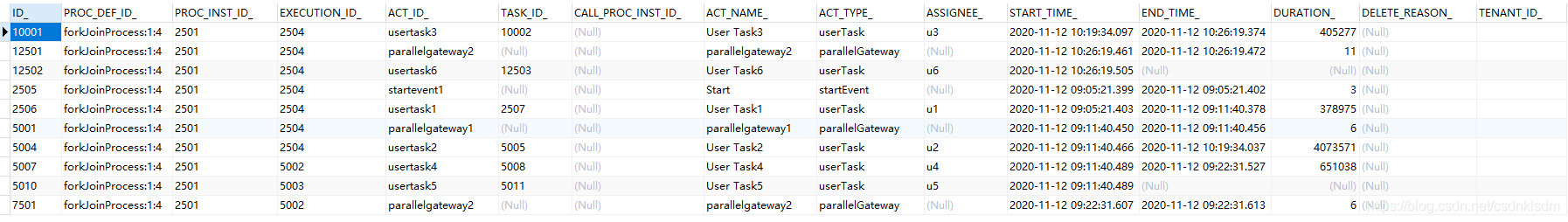

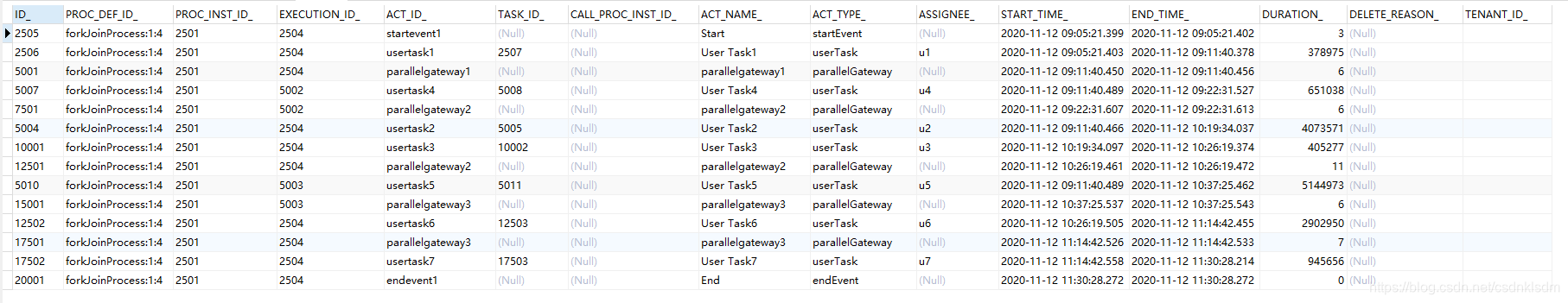

select * from act_hi_actinst order by END_TIME_ ASC;

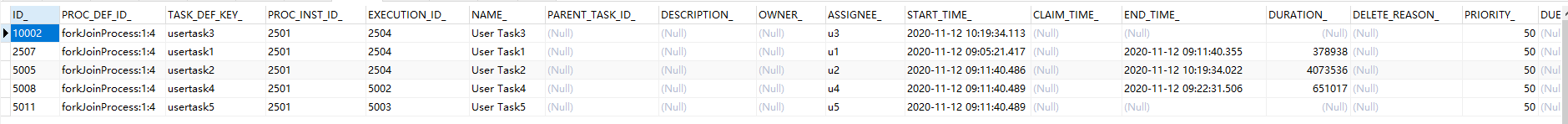

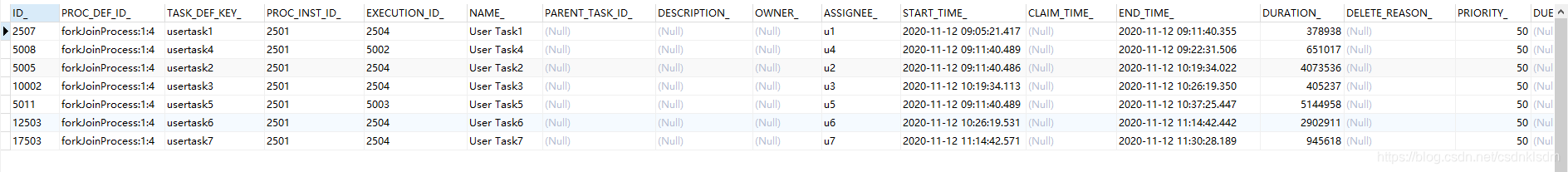

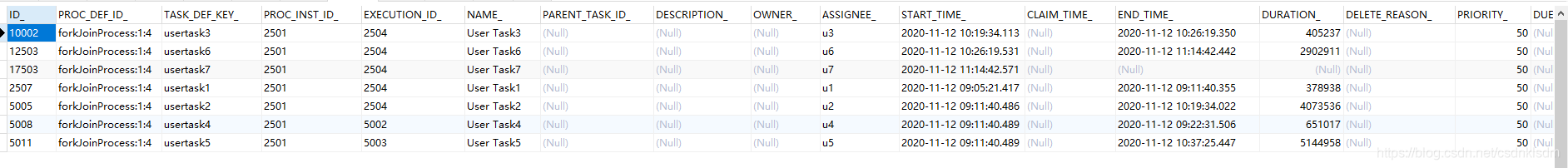

select * from act_hi_taskinst order by END_TIME_ ASC;

select * from act_hi_varinst;

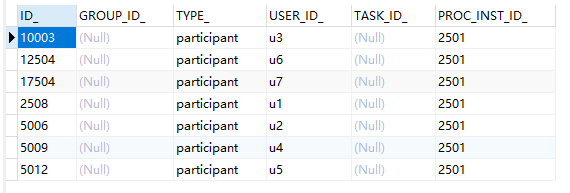

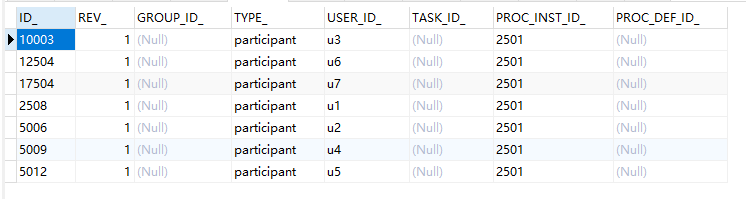

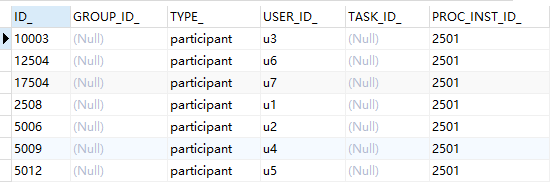

select * from act_hi_identitylink;

总结:

并行网关的特性:

并行网关后的连线全部有效,不进行条件表达式判断。



问题1:并行网关是怎么实现聚合效果的?

推测:根据并行网关的入线数量进行判断,比如parallelgateway2有两个入线,那么当有两个不同的execution执行到网关时,流程就会继续流转。

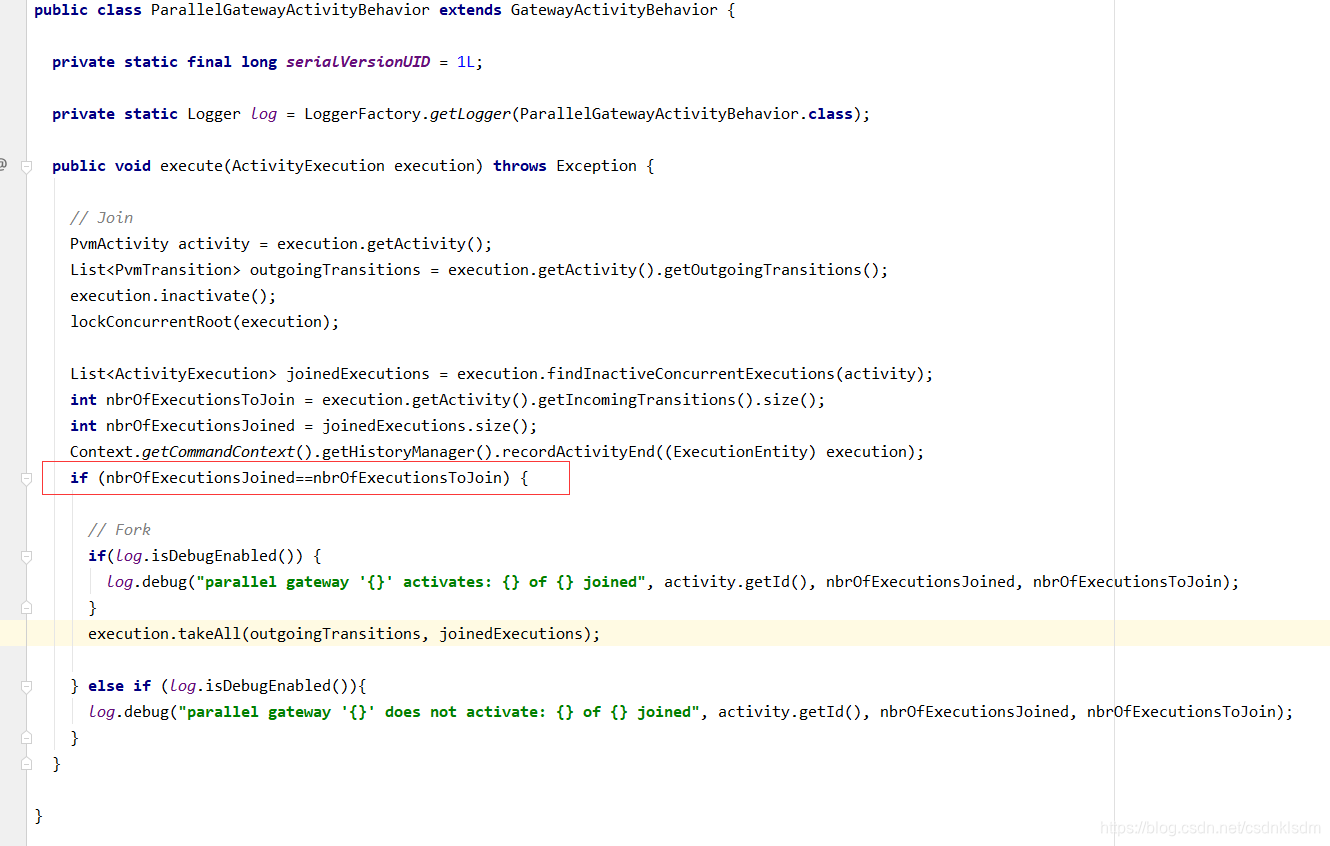

源码验证:
