import numpy as np
from numpy.linalg import lstsq
def compute_dTdt(T_nodes: np.ndarray, dt: float) -> np.ndarray:
"""
Centered finite difference for each column (node).
T_nodes: (N, 2) -> columns: [T_s, T_r]
returns dTdt shape (N, 2)
"""
N, n = T_nodes.shape
dTdt = np.zeros_like(T_nodes)
if N < 2:
raise ValueError("Need at least 2 time points")
# centered differences for interior
if N > 2:
dTdt[1:-1] = (T_nodes[2:] - T_nodes[:-2]) / (2.0 * dt)
# forward/backward for edges
dTdt[0] = (T_nodes[1] - T_nodes[0]) / dt
dTdt[-1] = (T_nodes[-1] - T_nodes[-2]) / dt
return dTdt
def est_CG(T_nodes: np.ndarray, P_inputs: np.ndarray, Tamb: np.ndarray, dt: float):
"""
Estimate C_s, C_r, g_sr, g_sa, g_ra from time-series data.
Inputs:
T_nodes : (N,2) -> [T_s, T_r]
P_inputs: (N,2) -> [P_s, P_r] (W)
Tamb : (N,) -> ambient temperature (°C)
dt : scalar time step (s)
Returns:
C_diag : array([C_s, C_r])
G_mat : 2x2 conductance matrix G (watts/K)
g_vals : dict with keys 'g_sr','g_sa','g_ra'
residuals_norm : norm of LS residual (for diagnostics)
"""
N, n = T_nodes.shape
assert n == 2
assert P_inputs.shape == (N, 2)
assert Tamb.shape[0] == N
dTdt = compute_dTdt(T_nodes, dt) # (N,2)
# Build linear system: for each time step i we have two equations:
# Eq_s: C_s * dT_s + g_sr*(T_s - T_r) + g_sa*(T_s - T_amb) = P_s
# Eq_r: C_r * dT_r + g_sr*(T_r - T_s) + g_ra*(T_r - T_amb) = P_r
#
# Unknown vector theta = [C_s, C_r, g_sr, g_sa, g_ra] (5 unknowns)
# For each time step we build row_s and row_r (length 5), and stack.
rows = []
targets = []
T_s = T_nodes[:, 0]
T_r = T_nodes[:, 1]
P_s = P_inputs[:, 0]
P_r = P_inputs[:, 1]
for i in range(N):
# equation for stator (row_s)
# Coeffs multiply unknowns [C_s, C_r, g_sr, g_sa, g_ra]
row_s = np.array([
dTdt[i, 0], # multiplies C_s
0.0, # C_r not present in eq_s
(T_s[i] - T_r[i]), # multiplies g_sr
(T_s[i] - Tamb[i]), # multiplies g_sa
0.0 # g_ra not present in eq_s
], dtype=float)
rows.append(row_s)
targets.append(P_s[i])
# equation for rotor (row_r)
row_r = np.array([
0.0, # C_s not present in eq_r
dTdt[i, 1], # multiplies C_r
(T_r[i] - T_s[i]), # multiplies g_sr (note sign)
0.0,
(T_r[i] - Tamb[i]) # multiplies g_ra
], dtype=float)
rows.append(row_r)
targets.append(P_r[i])
Phi = np.vstack(rows) # (2N, 5)

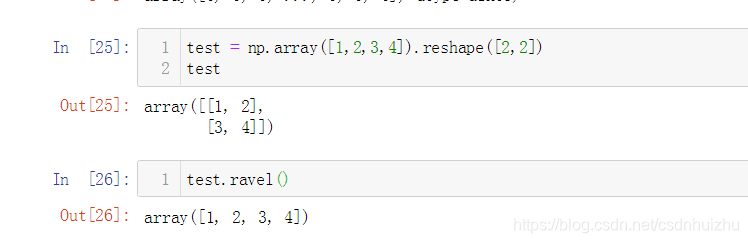

y = np.vstack(targets).ravel() # (2N,)
# Solve least squares
theta, *_ = lstsq(Phi, y, rcond=None)
C_s, C_r, g_sr, g_sa, g_ra = theta
# Build matrices
C_diag = np.array([C_s, C_r])
# Conductance matrix G (positive diag, negative off-diag)
G = np.array([
[g_sa + g_sr, -g_sr],
[-g_sr, g_ra + g_sr]
])
# Diagnostics
residuals = Phi @ theta - y
res_norm = np.linalg.norm(residuals) / np.sqrt(len(y))
g_vals = {"g_sr": g_sr, "g_sa": g_sa, "g_ra": g_ra}
return C_diag, G, g_vals, res_norm
def calc_T(C_diag, G, P_inputs, Tamb, T0=None, dt=1.0):
"""
Forward Euler simulation: C dT/dt = -G (T - Tamb) + P => dT/dt = C^{-1} ( -G(T - Tamb) + P )
C_diag: [C_s, C_r]
G: 2x2 conductance matrix
P_inputs: (N,2)
Tamb: (N,)
"""
N = P_inputs.shape[0]
invC = np.diag(1.0 / C_diag)
T = np.zeros((N, 2))
if T0 is None:
T[0] = Tamb[0] # a reasonable init
else:
T[0] = T0
for i in range(1, N):
rhs = - G @ (T[i-1] - np.array([Tamb[i-1], Tamb[i-1]])) + P_inputs[i-1]
dT = invC @ rhs
T[i] = T[i-1] + dt * dT
return T代码注释
