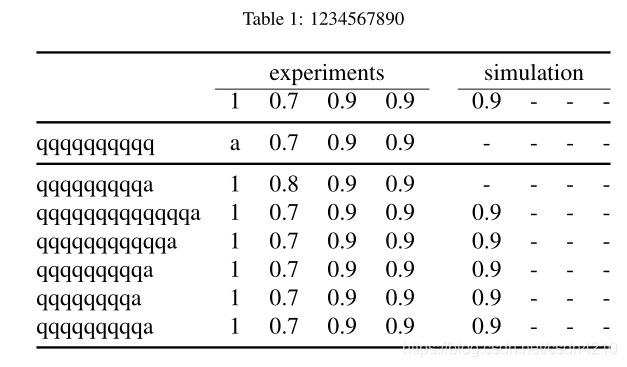

这篇博客展示了如何利用LaTeX的multirow, booktabs和其它包来创建具有加粗线条、多行单元格和对齐内容的复杂表格。示例包括了具体的LaTeX代码和最终的表格效果。" 108661919,8343509,layui表单提交时间字符串到数据库操作,"['前端开发', 'JavaScript', 'layui框架', '数据处理', 'Web应用']

LaTeX代码：

\usepackage{txfonts} % 默认字体times new roman
\usepackage{multirow}
\usepackage{booktabs} %表格线加粗
\usepackage{graphicx}
\usepackage{float}

\begin{document}

%%%%%%%%%%%%%%%%%%
\begin{table}[H]
\setlength{\abovecaptionskip}{2pt}%表头和表格间距
\setlength{\belowcaptionskip}{10pt}%
\centering
\caption{1234567890}\label{table1}
\begin{tabular}{@{}lccccccccc@{}}
\toprule[1pt] %首行加粗
\multirow{2}{*}{}
%& \multicolumn{4}{c}{1}
&& \multicolumn{4}{l}{experiments} & \multicolumn{4}{c}{simulation}
\\
\cline{2-5}
\cline{7-10}
& 1 & 0.7 & 0.9 & 0.9 & &0.9 & - & - & - \\
\midrule[1pt] %中间行加粗
qqqqqqqqqq & a & 0.7 & 0.9 & 0.9 & & - & - & - & - \\

\midrule[1pt] %中间行加粗
qqqqqqqqqa & 1 & 0.8 & 0.9 & 0.9 & & - & - & - & - \\
qqqqqqqqqqqqqa & 1 & 0.7 & 0.9 & 0.9 & & 0.9 & - & - & - \\
qqqqqqqqqqqa & 1 & 0.7 & 0.9 & 0.9 & & 0.9 & - & - & - \\
qqqqqqqqqa & 1 & 0.7 & 0.9 & 0.9 & & 0.9 & - & - & - \\
qqqqqqqqa & 1 & 0.7 & 0.9 & 0.9 & & 0.9 & - & - & - \\
qqqqqqqqqa & 1 & 0.7 & 0.9 & 0.9 & & 0.9 & - & - & - \\
\bottomrule[1pt] %末行加粗
\end{tabular}
\end{table}
%%%%%%%%%%%%%%
