我们知道，ORACLE 标准版，不能直接转换为企业版，这里除了版权问题之外，也有技术上的原因，如果在DOCKER环境下，如何操作呢？

oracle 19c 标准版转换为企业版,和传统模式的转换思路一样

传统模式：卸载标准版，不删除数据，重新安装企业版软件，打开前面安装的标准版的数据文件，即可。

DOCKER下面呢？

我们来看看.

1.前提
当前是19c 标准版,可以参考下文进行创建
oracle linux 9.6上安装oracle database 19.3 标准版 docker
2.做好备份
做好备份，既是在失败情况下的一个标准步骤，也是本次操作的必要步骤。本次使用的物理备份。

2.1 物理备份
  停止docker
  docker stop oracle19c
  使用tar 冷备
  tar -zcvf /mydata/oracle_se2_backup_$(date +%Y%m%d).tar.gz /mydata/oracle/oradata

  tar: Removing leading `/' from member names
/mydata/oracle/oradata/
/mydata/oracle/oradata/ORCL/
/mydata/oracle/oradata/ORCL/system01.dbf
/mydata/oracle/oradata/ORCL/sysaux01.dbf
/mydata/oracle/oradata/ORCL/undotbs01.dbf
/mydata/oracle/oradata/ORCL/users01.dbf
/mydata/oracle/oradata/ORCL/control01.ctl
/mydata/oracle/oradata/ORCL/control02.ctl
/mydata/oracle/oradata/ORCL/redo01.log
/mydata/oracle/oradata/ORCL/redo02.log
/mydata/oracle/oradata/ORCL/redo03.log
/mydata/oracle/oradata/ORCL/temp01.dbf
/mydata/oracle/oradata/ORCL/tbs_his01.dbf
/mydata/oracle/oradata/ORCL/tbs_lis01.dbf
/mydata/oracle/oradata/.ORCL.created
/mydata/oracle/oradata/dbconfig/
/mydata/oracle/oradata/dbconfig/ORCL/
/mydata/oracle/oradata/dbconfig/ORCL/spfileORCL.ora
/mydata/oracle/oradata/dbconfig/ORCL/orapwORCL
/mydata/oracle/oradata/dbconfig/ORCL/sqlnet.ora
/mydata/oracle/oradata/dbconfig/ORCL/listener.ora
/mydata/oracle/oradata/dbconfig/ORCL/tnsnames.ora
/mydata/oracle/oradata/dbconfig/ORCL/.docker_standard
/mydata/oracle/oradata/dbconfig/ORCL/oratab

  2.2 逻辑备份
  启动docker

  docker start oracle19c

  进入docker
  root@docker-hub dockerfiles]# docker exec -it oracle19c bash

  --进行逻辑备份
bash-4.2$ expdp \'sys/oracle_4U@orcl as sysdba\' dumpfile=se2_full.dmp logfile=se2_full.log full=y

Export: Release 19.0.0.0.0 - Production on Tue Dec 2 15:39:27 2025
Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

Connected to: Oracle Database 19c Standard Edition 2 Release 19.0.0.0.0 - Production
Starting "SYS"."SYS_EXPORT_FULL_01":  "sys/********@orcl AS SYSDBA" dumpfile=se2_full.dmp logfile=se2_full.log full=y
Processing object type DATABASE_EXPORT/EARLY_OPTIONS/VIEWS_AS_TABLES/TABLE_DATA
Processing object type DATABASE_EXPORT/NORMAL_OPTIONS/TABLE_DATA
。。。
. . exported "HR"."DEPARTMENTS"                         6.132 KB    8 rows
. . exported "HR"."EMPLOYEES"                         8.023 KB    20 rows
. . exported "HR"."JOB_HISTORY"                            0 KB    0 rows
Master table "SYS"."SYS_EXPORT_FULL_01" successfully loaded/unloaded
******************************************************************************
Dump file set for SYS.SYS_EXPORT_FULL_01 is:
  /opt/oracle/admin/ORCL/dpdump/se2_full.dmp
Job "SYS"."SYS_EXPORT_FULL_01" successfully completed at Tue Dec 2 15:41:30 2025 elapsed 0 00:02:01

  --文件传到指定位置

[root@docker-hub dockerfiles]# docker cp oracle19c:/opt/oracle/admin/ORCL/dpdump/se2_full.dmp /mydata/oracle/.
Successfully copied 3.7MB to /mydata/oracle/.
[root@docker-hub dockerfiles]# ls -ltr /mydata/oracle/.
total 3608
drwxrwxrwx 4 root root    55 Dec  2 22:06 oradata
-rw-r----- 1 root root 3694592 Dec  2 23:41 se2_full.dmp

3.停止并删除前面的标准版docker
docker stop oracle19c
docker rm oracle19c
rm -fr /mydata/oracle/oradata/*
chmod -R 777 /mydata/oracle/oradata

4.创建企业版的image
./buildContainerImage.sh -i -v 19.3.0 -t oracle/database:19c  -e

5.运行docker
  docker run -d \
--restart always \
--shm-size=4g \
-p 1521:1521 -p 5500:5500 \
-e ORACLE_SID=ORCL \
-e ORACLE_PWD=oracle_4U \
-e ORACLE_CHARACTERSET=ZHS16GBK \
-v /mydata/oracle/oradata:/opt/oracle/oradata \
--name oracle19c \
oracle/database:19c

6.停数据库
进入docker
docker exec -it oracle19c /bin/bash
lsnrctl stop
sqlplus / as sysdba
SQL> shutdown immediate;
Database closed.
Database dismounted.
ORACLE instance shut down.
7.释放标准版的数据文件到对应位置
tar /mydata/oracle_se2_backup_20251202.tar.gz -C /

8.重新打开数据库
进入docker
docker exec -it oracle19c /bin/bash

打开监听
lsnrctl start

打开数据库
sql>startup

9. 验证版本
  SQL> select * from v$version;

BANNER
--------------------------------------------------------------------------------
BANNER_FULL
--------------------------------------------------------------------------------
BANNER_LEGACY
--------------------------------------------------------------------------------
CON_ID
----------
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production

10.验证选项
  SQL> SELECT parameter ,value from v$option

PARAMETER                               VALUE
---------------------------------------- ------------------------------
Partitioning                            TRUE
Objects                               TRUE
Real Application Clusters             FALSE
Advanced replication                   TRUE
Bit-mapped indexes                      TRUE
Connection multiplexing                TRUE
Connection pooling                      TRUE
Database queuing                      TRUE
Incremental backup and recovery       TRUE
Instead-of triggers                   TRUE
Parallel backup and recovery          TRUE

PARAMETER                               VALUE
---------------------------------------- ------------------------------
Parallel execution                      TRUE
Parallel load                         TRUE
Point-in-time tablespace recovery       TRUE
Fine-grained access control             TRUE
Proxy authentication/authorization    TRUE
Change Data Capture                   TRUE
Plan Stability                         TRUE
Online Index Build                      TRUE
Coalesce Index                         TRUE
Managed Standby                         TRUE
Materialized view rewrite             TRUE

PARAMETER                               VALUE
---------------------------------------- ------------------------------
Database resource manager             TRUE
Spatial                               TRUE
Automatic Storage Management          FALSE
Export transportable tablespaces       TRUE
Transparent Application Failover       TRUE
Fast-Start Fault Recovery             TRUE
Sample Scan                            TRUE
Duplexed backups                      TRUE
Java                                  TRUE
OLAP Window Functions                   TRUE
Block Media Recovery                   TRUE

PARAMETER                               VALUE
---------------------------------------- ------------------------------
Fine-grained Auditing                   TRUE
Application Role                      TRUE
Enterprise User Security                TRUE
Oracle Data Guard                      TRUE
Oracle Label Security                   FALSE
OLAP                                  TRUE
Basic Compression                      TRUE
Join index                            TRUE
Trial Recovery                         TRUE
Advanced Analytics                      TRUE
Online Redefinition                   TRUE

PARAMETER                               VALUE
---------------------------------------- ------------------------------
Streams Capture                         TRUE
File Mapping                            TRUE
Block Change Tracking                   TRUE
Flashback Table                         TRUE
Flashback Database                      TRUE
Transparent Data Encryption             TRUE
Backup Encryption                      TRUE
Unused Block Compression                TRUE
Oracle Database Vault                   FALSE
Result Cache                            TRUE
SQL Plan Management                   TRUE

PARAMETER                               VALUE
---------------------------------------- ------------------------------
SecureFiles Encryption                TRUE
Real Application Testing                TRUE
Flashback Data Archive                TRUE
DICOM                                  TRUE
Active Data Guard                      TRUE
Server Flash Cache                      TRUE
Advanced Compression                   TRUE
XStream                               TRUE
Deferred Segment Creation             TRUE
Unified Auditing                      FALSE
Management Database                   FALSE

PARAMETER                               VALUE
---------------------------------------- ------------------------------
I/O Server                            FALSE
ASM Proxy Instance                      FALSE
Exadata Discovery                      TRUE
Data Mining                            TRUE
Global Data Services                   TRUE
Adaptive Execution Plans                TRUE
Table Clustering                      TRUE
Zone Maps                               TRUE
Real Application Security             TRUE
Privilege Analysis                      TRUE
Data Redaction                         TRUE

PARAMETER                               VALUE
---------------------------------------- ------------------------------
Cross Transportable Backups             TRUE
Cache Fusion Lock Accelerator          TRUE
Snapshot time recovery                TRUE
Heat Map                               TRUE
Automatic Data Optimization             TRUE
Transparent Sensitive Data Protection TRUE
In-Memory Column Store                TRUE
Advanced Index Compression             TRUE
In-Memory Aggregation                   TRUE
Centrally Managed User                TRUE

87 rows selected.

企业版的功能都有了

11.无效对象
SQL> select count(*) from dba_objects where status<>'VALID';

  COUNT(*)
----------
      0

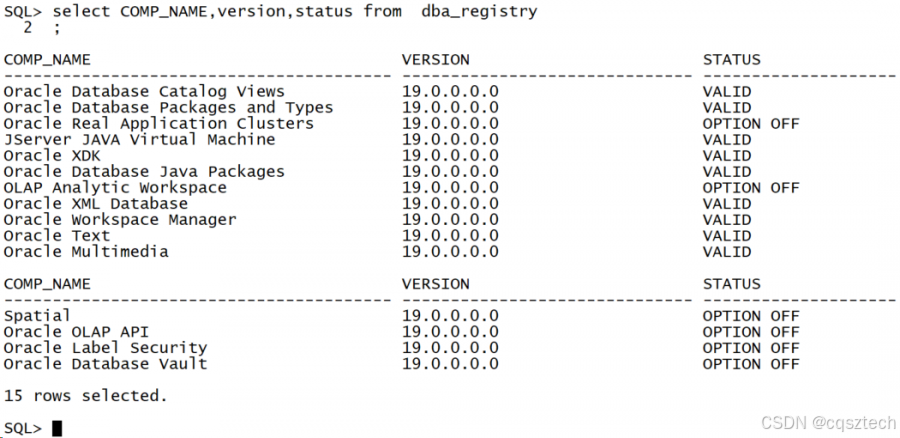

12.组件
