叫简单交互的原因是，只从ring3传给ring0一个变量的值，不涉及到锁事件的问题(有点像多线程的那个东东...)。这里我使用了最简单的例子，就是SSDT HOOK NtOpenProcess. ring3的应用程序将自己的PID传给ring0的驱动，驱动hook NtOpenProcess之后就无法从任务管理器终止应用程序了。

加载驱动的方式用的是SCM....而且是《windows程序设计里》封装之后的CDRIVER类...（我承认我有点懒了....以后在用ZWLoadDriver 或者别的什么 rootkit.com里面有篇文章讲了好多种...）

==============================kernel mode,FIRSTDRIVER.C========================

/////////////////////////////////////////////////
// SSDT NtOpenProcess,
//FIRSTDRIVER.C
//2008年5月10日

#include <ntddk.h>

#include <stdlib.h>

#include "IoCTL.h"

// 自定义函数的声明
NTSTATUS DispatchCreateClose(PDEVICE_OBJECT pDevObj, PIRP pIrp);
void DriverUnload(PDRIVER_OBJECT pDriverObj);
NTSTATUS DispatchIoctl(PDEVICE_OBJECT pDevObj, PIRP pIrp);

VOID Hook();
VOID UnHook();

// 驱动内部名称和符号连接名称
#define DEVICE_NAME L"\\Device\\devDriverDemo"
#define LINK_NAME L"\\??\\slDriverDemo"

ULONG g_uRealServiceAddress; //真实函数地址
ULONG g_uPID; //把PID传进来

typedef struct _SystemServiceDescriptorTable
{
PVOID    ServiceTableBase;
PULONG    ServiceCounterTableBase;
ULONG    NumberOfService;
ULONG    ParamTableBase;
}SystemServiceDescriptorTable,*PSystemServiceDescriptorTable;

// KeServiceDescriptorTable为ntoskrnl.exe导出
extern PSystemServiceDescriptorTable KeServiceDescriptorTable;

// 定义NtOpenProcess

typedef NTSTATUS (__stdcall *NTOPENPROCESS)( OUT PHANDLE ProcessHandle,

IN ACCESS_MASK AccessMask,

IN POBJECT_ATTRIBUTES ObjectAttributes,

IN PCLIENT_ID ClientId

);

NTOPENPROCESS RealNtOpenProcess; //原来的函数

// 自定义的NtOpenProcess函数
NTSTATUS __stdcall MyNtOpenProcess( OUT    PHANDLE ProcessHandle,
           IN    ACCESS_MASK DesiredAccess,
           IN    POBJECT_ATTRIBUTES ObjectAttributes,
           IN    PCLIENT_ID ClientId )
{
NTSTATUS nt;
ULONG uPID;

nt=(NTSTATUS)(NTOPENPROCESS)RealNtOpenProcess(ProcessHandle,DesiredAccess,ObjectAttributes,ClientId);
if((ClientId!=NULL))
{
   uPID=(ULONG)ClientId->UniqueProcess;
   if (uPID==g_uPID)
   {
    DbgPrint("PID:%u is hooked",uPID);
    ProcessHandle=NULL;
    nt=STATUS_ACCESS_DENIED;
   }

}
return nt;
}

// 驱动程序加载时调用DriverEntry例程
NTSTATUS DriverEntry(PDRIVER_OBJECT pDriverObj, PUNICODE_STRING pRegistryString)
{
////////////////初始化动作////////////////////////////////
NTSTATUS status;
UNICODE_STRING ustrDevName;
UNICODE_STRING ustrLinkName;
PDEVICE_OBJECT pDevObj;

g_uPID = 0;

status = STATUS_SUCCESS;

// 初始化各个派遣例程
pDriverObj->MajorFunction[IRP_MJ_CREATE] = DispatchCreateClose;
pDriverObj->MajorFunction[IRP_MJ_CLOSE] = DispatchCreateClose;
pDriverObj->MajorFunction[IRP_MJ_DEVICE_CONTROL]=DispatchIoctl;
pDriverObj->DriverUnload = DriverUnload ;

// 创建、初始化设备对象
// 设备名称

RtlInitUnicodeString(&ustrDevName, DEVICE_NAME);
// 创建设备对象

status = IoCreateDevice(pDriverObj,
   0,
   &ustrDevName,
   FILE_DEVICE_UNKNOWN,
   0,
   FALSE,
   &pDevObj);
if(!NT_SUCCESS(status))
{
   return status;
}

// 创建符号连接名称
// 符号连接名称

RtlInitUnicodeString(&ustrLinkName, LINK_NAME);
// 创建关联
status = IoCreateSymbolicLink(&ustrLinkName, &ustrDevName);
if(!NT_SUCCESS(status))
{
IoDeleteDevice(pDevObj);
return status;
}
////////////////////////初始化完毕////////////////////////////////////////
Hook();

return STATUS_SUCCESS;

}

// I/O控制派遣例程
NTSTATUS DispatchIoctl(PDEVICE_OBJECT pDevObj, PIRP pIrp)
{
///////////////////////DispatchIoctl///////////////////////////////
NTSTATUS IoCtlNtstus;
PIO_STACK_LOCATION pIRPStack;
ULONG uIoControlCode;
PVOID pIoBuffer;
ULONG uInSize;
ULONG uOutSize ;

//假设失败
IoCtlNtstus = STATUS_INVALID_DEVICE_REQUEST;

//IRP堆栈
pIRPStack = IoGetCurrentIrpStackLocation(pIrp);

//控制代码
uIoControlCode = pIRPStack->Parameters.DeviceIoControl.IoControlCode;
uInSize = pIRPStack->Parameters.DeviceIoControl.InputBufferLength;
uOutSize = pIRPStack->Parameters.DeviceIoControl.OutputBufferLength;
//
pIoBuffer= pIrp-> AssociatedIrp.SystemBuffer;

switch(uIoControlCode)
{
case IO_PID_CTL:
   {
    DbgPrint("the PID is %s",pIoBuffer);
    g_uPID = atol(pIoBuffer);
    DbgPrint("the PID is %u",g_uPID);

}

break;
default:
break;
}
//完成请求

if(IoCtlNtstus == STATUS_SUCCESS)
pIrp->IoStatus.Information = uOutSize;
else
pIrp->IoStatus.Information = 0;

// 完成请求

pIrp->IoStatus.Status = IoCtlNtstus;
IoCompleteRequest(pIrp, IO_NO_INCREMENT);

return IoCtlNtstus;

}

void DriverUnload(PDRIVER_OBJECT pDriverObj)
{

UNICODE_STRING strLink;
/////收尾工作 /////////////////////////////////

UnHook();

DbgPrint("unload");
// 删除符号连接名称

RtlInitUnicodeString(&strLink, LINK_NAME);
IoDeleteSymbolicLink(&strLink);

// 删除设备对象
IoDeleteDevice(pDriverObj->DeviceObject);
}

// 处理IRP_MJ_CREATE、IRP_MJ_CLOSE功能代码
NTSTATUS DispatchCreateClose(PDEVICE_OBJECT pDevObj, PIRP pIrp)
{
pIrp->IoStatus.Status = STATUS_SUCCESS;
// 完成此请求

IoCompleteRequest(pIrp, IO_NO_INCREMENT);

return STATUS_SUCCESS;
}
VOID Hook()
{
ULONG uAddr;

DbgPrint("hook");
//得到NtOpenProcess的地址
uAddr=(ULONG)KeServiceDescriptorTable->ServiceTableBase +0x7A*4;
g_uRealServiceAddress = *(ULONG*)uAddr;

//记录真实地址一会儿用
RealNtOpenProcess= (NTOPENPROCESS)g_uRealServiceAddress;

DbgPrint( "Address of Real NtOpenProcess: 0x%08X\n", g_uRealServiceAddress );

DbgPrint(" Address of MyNtOpenProcess: 0x%08X\n", MyNtOpenProcess );

//取消内存保护
__asm
{
   cli
    mov    eax, cr0
    and    eax, not 10000h
    mov    cr0, eax
}

//NND....废了这么大劲其实就为了这一句

*((ULONG*)uAddr)=(ULONG)MyNtOpenProcess;

//回复内存
__asm
{
   mov    eax, cr0
    or    eax, 10000h
    mov    cr0, eax
    sti
}
}

VOID UnHook()
{

ULONG uUnhookAddr;

//得到NtOpenProcess的地址
uUnhookAddr=(ULONG)KeServiceDescriptorTable->ServiceTableBase +0x7A*4;

//取消内存保护
__asm
{
   cli
    mov    eax, cr0
    and    eax, not 10000h
    mov    cr0, eax
}

//NND....废了这么大劲其实就为了这一句

*((ULONG*)uUnhookAddr)=(ULONG)g_uRealServiceAddress;

//回复内存
__asm
{
   mov    eax, cr0
    or    eax, 10000h
    mov    cr0, eax
    sti
}
}

=============================kernel mode,IoCTL.h ==========================

// IoCTL.h

#define IO_PID_CTL \
CTL_CODE(FILE_DEVICE_UNKNOWN, 0x810, METHOD_BUFFERED, FILE_ANY_ACCESS)

=============================user mode,Demo.cpp===========================

#include "stdafx.h"

#include <Windows.h>
#include <stdlib.h>
#include <winioctl.h>
#include "IoCTL.h" //和驱动里面的一样
#include "driver.h"

int main(int argc, CHAR* argv[])
{
printf("****************************************************\n");
printf(" 用户模式交互程序 \n\n");
printf(" By Returns \n");
printf("****************************************************\n\n");
DWORD dwPID = GetCurrentProcessId();

printf("my pid is %u \n",dwPID);

char szAppPath[256];
char * p;

GetFullPathName("FIRSTDRIVER.sys",256,szAppPath,&p);

CDriver DriverCon(szAppPath,"slDriverDemo");

if (DriverCon.StartDriver())
{
   printf("The Driver is started successfully \n");
   if (DriverCon.OpenDevice())
   {
    char strOut[256],strInput[4];

    ltoa(dwPID,strInput,10);
    printf("the handle is open...%s \n",strInput);
    if (DriverCon.IoControl(IO_PID_CTL,&strInput,4,&strOut,256)!=-1)
    {
     printf("返回信息: %x \n",&strOut);
    }

}
}

system("pause");

return 0;
}

用户模式中的 Dirver.h 是CDriver类的封装简化了SCM的操作...引自《windows程序设计》

下载地址: Dirver.h

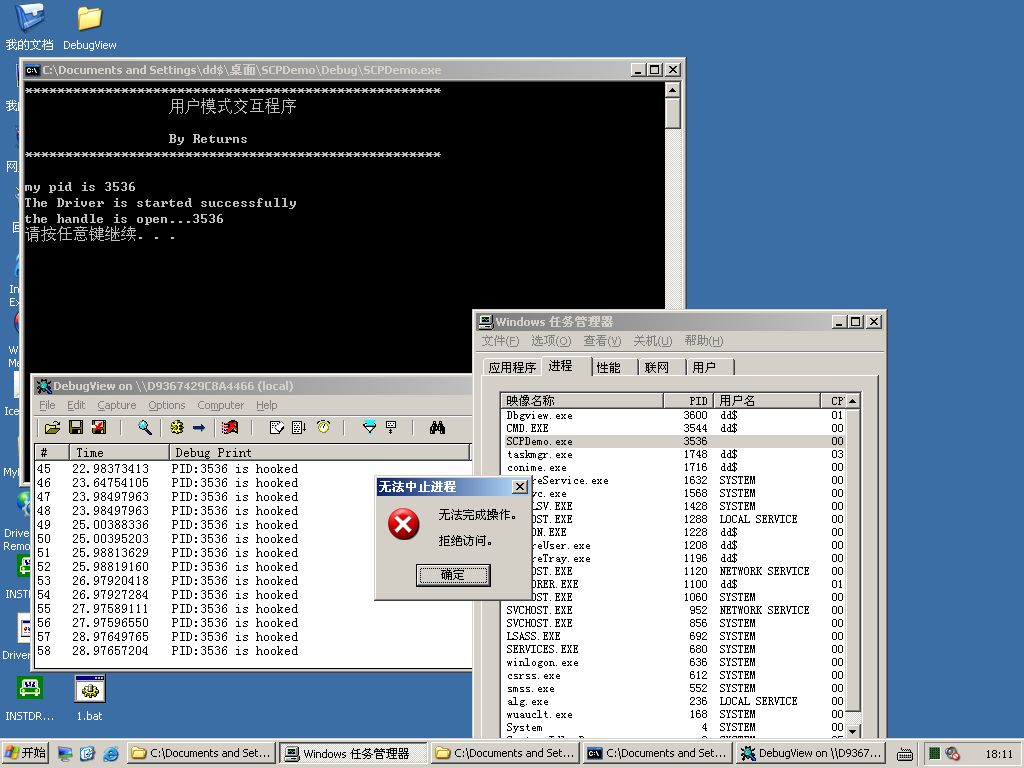

效果是这样的.....返回的信息是有点bug的...懒得改了...要想传多个PID用数组就可以了...我也懒得改了.
