实现接口PersistentStateComponent
@State：指定了组件的名称（name = "codechrono"）和存储配置的XML文件名（storages = @Storage("codechrono-settings.xml")）。
@Service：声明这是一个服务组件，级别为APP，意味着它在IDEA应用程序级别上可用。

import com.intellij.openapi.application.ApplicationManager;
import com.intellij.openapi.components.PersistentStateComponent;
import com.intellij.openapi.components.Service;
import com.intellij.openapi.components.State;
import com.intellij.openapi.components.Storage;
import org.jetbrains.annotations.NonNls;
import org.jetbrains.annotations.NotNull;

/**
 * @author Codechrono
 * 持久化插件配置文件
 */
@State(
        name = "codechrono",
        storages = @Storage("codechrono-settings.xml")
)
//如果没有使用轻型服务 @Service，则必须在plugin.xml文件中将持久化数据类声明为ServiceEP
@Service(Service.Level.APP)


public final class CodeChronoSettings implements PersistentStateComponent<CodeChronoSettings.State> {

    public static class State {
        @NonNls
        public int days = 14;
        public String fielRegx = ".*\\.(txt|sql)$";
        public String projectRegx = "demo$|demo$";
    }

    private State myState = new State();

    public static CodeChronoSettings getInstance() {
        return ApplicationManager.getApplication().getService(CodeChronoSettings.class);
    }

    /**
     * 点击OK的时候会执行该方法，用于获取当前的状态
     * 该方法返回的状态会被保存到对应的文件中
     * @return
     */
    @Override
    public State getState() {
        return myState;
    }

    /**
     * 该方法会在插件启动的时候执行，用于加载状态
     */
    @Override
    public void loadState(@NotNull State state) {
        myState = state;
    }

}

②CodeChronoSettingsComponent

初始化UI组件，添加监听器，并获取主面板

import com.intellij.ui.components.JBLabel;
import com.intellij.ui.components.JBTextField;
import com.intellij.util.ui.FormBuilder;

import javax.swing.*;

/**
 * @author codechrono
 * 组件类，用于构建和配置设置对话框中的面板。
 */
public class CodeChronoSettingsComponent {

    private final JPanel mainPanel;
    private final JBTextField fileRegxText = new JBTextField();
    private final JBTextField projectRegxText = new JBTextField();
    private final JRadioButton day14RButton = new JRadioButton("14天");
    private final JRadioButton day30RButton = new JRadioButton("30天");
    private final JRadioButton dayCustomizeRButton = new JRadioButton("自定义天数");
    private final IntegerTextField inputCustomizeDayText = new IntegerTextField();
    private final ButtonGroup group = new ButtonGroup();


    public CodeChronoSettingsComponent() {
        initUIComponents();
        addListeners();

        mainPanel = getMainPanel();
    }

    /**
     * 获取首选的焦点组件
     */

    public JComponent getPreferredFocusedComponent() {
        return fileRegxText;
    }

    public JPanel getPanel() {
        return mainPanel;
    }

    public void reset(CodeChronoSettings.State state) {
        // 重置组件状态的代
        fileRegxText.setText(state.fielRegx);
        projectRegxText.setText(state.projectRegx);

        if (state.days == 14) {
            group.setSelected(day14RButton.getModel(), true);
            inputCustomizeDayText.setEnabled(false);
        } else if (state.days == 30) {
            group.setSelected(day30RButton.getModel(), true);
            inputCustomizeDayText.setEnabled(false);
        } else {
            group.setSelected(dayCustomizeRButton.getModel(), true);
            inputCustomizeDayText.setText(String.valueOf(state.days));
            inputCustomizeDayText.setEnabled(true);
        }
    }

    public void apply(CodeChronoSettings.State state) {
        // 这里可以添加应用组件状态的代码，例如：
        state.fielRegx = fileRegxText.getText();
        state.projectRegx = projectRegxText.getText();
        state.days = currentDays();
        CodeChronoSettings.getInstance().loadState(state);

    }

    /**
     * 控件值是否为默认值
     *
     * @param state
     * @return
     */
    public boolean isDefault(CodeChronoSettings.State state) {
        if (fileRegxText.getText().equals(state.fielRegx) && projectRegxText.getText().equals(state.projectRegx)
                && currentDays() == state.days) {
            return true;
        }
        return false;
    }

    /**
     * 初始化组件样式
     */

    private void initUIComponents() {
        group.add(day14RButton);
        group.add(day30RButton);
        group.add(dayCustomizeRButton);
        inputCustomizeDayText.setEnabled(false);
        group.setSelected(day14RButton.getModel(), true);

        fileRegxText.setToolTipText("请输入正则表达式，例如：\\.(txt|sql)$");
        projectRegxText.setToolTipText("请输入正则表达式，例如：demo$|demo$");
    }

    private JPanel getMainPanel() {
        return FormBuilder.createFormBuilder()
                .addLabeledComponent(new JBLabel("文件过滤："), fileRegxText, 1, false)
                .addLabeledComponent(new JBLabel("项目过滤："), projectRegxText, 1, false)
                .addLabeledComponent(new JBLabel("本地数据存储天数："), day14RButton, 1, false)
                .addLabeledComponent(new JBLabel(""), day30RButton, 1, false)
                .addLabeledComponent(new JBLabel(""), dayCustomizeRButton, 1, false)
                .addLabeledComponent(new JBLabel("自定义天数："), inputCustomizeDayText, 1, false)
                .addComponentFillVertically(new JPanel(), 0)
                .getPanel();
    }

    /**
     * 组件添加监听事件
     */
    public void addListeners() {
        dayCustomizeRButton.addActionListener(e -> dayRbuttonChangeAction());
        day14RButton.addActionListener(e -> dayRbuttonChangeAction());
        day30RButton.addActionListener(e -> dayRbuttonChangeAction());
    }

    /**
     * 自定义天数按钮事件处理
     */
    private void dayRbuttonChangeAction() {
        if (dayCustomizeRButton.isSelected()) {
            inputCustomizeDayText.setEnabled(true);
        } else {
            inputCustomizeDayText.setEnabled(false);
        }
    }

    /**
     * 当前选择的天数
     */
    private int currentDays() {
        int days = 14;
        if (day14RButton.isSelected()) {
            days = 14;
        } else if (day30RButton.isSelected()) {
            days = 30;
        } else if (dayCustomizeRButton.isSelected()) {
            days = Integer.parseInt(inputCustomizeDayText.getText());
        }
        return days;
    }
}

③CodeChronoSettingsConfigurable

实现接口Configurable

package com.codechrono.idea.plugin.config;

import com.intellij.openapi.options.Configurable;
import org.jetbrains.annotations.Nls;
import org.jetbrains.annotations.Nullable;

import javax.swing.*;
import java.util.Objects;

/**
 * @author codechrono
 * Configurable 用于在 IDEA 设置中展示一个配置面板，它实现了 Configurable 接口。
 */
final class CodeChronoSettingsConfigurable implements Configurable {

  private CodeChronoSettingsComponent codeChronoSettingsComponent;

  @Nls(capitalization = Nls.Capitalization.Title)
  @Override
  public String getDisplayName() {
    return " CodeChrono";
  }

  /**
   * 获取首选聚焦组件。
   * @return
   */
  @Override
  public JComponent getPreferredFocusedComponent() {
    return codeChronoSettingsComponent.getPreferredFocusedComponent();
  }

  @Nullable
  @Override
  public JComponent createComponent() {
    codeChronoSettingsComponent = new CodeChronoSettingsComponent();
    return codeChronoSettingsComponent.getPanel();
  }

  /**
   * 检查设置是否被修改。
   * @return
   */
  @Override
  public boolean isModified() {
    CodeChronoSettings.State state =
            Objects.requireNonNull(CodeChronoSettings.getInstance().getState());
    return !codeChronoSettingsComponent.isDefault(state);
  }

  @Override
  public void apply() {
    CodeChronoSettings.State state =
            Objects.requireNonNull(CodeChronoSettings.getInstance().getState());
    codeChronoSettingsComponent.apply( state);

  }

  @Override
  public void reset() {
    CodeChronoSettings.State state =
            Objects.requireNonNull(CodeChronoSettings.getInstance().getState());
    codeChronoSettingsComponent.reset(state);

  }

  @Override
  public void disposeUIResources() {
    codeChronoSettingsComponent = null;
  }

}

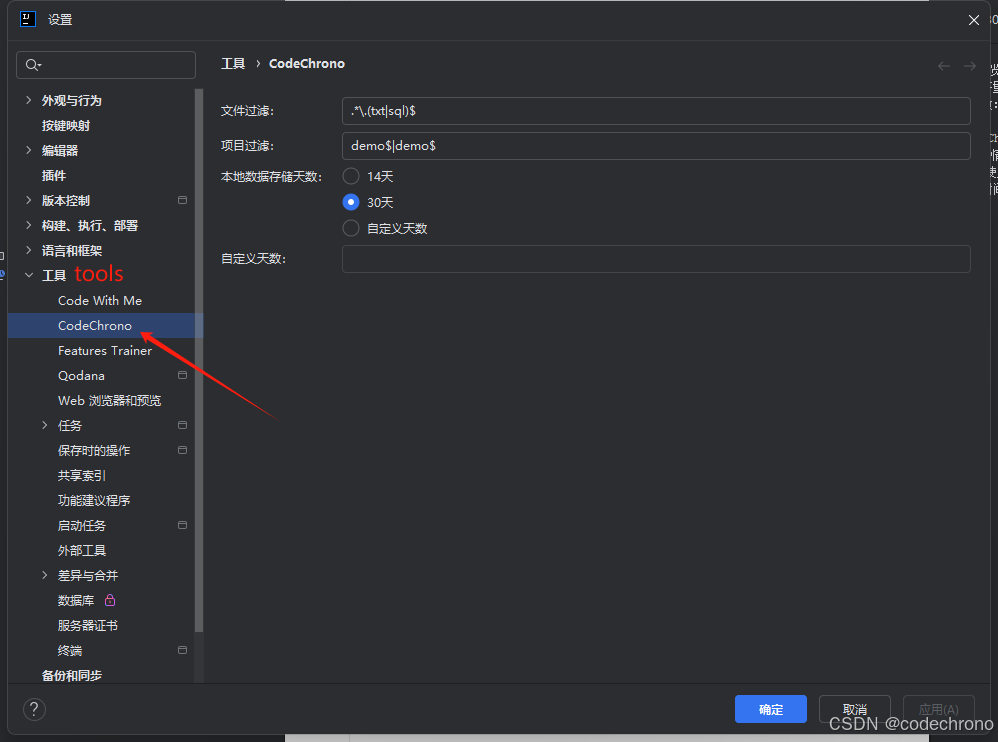

3、配置界面所在位置

plugin.xml文件 extensions节点

 <extensions defaultExtensionNs="com.intellij">
    <!--   配置界面   -->
    <!-- parentId配置界面在哪个菜单下，instance指定配置界面的类-->
    <applicationConfigurable parentId="tools" instance="com.codechrono.idea.plugin.config.CodeChronoSettingsConfigurable"
                                 id="CodeChrono.Config"
                                 displayName="CodeChrono"/>
  </extensions>

4、国际化支持

IDEA插件开发，国际化处理_idea 国际化插件

二.使用配置参数

private static CodeChronoSettings.State state = Objects.requireNonNull(CodeChronoSettings.getInstance().getState());

/**
 * 清除历史数据，保留最近14天数据
 */
private static void clearHistory() {
    long timestamp = System.currentTimeMillis() - (long) state.days * 24 * 60 * 60 * 1000;
    editRecordInterface.deleteByDate(timestamp);
}
