使用poi-tl导出动态word模板，包含折线图、柱状图、饼状图

1 依赖引入

      <dependency>
          <groupId>com.deepoove</groupId>
          <artifactId>poi-tl</artifactId>
          <version>1.8.2</version>
    </dependency>

2 新建word模板

Word模板中所有变量以{{开头，以}}结尾，不同内容变量声明如下

1）{{template}}    普通文本，渲染数据为：String或者TextRenderData

2）{{#template}}   表格，渲染数据为：TableRenderData

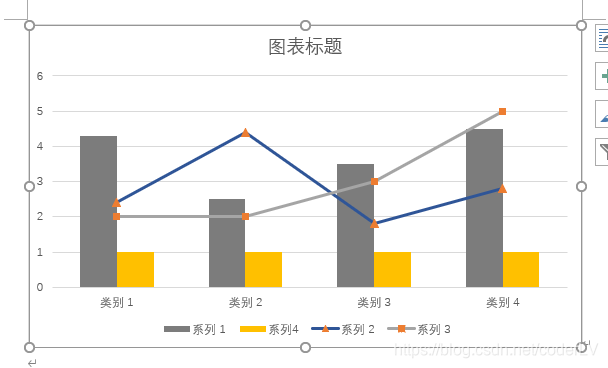

3）当生成图表时，新建图表—>右键编辑替换文字—>{{barLineCharts}} 图表变量，如下图（可能不同版本编辑替换文字位置不同。）

3 java获取数据，生成word

1）声明模板的位置：

XWPFTemplate template = XWPFTemplate.compile("./src/main/resources/templates/template.docx");

2）导出word路径，名称

FileOutputStream out = new FileOutputStream("./src/main/resources/templates/output_"+String.valueOf(Math.random())+".docx");

 3）填充数据

//声明map存放模板中的内容
HashMap<String, Object> data = new HashMap<String, Object>();
data.put("title","hello world");
//Logger.info("hello");
/*测试文本插入------------------------------*/
//先定义文本对象
TextRenderData textRenderData = new TextRenderData();
//设置文本内容
textRenderData.setText("张三");
//设置文本格式
Style style = new Style();
style.setBold(true);
style.setColor("000F00");
style.setFontSize(20);
textRenderData.setStyle(style);
//将文本数据和模板中变量对应
data.put("name", textRenderData);

/* 测试表格插入---------------------------------------*/
		//定义表格的头
		//方式一
		//RowRenderData headerData = RowRenderData.build("电灯名称","使用率");
		//设置样式
		TableStyle tStyle = new TableStyle();
		tStyle.setBackgroundColor("87CEEB");
		//表头方式二
		/*RowRenderData headerData = RowRenderData.build(
				new TextRenderData("FFFFFF","仪器名称"),new TextRenderData("FFFFFF","使用率"));*/
		//表头方式三

		List<CellRenderData> listCellRenderDatas =new ArrayList<CellRenderData>();
		CellRenderData cellRenderData1 = new CellRenderData();
		cellRenderData1.setCellText(new TextRenderData("000000","电灯名称"));
		listCellRenderDatas.add(cellRenderData1);
		CellRenderData cellRenderData2 = new CellRenderData();
		cellRenderData2.setCellText(new TextRenderData("000000","使用率"));
		listCellRenderDatas.add(cellRenderData2);
		CellRenderData cellRenderData3 = new CellRenderData();
		cellRenderData3.setCellText(new TextRenderData("000000","使用年限"));
		listCellRenderDatas.add(cellRenderData3);
		RowRenderData headerData = new RowRenderData(listCellRenderDatas);
		headerData.setRowStyle(tStyle);
		headerData.setCells(listCellRenderDatas);

		List<RowRenderData> listRowList = new ArrayList<RowRenderData>();

		//将数据存储为了后边生成图样式
		List<String> devname = new ArrayList<String>();
		List<Double> useRate = new ArrayList<Double>();
		List<Integer> useYear = new ArrayList<Integer>();

		for(int i = 0; i < 5; i++){

			//生成一行数据
			listRowList.add(RowRenderData.build("电灯_"+i,String.valueOf(Math.random()*100)+"%",String.valueOf(i+1)));

			//存入list,为了生成图表
			devname.add("电灯_"+i);
			useRate.add(Math.random()*100);
			useYear.add(i+1);
		}
		data.put("table",new MiniTableRenderData(headerData,listRowList));

		/* 测试图表的插入-------------------------------------*/
		//柱状图生成
		ChartMultiSeriesRenderData bar = new ChartMultiSeriesRenderData();
		bar.setChartTitle("barCharts");
		//参数为数组
		bar.setCategories(devname.toArray(new String[devname.size()]));
		List<SeriesRenderData> seriesRenderDatas = new ArrayList<SeriesRenderData>();
		seriesRenderDatas.add(new SeriesRenderData("使用率",useRate.toArray(new Double[useRate.size()])));
		seriesRenderDatas.add(new SeriesRenderData("使用年限",useYear.toArray(new Integer[useYear.size()])));
		bar.setSeriesDatas(seriesRenderDatas);
		data.put("barCharts",bar);

		//折线图生成
		ChartMultiSeriesRenderData line = new ChartMultiSeriesRenderData();
		line.setChartTitle("lineCharts");
		//参数为数组
		line.setCategories(devname.toArray(new String[devname.size()]));
		List<SeriesRenderData> seriesRenderDatas1 = new ArrayList<SeriesRenderData>();
		seriesRenderDatas1.add(new SeriesRenderData("使用率",useRate.toArray(new Double[useRate.size()])));
		seriesRenderDatas1.add(new SeriesRenderData("使用年限",useYear.toArray(new Integer[useYear.size()])));
		line.setSeriesDatas(seriesRenderDatas1);
		data.put("lineCharts",line);

		//柱状图、折线图共存
		ChartMultiSeriesRenderData barLine = new ChartMultiSeriesRenderData();
		barLine.setChartTitle("barLineCharts");
		barLine.setCategories(devname.toArray(new String[devname.size()]));

		List<SeriesRenderData> seriesRenderDatas2 = new ArrayList<SeriesRenderData>();
		SeriesRenderData seriesRenderData1 = new SeriesRenderData();
		seriesRenderData1.setName("使用率bar");
		seriesRenderData1.setValues(useRate.toArray(new Double[useRate.size()]));
		seriesRenderData1.setComboType(SeriesRenderData.ComboType.BAR);
		seriesRenderDatas2.add(seriesRenderData1);

		SeriesRenderData seriesRenderData2 = new SeriesRenderData();
		seriesRenderData2.setName("使用年限line");
		seriesRenderData2.setValues(useYear.toArray(new Integer[useYear.size()]));
		seriesRenderData2.setComboType(SeriesRenderData.ComboType.LINE);
		seriesRenderDatas2.add(seriesRenderData2);

		SeriesRenderData seriesRenderData3 = new SeriesRenderData();
		seriesRenderData3.setName("使用率line");
		seriesRenderData3.setValues(useRate.toArray(new Double[useRate.size()]));
		seriesRenderData3.setComboType(SeriesRenderData.ComboType.LINE);
		seriesRenderDatas2.add(seriesRenderData3);

		SeriesRenderData seriesRenderData4 = new SeriesRenderData();
		seriesRenderData4.setName("使用年限bar");
		seriesRenderData4.setValues(useYear.toArray(new Integer[useYear.size()]));
		seriesRenderData4.setComboType(SeriesRenderData.ComboType.BAR);
		seriesRenderDatas2.add(seriesRenderData4);

		barLine.setSeriesDatas(seriesRenderDatas2);
		data.put("barLineCharts",barLine);

		//饼状图
		ChartSingleSeriesRenderData pie = new ChartSingleSeriesRenderData();
		pie.setChartTitle("饼状图");
		pie.setCategories(devname.toArray(new String[devname.size()]));
		pie.setSeriesData(new SeriesRenderData("电灯数量",new Integer[]{120,25,89,65,49}));
		data.put("pie", pie);

4）写入数据导出

		/*将输入写入模板中------------------------------------------*/
		try {
			//将map数据放入模板
			template.render(data);
			//模板数据写入
			template.write(out);
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
		out.flush();
		out.close();
		template.close();



只写了用到的变量，还可以导入图片，可以参考官方文档。参考链接：http://deepoove.com/poi-tl/
