JAVA（2）- JVM类加载器

---

前言

JVM类加载器

---

扩展：

概念

1. JVM： Java虚拟机。

1、JVM内置三大类加载器

1.1根类加载器介绍

• Bootstarp类加载器：C++编写，负责虚拟机核心类库的加载，有加载整个java.lang包
• 可通过-Xbootclasspth来指定根加载器的路径

//根加载器获取加载路径
System.getProperty("sun.boot.class.path")

public class BootstrapClassLoader {

    public static void main(String[] args) {
        System.out.println("Bootstrap："+String.class.getClassLoader());

        String[] paths = System.getProperty("sun.boot.class.path").split(";");
        for (String path : paths) {
            System.out.println(path);
        }
    }
}

Bootstrap：null
D:\Java\jdk1.8.0_171\jre\lib\resources.jar
D:\Java\jdk1.8.0_171\jre\lib\rt.jar
D:\Java\jdk1.8.0_171\jre\lib\sunrsasign.jar
D:\Java\jdk1.8.0_171\jre\lib\jsse.jar
D:\Java\jdk1.8.0_171\jre\lib\jce.jar
D:\Java\jdk1.8.0_171\jre\lib\charsets.jar
D:\Java\jdk1.8.0_171\jre\lib\jfr.jar
D:\Java\jdk1.8.0_171\jre\classes

1.2扩展类夹杂器

• ExtClassLoader：主要用于加载JAVA_HOME下的jre\lib\ext子目录里面的类库，由纯java语言实现。java.lang.URLClassLoader的子类，完整类名是sun.misc.Launcher$ExtClassLoader。

//扩展类加载器获取加载路径
System.getProperty("java.ext.dirs")

public class ExtClassLoader {

    public static void main(String[] args) {
        String[] paths = System.getProperty("java.ext.dirs").split(";");
        for (String path : paths) {
            System.out.println(path);
        }
    }
}

D:\Java\jdk1.8.0_171\jre\lib\ext
C:\WINDOWS\Sun\Java\lib\ext

1.3系统类加载器

• ApplicationClassLoader：加载classpath下的类库资源，是自定义类加载器的默认父加载器，系统类加载器路径一般通过-calsspath或者-cp指定

//系统类加载器获取加载路径
System.getProperty("java.class.path")

public class ApplicationClassLoader {

    public static void main(String[] args) {
        System.out.println(ApplicationClassLoader.class.getClassLoader());
        String[] paths = System.getProperty("java.class.path").split(";");
        for (String path : paths) {
            System.out.println(path);
        }
    }
}

sun.misc.Launcher$AppClassLoader@18b4aac2
D:\Java\jdk1.8.0_171\jre\lib\charsets.jar
D:\Java\jdk1.8.0_171\jre\lib\deploy.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\access-bridge-64.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\cldrdata.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\dnsns.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\jaccess.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\jfxrt.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\localedata.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\nashorn.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\sunec.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\sunjce_provider.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\sunmscapi.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\sunpkcs11.jar
D:\Java\jdk1.8.0_171\jre\lib\ext\zipfs.jar
D:\Java\jdk1.8.0_171\jre\lib\javaws.jar
D:\Java\jdk1.8.0_171\jre\lib\jce.jar
D:\Java\jdk1.8.0_171\jre\lib\jfr.jar
D:\Java\jdk1.8.0_171\jre\lib\jfxswt.jar
D:\Java\jdk1.8.0_171\jre\lib\jsse.jar
D:\Java\jdk1.8.0_171\jre\lib\management-agent.jar
D:\Java\jdk1.8.0_171\jre\lib\plugin.jar
D:\Java\jdk1.8.0_171\jre\lib\resources.jar
D:\Java\jdk1.8.0_171\jre\lib\rt.jar
E:\java\github-repository\roc-go\roc-go-understand\target\classes
E:\java\github-repository\roc-go\roc-go-common\target\classes
……
……
……

2、自定义类加载器

• 由于双亲委托机制，所以要将HelloWorld.java和HelloWorld.class在当前项目目录下删除

• HelloWorld.java

public class HelloWorld {

    static {
        System.out.println(" HelloWorld class static code block");
    }

    public String hello(){
        System.out.println(" HelloWorld hello method");
        return "hello";
    }

}

• 自定义类加载器，加载HelloWorld

//自定义加载器必须是ClassLoader的直接或间接子类
public class MyClassLoader extends ClassLoader {

    //定义默认的class存放路径
    public static final Path DEFAULT_CLASS_DIR = Paths.get("E:\\");

    //允许指定class存放路径
    private final Path classDir;

    //默认加载目录
    public MyClassLoader() {
        super();
        this.classDir = DEFAULT_CLASS_DIR;
    }

    public MyClassLoader(String classDir) {
        super();
        this.classDir = Paths.get(classDir);
    }

    public MyClassLoader(ClassLoader parent, String classDir) {
        super(parent);
        this.classDir = Paths.get(classDir);
    }

    @Override
    protected Class<?> findClass(String name) throws ClassNotFoundException {
        //获取类的二进制流
        byte[] classBytes = this.readClassBytes(name);
        if (Objects.isNull(classBytes) || classBytes.length == 0) {
            throw new ClassNotFoundException("can not load the class " + name);
        }
        return this.defineClass(name, classBytes, 0, classBytes.length);
    }

    private byte[] readClassBytes(String name) throws ClassNotFoundException {
        //将包名转换为文件路径分隔符
        String classPath = name.replace(".", "/");
        //拼接上classDir路径 class文件全路径
        Path classFullPath = classDir.resolve(Paths.get(classPath + ".class"));
        if (!classFullPath.toFile().exists()) {
            throw new ClassNotFoundException("The class " + name + " not found .");
        }

        try {
            ByteArrayOutputStream baos = new ByteArrayOutputStream();
            Files.copy(classFullPath, baos);
            return baos.toByteArray();
        } catch (IOException e) {
            throw new ClassNotFoundException("load the class " + name + " not occur error .", e);
        }
    }

    @Override
    public String toString() {
        return "My ClassLoader";
    }

}

public class TestClassLoader {


    public static void main(String[] args) throws ClassNotFoundException, IllegalAccessException, InstantiationException, NoSuchMethodException, InvocationTargetException {

        MyClassLoader classLoader = new MyClassLoader();
        Class<?> aClass = classLoader.loadClass("com.today.roc.go.understand.thread.高并发编程详解.JVM类加载器.HelloWorld");
        System.out.println(aClass.getClassLoader());
        Object instance = aClass.newInstance();
        System.out.println(instance);
        Method hello = aClass.getMethod("hello");
        Object invoke = hello.invoke(instance);
        System.out.println("Result："+invoke);


    }
}

输出结果：
My ClassLoader
 HelloWorld class static code block
com.today.roc.go.understand.thread.高并发编程详解.JVM类加载器.HelloWorld@378fd1ac
 HelloWorld hello method
Result：hello

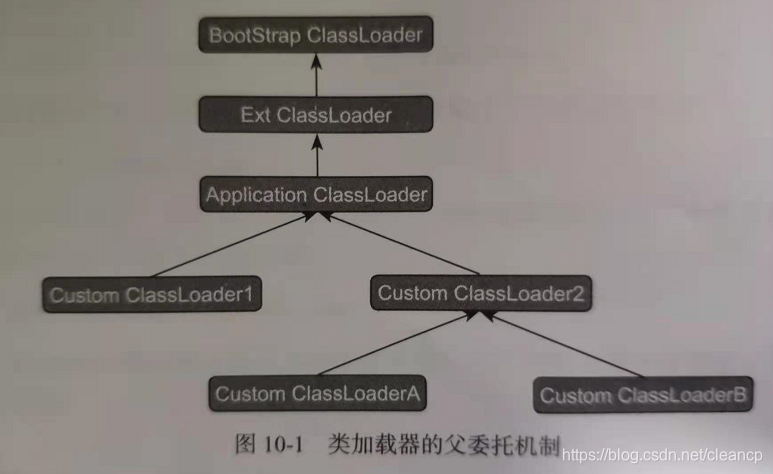

3、双亲委托机制

概念

• 当一个类加载器被调用loadClass之后，它并不会直接加载，而是去找父加载器直到最顶层根加载器，开始自上而下进行加载。


• ClassLoader#loadClass源码片段

//resolve ； 是否进行解析
    protected Class<?> loadClass(String name, boolean resolve)
            throws ClassNotFoundException
    {
        //加载的类路径同步锁
        synchronized (getClassLoadingLock(name)) {
            // First, check if the class has already been loaded
            //从已加载类中获取，如果存在则返回
            Class<?> c = findLoadedClass(name);
            if (c == null) {
                long t0 = System.nanoTime();
                try {
                    if (parent != null) {
                        //父加载器加载
                        c = parent.loadClass(name, false);
                    } else {
                        //parent为空 从根加载器加载
                        c = findBootstrapClassOrNull(name);
                    }
                } catch (ClassNotFoundException e) {
                    // ClassNotFoundException thrown if class not found
                    // from the non-null parent class loader
                }
                //如果父加载器加载之后还是 null
                if (c == null) {
                    // If still not found, then invoke findClass in order
                    // to find the class.
                    long t1 = System.nanoTime();
                    //丛当前加载器加载
                    c = findClass(name);

                    // this is the defining class loader; record the stats
                    sun.misc.PerfCounter.getParentDelegationTime().addTime(t1 - t0);
                    sun.misc.PerfCounter.getFindClassTime().addElapsedTimeFrom(t1);
                    sun.misc.PerfCounter.getFindClasses().increment();
                }
            }
            if (resolve) {
                resolveClass(c);
            }
            return c;
        }
    }

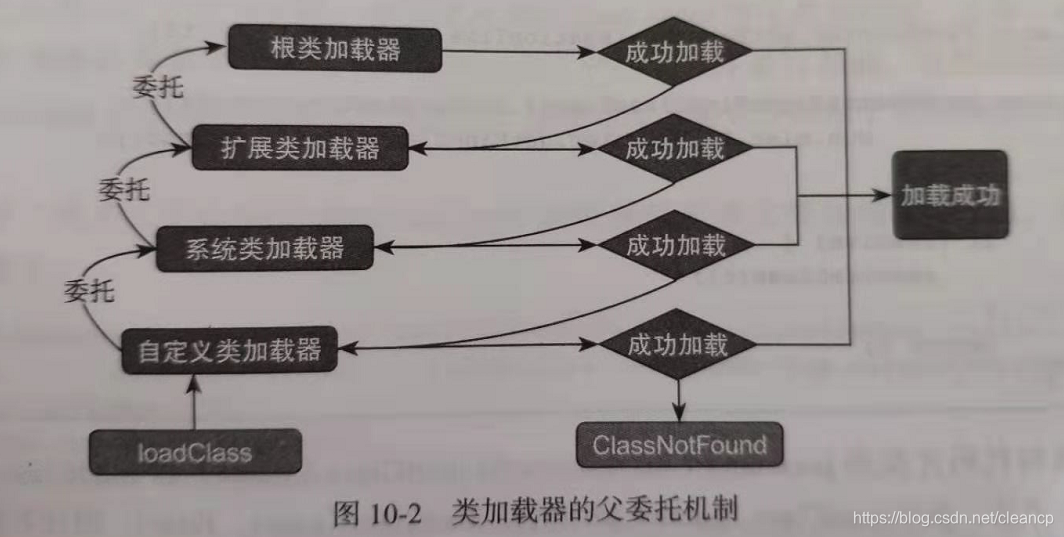

• loadClass流程

  1. 从当前已加载类中通过全路径名来获取该类，如果有则直接返回。
  2. 未被加载，开始判断是否有父加载器有父加载器委托给父加载器加载，否则委托给根加载器加载。
  3. 如果父加载器还是无法加载class、则调用当前类加载器方法findClass(name)加载
  4. 如果类被成功加载，做一些性能数据统计
  5. 由于loadClass制定了resolve为false，所以不会进行连接阶段的执行，这就解释了为什么通过类加载器不会导致类的初初始化

• 如何不删除HelloWorld.java和HelloWorld.class文件，使用自定义加载器加载。

  • 设置父加载器为null
  • 设置父加载器为ExtClassLoader或BootstrapClassLoader

public class TestClassLoader {


    public static void main(String[] args) throws ClassNotFoundException, IllegalAccessException, InstantiationException, NoSuchMethodException, InvocationTargetException {

        //扩展类加载器
        ClassLoader cl = TestClassLoader.class.getClassLoader().getParent();
        MyClassLoader classLoader = new MyClassLoader(cl); //父类传扩展类或根加载器 会跳过AppClassLoader加载
//        ClassLoader cl = null;
//        MyClassLoader classLoader = new MyClassLoader(); //父类传null 会走向根加载器加载
        Class<?> aClass = classLoader.loadClass("com.today.roc.go.understand.thread.高并发编程详解.JVM类加载器.HelloWorld");
        System.out.println(aClass.getClassLoader());
        Object instance = aClass.newInstance();
        System.out.println(instance);
        Method hello = aClass.getMethod("hello");
        Object invoke = hello.invoke(instance);
        System.out.println("Result："+invoke);
    }
}

输出结果：
My ClassLoader
 HelloWorld class static code block
com.today.roc.go.understand.thread.高并发编程详解.JVM类加载器.HelloWorld@378fd1ac
 HelloWorld hello method
Result：hello

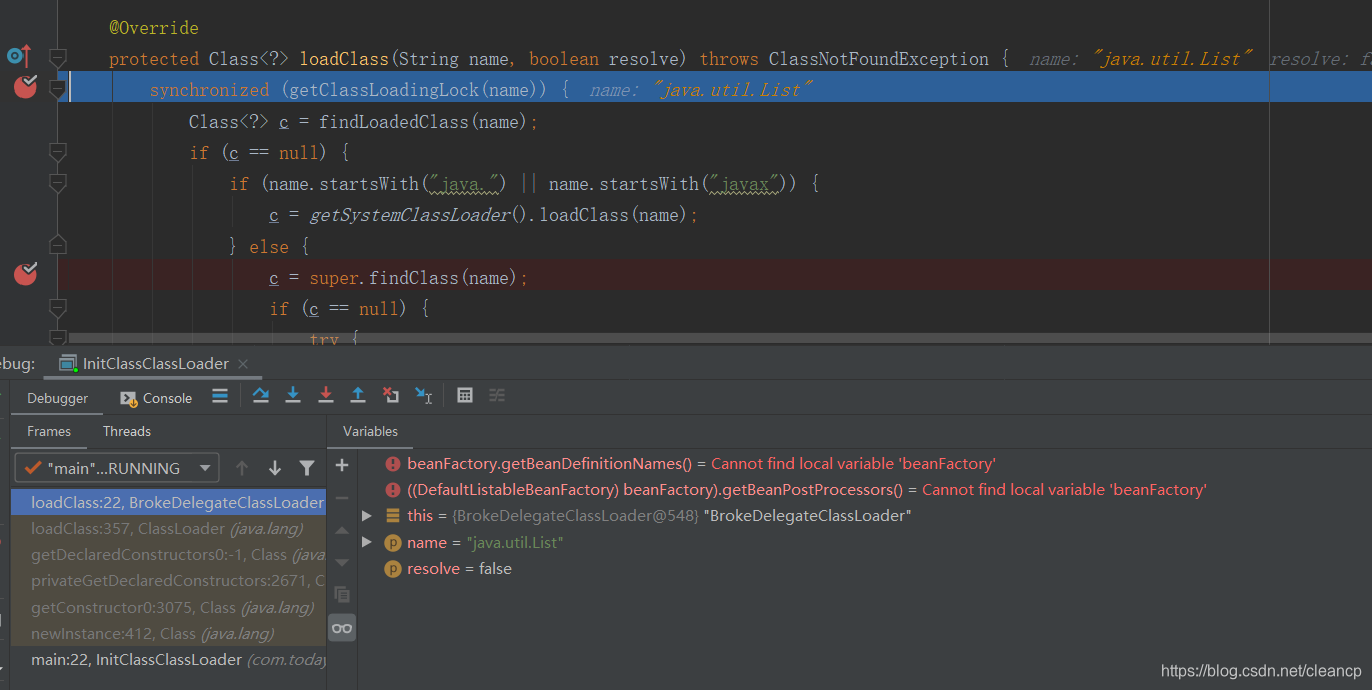

4、破坏双亲委托机制

• 热部署：不停止服务的功能升级或增加新功能

  • 首先要卸载掉加载该模块所有Class的类加载器，卸载类加载器会导致所有类的卸载。无法对三大类加载器进行卸载，只能通过控制自定义类加载器才能做到。

• 不在项目删除HelloWorld，加载HelloWorld

public class BrokeDelegateClassLoader extends MyClassLoader {

    @Override
    protected Class<?> loadClass(String name, boolean resolve) throws ClassNotFoundException {
        synchronized (getClassLoadingLock(name)) {
            Class<?> c = findLoadedClass(name);
            if (c == null) {
                if (name.startsWith("java.") || name.startsWith("javax")) {
                    c = getSystemClassLoader().loadClass(name);
                } else {
                    c = super.findClass(name);
                    if (c == null) {
                        try {
                            if (getParent() != null) {
                                c = getParent().loadClass(name);
                            } else {
                                c = getSystemClassLoader().loadClass(name);
                            }
                        } catch (ClassNotFoundException e) {
                            // ClassNotFoundException thrown if class not found
                            // from the non-null parent class loader
                        }
                    }
                }
            }
            if (c == null){
                throw new ClassNotFoundException("The class "+name+" not found");
            }
            if (resolve) {
                resolveClass(c);
            }
            return c;
        }
    }
	@Override
    public String toString() {
        return "BrokeDelegateClassLoader";
    }

    public static void main(String[] args) throws ClassNotFoundException, IllegalAccessException, InstantiationException, NoSuchMethodException, InvocationTargetException {
        BrokeDelegateClassLoader brokeDelegateClassLoader = new BrokeDelegateClassLoader();
        Class<?> aClass = brokeDelegateClassLoader.loadClass("com.today.roc.go.understand.thread.高并发编程详解.JVM类加载器.HelloWorld");
        System.out.println(aClass.getClassLoader());
        Object instance = aClass.newInstance();
        System.out.println(instance);
        Method hello = aClass.getMethod("hello");
        Object invoke = hello.invoke(instance);
        System.out.println("Result：" + invoke);
    }

}

BrokeDelegateClassLoader
 HelloWorld class static code block
com.today.roc.go.understand.thread.高并发编程详解.JVM类加载器.HelloWorld@4783da3f
 HelloWorld hello method
Result：hello

5、类加载器

5.1类加载器命名空间

• 每个加载器实例有各自的命名空间，命名空间是由该加载器及其所有父加载器所构成的，因此每个类加载器中同一个class都是独一无二的。

• MyClassLoader命名空间

BootstrapClassLoader.ExtClassLoader.AppClassLoader.MyClassLoader

public class NameSpace {

    public static void main(String[] args) throws ClassNotFoundException {
        /***系统类加载器加载同一个类 */
        ClassLoader classLoader = NameSpace.class.getClassLoader();
        Class<?> aClass = classLoader.loadClass("com.today.roc.go.understand.lock.LockThisMain");
        Class<?> bClass = classLoader.loadClass("com.today.roc.go.understand.lock.LockThisMain");
        System.out.println(aClass.hashCode());
        System.out.println(bClass.hashCode());
        System.out.println(aClass == bClass);

        /***
         * 不同类加载器，加载同一个类
         */
        ClassLoader cl = null;
        MyClassLoader myClassLoader = new MyClassLoader(cl);
        BrokeDelegateClassLoader brokeDelegateClassLoader = new BrokeDelegateClassLoader();

        Class<?> aClass1 = myClassLoader.loadClass("com.today.roc.go.understand.oop.Son");
        Class<?> aClass2 = brokeDelegateClassLoader.loadClass("com.today.roc.go.understand.oop.Son");
        System.out.println(aClass1.getClassLoader());
        System.out.println(aClass2.getClassLoader());
        System.out.println(aClass1.hashCode());
        System.out.println(aClass2.hashCode());
        System.out.println(aClass1 == aClass2);

        /***
         * 相同类型类加载器，加载同一个类
         */
        ClassLoader c2 = null;
        MyClassLoader myClassLoader3 = new MyClassLoader(c2);
        MyClassLoader myClassLoader4 = new MyClassLoader(c2);
        Class<?> aClass3 = myClassLoader3.loadClass("com.today.roc.go.understand.oop.Parent");
        Class<?> aClass4 = myClassLoader4.loadClass("com.today.roc.go.understand.oop.Parent");
        System.out.println(aClass3.getClassLoader());
        System.out.println(aClass4.getClassLoader());
        System.out.println(aClass4.hashCode());
        System.out.println(aClass2.hashCode());
        System.out.println(aClass3 == aClass4);

        /***
         * 769287236
         * 769287236
         * true
         * My ClassLoader
         * BrokeDelegateClassLoader
         * 2121055098
         * 2084435065
         * false
         * My ClassLoader
         * My ClassLoader
         * 806353501
         * 2084435065
         * false
         */
    }
}

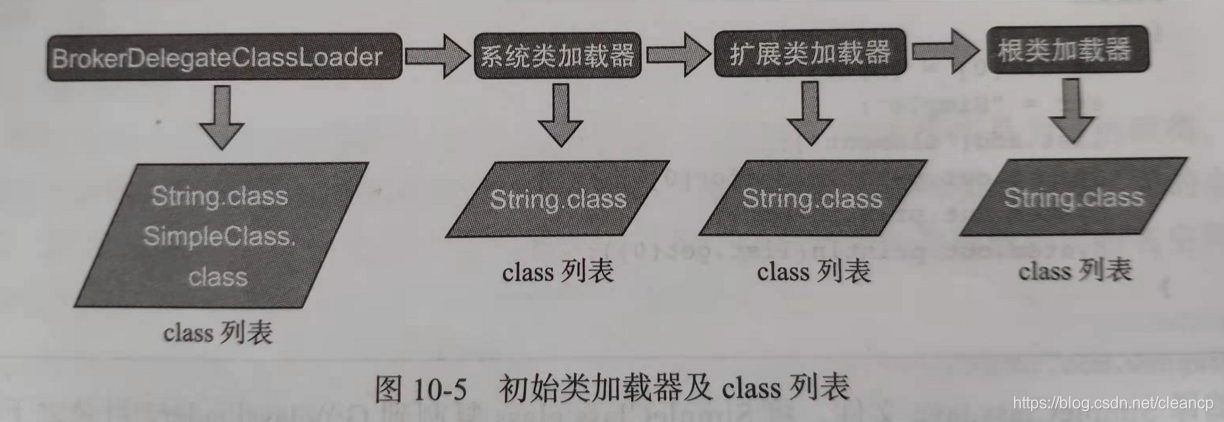

5.2类加载器运行时包

• 由类加载启动命名空间和类的全限定名称共同组成的

BrokeDelegateClassLoader brokeDelegateClassLoader = new BrokeDelegateClassLoader();
        Class<?> aClass = brokeDelegateClassLoader.loadClass("com.today.roc.go.understand.thread.高并发编程详解.JVM类加载器.HelloWorld");

//运行时包
BootstrapClassLoader.ExtClassLoader.AppClassLoader.MyClassLoader.BrokeDelegateClassLoader
.com.today.roc.go.understand.thread.高并发编程详解.JVM类加载器.HelloWorld

• 出于安全和封装的考虑，类加载器通过不同的运行时包，判断类之间是否可以访问，比如String void getChars是包可见，此时其它的运行时包不可见，也不会出现其它非java.lang下的类访问getChars方法

5.3初始化类加载器

• 问题：为什么开发的程序中能访问java.lang包下的类呢？

• java.lang包下的类是由根加载器加载的，而我们开发的程序一般是由系统类加载器加载的，为什么我们在程序中能够new Object()活着new String()等任意的java.lang包下的类呢？

• 如果某个类C被类加载器CL加载，那么CL就被称为C的初始类加载器。JVM为每个类维护了一个列表，记录了将该类加载器作为类初始加载器的所有class，JVM通过列表判断是否已经被加载过来，是否需要首次加载。

• 根据JVM规范规定，类的加载过程中，所有参与的类加载器，即使没有亲自加载该类，也会被标识为该类的初始类加载器。

• SimpleClass 包含String List ArrayList 等……

public class SimpleClass {

    private static byte[] buffer = new byte[8];

    private static String str = "";

    private static List<String> list = new ArrayList<>();

    static {
        buffer[0] = 1;
        str = "simple";
        list.add("element");
        System.out.println(buffer[0]);
        System.out.println(str);
        System.out.println(list.get(0));
    }

    public static void main(String[] args) {

    }
}

• 测试

public class InitClassClassLoader {


    public static void main(String[] args) throws ClassNotFoundException, IllegalAccessException, InstantiationException {
        BrokeDelegateClassLoader classLoader = new BrokeDelegateClassLoader();
        Class<?> aClass = classLoader.loadClass("com.today.roc.go.understand.thread.高并发编程详解.JVM类加载器.概念.SimpleClass");
        System.out.println(classLoader.getParent());
        Object o = aClass.newInstance();
    }
}

输出结果：
sun.misc.Launcher$AppClassLoader@18b4aac2
1
simple
element

有加载java.lang.Object List ArrayIist 等

5.4类的卸载

• 运行期间加载多少class、可以在启动JVM时指定 -verbose:class 参数观察

• 某个对象在堆内存中如果没有其它地方引用则会在GC回收，对象在堆内存中的Class对象以及Class在方法区中的数据结构何时被回收？

• JVM规定一个Class只有在满足下面三个条件才会被GC回收，也就是类被卸载

  • 该类所有实例都被GC，比如Simple.class的所有Simple实例都被回收
  • 加载该类的ClassLoader实例被回收
  • 该类的class实例没有在其他地方被引用

6、总结

定义同名String，在类加载时报错

prohibited package name:java.lang错误
