最后Demo效果如下：
图片选择条
https://www.bilibili.com/video/BV1SL4y1J792?share_source=copy_web

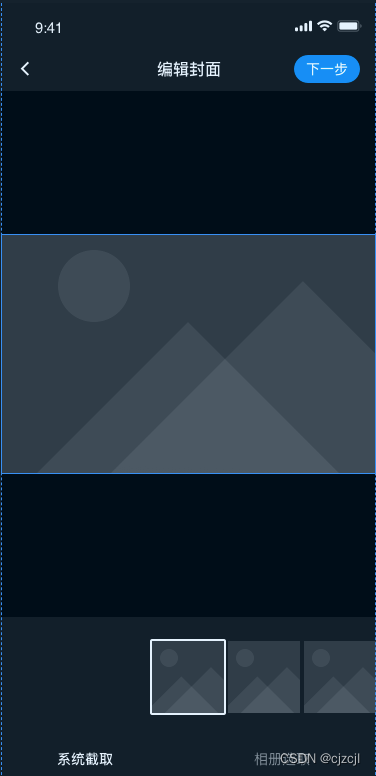

之前视觉有一个需求，大概是这个样子：
下面是待选择图片的选择条，移动小图到中间白框即为选中该图片，上面是选择了对应条目后要呈现的大图。松手时小图自动对齐白框位置，充满白框。
功能分析：
1、松手时小图自动对齐白框位置，充满白框：
这个功能可以是使用ValueAnimator解决，设置目标值为view宽度 / 2，并找到当前距离目标值最近的Item的x，然后让这个x逐步接近view宽度 / 2：
private void translateFinish() {
if (mItemList == null || mItemList.size() == 0) {
return;
}
if (mTransFinishAnim != null) {
mTransFinishAnim.cancel();
}
Item item = mItemList.get(mMostCloseItemPos);
int itemCenterX = (item.rect.left + item.rect.right) / 2;
mTransFinishAnim = ValueAnimator.ofInt(itemCenterX, mWidth / 2);
mTransFinishAnim.setDuration(100);
mTransFinishAnim.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
Integer prevX = null;
@Override
public void onAnimationUpdate(ValueAnimator animation) {
if (prevX != null) {
int distanceX = (int) animation.getAnimatedValue() - prevX;
translate(distanceX);
}
prevX = new Integer((int) animation.getAnimatedValue());
}
});
mTransFinishAnim.addListener(new Animator.AnimatorListener() {
@Override
public void onAnimationStart(Animator animation) {
}
@Override
public void onAnimationEnd(Animator animation) {
if (mSelectListener != null) {
mSelectListener.select(mMostCloseItemPos);
}
}
@Override
public void onAnimationCancel(Animator animation) {
}
@Override
public void onAnimationRepeat(Animator animation) {
}
});
mTransFinishAnim.start();
}//其他分析还没时间写：
完整代码如下：
package com.example.picchoice;
import android.animation.Animator;
import android.animation.ValueAnimator;
import android.content.Context;
import android.content.res.Resources;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Matrix;
import android.graphics.Paint;
import android.graphics.PointF;
import android.graphics.Rect;
import android.graphics.RectF;
import android.util.AttributeSet;
import android.util.DisplayMetrics;
import android.view.MotionEvent;
import android.view.View;
import androidx.annotation.Nullable;
import java.util.ArrayList;
import java.util.List;
import java.util.Queue;
import java.util.concurrent.LinkedBlockingQueue;
public class PicChoicer extends View {
private List<Bitmap> mBmpList;
/**
* 最靠近中线的item条目
**/
private int mMostCloseItemPos = 0;
private boolean mDebug = false;
/**
* 白框是否跟随选中条目，false为固定于view中线位置
**/
private boolean mIsCenterRectFollwed = false;
/**
* 按长边居中图片
**/
private boolean mAlignCenterByLongEdge = false;
private class Item { //条目
public Bitmap bitmap;
public Rect rect;
}
//中线选中图片的回调
public interface SelectListener {
void select(int position);
}
private SelectListener mSelectListener = null;
private List<Item> mItemList;
private int mWidth;
private int mHeight;
private ValueAnimator mTransFinishAnim;
private boolean isInited = false;
private int mCount = 5; //一行几个item
private int mUnitSize;
private int mMargin; //item之间的距离
private PointF mPrevCurrentCenter = null;
private float mPrevDistance = Float.MIN_VALUE;
/**
* 触摸点点距队列
**/
private Queue<Float> mTouchDistanceQueue = new LinkedBlockingQueue<>();
private float mAvergeX = 0, mAvergeY = 0;
private int mPrevPointCount = 0;
public PicChoicer(Context context) {
super(context);
}
public PicChoicer(Context context, @Nullable AttributeSet attrs) {
super(context, attrs);
}
public PicChoicer(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
}
public void setImageList(List<Bitmap> list) {
this.mBmpList = list;
resetView();
}
/**
* 移动函数
*
* @param distanceX 本次移动距离x分量
**/
private void translate(float distanceX) {
if (mWidth > 0 && mHeight > 0 && mItemList != null && mItemList.size() > 0) {
int mostCloseVal = Integer.MAX_VALUE;
mMostCloseItemPos = 0;
for (int i = 0; i < mItemList.size(); i++) {
Item item = mItemList.get(i);
item.rect.left += (int) distanceX;
item.rect.right += (int) distanceX;
int itemCenterX = item.rect.left + item.rect.width() / 2;
//找到item的中线距离view中线最短的item
if (Math.abs(mWidth / 2 - itemCenterX) < Math.abs(mostCloseVal)) {
mostCloseVal = mWidth / 2 - itemCenterX;
mMostCloseItemPos = i;
}
}
invalidate();
}
}
private void translateFinish() {
if (mItemList == null || mItemList.size() == 0) {
return;
}
if (mTransFinishAnim != null) {
mTransFinishAnim.cancel();
}
Item item = mItemList.get(mMostCloseItemPos);
int itemCenterX = (item.rect.left + item.rect.right) / 2;
mTransFinishAnim = ValueAnimator.ofInt(itemCenterX, mWidth / 2);
mTransFinishAnim.setDuration(100);
mTransFinishAnim.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
Integer prevX = null;
@Override
public void onAnimationUpdate(ValueAnimator animation) {
if (prevX != null) {
int distanceX = (int) animation.getAnimatedValue() - prevX;
translate(distanceX);
}
prevX = new Integer((int) animation.getAnimatedValue());
}
});
mTransFinishAnim.addListener(new Animator.AnimatorListener() {
@Override
public void onAnimationStart(Animator animation) {
}
@Override
public void onAnimationEnd(Animator animation) {
if (mSelectListener != null) {
mSelectListener.select(mMostCloseItemPos);
}
}
@Override
public void onAnimationCancel(Animator animation) {
}
@Override
public void onAnimationRepeat(Animator animation) {
}
});
mTransFinishAnim.start();
}
private void onClick(int x, int y) {
}
private void resetView() {
if (mWidth > 0 && mHeight > 0 && mBmpList != null) {
this.mUnitSize = (int) (mHeight * 0.6f);
this.mMargin = mUnitSize / 10;
this.mItemList = new ArrayList<>(mBmpList.size());
int totalSize = mUnitSize + mMargin;
for (int i = 0; i < mBmpList.size(); i++) {
Item item = new Item();
item.bitmap = mBmpList.get(i);
item.rect = new Rect(mWidth / 2 - mUnitSize / 2 + totalSize * i, mHeight / 2 - mUnitSize / 2,
mWidth / 2 + mUnitSize / 2 + totalSize * i, mHeight / 2 + mUnitSize / 2);
mItemList.add(item);
}
}
}
public void setSelectListener(SelectListener selectListener) {
this.mSelectListener = selectListener;
}
@Override
public boolean onTouchEvent(MotionEvent event) {
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
mPrevDistance = 0;
mPrevPointCount = event.getPointerCount();
//算出移动中心坐标、点间距离
for (int i = 0; i < event.getPointerCount(); i++) {
mAvergeX += event.getX(i);
mAvergeY += event.getY(i);
if (i + 1 < event.getPointerCount()) {
mPrevDistance += Math.sqrt(Math.pow(event.getX(i + 1) - event.getX(i), 2) + Math.pow(event.getY(i + 1) - event.getY(i), 2));
}
}
mAvergeX /= event.getPointerCount();
mAvergeY /= event.getPointerCount();
if (mPrevCurrentCenter == null) {
mPrevCurrentCenter = new PointF(mAvergeX, mAvergeY);
} else {
mPrevCurrentCenter.set(mAvergeX, mAvergeY);
}
break;
case MotionEvent.ACTION_MOVE:
mAvergeX = 0;
mAvergeY = 0;
float nowDistance = 0;
//算出移动中心坐标、点间距离
for (int i = 0; i < event.getPointerCount(); i++) {
mAvergeX += event.getX(i);
mAvergeY += event.getY(i);
if (i + 1 < event.getPointerCount()) {
nowDistance += Math.sqrt(Math.pow(event.getX(i + 1) - event.getX(i), 2) + Math.pow(event.getY(i + 1) - event.getY(i), 2));
}
}
//现在的点间距离 除以 上次点间距离 这次得到缩放比例
mAvergeX /= event.getPointerCount();
mAvergeY /= event.getPointerCount();
if ((mPrevPointCount != event.getPointerCount()) || event.getPointerCount() <= 1 || mPrevPointCount <= 1) { //触摸点数突然改变 或者 触摸点不超过2，不允许缩放
mPrevDistance = nowDistance = 0;
}
//检测上次手指之间的距离mPrevDistance和这次的nowDistance之间的长度差，以这次/上次所谓缩放比例。如果缩放数据有效，则进行平均平滑化并且进行缩放
if (mPrevDistance > 0 && nowDistance > 0) {
mTouchDistanceQueue.add(nowDistance / mPrevDistance);
if (mTouchDistanceQueue.size() >= 6) {
Float point[] = new Float[mTouchDistanceQueue.size()];
mTouchDistanceQueue.toArray(point);
while (mTouchDistanceQueue.size() > 6) {
mTouchDistanceQueue.poll();
}
}
}
mPrevPointCount = event.getPointerCount();
mPrevDistance = nowDistance;
//当前坐标 - 上次坐标 = 偏移值，然后进行位置偏移
if (mPrevCurrentCenter == null) {
mPrevCurrentCenter = new PointF(mAvergeX, mAvergeY);
} else if (event.getPointerCount() > 0) {
translate(event.getX(0) - mPrevCurrentCenter.x);
mPrevCurrentCenter.set(event.getX(0), event.getY(0));
}
break;
case MotionEvent.ACTION_UP:
if (event.getPointerCount() > 0) {
translateFinish();
}
//抬起，清理干净数据
mAvergeX = 0;
mAvergeY = 0;
mTouchDistanceQueue.clear();
break;
}
return true;
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int w = getMySize(widthMeasureSpec);
int h = getMySize(heightMeasureSpec);
if (w != mWidth || h != mHeight) { //已经onMeasuer过一次，除非界面大小改动否则不重新初始化view
this.mWidth = getMySize(widthMeasureSpec);
this.mHeight = getMySize(heightMeasureSpec);
resetView();
}
}
/* 获取测量大小*/
private int getMySize(int measureSpec) {
int result;
int specMode = MeasureSpec.getMode(measureSpec);
int specSize = MeasureSpec.getSize(measureSpec);
result = specSize;//确切大小,所以将得到的尺寸给view
return result;
}
private float convertDpToPixel(float dp, Context context) {
Resources resources = context.getResources();
DisplayMetrics metrics = resources.getDisplayMetrics();
float px = dp * ((float) metrics.densityDpi / DisplayMetrics.DENSITY_DEFAULT);
return px;
}
@Override
protected void onDraw(Canvas canvas) {
if (mWidth > 0 && mHeight > 0 && mItemList != null && mItemList.size() > 0) {
Paint p = new Paint();
p.setStyle(Paint.Style.STROKE);
p.setStrokeWidth(convertDpToPixel(2f, getContext()));
p.setStrokeCap(Paint.Cap.ROUND);
p.setColor(Color.WHITE);
p.setStrokeCap(Paint.Cap.SQUARE);
p.setAntiAlias(true);
Rect viewRect = new Rect(0, 0, mWidth, mHeight);
float cornetR = convertDpToPixel(3f, getContext());
int padding = (int) convertDpToPixel(1f, getContext());
for (int i = 0; i < mItemList.size(); i++) {
Item item = mItemList.get(i);
Rect rect = item.rect;
//item超出范围就不渲染，节约资源
if (!(viewRect.intersects(rect.left, rect.top, rect.right, rect.bottom) || viewRect.contains(rect))) {
continue;
}
//渲染图片
if (item.bitmap != null && !item.bitmap.isRecycled()) {
Bitmap bmp = item.bitmap;
int bmpW = bmp.getWidth();
int bmpH = bmp.getHeight();
Matrix matrix = new Matrix();
float scale = 1f;
if (mAlignCenterByLongEdge) {
if (bmpW >= bmpH) { //保持比例缩放，并适配窗口(按最长边缩放)
scale = (float) item.rect.width() / bmpW;
} else {
scale = (float) item.rect.height() / bmpH;
}
matrix.postScale(scale, scale); //缩放
matrix.postTranslate(item.rect.left + (item.rect.width() - bmpW * scale) / 2, item.rect.top + (item.rect.height() - bmpH * scale) / 2); //移动到框内，居中显示
canvas.drawBitmap(item.bitmap, matrix, null);
} else {
if (bmpW <= bmpH) { //保持比例缩放，并适配窗口(按最短边缩放)
scale = (float) item.rect.width() / bmpW;
} else {
scale = (float) item.rect.height() / bmpH;
}
matrix.postScale(scale, scale); //缩放
matrix.postTranslate(item.rect.left + (item.rect.width() - bmpW * scale) / 2, item.rect.top + (item.rect.height() - bmpH * scale) / 2); //移动到框内，居中显示
canvas.save();
canvas.clipRect(item.rect); //裁剪多余部分
canvas.drawBitmap(item.bitmap, matrix, null);
canvas.restore();
}
}
if (mIsCenterRectFollwed) {
if (i == mMostCloseItemPos) { //只有中线划过的条目显示白色框框
canvas.drawRect(rect, p);
}
} else {
RectF centerRect = new RectF(mWidth / 2 - mUnitSize / 2 - padding,
mHeight / 2 - mUnitSize / 2 - padding,
mWidth / 2 + mUnitSize / 2 + padding,
mHeight / 2 + mUnitSize / 2 + padding);
canvas.drawRoundRect(centerRect, cornetR, cornetR, p);
}
if (mDebug) {
Paint debugP = new Paint();
debugP.setStyle(Paint.Style.STROKE);
debugP.setColor(Color.RED);
debugP.setStrokeWidth(convertDpToPixel(2f, getContext()));
debugP.setTextSize(rect.width() / 2);
canvas.drawText(i + "", rect.left + rect.width() / 2, rect.top + rect.height() / 2, debugP);
canvas.drawRect(viewRect, debugP);
}
}
}
}
}
