hive join的一个小问题

最近在看公司代码发现一个和join相关的奇怪的写法

抽象一下表结构如下

为了简化问题,这里就用这张示例表演示

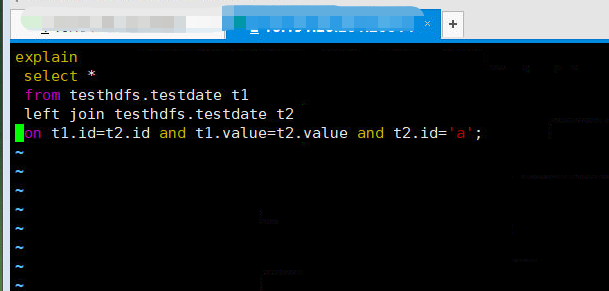

写法一

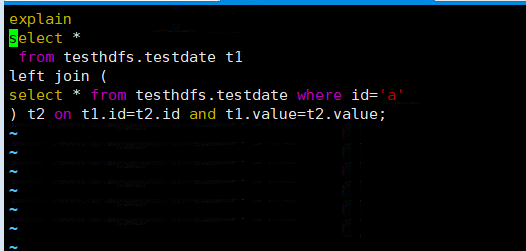

写法二

写法一明细是想要缩小join表的范围,减少关联的数据,但是其实写法一和写法二的效果是一样的,问题的本质是用第一种方式的人对join on条件的理解不够深入,虽然说两种写法效果一样但是如果sql很复杂关联的表很多第一种写法会导致sql的可读性非常差

下面看下两种写法的执行结果

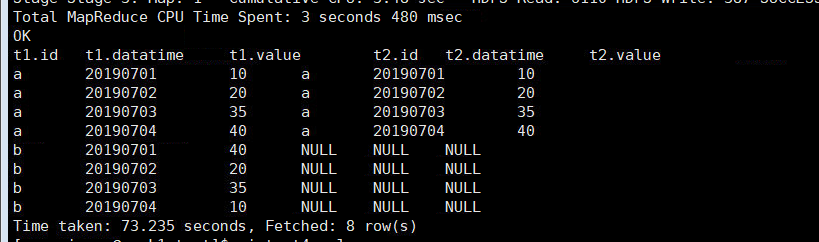

写法一执行结果

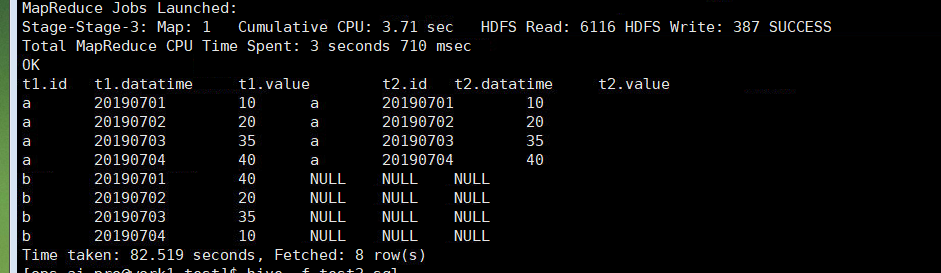

写法二执行结果

执行结果是一样下面看下执行计划

写法一的执行计划

Explain
STAGE DEPENDENCIES:
  Stage-4 is a root stage
  Stage-3 depends on stages: Stage-4
  Stage-0 depends on stages: Stage-3

STAGE PLANS:
  Stage: Stage-4
    Map Reduce Local Work
      Alias -> Map Local Tables:
        $hdt$_1:testdate
          Fetch Operator
            limit: -1
      Alias -> Map Local Operator Tree:
        $hdt$_1:testdate
          TableScan
            alias: testdate
            Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
            Filter Operator
              predicate: (id = 'a') (type: boolean)
              Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
              Select Operator
                expressions: 'a' (type: string), datatime (type: int), value (type: int)
                outputColumnNames: _col0, _col1, _col2
                Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
                HashTable Sink Operator
                  filter predicates:
                    0 {(_col0 = 'a')}
                    1
                  keys:
                    0 _col2 (type: int)
                    1 _col2 (type: int)

  Stage: Stage-3
    Map Reduce
      Map Operator Tree:
          TableScan
            alias: t1
            Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
            Select Operator
              expressions: id (type: string), datatime (type: int), value (type: int)
              outputColumnNames: _col0, _col1, _col2
              Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
              Map Join Operator
                condition map:
                     Left Outer Join0 to 1
                filter predicates:
                  0 {(_col0 = 'a')}
                  1
                keys:
                  0 _col2 (type: int)
                  1 _col2 (type: int)
                outputColumnNames: _col0, _col1, _col2, _col3, _col4, _col5
                Statistics: Num rows: 1 Data size: 123 Basic stats: COMPLETE Column stats: NONE
                File Output Operator
                  compressed: false
                  Statistics: Num rows: 1 Data size: 123 Basic stats: COMPLETE Column stats: NONE
                  table:
                      input format: org.apache.hadoop.mapred.SequenceFileInputFormat
                      output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat
                      serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe
      Local Work:
        Map Reduce Local Work

  Stage: Stage-0
    Fetch Operator
      limit: -1
      Processor Tree:
        ListSink

Time taken: 11.505 seconds, Fetched: 69 row(s)

写法二执行计划

Explain
STAGE DEPENDENCIES:
  Stage-4 is a root stage
  Stage-3 depends on stages: Stage-4
  Stage-0 depends on stages: Stage-3

STAGE PLANS:
  Stage: Stage-4
    Map Reduce Local Work
      Alias -> Map Local Tables:
        $hdt$_1:t2
          Fetch Operator
            limit: -1
      Alias -> Map Local Operator Tree:
        $hdt$_1:t2
          TableScan
            alias: t2
            Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
            Filter Operator
              predicate: (id = 'a') (type: boolean)
              Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
              Select Operator
                expressions: 'a' (type: string), datatime (type: int), value (type: int)
                outputColumnNames: _col0, _col1, _col2
                Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
                HashTable Sink Operator
                  filter predicates:
                    0 {(_col0 = 'a')}
                    1
                  keys:
                    0 _col2 (type: int)
                    1 _col2 (type: int)

  Stage: Stage-3
    Map Reduce
      Map Operator Tree:
          TableScan
            alias: t1
            Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
            Select Operator
              expressions: id (type: string), datatime (type: int), value (type: int)
              outputColumnNames: _col0, _col1, _col2
              Statistics: Num rows: 1 Data size: 112 Basic stats: COMPLETE Column stats: NONE
              Map Join Operator
                condition map:
                     Left Outer Join0 to 1
                filter predicates:
                  0 {(_col0 = 'a')}
                  1
                keys:
                  0 _col2 (type: int)
                  1 _col2 (type: int)
                outputColumnNames: _col0, _col1, _col2, _col3, _col4, _col5
                Statistics: Num rows: 1 Data size: 123 Basic stats: COMPLETE Column stats: NONE
                File Output Operator
                  compressed: false
                  Statistics: Num rows: 1 Data size: 123 Basic stats: COMPLETE Column stats: NONE
                  table:
                      input format: org.apache.hadoop.mapred.SequenceFileInputFormat
                      output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat
                      serde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe
      Local Work:
        Map Reduce Local Work

  Stage: Stage-0
    Fetch Operator
      limit: -1
      Processor Tree:
        ListSink

Time taken: 11.352 seconds, Fetched: 69 row(s)
