使用Eclipse创建一个web项目Maven工程

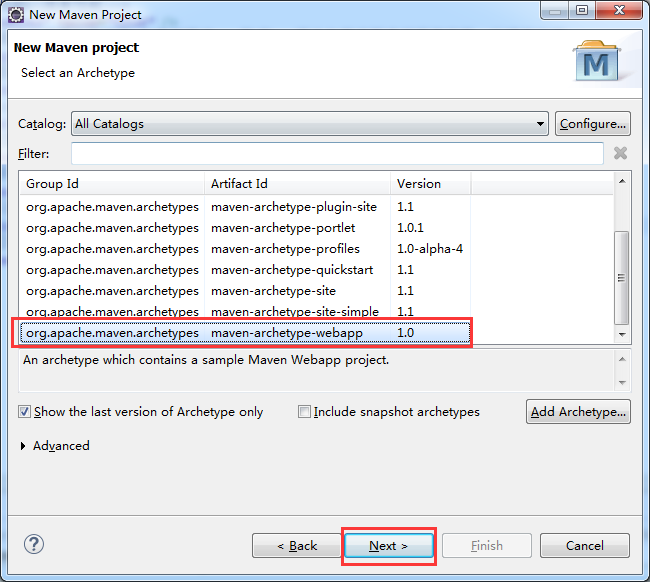

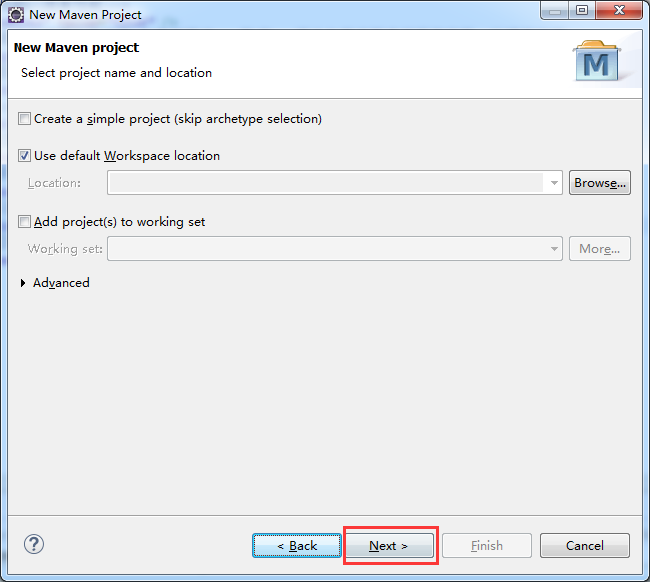

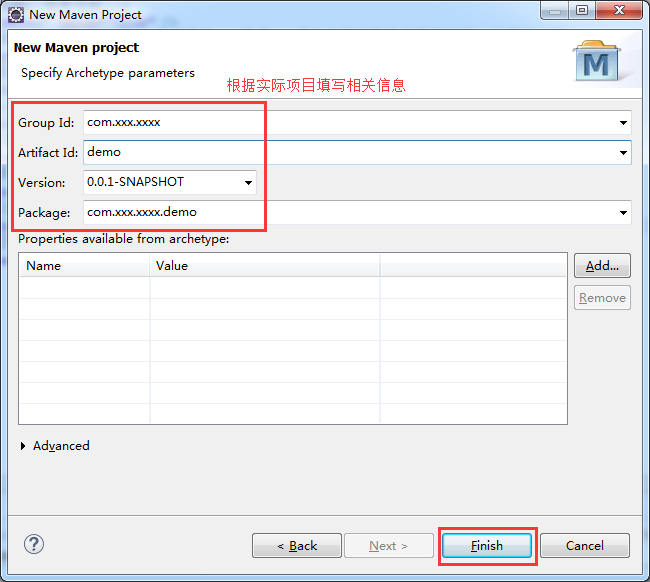

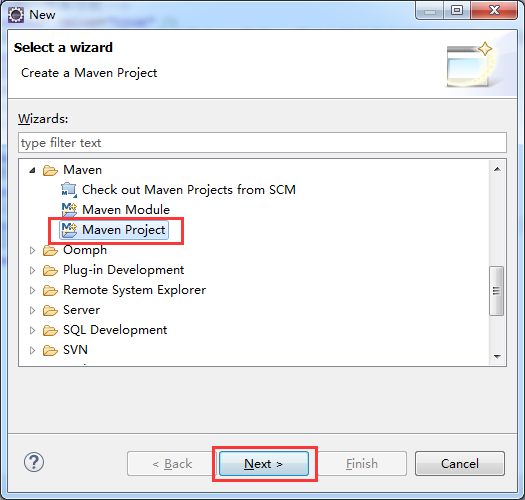

一、创建项目

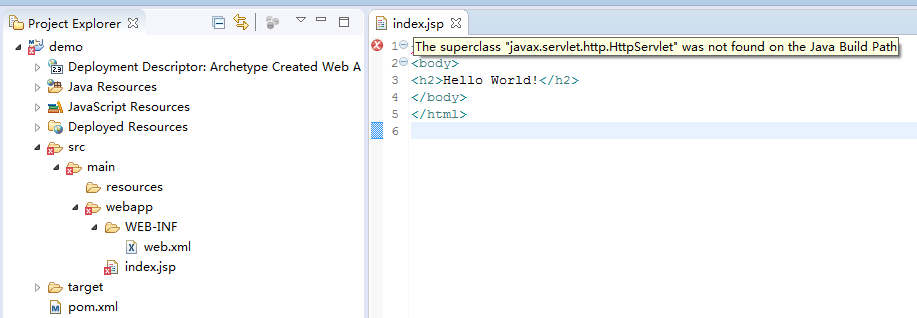

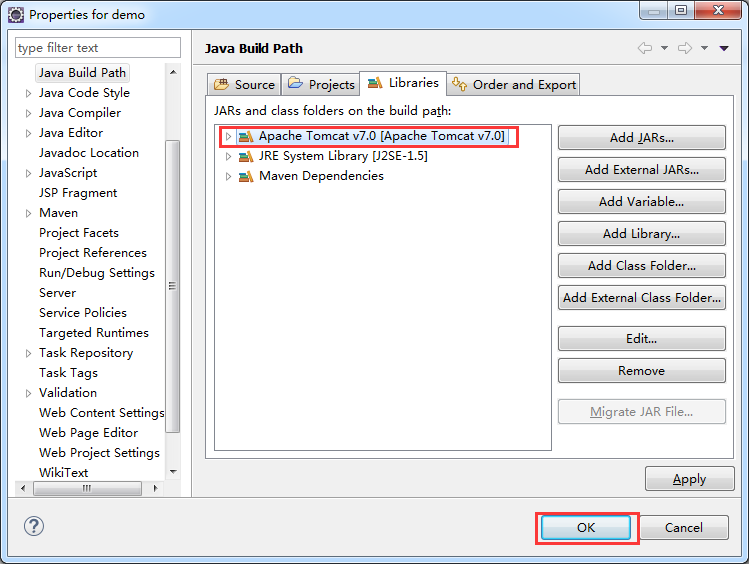

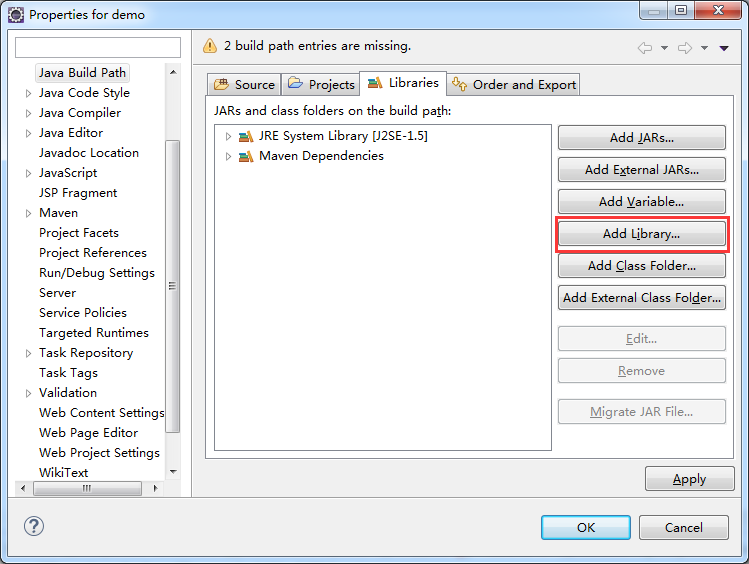

刚建好的工程如果报错：The superclass "javax.servlet.http.HttpServlet" was not found on the Java Build Path

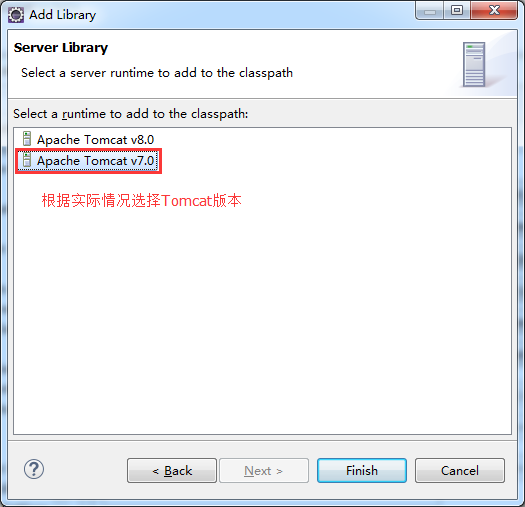

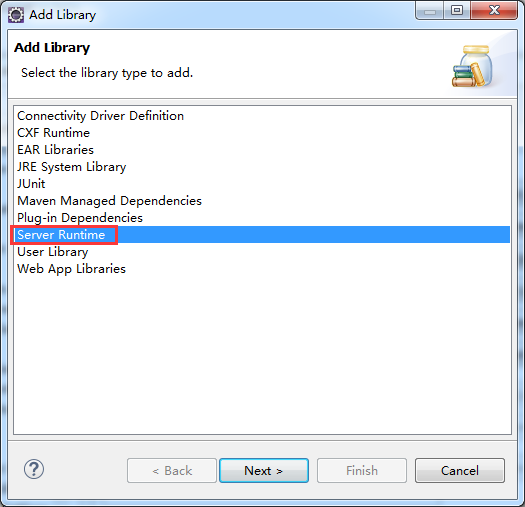

则通过以下配置解决：



二、配置

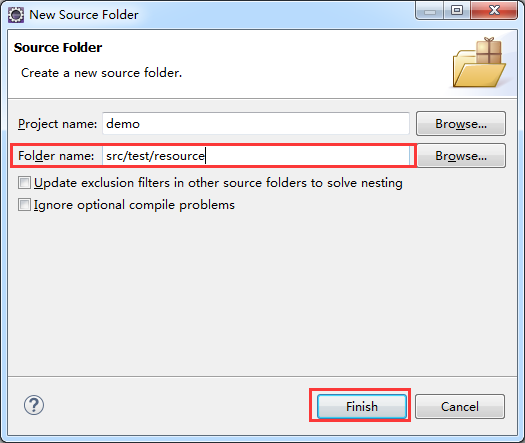

1、首先创建Maven规定的source folder（如果没有自动创建的话）

src/main/resources
src/main/java
src/test/resources
src/test/java

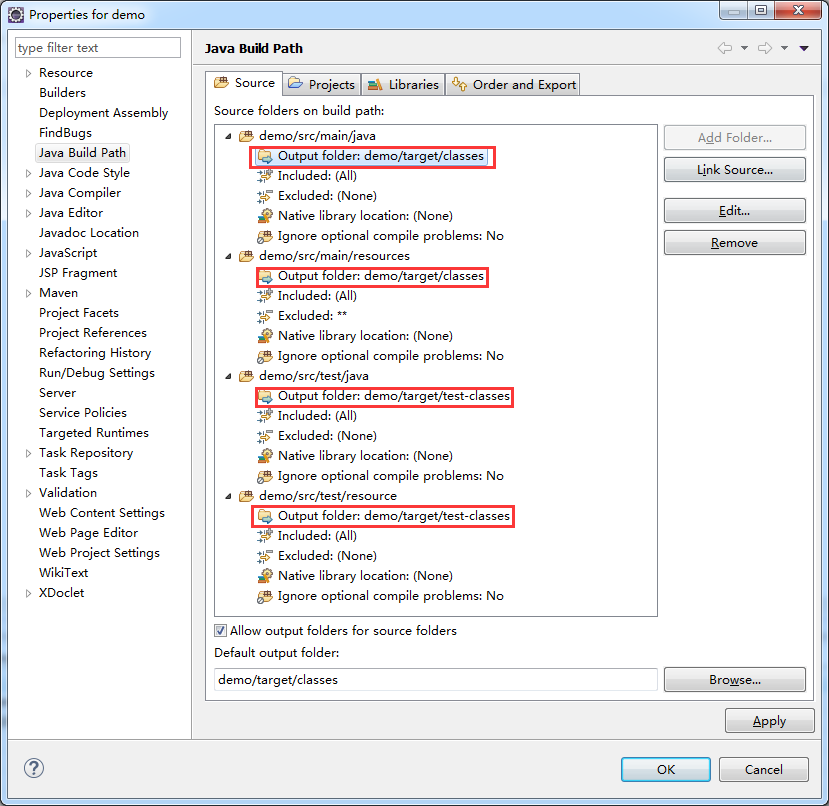

2、配置build path，设置以上四个文件夹的output folder，对应如下图：

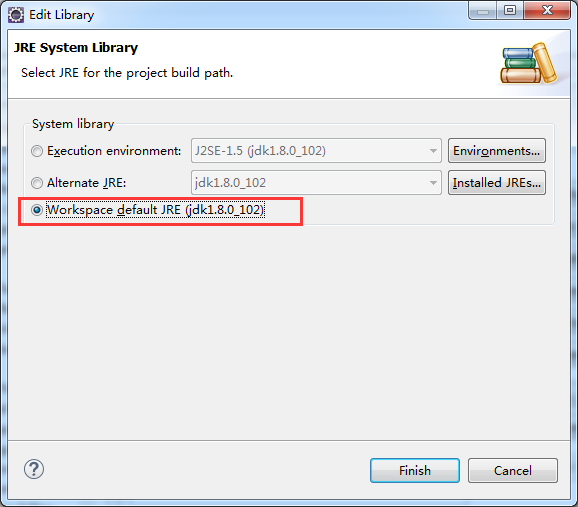

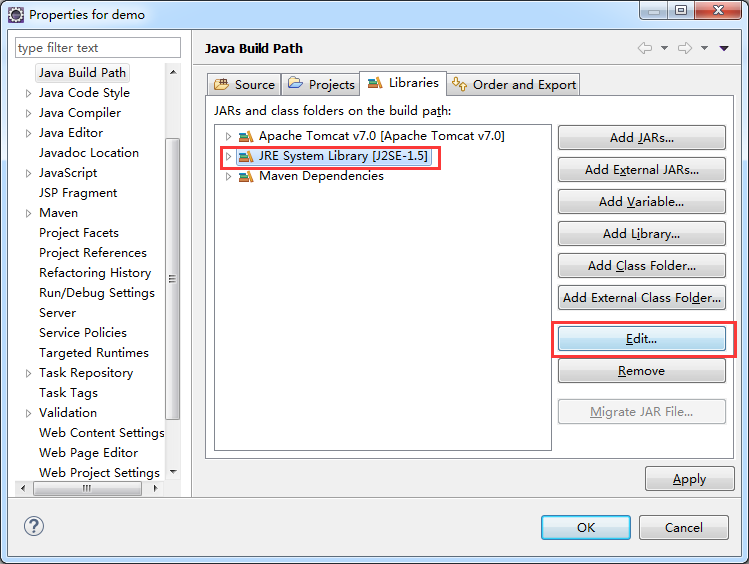

3、设置JRE版本

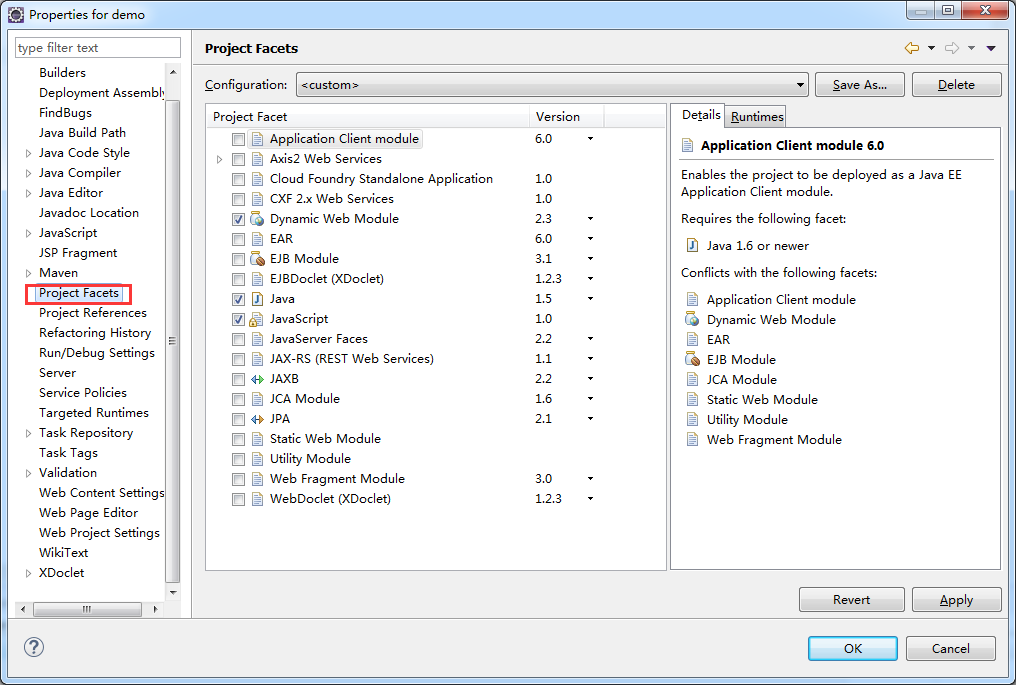

4、将项目转换成Dynamic Web Project

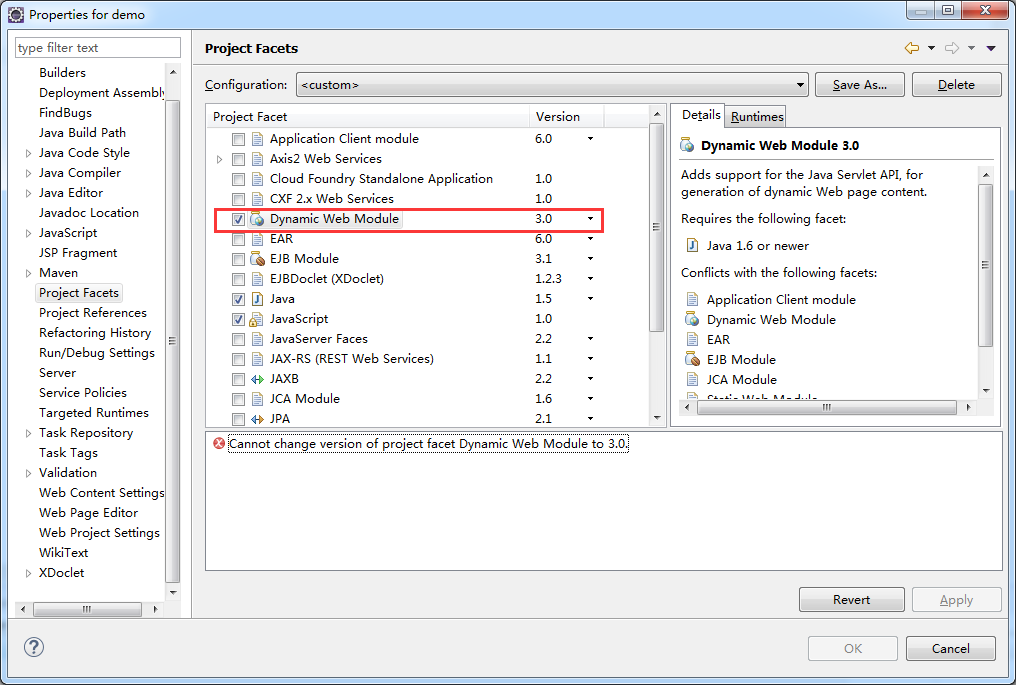

当Dynamic Web Module选择目前一般用的3.0时，报Cannot change version of project facet Dynamic web module to 3.0

① 首先，把Servlet改成3.0，打开项目的web.xml，修改成：

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://java.sun.com/xml/ns/javaee"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
	id="schedule-console" version="3.0">
</web-app>

② 修改项目的设置，打开项目.settings目录下的org.eclipse.jdt.core.prefs，将1.5改成1.8

eclipse.preferences.version=1
org.eclipse.jdt.core.compiler.codegen.inlineJsrBytecode=enabled
org.eclipse.jdt.core.compiler.codegen.targetPlatform=1.8
org.eclipse.jdt.core.compiler.compliance=1.8
org.eclipse.jdt.core.compiler.problem.assertIdentifier=error
org.eclipse.jdt.core.compiler.problem.enumIdentifier=error
org.eclipse.jdt.core.compiler.problem.forbiddenReference=warning
org.eclipse.jdt.core.compiler.source=1.8

③ 打开org.eclipse.wst.common.project.facet.core.xml，将1.5改成1.8，2.3改成3.0

<?xml version="1.0" encoding="UTF-8"?>
<faceted-project>
  <fixed facet="wst.jsdt.web"/>
  <installed facet="java" version="1.8"/>
  <installed facet="jst.web" version="3.0"/>
  <installed facet="wst.jsdt.web" version="1.0"/>
</faceted-project>

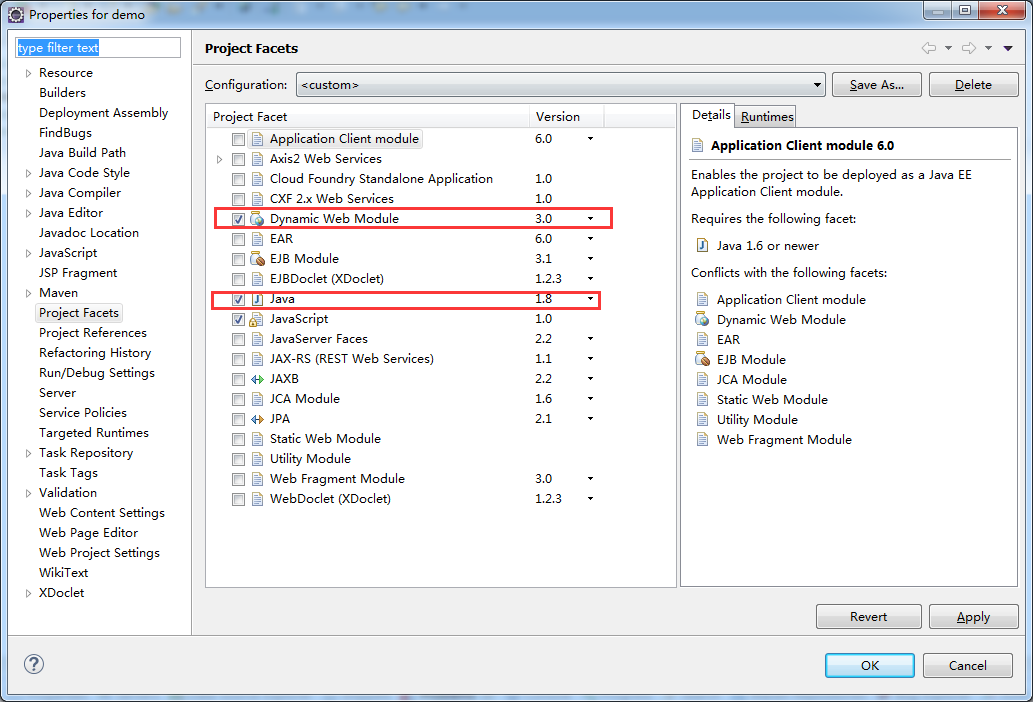

④ 重新刷新工程以后，可以看到Dynamic Web Module和Java已经更改了

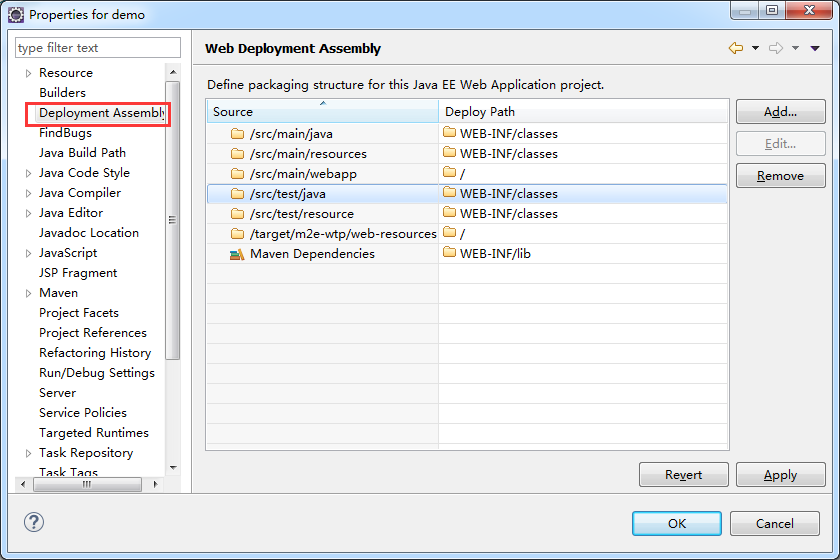

5、设置部署程序集

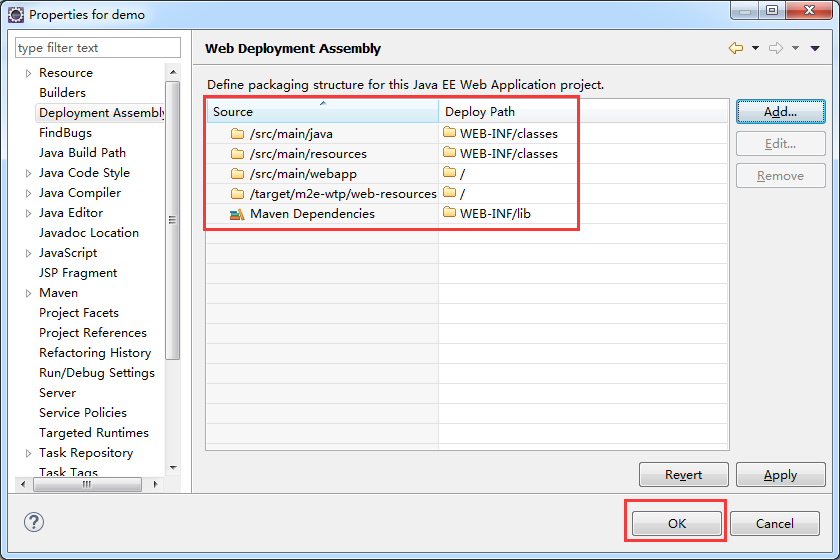

测试用的test不需要部署，因此移除test部分

6、配置工程的pom.xml

假设使用的是Spring+SpringMVC+MyBatis，最终编译成war包部署在Tomcat上

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.xxx.xxxx</groupId>
	<artifactId>demo</artifactId>
	<packaging>war</packaging>
	<version>0.0.1-SNAPSHOT</version>
	<name>demo Maven Webapp</name>
	<url>http://maven.apache.org</url>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<org.springframework.version>4.3.8.RELEASE</org.springframework.version>
	</properties>

	<repositories>
		<repository>
			<id>central</id>
			<name>Maven Repository</name>
			<url>https://repo1.maven.org/maven2</url>
			<releases>
				<enabled>true</enabled>
			</releases>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
	</repositories>

	<dependencies>
		<!-- spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${org.springframework.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${org.springframework.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-test</artifactId>
			<scope>test</scope>
			<version>${org.springframework.version}</version>
		</dependency>

		<!-- Metrics -->
		<dependency>
			<groupId>io.dropwizard.metrics</groupId>
			<artifactId>metrics-core</artifactId>
			<version>3.2.2</version>
		</dependency>
		<dependency>
			<groupId>io.dropwizard.metrics</groupId>
			<artifactId>metrics-servlets</artifactId>
			<version>3.2.2</version>
		</dependency>

		<!-- Database -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.4.0</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>1.3.0</version>
		</dependency>
		<dependency>
			<groupId>com.zaxxer</groupId>
			<artifactId>HikariCP-java7</artifactId>
			<version>2.4.11</version>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.39</version>
		</dependency>

		<!-- Test -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<scope>test</scope>
			<version>4.12</version>
		</dependency>
		<dependency>
			<groupId>org.skyscreamer</groupId>
			<artifactId>jsonassert</artifactId>
			<version>1.4.0</version>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>com.h2database</groupId>
			<artifactId>h2</artifactId>
			<version>1.4.193</version>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.mockito</groupId>
			<artifactId>mockito-core</artifactId>
			<version>2.8.9</version>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<finalName>demo</finalName>
		<plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.2</version>
				<configuration>
					<source>1.8</source>
					<target>1.8</target>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-war-plugin</artifactId>
				<version>2.4</version>
				<configuration>
					<warSourceDirectory>src/main/webapp</warSourceDirectory>
					<warName>demo</warName>
					<failOnMissingWebXml>false</failOnMissingWebXml>
				</configuration>
			</plugin>
		</plugins>
	</build>
</project>



转载于:https://my.oschina.net/u/1445585/blog/910290
