一、Picasso设置及使用：
在build.gradle中添加依赖：
compile 'com.squareup.picasso:picasso:2.5.2'设置Picasso：
Picasso picasso = new Picasso.Builder(this)
.memoryCache(new LruCache()) // 设置自定义的内存缓存
.addRequestHandler(requestHandler) // 设置自定义的RequestHandler
.defaultBitmapConfig(bitmapConfig) // 设置自定义的Bitmap Config
.downloader(okHttpDownloader) // 设置自定义的Downloader
.executor(executorService) // 设置自定义的线程池
.requestTransformer(transformer) // 设置自定义的Transformor
.listener(listener) // 添加Listener进行监听
.loggingEnabled(true) // 设置日志打印
.build();
picasso.load(url)
.placeholder(defaultDrawable)
.error(errorDrawable)
.resize(width, height)
.centerInside()
.into(imageView);二、源码分析
（一）Picasso中重要类介绍
1. Action：描述Picasso的每次请求行为所包含的数据，以及每次请求完成和错误的处理，此类是所有Action的基类，继承时需要实现以下两个函数：
abstract void complete(Bitmap result, Picasso.LoadedFrom from);
abstract void error();final Picasso picasso;
final Request request;
final WeakReference<T> target; //外部传入的ImageView，
final boolean noFade; //是否渐变的出现
final int memoryPolicy; //内存策略
final int networkPolicy; //网络策略
final int errorResId; //错误时展示的图片id
final Drawable errorDrawable; //错误时展示的图片Drawable，和errorResId任给一个
final String key; //根据每一个Request生成一个唯一的key值，用于在内存中缓存每一个key对应的bitmap，比如两个Request的uri及其他参数都一样，这时候就会直接读取缓存的值
final Object tag; //用于暂停、重新运行或者取消某一个Request
boolean willReplay; //标识是否需要重新请求
boolean cancelled; //标识请求是否已取消
我们注意到在Action的构造函数中有这么一个赋值
this.target = target == null ? null : new RequestWeakReference<T>(this, target, picasso.referenceQueue);
static class RequestWeakReference<M> extends WeakReference<M> {
final Action action;
public RequestWeakReference(Action action, M referent, ReferenceQueue<? super M> q) {
super(referent, q);
this.action = action;
}
}弱引用可以和一个引用队列（ReferenceQueue）联合使用，如果弱引用所引用的对象被垃圾回收，Java虚拟机就会把这个弱引用加入到与之关联的引用队列中。
下面介绍Action的子类：
(1)FetchAction：获取图片，并在成功或者失败后回调onSuccess或者onError给调用者。一般用于提前缓存图片
(2)GetAction：成功失败都没有回调，因为他是用在同步获取图片时使用，使用时不能放在主线程
(3)TargetAction：将获取的图片放到target里面，使用时需要先实现Taget接口，这有助于自己对图片进行灵活的处理，比如保存等
public interface Target {
void onBitmapLoaded(Bitmap bitmap, LoadedFrom from);
void onBitmapFailed(Drawable errorDrawable);
void onPrepareLoad(Drawable placeHolderDrawable);
}(5)AppWidgetAction：用于widget的图片加载，图片加载完成时会自动调用更新widget的方法
(6)ImageViewAction：这个是最常用的Action，图片加载完成时会直接显示到ImageView
2. RequestHandler：请求处理的基类，对应不同请求都需要实现以下两个虚函数
public abstract boolean canHandleRequest(Request data); //判断是否能处理
public abstract Result load(Request request, int networkPolicy) throws IOException; //实际的网络请求或者图片资源加载它里面还有一个对处理结果描述的静态内部类Result
public static final class Result {
private final Picasso.LoadedFrom loadedFrom; //MEMORY(Color.GREEN), DISK(Color.BLUE), NETWORK(Color.RED);
private final Bitmap bitmap;
private final InputStream stream;
private final int exifOrientation; //可交换图像文件的初始方向，比如0 90 180 270度
}(1)AssetRequestHandler：加载Asset中的图片资源，uri：file:///android_asset/xxx.png
(3)ContactsPhotoRequestHandler：联系人照片的图片加载，会先进行查询
(4)MediaStoreRequestHandler：媒体资源库图片加载
(5)ContentStreamRequestHandler：Provider图片
(6)FileRequestHandler：手机SD卡上面的图片加载
(7)NetworkRequestHandler：网络请求加载图片，这是最重要的一种方式
在Picasso的构造函数中会加入上面这个处理方法到数组中，调用的采用了责任链模式获取匹配的RequestHandler
for (int i = 0, count = requestHandlers.size(); i < count; i++) {
RequestHandler requestHandler = requestHandlers.get(i);
if (requestHandler.canHandleRequest(request)) {
return new BitmapHunter(picasso, dispatcher, cache, stats, action, requestHandler);
}
}4. Picasso：这个类主要是利用建造者模式对Picasso相关参数进行设置，以及创建主线程的Handler对成功获取的图片进行ImageView的设置
5. Dispatcher：主要进行任务的分发，在这个类里面专门建立了一个HandlerThread线程来处理各种请求，比如把请求提交到线程池执行。
6. LruCache：采用最近最少使用是缓存的策略，正好利用了LinkedHashMap的特点
7. OkHttpDownloader：具体执行下载工作的类，load函数中设置了网络请求策略并采用OkHttp来获取图片
8. PicassoExecutorService：自定义线程池类，根据，可以在网络变化时动态调整核心线程池的数目，返回可以查询结果的FutureTask
9. RequestCreator：根据参数创建Picasso请求的类，主要是对图片的各种属性设置，比如大小，旋转，自定义变换等
10. UrlConnectionDownloader：对于没有okhttp的情况，采用原始的HttpURLConnection方式来下载图片
11. Stats：统计类，对下载图片的总大小、下载次数、变换次数等等进行统计，也是用了一个HandlerThread来专门负责

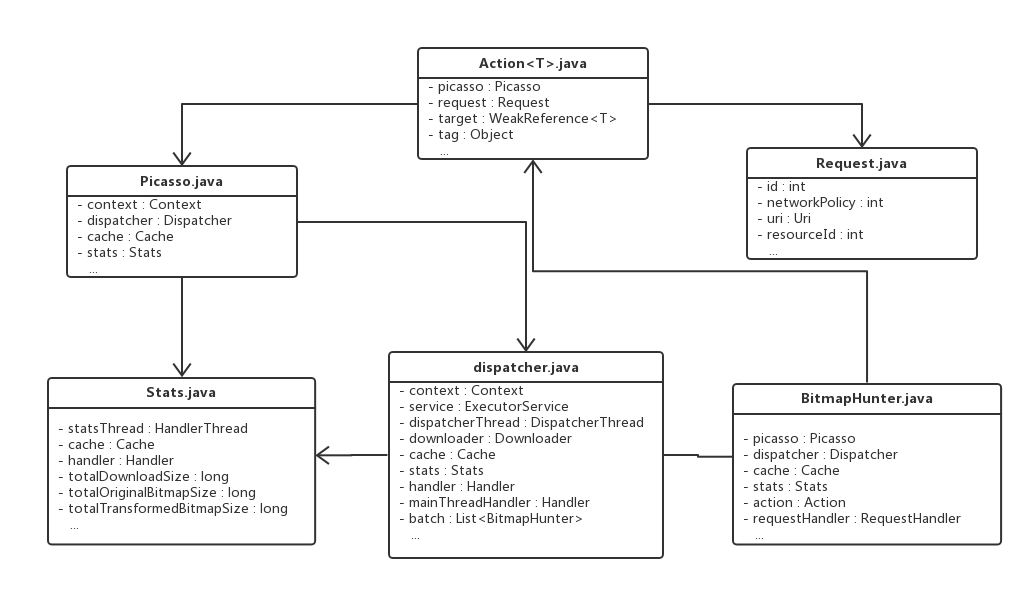

主要的类就介绍到这里，Picasso中的数据关联关系相对复杂，因此在进行下面的流程分析之前，先给一个数据关系结构图：
图一 Picasso数据结构图
（二）Picasso函数调用流程分析
先从Picasso的初始化说起：我们可以使用Picasso默认的构造，这里使用了门面模式和单例模式方便我们使用
public static Picasso with(Context context) {
if (singleton == null) {
synchronized (Picasso.class) {
if (singleton == null) {
singleton = new Builder(context).build();
}
}
}
return singleton;
}Picasso picasso = new Picasso.Builder(this)
.memoryCache(new LruCache()) // 设置自定义的内存缓存
.addRequestHandler(requestHandler) // 设置自定义的RequestHandler
.defaultBitmapConfig(bitmapConfig) // 设置自定义的Bitmap Config
.downloader(okHttpDownloader) // 设置自定义的Downloader
.executor(executorService) // 设置自定义的线程池
.requestTransformer(transformer) // 设置自定义的requestTransformer
.listener(listener) // 添加Listener进行监听
.loggingEnabled(true) // 设置日志打印
.build();
我们来看看Picasso.build方法
public Picasso build() {
Context context = this.context;
if (downloader == null) {
downloader = Utils.createDefaultDownloader(context);
}
if (cache == null) {
cache = new LruCache(context); //基于最近最少使用原则的缓存策略
}
if (service == null) {
service = new PicassoExecutorService(); //可根据网络环境调整核心线程数的自定义线程池
}
if (transformer == null) {
transformer = RequestTransformer.IDENTITY; //默认的变换（没做任何修改）
}
Stats stats = new Stats(cache);
Dispatcher dispatcher = new Dispatcher(context, service, HANDLER, downloader, cache, stats);
return new Picasso(context, dispatcher, cache, listener, transformer, requestHandlers, stats,
defaultBitmapConfig, indicatorsEnabled, loggingEnabled);
}这里我们需要来看下Utils.createDefaultDownloader
static Downloader createDefaultDownloader(Context context) {
try {
Class.forName("com.squareup.okhttp.OkHttpClient");
return OkHttpLoaderCreator.create(context);
} catch (ClassNotFoundException ignored) {
}
return new UrlConnectionDownloader(context);
}picasso.load(url)
.memoryPolicy(MemoryPolicy.NO_CACHE)
.networkPolicy(NetworkPolicy.NO_CACHE)
.transform(new Transformation() //对获取的bitmap进行自定义变换
.placeholder(defaultDrawable)
.error(errorDrawable)
.resize(width, height)
.centerInside()
.into(imageView);
public RequestCreator load(Uri uri)
public RequestCreator load(String path)
public RequestCreator load(File file)
public RequestCreator load(int resourceId)
Picasso提供了4个load函数，分别加载不同的图片资源，第2，3两个函数都会转换调用第一个，注意到他们都返回了一个RequestCreator变量，load后面的函数都是RequestCreator提供的，它提供了对图片的各种设置，比如大小、旋转、自定义变换等，而实际开始处理图片的是into方法。
RequestCreator#into
public void into(ImageView target, Callback callback) {
long started = System.nanoTime();
checkMain(); //检查是否主线程，不是则抛出异常
if (target == null) {
throw new IllegalArgumentException("Target must not be null.");
}
//判断是否设置了url或者resourceId，如果都没设置就取消请求并返回
if (!data.hasImage()) {
picasso.cancelRequest(target); //取消并释放资源
if (setPlaceholder) {
setPlaceholder(target, getPlaceholderDrawable()); //设置前面传的错误占位图片
}
return;
}
//如果设置了.fit()方法deferred会置为true进入if判断
if (deferred) {
if (data.hasSize()) { //如果有预先设置值会报错，因为fit方法会适应传入的ImageView的大小
throw new IllegalStateException("Fit cannot be used with resize.");
}
int width = target.getWidth();
int height = target.getHeight();
if (width == 0 || height == 0) { //为0说明ImageView还未渲染完成
if (setPlaceholder) {
setPlaceholder(target, getPlaceholderDrawable());
}
//这里DeferredRequestCreator implements ViewTreeObserver.OnPreDrawListener，当ImageView绘制之前会回调onPreDraw()函数，这个时候已经测量完了宽高的值，在onPreDraw()函数中会再次调用into函数，并把deferred置为false
picasso.defer(target, new DeferredRequestCreator(this, target, callback));
return;
}
data.resize(width, height);
}
//根据之前传入的图片uri, resourceId，大小，旋转角度等来build一个Request，并调用requestTransformer返回新的Request
Request request = createRequest(started);
//根据Request里面的参数来创建一个字符串的可以，用于对已经获取的bitmap进行缓存
String requestKey = createKey(request);
if (shouldReadFromMemoryCache(memoryPolicy)) { //根据设置的策略来判断是否读取缓存
Bitmap bitmap = picasso.quickMemoryCacheCheck(requestKey); //直接读取缓存中的bitmap
if (bitmap != null) {
picasso.cancelRequest(target);
setBitmap(target, picasso.context, bitmap, MEMORY, noFade, picasso.indicatorsEnabled);
if (picasso.loggingEnabled) {
log(OWNER_MAIN, VERB_COMPLETED, request.plainId(), "from " + MEMORY);
}
if (callback != null) {
callback.onSuccess(); //调用回调函数后返回
}
return;
}
}
if (setPlaceholder) {
setPlaceholder(target, getPlaceholderDrawable());
}
Action action =
new ImageViewAction(picasso, target, request, memoryPolicy, networkPolicy, errorResId,
errorDrawable, requestKey, tag, callback, noFade);
picasso.enqueueAndSubmit(action); //创建一个action并提交

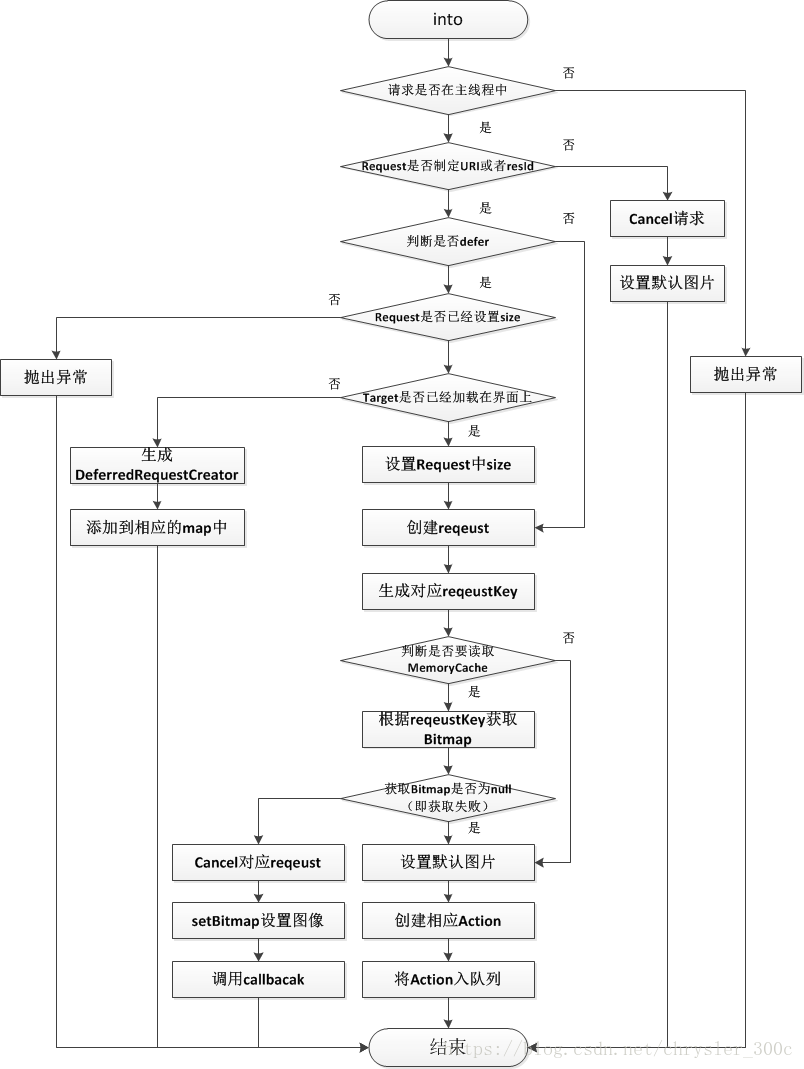

}这里引用一张流程图（https://blog.youkuaiyun.com/woliuyunyicai/article/details/51417839）
图二 into函数流程图
Picasso#enqueueAndSubmit->submit->dispatchSubmit
void enqueueAndSubmit(Action action) {
Object target = action.getTarget();
//更新存储的target对应的action，取消旧的
if (target != null && targetToAction.get(target) != action) {
// This will also check we are on the main thread.
cancelExistingRequest(target);
targetToAction.put(target, action);
}
submit(action);
}
void submit(Action action) { //RequestCreator.java
dispatcher.dispatchSubmit(action); //利用dispatcher中的新线程专门处理分发任务
}
void dispatchSubmit(Action action) { //Dispatcher.java
handler.sendMessage(handler.obtainMessage(REQUEST_SUBMIT, action)); //主线程向dispatcher线程发送任务
}senMessage就从主线程切换到了dispatcher线程，下面来看下它处理了哪些message
Dispatcher#DispatcherHandler
private static class DispatcherHandler extends Handler { //Dispatcher.java
private final Dispatcher dispatcher;
public DispatcherHandler(Looper looper, Dispatcher dispatcher) {
super(looper);
this.dispatcher = dispatcher;
}
@Override public void handleMessage(final Message msg) {
switch (msg.what) {
case REQUEST_SUBMIT: { //执行提交到线程池的操作
Action action = (Action) msg.obj;
dispatcher.performSubmit(action);
break;
}
case REQUEST_CANCEL: { //取消请求
Action action = (Action) msg.obj;
dispatcher.performCancel(action);
break;
}
case TAG_PAUSE: { //根据tag来暂停
Object tag = msg.obj;
dispatcher.performPauseTag(tag);
break;
}
case TAG_RESUME: {
Object tag = msg.obj;
dispatcher.performResumeTag(tag);
break;
}
case HUNTER_COMPLETE: { //bitmap获取完成
BitmapHunter hunter = (BitmapHunter) msg.obj;
dispatcher.performComplete(hunter);
break;
}
case HUNTER_RETRY: { //失败重试
BitmapHunter hunter = (BitmapHunter) msg.obj;
dispatcher.performRetry(hunter);
break;
}
case HUNTER_DECODE_FAILED: {
BitmapHunter hunter = (BitmapHunter) msg.obj;
dispatcher.performError(hunter, false);
break;
}
case HUNTER_DELAY_NEXT_BATCH: { //批处理
dispatcher.performBatchComplete();
break;
}
case NETWORK_STATE_CHANGE: { //当网络状态变化时更新核心线程数。比如WIFI状态的核心线程就为4个，而4G，3G，2G状态下的线程数分别为3,2,1个；
NetworkInfo info = (NetworkInfo) msg.obj;
dispatcher.performNetworkStateChange(info);
break;
}
case AIRPLANE_MODE_CHANGE: {
dispatcher.performAirplaneModeChange(msg.arg1 == AIRPLANE_MODE_ON);
break;
}
default:
Picasso.HANDLER.post(new Runnable() {
@Override public void run() {
throw new AssertionError("Unknown handler message received: " + msg.what);
}
});
}
}
}初始化函数中的looper是从HandlerThread中获取的，下面的handleMessage是运行在另外一个非主线程中的
REQUEST_SUBMIT把任务直接交给了dispatcher类来处理
Dispatcher#performSubmit
void performSubmit(Action action, boolean dismissFailed) { //Dispatcher.java
if (pausedTags.contains(action.getTag())) { //如果tag已经标记为暂停，则直接返回了
pausedActions.put(action.getTarget(), action);
if (action.getPicasso().loggingEnabled) {
log(OWNER_DISPATCHER, VERB_PAUSED, action.request.logId(),
"because tag '" + action.getTag() + "' is paused");
}
return;
}
//如果已经缓存过某个任务，则合并action。比如对同一个url的图片任务（图片的大小，旋转等参数也要一致），在两个不同的地方使用，第二次就会调用attach合并action。当bitmap请求回来之后会根据attach的action给不同的imageview赋值
BitmapHunter hunter = hunterMap.get(action.getKey());
if (hunter != null) {
hunter.attach(action);
return;
}
if (service.isShutdown()) {
if (action.getPicasso().loggingEnabled) {
log(OWNER_DISPATCHER, VERB_IGNORED, action.request.logId(), "because shut down");
}
return;
}
//这里前面已经提到过，根据不同的加载任务，采用责任链模式来获取对应的RequestHandler，再构造一个BitmapHunter返回
hunter = forRequest(action.getPicasso(), this, cache, stats, action);
hunter.future = service.submit(hunter); //提交到线程池处理
hunterMap.put(action.getKey(), hunter); //缓存key对应的任务
if (dismissFailed) {
failedActions.remove(action.getTarget());
}
if (action.getPicasso().loggingEnabled) {
log(OWNER_DISPATCHER, VERB_ENQUEUED, action.request.logId());
}
}BitmapHunter#run
@Override public void run() {
try {
updateThreadName(data); //更新线程名字
if (picasso.loggingEnabled) {
log(OWNER_HUNTER, VERB_EXECUTING, getLogIdsForHunter(this));
}
result = hunt(); //这里是重点，会实际去获取bitmap并根据大小，选择，变换等进行处理后返回
//再次切换到dispatcher线程去执行
if (result == null) {
dispatcher.dispatchFailed(this);
} else {
dispatcher.dispatchComplete(this);
}
} catch (Downloader.ResponseException e) {
if (!e.localCacheOnly || e.responseCode != 504) {
exception = e;
}
dispatcher.dispatchFailed(this);
} catch (NetworkRequestHandler.ContentLengthException e) {
exception = e;
dispatcher.dispatchRetry(this); //出错重试，再次切换到dispatcher线程去重新发送请求
} catch (IOException e) {
exception = e;
dispatcher.dispatchRetry(this); //出错重试，再次切换到dispatcher线程去重新发送请求
} catch (OutOfMemoryError e) {
StringWriter writer = new StringWriter();
stats.createSnapshot().dump(new PrintWriter(writer));
exception = new RuntimeException(writer.toString(), e);
dispatcher.dispatchFailed(this);
} catch (Exception e) {
exception = e;
dispatcher.dispatchFailed(this);
} finally {
Thread.currentThread().setName(Utils.THREAD_IDLE_NAME); //更改线程名称
}
}我们来看看重试的机制
Dispatcher#performRetry
void performRetry(BitmapHunter hunter) {
if (hunter.isCancelled()) return;
if (service.isShutdown()) { //服务已关闭
performError(hunter, false); //移除缓存中当前的hunter，批处理其它的hunter
return;
}
NetworkInfo networkInfo = null;
if (scansNetworkChanges) { // 用户是否允许联网
ConnectivityManager connectivityManager = getService(context, CONNECTIVITY_SERVICE);
networkInfo = connectivityManager.getActiveNetworkInfo();
}
boolean hasConnectivity = networkInfo != null && networkInfo.isConnected(); //判断是否联网
//默认两次重试机会，如果重试次数大于0且已联网则返回true
boolean shouldRetryHunter = hunter.shouldRetry(airplaneMode, networkInfo);
boolean supportsReplay = hunter.supportsReplay(); //默认返回的true
if (!shouldRetryHunter) {
// Mark for replay only if we observe network info changes and support replay.
boolean willReplay = scansNetworkChanges && supportsReplay;
performError(hunter, willReplay);
if (willReplay) {
markForReplay(hunter); //标记重试
}
return;
}
// If we don't scan for network changes (missing permission) or if we have connectivity, retry.
if (!scansNetworkChanges || hasConnectivity) {
if (hunter.getPicasso().loggingEnabled) {
log(OWNER_DISPATCHER, VERB_RETRYING, getLogIdsForHunter(hunter));
}
//noinspection ThrowableResultOfMethodCallIgnored
if (hunter.getException() instanceof NetworkRequestHandler.ContentLengthException) {
hunter.networkPolicy |= NetworkPolicy.NO_CACHE.index; //如果读取内容长度异常，则不再使用缓存
}
hunter.future = service.submit(hunter); //重新提交到线程池
return;
}
performError(hunter, supportsReplay);
if (supportsReplay) {
markForReplay(hunter);
}
}再来看一下获取图片的实际请求类，在这里会调用okhttp执行网络请求
Dispatcher#hunt
Bitmap hunt() throws IOException {
Bitmap bitmap = null;
if (shouldReadFromMemoryCache(memoryPolicy)) { //如果缓存有则直接返回
bitmap = cache.get(key);
if (bitmap != null) {
stats.dispatchCacheHit();
loadedFrom = MEMORY;
if (picasso.loggingEnabled) {
log(OWNER_HUNTER, VERB_DECODED, data.logId(), "from cache");
}
return bitmap;
}
}
data.networkPolicy = retryCount == 0 ? NetworkPolicy.OFFLINE.index : networkPolicy;
//这里会调用requestHandler中的load去获取图片，对应不同的资源，实际执行的load方法也不相同。例如对于网络请求会调用NetworkRequestHandler#load方法，这个方法会再去调用传入的OkHttpDownloader中的load方法，此方法会根据不同的网络策略，直接利用okhttp去请求数据
RequestHandler.Result result = requestHandler.load(data, networkPolicy);
if (result != null) {
loadedFrom = result.getLoadedFrom();
exifRotation = result.getExifOrientation();
bitmap = result.getBitmap();
// If there was no Bitmap then we need to decode it from the stream.
if (bitmap == null) {
InputStream is = result.getStream();
try {
//根据用户设定的宽和高来计算options.inSampleSize，再根据这个把数据流解析成bitmap
bitmap = decodeStream(is, data);
} finally {
Utils.closeQuietly(is);
}
}
}
if (bitmap != null) {
if (picasso.loggingEnabled) {
log(OWNER_HUNTER, VERB_DECODED, data.logId());
}
stats.dispatchBitmapDecoded(bitmap); //更新统计
if (data.needsTransformation() || exifRotation != 0) {
//锁定一个空对象，保证同一个时间自由一个线程在处理各种变换，以避免OOM，作者说是从Volley学过来的
synchronized (DECODE_LOCK) {
if (data.needsMatrixTransform() || exifRotation != 0) {
//进行大小，旋转，centerCrop，centerCrop等操作
bitmap = transformResult(data, bitmap, exifRotation);
if (picasso.loggingEnabled) {
log(OWNER_HUNTER, VERB_TRANSFORMED, data.logId());
}
}
//如果用户设置了自定义的变换，则回调用户已经设置好的变换方法
if (data.hasCustomTransformations()) {
bitmap = applyCustomTransformations(data.transformations, bitmap);
if (picasso.loggingEnabled) {
log(OWNER_HUNTER, VERB_TRANSFORMED, data.logId(), "from custom transformations");
}
}
}
if (bitmap != null) {
stats.dispatchBitmapTransformed(bitmap);
}
}
}
return bitmap;
}Dispatcher#performComplete->batch->performBatchComplete
void performComplete(BitmapHunter hunter) {
if (shouldWriteToMemoryCache(hunter.getMemoryPolicy())) {
cache.set(hunter.getKey(), hunter.getResult());判断是否写入缓存
}
hunterMap.remove(hunter.getKey());
batch(hunter); //加入批处理列表
if (hunter.getPicasso().loggingEnabled) {
log(OWNER_DISPATCHER, VERB_BATCHED, getLogIdsForHunter(hunter), "for completion");
}
}
private void batch(BitmapHunter hunter) {
if (hunter.isCancelled()) {
return;
}
batch.add(hunter); //加入批处理列表
if (!handler.hasMessages(HUNTER_DELAY_NEXT_BATCH)) { //判断是否已经发送了此消息，避免重复发送
handler.sendEmptyMessageDelayed(HUNTER_DELAY_NEXT_BATCH, BATCH_DELAY); //delay200ms，在此期间的都会合并处理
}
}
void performBatchComplete() {
List<BitmapHunter> copy = new ArrayList<BitmapHunter>(batch); //深拷贝一份
batch.clear();
//发送给Picasso中的Handler处理，因为需要在主线程更新UI
mainThreadHandler.sendMessage(mainThreadHandler.obtainMessage(HUNTER_BATCH_COMPLETE, copy));
logBatch(copy);
}最后把要处理的列表传给了主线程的Handler，那么我们继续跟进
Picasso#HANDLER
static final Handler HANDLER = new Handler(Looper.getMainLooper()) {
@Override public void handleMessage(Message msg) {
switch (msg.what) {
case HUNTER_BATCH_COMPLETE: {
@SuppressWarnings("unchecked") List<BitmapHunter> batch = (List<BitmapHunter>) msg.obj;
//noinspection ForLoopReplaceableByForEach
for (int i = 0, n = batch.size(); i < n; i++) {
BitmapHunter hunter = batch.get(i);
hunter.picasso.complete(hunter); //循环处理所有的hunter
}
break;
}
case REQUEST_GCED: {
Action action = (Action) msg.obj;
if (action.getPicasso().loggingEnabled) {
log(OWNER_MAIN, VERB_CANCELED, action.request.logId(), "target got garbage collected");
}
action.picasso.cancelExistingRequest(action.getTarget());
break;
}
case REQUEST_BATCH_RESUME:
@SuppressWarnings("unchecked") List<Action> batch = (List<Action>) msg.obj;
//noinspection ForLoopReplaceableByForEach
for (int i = 0, n = batch.size(); i < n; i++) {
Action action = batch.get(i);
action.picasso.resumeAction(action);
}
break;
default:
throw new AssertionError("Unknown handler message received: " + msg.what);
}
}
};注意到这里的Looper传入的是MainLooper，也就是说handleMessage是在主线程运行的，所以可以更新UI。如果new Handler()时不传入Looper，那么会使用创建时线程的Looper，换句话说那就是在哪个线程创建就运行在哪个线程。
Picasso#complete
void complete(BitmapHunter hunter) {
Action single = hunter.getAction();
List<Action> joined = hunter.getActions();
boolean hasMultiple = joined != null && !joined.isEmpty();
boolean shouldDeliver = single != null || hasMultiple;
if (!shouldDeliver) { //没有需要处理的数据就返回
return;
}
Uri uri = hunter.getData().uri;
Exception exception = hunter.getException();
Bitmap result = hunter.getResult(); //获取在BitmapHunter中获取的bitmap
LoadedFrom from = hunter.getLoadedFrom();
if (single != null) {
deliverAction(result, from, single); //处理当前的actin
}
//如果之前调用过Attach方法，这时候还会有其他的action
if (hasMultiple) {
//noinspection ForLoopReplaceableByForEach
for (int i = 0, n = joined.size(); i < n; i++) {
Action join = joined.get(i);
deliverAction(result, from, join);
}
}
if (listener != null && exception != null) {
listener.onImageLoadFailed(this, uri, exception); //异常回调
}
}private void deliverAction(Bitmap result, LoadedFrom from, Action action) {
if (action.isCancelled()) {
return;
}
if (!action.willReplay()) {
targetToAction.remove(action.getTarget());
}
if (result != null) {
if (from == null) {
throw new AssertionError("LoadedFrom cannot be null.");
}
action.complete(result, from); //调用action的complete方法处理bitmap，具体怎么处理要看action的实现类
if (loggingEnabled) {
log(OWNER_MAIN, VERB_COMPLETED, action.request.logId(), "from " + from);
}
} else {
action.error();
if (loggingEnabled) {
log(OWNER_MAIN, VERB_ERRORED, action.request.logId());
}
}
}@Override public void complete(Bitmap result, Picasso.LoadedFrom from) {
if (result == null) {
throw new AssertionError(
String.format("Attempted to complete action with no result!\n%s", this));
}
ImageView target = this.target.get();
if (target == null) {
return;
}
Context context = picasso.context;
boolean indicatorsEnabled = picasso.indicatorsEnabled;
PicassoDrawable.setBitmap(target, context, result, from, noFade, indicatorsEnabled); //接着又调了静态函数setBitmap
if (callback != null) {
callback.onSuccess(); //如果设置了回调函数则回调
}
}static void setBitmap(ImageView target, Context context, Bitmap bitmap,
Picasso.LoadedFrom loadedFrom, boolean noFade, boolean debugging) {
Drawable placeholder = target.getDrawable();
if (placeholder instanceof AnimationDrawable) {
((AnimationDrawable) placeholder).stop();
}
PicassoDrawable drawable =
new PicassoDrawable(context, bitmap, placeholder, loadedFrom, noFade, debugging);
target.setImageDrawable(drawable); //这里用到了我们常用的方法

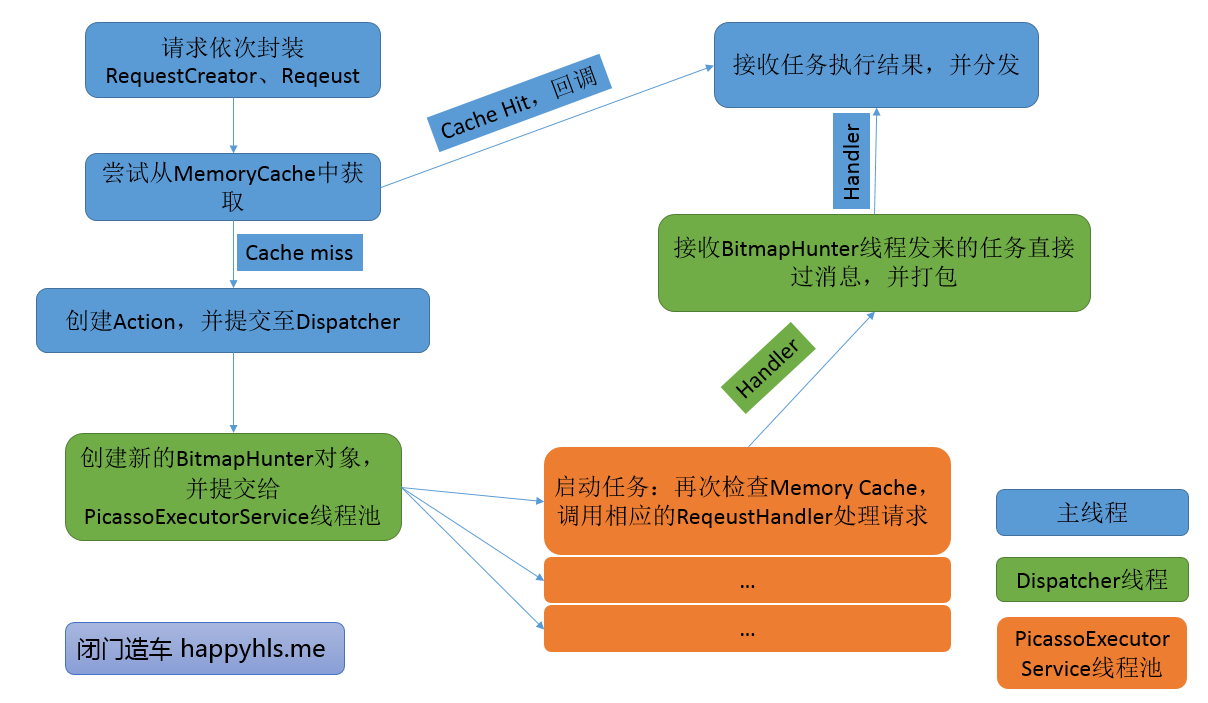

}引用一张图来描述请求流程：
扫一扫
5510
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
