Drift 运动相机 远程控制和直播 开发教程

Drift Camera Remote Control API

1  Overview



This document provides the client APP the guide how to control Drift cameras over network such as taking photo, configuring setting or getting the live stream from camera. The command transfer protocol is TCP/IP,  and the command set is defined in JSON format.

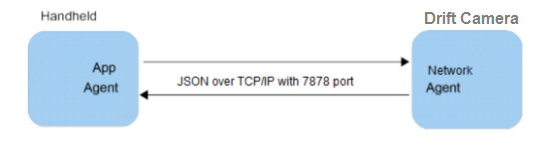

                  Figure 1-1.  Communication between a Handhold Device and Drift Camera.

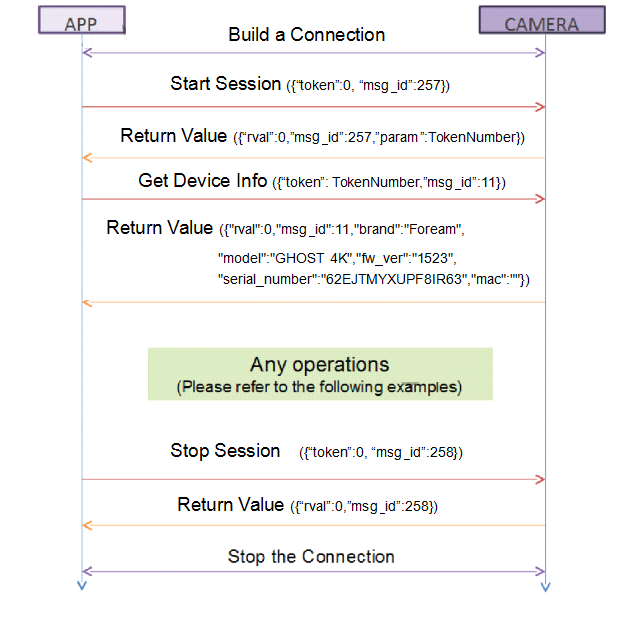

1.1  The Sequential Diagram of Command



The APP in the following pictures represents the client which might have connection ability. Every request from the client must have a response which is send out by the camera. The camera can only be controlled with an unique client.



The APP establishes a tcp connection with the camera on 7878 port over network for request, response and notification before the session starts.  Every application should get the session from the camera first before any operations are performed.





1.2 JSON command



Any client capable of issuing JSON commands over network can control one or more GHOST X cameras. For comprehensive detail on JSON syntax, please refer to http://json.org.



JSON command from the client to the Camera follow simple key:value pairs. Each pair is separated by a comma "," and each key is in the form of a string wrapped in quotation marks "."  The value may take the form of alphanumeric character. For example,



{"token":0, "msg_id":1}



The arguments in the commands above are defined:



• token - Session token. Only one App client can connect to one camera at a time. The token number will change with every session.

• msg_id - Command number. This is the number assigned to a particularly remote command.



1.3   Establish Connection



In the normal operations, the client will send the request command to the camera and the camera will give the response of the operation result to the client. Before the client sends any request command, it should connect to command server on port 7878 by using TCP socket. The client will keep the connections until it wants to disconnect, and the camera will not issue close connection with the client actively.



1.4  Get Valid Token



The camera has a valid token management mechanism. Therefore, the client should check whether it can get a valid token or not, If the client fails to get a valid token and start session, the client should break this connection with the camera and check what error has occurred. When the connection is broken, it means that the valid token has been acquired by other client. That is to say, the camera is controlled by one client at the same time. It is not possible to control the camera through multiple clients at the same time.



1.5  Response



The client must check whether it can get the return value of zero or not after it sends out the request command. If the client gets a non-zero return value, it should perform appropriate error handling. However, the client also should handle notification which the camera send out. Notification is not necessary for each request command which the client sends out, but the response is necessary for each request command which the client sends out.



1.6  Examples of communication between App Client and Camera: How to take photos?



Step1. Build TCP connection on port 7878 with Drift Camera.

Step2. Issue "START_SESSION" command and got the TokenNumber.

Step3. Issue “ RECORD_START” command to switch the mode to photo mode.

Step4. Issue " RECORD_STOP" command and the final filename will be returned if the process if taking photo is completed successfully.

Step4. Issue other command.

Step5. Issue "STOP_SESSION" command to stop session.

Step6. Disconnect with Drift Camera.



1.7 Example Code in C language

int tcp_send_cmd(void)

{



     int                            err,iLen;

     SOCKET sockSrv = socket(AF_INET,SOCK_STREAM,0);

     if(sockSrv == INVALID_SOCKET){

                     printf("socket error\n");;

                     return -2;

     }



     SOCKADDR_IN addrSrv;

     addrSrv.sin_family = AF_INET;

     addrSrv.sin_addr.S_un.S_addr = inet_addr("192.168.42.1");

     addrSrv.sin_port = htons(7878);



           int ret = connect(sockSrv,(SOCKADDR*)&addrSrv,sizeof(SOCKADDR));

     if (ret>=0)

     {



                     char sndbuf[256]={0};

                     char recvbuf[1024]={0};



                     // StartSession

                     strcpy(sndbuf, "{\"msg_id\": 257, \"token\": 0}");

                     ret=send(sockSrv,sndbuf,strlen(sndbuf)+1,0);

                     // recv response

                     memset(recvbuf,0x00,sizeof(recvbuf));

                     ret=recv(sockSrv, recvbuf, 256, 0);



                     // start record

                     strcpy(sndbuf, "{\"msg_id\": 513, \"token\": 2}");

                     ret=send(sockSrv,sndbuf,strlen(sndbuf)+1,0);

                     // recv response

                     memset(recvbuf,0x00,sizeof(recvbuf));

                     ret=recv(sockSrv, recvbuf, 256, 0);



                     //stop record

                     strcpy(sndbuf, "{\"msg_id\": 514, \"token\": 2}");

                     ret=send(sockSrv,sndbuf,strlen(sndbuf)+1,0);

                     // recv response

                     memset(recvbuf,0x00,sizeof(recvbuf));

                     ret=recv(sockSrv, recvbuf, 256, 0);



                     // stop session

                     strcpy(sndbuf, "{\"msg_id\": 258, \"token\": 2}");

                     ret=send(sockSrv,sndbuf,strlen(sndbuf)+1,0);

                     // recv response

                     memset(recvbuf,0x00,sizeof(recvbuf));

                     ret=recv(sockSrv, recvbuf, 256, 0);

     }

     closesocket(sockSrv);

     return 0;

}

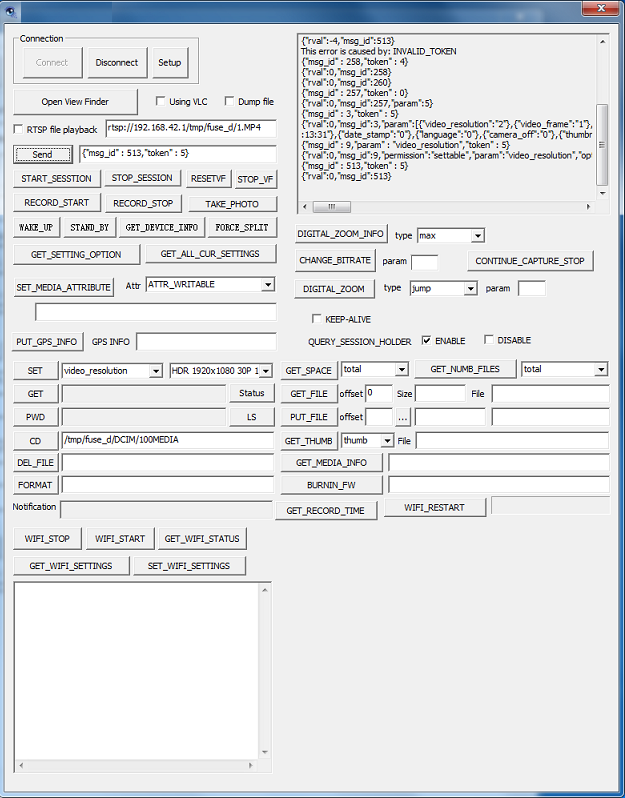

1.8 Examples Tools to test the API commands.

     We also provide the Windows Tools to help to verifying actions in  Drift camera .





1. Session Commands



2.1 START_SESSION

Message ID:        msg_id: 0x00000101(257)

Description:                       This API is used to request the start of a session from the handheld to the camera.

Direction:                           From the APP to the camera.

Returns:                            Return value (rval) and the session TokenNumber used in all subsequent command                                     exchanges.

Example:

Start session and get the token number::

{"token": 0, "msg_id":257}

Successful return:

{"rval":0,"msg_id":257,"param":TokenNumber}

Error return:

{"rval":-3,"msg_id":257}  //someone holds the session



2.2 STOP_SESSION

Message ID:        msg_id: 0x00000102(258)

Description:                       This API is used to request session termination between the APP and the camera.

Direction:                           From the APP to the camera.

Example:

Stop session:

{"token":TokenNumber, "msg_id":258}

Successful return:

{"rval":0,"msg_id":258}



1. Capture Commands



3.1   RECORD_START

Message ID:        msg_id: 0x00000201(513)

Description:                       This API is used to initiate camera video recording.

Direction:                           From the APP to the camera.

Example:

Start recording:

{"msg_id" : 513,"token" : 1}

Successful return:

{"rval":0,"msg_id": 518}



3.2   RECORD_STOP

Message ID:        msg_id: 0x00000202(514)

Description:         This API is used to terminate camera video recording on the camera.

Direction:                           From the APP to the camera.

Example:

Stop recording:

{"msg_id" : 514,"token" : 1}

Successful return:

{"rval":0,"msg_id":514}



3.3   TAKE_PHOTO

Message ID:        msg_id: 0x00000301(769)

Description:                       This API is used to capture a still image.

Direction:                           From the APP to the camera.

Example:

Take photo:

{"msg_id" : 769,"token" : 1}

Successful return:

{"rval":0,"msg_id":769}



3.4   START_TIMELAPSE_TAKE_PHOTO

Message ID:        msg_id: 0x00000301(769)

Description:         This API is used to capture a serial of timelapse image.

Direction:                           From the APP to the camera.

Example:

Start timelapse capture:

{"msg_id" : 769,"token" : 1}

Successful return:

{"rval":0,"msg_id":769}



3.5   STOP_TIMELAPSE_TAKE_PHOTO

Message ID:        msg_id: 0x00000302(770)

Description:                       This API is used to capture a still image.

Direction:                           From the APP to the camera.



Example:

Stop timelapse capture:

{"msg_id" : 770,"token" : 1}

Successful return:

{"rval":0,"msg_id":770}



1. Switch Mode command



4.1   SWITCH_RECORD_MODE

Message ID:  msg_id: 0x0000012(18)

Description:  This API is used to switch the capture mode to record mode.

Direction:   From the APP to the camera.

Example:

Switch to video mode:

{"msg_id" : 18,"token" : 1}

Successful return:

{"rval":0,"msg_id": 18}



4.2   SWITCH_SINGLE_PHOTO_MODE

Message ID:  msg_id: 0x0000013(19)

Description:  This API is used to switch the capture mode to single photo mode.

Direction:   From the APP to the camera.

Example:

Switch to photo mode:

{"msg_id" : 19,"token" : 1}

Successful return:

{"rval":0,"msg_id": 19}



4.3   SWITCH_PHOTO_TIMELAPSE_MODE

Message ID:  msg_id: 0x0000014(20)

Description:  This API is used to switch the capture mode to single photo mode.

Direction:   From the APP to the camera.

Example:

Switch to timelapse mode:

{"msg_id" : 20,"token" : 1}

Successful return:

{"rval":0,"msg_id": 20}



1. System Commands



5.1 GET_DEVICEINFO

Message ID:  msg_id: 0x0000000b(11)

Description:  This API is used to retrieve information related to the camera device itself, such as the model name, serial number and firmware version.

Direction:   From the APP to the camera.

Example:

Get device information:

{"token": TokenNumber, "msg_id":11}

Successful return:

{"rval":0,"msg_id":11,"brand":"Foream","model":"GHOST X","fw_ver":"1523","serial_number":"62EJTMYXUPF8IR63","mac":""}



5.2 GET_DEVICE_STATUS

Message ID:  msg_id: 0x00000011(17)

Description:  This API is used to retrieve current status related to the camera device itself, such as the recording status, capture mode etc..

Direction:   From the APP to the camera.

Example:

Get device status:

{"token": TokenNumber, "msg_id":17}

Successful return:

{"rval":0,"msg_id":17,"video_resolution":"1","video_frame":"0","photo_size":"0","capture_mode":"1","adapter":"1","battery":"60","available":"15027072","capacity":"15151104","rec_timelapse":"0","vdzoom_step":"0"}



5.3   FORMAT

Message ID:  msg_id: 0x00000004(4)

Description:  This API is used to format the camera SD card.

Direction:   From the APP to the camera.

Example:

Format SD card:

{"msg_id" : 4,"param" : "C:","token" : 1}

Successful return:

{"rval":0,"msg_id":4}



5.4   VIDEO_DZOOM

Message ID:  msg_id: 0x0000001E(30)

Description:  This API is used to digital dzoom .

Direction:   From the APP to the camera.

Example:

Digital dzoom to 5X:

{"msg_id" : 30,"param" : "5:","token" : 1}

Successful return:

{"rval":0,"msg_id":30}



5.5  RESET_SETTING

Message ID:  msg_id: 0x0000001D(29)

Description:  This API is used to restore the setting to default the factory default value .

Direction:   From the APP to the camera.

Example:

Reset setting:

{"msg_id" : 29,"token" : 1}

Successful return:

{"rval":0,"msg_id":29}





1. Setting Commands



6.1   GET_ALL_CURRENT_SETTINGS

Description:  This API is used to retrieve all setting related to the camera device itself, such as the video resolution, photo size etc.

Direction:   From the APP to the camera.

Example:

Get all settings of device:

{"token": TokenNumber, "msg_id":3}

Successful return:

{"rval":0,"msg_id":3,"param":[{"video_resolution":"0"},{"video_frame":"1"},{"photo_size":"2"},{"timelapse_size":"2"},{"timelapse_interval":"0"},{"burst_size":"0"},{"burst_rate":"2"},{"fov":"2"},{"exposure":"0"},{"self_timer":"0"},{"video_quality":"1"},{"video_filter":"0"},{"iso":"0"},{"video_tagging":"0"},{"video_tagging_interval":"0"},{"car_dvr_mode":"0"},{"car_dvr_loop_interval":"1"},{"mic_sensitity":"3"},{"speaker_volume":"3"},{"led_indicator":"1"},{"wifi":"2"},{"stand_record":"0"},{"date":"2018-09-28 19

:05:22"},{"date_stamp":"0"},{"language":"0"},{"camera_off":"0"},{"thumbnails":"1"},{"capture_mode":"0"},{"stream_resolution":"0"},{"stream_bitrate":"0"},{"stream_type":"0"},{"streaming":"0"},{"video_res_frame":"256"}]}

Note: The setting value please refer to “setting item define”.



6.2   SET_SETTING

Message ID:  msg_id: 0x00000002(2)

Description:  This API is used to set the single setting related to the camera device itself, such as the video resolution, photo size etc.

Direction:   From the APP to the camera.

Example:

Set the video resolution to 1080P

{"msg_id" : 2,"param" : "3","token" : TokenNumber,"type" : "video_resolution"}

Successful return:

{ "rval": 0, "msg_id": 2 , "param": "1"}



1. NOTIFICATION



Message ID:  msg_id: 0x00000007(7)

Description:  Notifications are send from the camera to the APP to notify it of events, such as manual button presses and task completions.

Direction:   From the camera to APP



Notification List:

start_video_record:      start record button pressed

start_photo:           photo capture button pressed

start_burst:              photo capture button pressed on burst mode

start_timelapse_capture:   start photo timelapse button pressed

Example:

{ "msg_id": 7, "type": "start_timelapse_capture" }



switch_to_video_mode:    mode button pressed and switch to video mode

switch_to_photo_mode:      mode button pressed and switch to photo mode

switch_to_timelapse_mode:  mode button pressed and switch timelapse mode

switch_to_burst_mode:  mode button pressed and switch to  timelapse mode

Example:

{ "msg_id": 7, "type": "switch_to_cap_mode" }



photo_taken:                                 complete photo taken and return the photo path and the free space

Example: { "msg_id": 7, "type": "photo_taken" ,"param":{"path":"/tmp/fuse_d/DCIM/100MEDIA/IMGN0033.jpg","available":4526816}}

video_record_complete:      complete recording and return the video path and the free space

Example:

{ "msg_id": 7, "type": photo_taken" ,"param":{"path":"/tmp/fuse_d/DCIM/100MEDIA/IMGN0033.jpg","available":4526816}}



battery:                                           battery changed, and return the battery value

Example: { "msg_id": 7, "type": "battery" ,"param": 40}

adapter:                                          USB cabel connected

Example:

 { "msg_id": 7, "type": "adapter" ,"param":0}



sd card status:              card inserted or removed

Example: { "msg_id": 7, "type": "sd_card_status" ,"param":"remove"}

                  { "msg_id": 7, "type": "sd_card_status" ,"param":"insert"}



Error notification:

STORAGE_RUNOUT

STORAGE_IO_ERROR

LOW_SPEED_CARD

CARD_REMOVED



1. Stream Commands



8.1   STOP_STREAM

Message ID:  msg_id: 0x0000001A(26)

Description:  This API is used to stop stream preview.

Direction:   From the APP to the camera.

Example:

Stop streaming:

{"msg_id" : 26,"token" : 1}

Successful return:

{"rval":0,"msg_id":26}



8.2   START_STREAM

Message ID:  msg_id: 0x0000001B(27)

Description:  This API is used to start stream preview.

Direction:   From the APP to the camera.

Example:

Start streaming:

{"msg_id" : 27,"token" : 1}

Successful return:

{"rval":0,"msg_id":27}



9 File System Command



9.1   DEL_FILE

Message ID:  msg_id: 0x00000501(1281)

Description:  This API is used to delete a file.

Direction:   From the APP to the camera.

Example:

Delete a file:

{"msg_id" : 1281,"token" : 1,”param”:”/tmp/SD0/DCIM/100MEDIA/VID00001.MP4”}

Successful return:

{"rval":0,"msg_id":1281}



9.2   LS

Message ID:  msg_id: 0x00000502(1282)

Description:  This API lists the contents of the directory which is current or specified by parameter, analogous to the command “ls”.

Direction:   From the APP to the camera.

Example:

{"msg_id" : 1282,"token" : 1,”param”:”/tmp/SD0/”}

Successful return:

{"rval":0,"msg_id":1282,"listing":[{"FOREAM X1":"2015-01-12 04:52:56"},{"DCIM/":"2015-01-01 00:24:20"},{"MISC/":"2015-01-01 00:24:24"},{"EVENT/":"2018-09-14 14:06:58"},{"sdlog_sdlog.txt":"2015-01-12 04:18:30"},{"fmcam.conf":"2018-09-25 15:47:24"}]}



9.3   CD

Message ID:  msg_id: 0x00000503(1283)

Description:  This API changes current working directory, analogous to the command “cd”.

Direction:   From the APP to the camera.

Example:

{"msg_id" : 1283,"token" : 1,”param”:”/tmp/SD0/”}

Successful return:

{"rval":0,"msg_id":1283,"pwd":"/tmp/SD0"}



9.4   PWD

Message ID:  msg_id: 0x00000504(1284)

Description:  This API obtains current working directory, analogous to the command “pwd”.

Direction:   From the APP to the camera.

Example:

{"msg_id" : 1284,"token" : 1}

Successful return:

{"rval":0,"msg_id":1284,"pwd":"/tmp/SD0"}

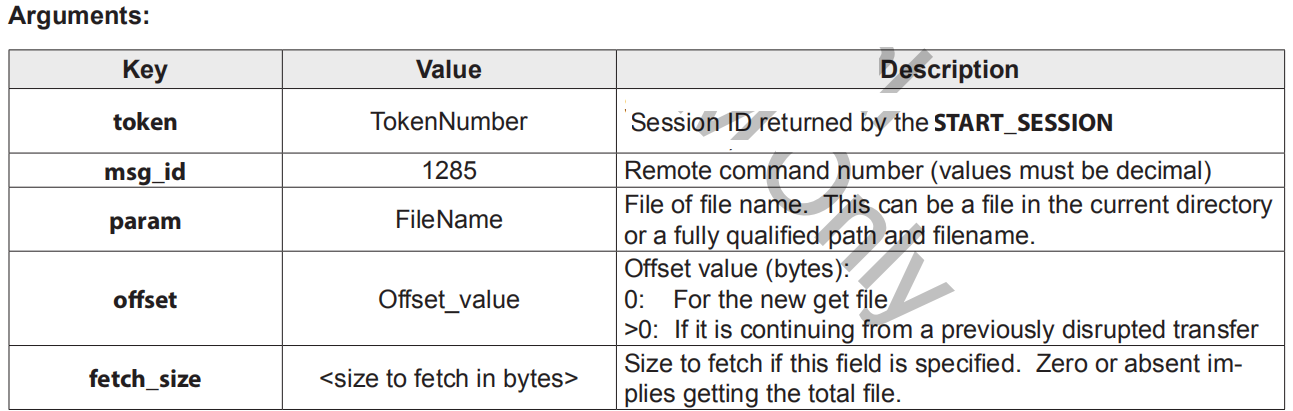

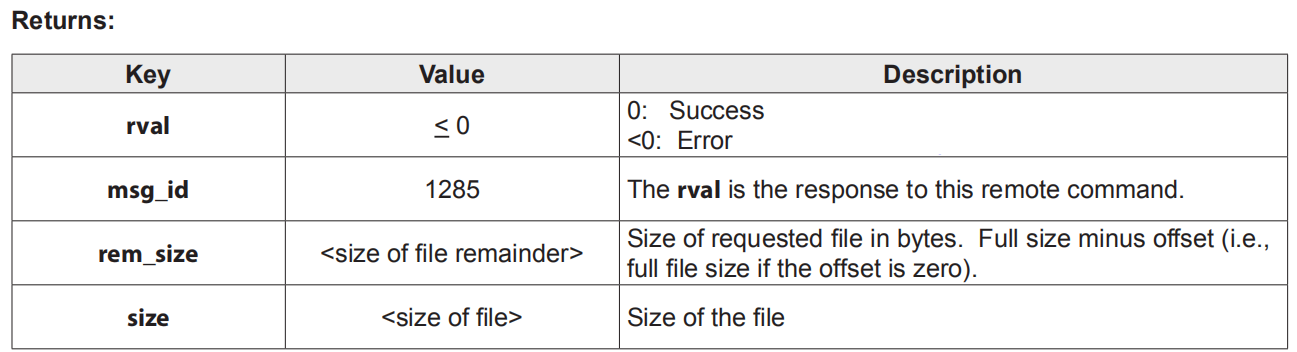

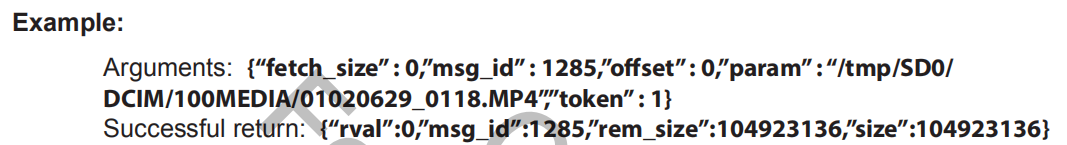

9.5   GET_FILE

Message ID:  msg_id: 0x00000505(1285)

Description:  This API is used to retrieve a file.

Direction:   From the APP to the camera.



10 Bluetooth Live stream Command



Message ID:  msg_id: 0x00000020(32)

Description:  This API set the Wi-Fi router SSID,Password and the live stream information such as resolution, bitrate etc. Through Bluetooth protocol.

Direction:   From the APP to the camera.

Example:

{"msg_id" : 32,"token" : 1,”param”:”{“router_ssid”:”foream_test”,”router_password”:”1234567890”, “rtmp_url”:”rtmp://115.231.182.113:1935/livestream/hy9ekxmn”,”stream_resolution”:”WVGA”,”stream_bitrate”:”3000000”, “rtmp_cbr”:”1”}”}

“router_ssid”:  router (AP) ssid

“router_password”:  router (AP) password.

“rtmp_url”: live stream address

 “stream_resolution”: it is used to set the video streaming resolution, the value can be set below:

• 4KUHD：  3840*2160
• 1080P：   1920*1080
• 720P：    1280*720
• WVGA：   848*420

 “stream_bitrate”: it is used to set the video streaming bitrate, value 1000000 means 1Mbps, value 25000000 means 25Mbps, value 800000 means 800kbps.

“rtmp_cbr”: it means if it use the constant bitrate when live stream.

Successful return:

{"rval":0,"msg_id":30}



11 setting items define



1. "video_resolution"

0:           1080P [1920*1080], support 25fps, 30fps

1:        960P1280*960[], support 25fps, 30fps

2:           720P  [1280*720], support 25fps, 30fps, 50fps, 60fps

3:           WVGA  [848x480], support 25fps, 30fps, 50fps, 60fps



1. "video_frame" :

0:           25fps

1:           30fps

2:           50fps

3:           60fps



1. "photo_size" :

0:           12M

1:           8M

2:           4M



1. “timelapse_size” :

0:           12M

1:           8M

2:           4M



1. “timelapse_interval” :

0:           1s

1:           2s

2:           3s

3:           5s

4:           10s

5:           30s

6:           1m

7:           2m

8:           5m

9:           10m

10:         30m

11:          1h



1. “burst_size” :

0:           4M



1. “burst_rate” :

0:            5p

1:            10p

2:           15p



1. “fov” :

0:           90

1:           115

2:           140



1. “exposure” :

0:           0

1:           +1

2:           +2

3:            -1

4:            -2



1. “self_timer” :

0:           off

1:           3s

2:           5s

3:           10s



1. “video_quality” :

0:           high

1:           medium

2:           low



1. “video_filter” :

0:           normal

1:           vivid

2:           lowlight

3:           water



1. “iso” :

0:           0

1:           100

2:           200

3:           400

4:           800



1. “video_tagging” :

0:           Disable

1:           Enable



1. “video_taggint_interval” :

0:           10s

1:           30s

2:           1m

3:           2m



1. “car_dvr_mode” :

0:           Disable

1:           Enable



1. “car_dvr_loop_interval” :

0:           10s

1:           30s

2:           1m

3:           2m

4:           5m

5:           10m



1. “mic_sensitity” :

0:           off

1:           1

2:           2

3:           3

4:           4

5:           5



1. “speaker_volume” :

0:           off

1:           low

2:           medium

3:           high



1. “led_indicator” :

0:           off

1:           on



1. “wifi” :

0:           disconnect

1:           AP mode

2:           Sta mode



1. “date_stamp” :

0:           disable

1:           enable



1. “language” :

0:           english

1:           chinese



1. “camera_off” :

0:           off

1:           2m

2:           5m

3:           10m

4:           20m



1. “date_stamp” :

0:           off

1:           on



1. “thumbnails” :

0:           off

1:           on



1. “capture_mode” :

0:           video mode

1:           photo mode

2:      timelapse_mode

3:      burst_mode

转载于:https://my.oschina.net/u/3984083/blog/2221392
