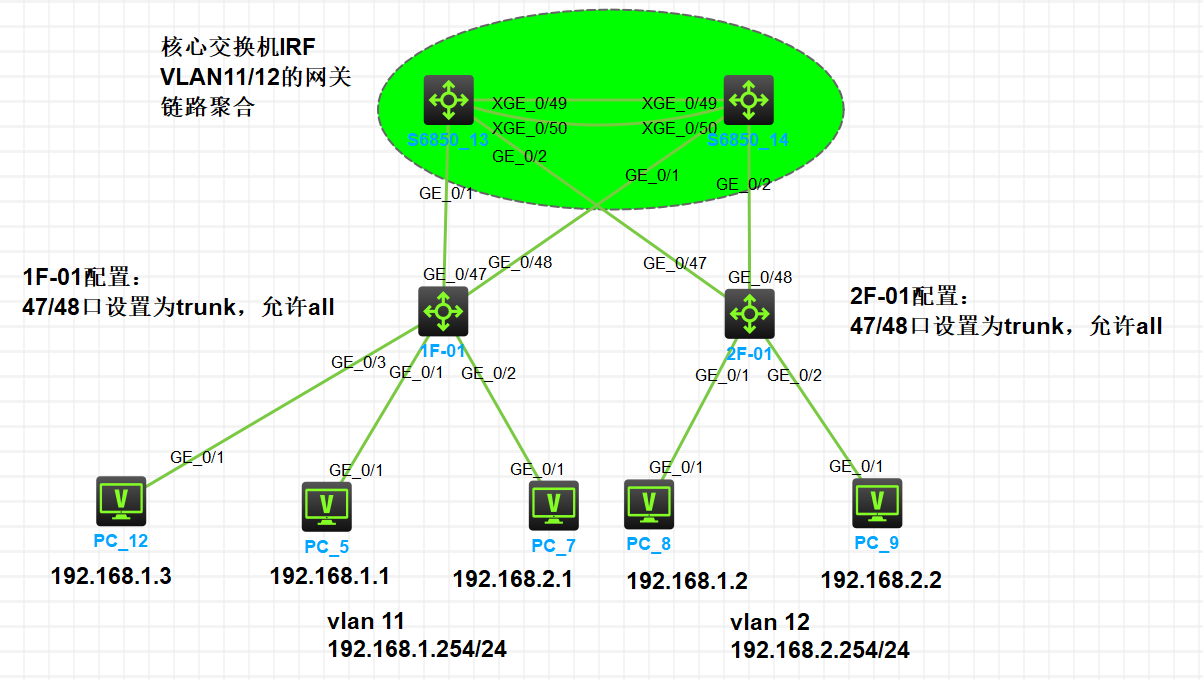

任务内容：配置2台核心交换机及2台接入交换机，核心交换机IRF堆叠，接入交换机划分不同的VLAN，VLAN网关在核心交换机配置。

1、核心交换机堆叠配置，详见往期内容：H3C两台交换机IRF堆叠实验。

2、接入交换机划分VLAN，详见往期内容：H3C交换机VLAN练习-01。

3、核心交换机配置三层接口及端口聚合

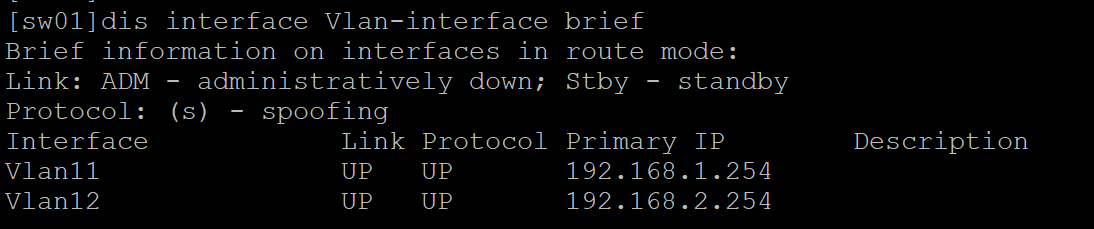

#核心交换机配置VLAN，并配置VLAN网关

[sw01]vlan 11 to 12

[sw01]interface Vlan-interface 11

[sw01-Vlan-interface11]ip address 192.168.1.254 255.255.255.0

[sw01]interface Vlan-interface 12

[sw01-Vlan-interface12]ip address 192.168.2.254 255.255.255.0

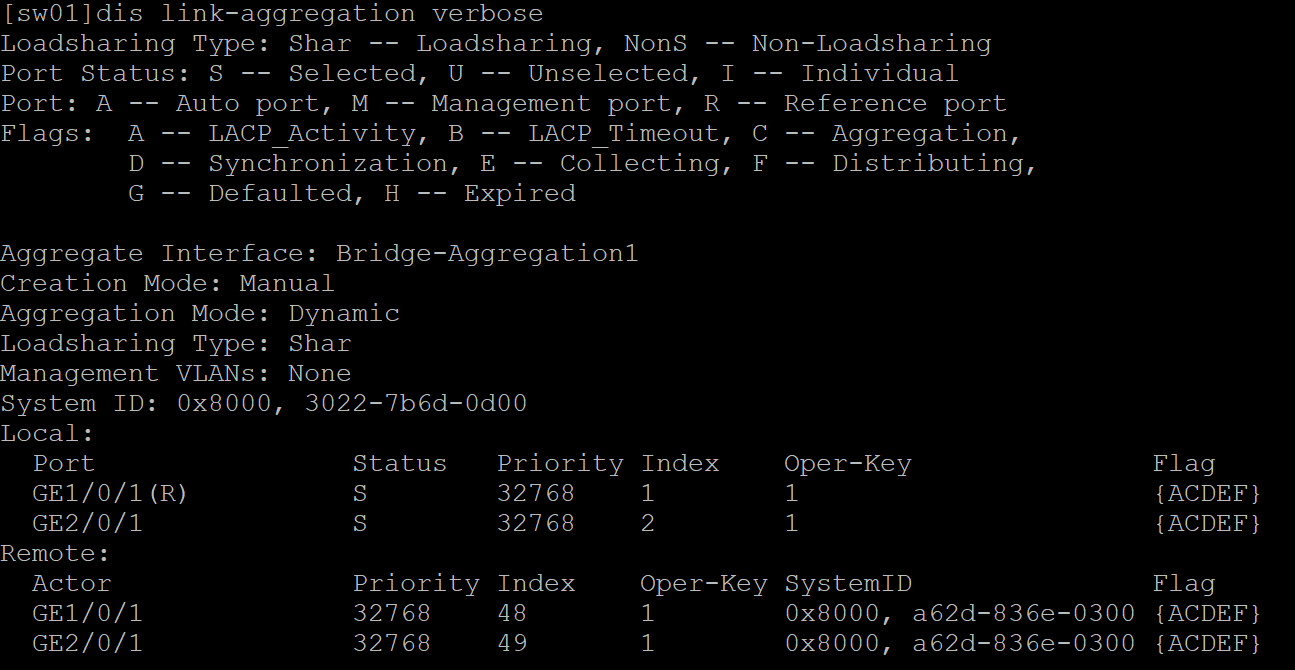

#创建聚合组，用于连接接入交换机

[sw01]interface Bridge-Aggregation 1
[sw01]interface GigabitEthernet 1/0/1

[sw01-GigabitEthernet1/0/1]port link-aggregation group 1

[sw01]interface GigabitEthernet 2/0/1

[sw01-GigabitEthernet2/0/1]port link-aggregation group 1

[sw01]interface Bridge-Aggregation 1

[sw01-Bridge-Aggregation1]port link-type trunk

[sw01-Bridge-Aggregation1]port trunk permit vlan all

[sw01-Bridge-Aggregation1]link-aggregation mode dynamic

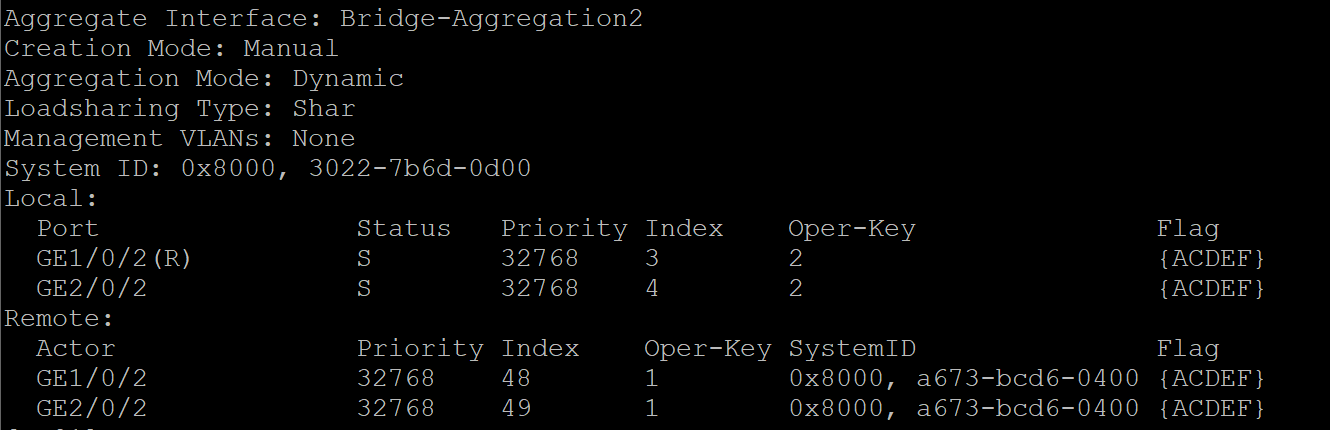

[sw01]interface Bridge-Aggregation 2
[sw01]interface GigabitEthernet 1/0/2

[sw01-GigabitEthernet1/0/2]port link-aggregation group 2

[sw01]interface GigabitEthernet 2/0/2

[sw01-GigabitEthernet2/0/2]port link-aggregation group 2

[sw01]interface Bridge-Aggregation 2

[sw01-Bridge-Aggregation2]port link-type trunk

[sw01-Bridge-Aggregation2]port trunk permit vlan all

[sw01-Bridge-Aggregation2]link-aggregation mode dynamic

4、接入交换机配置上联接口

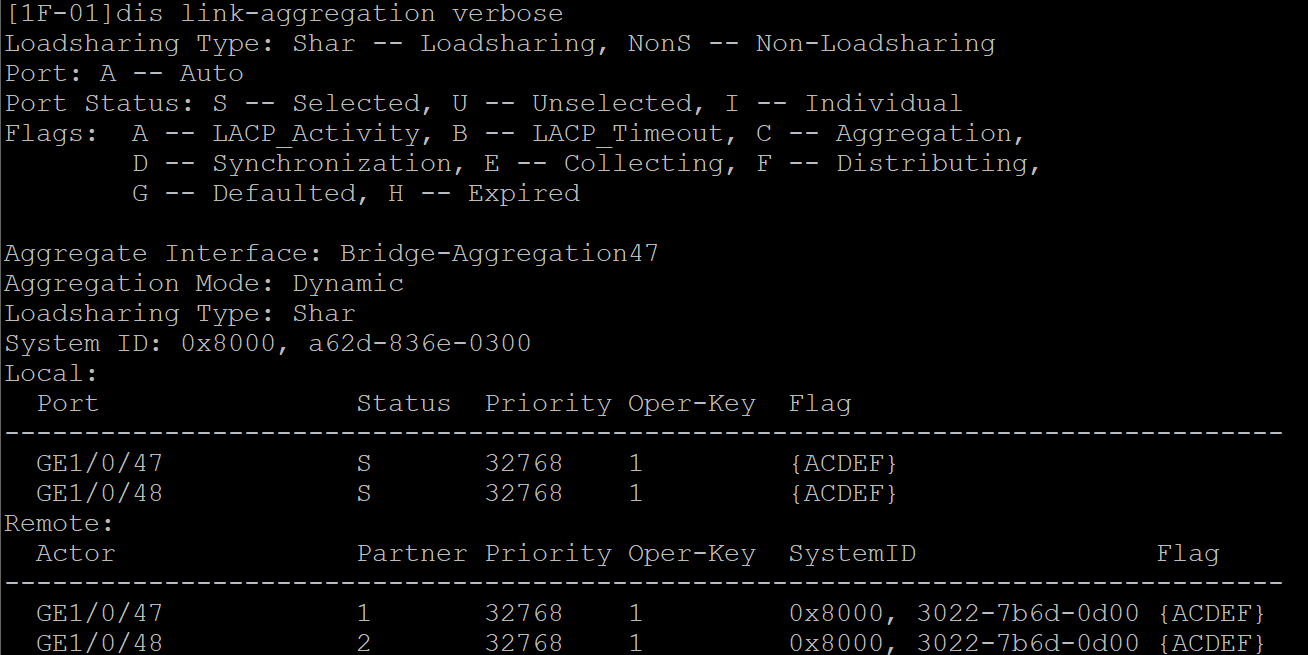

#1F-01交换机配置端口聚合，将47/48进行聚合，聚合口配置trunk

[1F-01]int Bridge-Aggregation 47

[1F-01]interface range GigabitEthernet 1/0/47 to GigabitEthernet 1/0/48
[1F-01-if-range]port link-aggregation group 47

[1F-01]interface Bridge-Aggregation 47

[1F-01-Bridge-Aggregation47]description shanglian

[1F-01-Bridge-Aggregation47]port link-type trunk

[1F-01-Bridge-Aggregation47]port trunk permit vlan all

[1F-01-Bridge-Aggregation47]link-aggregation mode dynamic

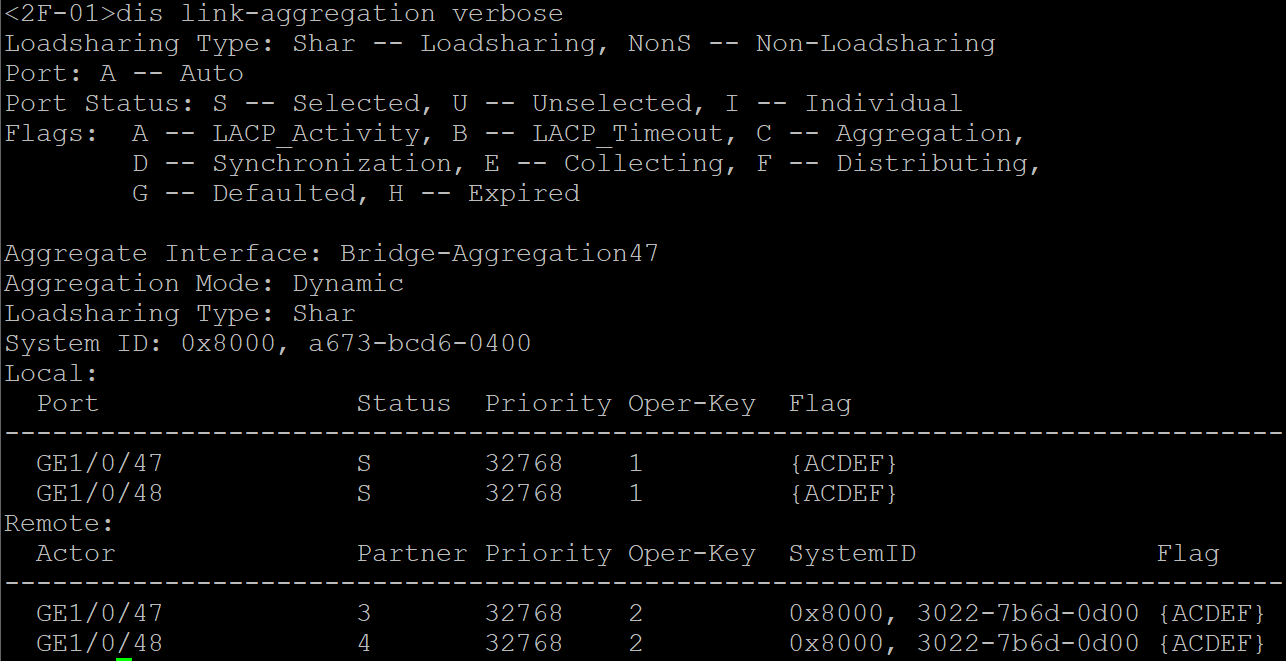

#2F-01交换机配置端口聚合，将47/48进行聚合，聚合口配置trunk

[2F-01]int Bridge-Aggregation 47

[2F-01]interface range GigabitEthernet 1/0/47 to GigabitEthernet 1/0/48
[2F-01-if-range]port link-aggregation group 47

[2F-01]interface Bridge-Aggregation 47

[2F-01-Bridge-Aggregation47]description shanglian

[2F-01-Bridge-Aggregation47]port link-type trunk

[2F-01-Bridge-Aggregation47]port trunk permit vlan all

[2F-01-Bridge-Aggregation47]link-aggregation mode dynamic

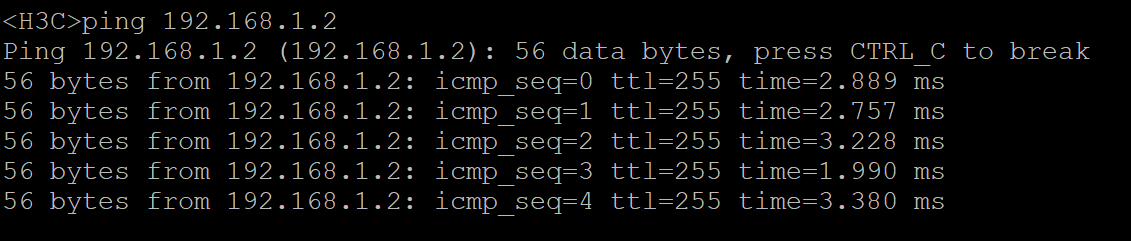

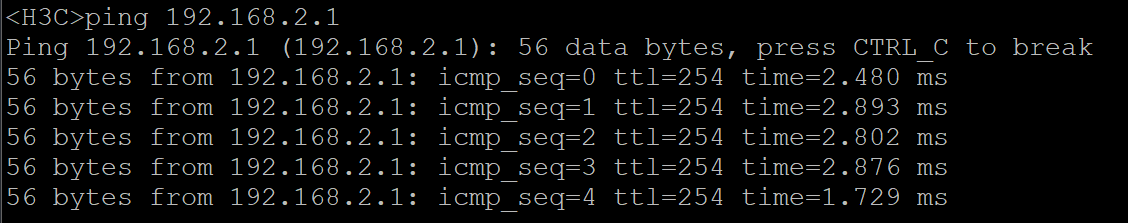

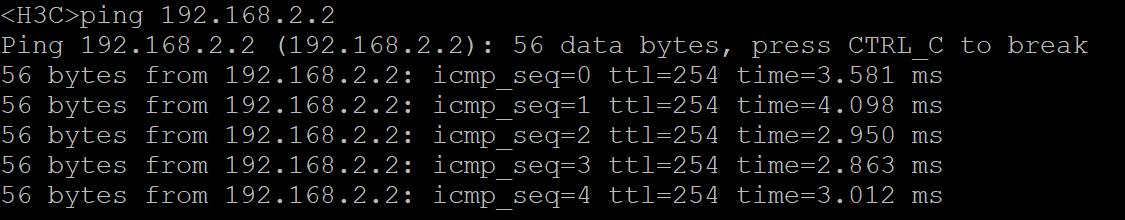

5、验证：打开PC12，IP：192.168.1.3
