C#调用海康sdk定时抓图（后台进行预览）

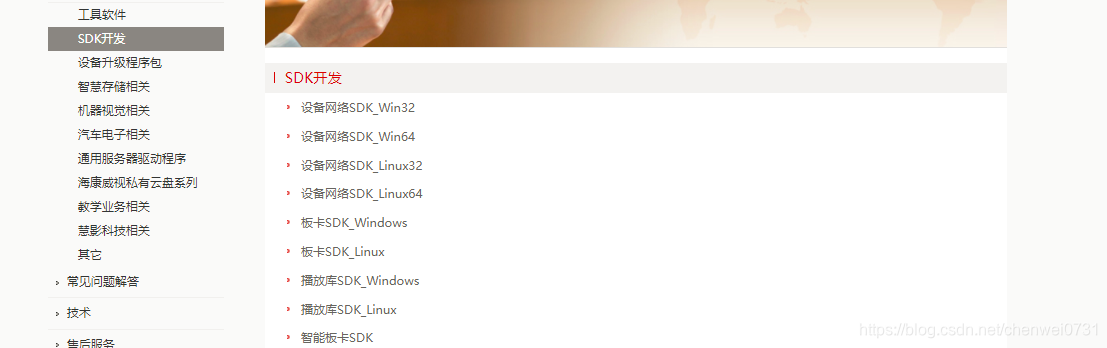

由于公司项目之前涉及到海康威视监控的图片抓取，在海康官网下找到海康的Demo，于是在此基础上进行开发，实现了海康定时抓图的功能。
部分说明和参考：https://blog.youkuaiyun.com/chenwei0731/article/details/109899332

图片抓取的主要代码

//需要的参数
 public struct Dataparamer
        {
        //开始时间
            public DateTime starttime;
             //结束时间
            public DateTime endtime;
            //结果
            public string errorInfo;
            public bool status;
            //文件名
            public string bmpname;
            //摄像头的通道号
            public int channel;
            //保持地址
            public string bmpaddress;
            //录像机的uil地址
            public string url;
            //端口
            public int port;
            //账户
            public string user;
            //密码
            public string password;

        }

//图片抓取
public static Dataparamer GetImageFile(Dataparamer data)
        {
            CHCNetSDK.NET_DVR_DEVICEINFO_V30 DeviceInfo = new CHCNetSDK.NET_DVR_DEVICEINFO_V30();
            Int32 m_lUserID = -1;
            Int32 m_lPlayHandle = -1;
            int[] iChannelNum = new int[96];
            uint errorCode;

            bool m_bInitSDK = false;

            CHCNetSDK.NET_DVR_IPPARACFG_V40 m_struIpParaCfgV40 = new CHCNetSDK.NET_DVR_IPPARACFG_V40();
            CHCNetSDK.NET_DVR_GET_STREAM_UNION m_unionGetStream;
            CHCNetSDK.NET_DVR_IPCHANINFO m_struChanInfo;
            Dataparamer refdata = new Dataparamer();
            try
            {

                m_bInitSDK = CHCNetSDK.NET_DVR_Init();
                if (m_bInitSDK == false)
                {
                    throw new Exception("初始化失败");
                }
                else
                {
                    //保存SDK日志
                    CHCNetSDK.NET_DVR_SetLogToFile(3, "D:\\SdkLog\\", true);
                }
                var Url = data.url;
                var Port = data.port;
                var User = data.user;
                var Password = data.password;


                m_lUserID = CHCNetSDK.NET_DVR_Login_V30(Url, Port, User, Password, ref DeviceInfo);
                if (m_lUserID < 0)
                {
                    errorCode = CHCNetSDK.NET_DVR_GetLastError();
                    throw new Exception("登录失败，错误代码：" + errorCode + refdata.flag + "  ip:" + Url);
                }
                else
                {
                    ExceptionLogHelper.WriteLog("登录成功");
                    Console.WriteLine("登录成功");

                    uint dwAChanTotalNum = (uint)DeviceInfo.byChanNum;
                    uint dwDChanTotalNum = (uint)DeviceInfo.byIPChanNum + 256 * (uint)DeviceInfo.byHighDChanNum;

                    if (dwDChanTotalNum > 0)
                    {
                        #region 获取通道

                        uint dwSize = (uint)Marshal.SizeOf(m_struIpParaCfgV40);

                        IntPtr ptrIpParaCfgV40 = Marshal.AllocHGlobal((Int32)dwSize);
                        Marshal.StructureToPtr(m_struIpParaCfgV40, ptrIpParaCfgV40, false);
                        uint dwReturn = 0;
                        int iGroupNo = 0; //该方法仅获取第一组64个通道，如果设备IP通道大于64路，需要按组号0~i多次调用NET_DVR_GET_IPPARACFG_V40获取
                        if (!CHCNetSDK.NET_DVR_GetDVRConfig(m_lUserID, CHCNetSDK.NET_DVR_GET_IPPARACFG_V40, iGroupNo, ptrIpParaCfgV40, dwSize, ref dwReturn))
                        {
                            errorCode = CHCNetSDK.NET_DVR_GetLastError();
                            throw new Exception("获取IP资源配置信息失败，错误代码：" + errorCode);
                        }
                        else
                        {
                            // 获取通道成功
                            m_struIpParaCfgV40 = (CHCNetSDK.NET_DVR_IPPARACFG_V40)Marshal.PtrToStructure(ptrIpParaCfgV40, typeof(CHCNetSDK.NET_DVR_IPPARACFG_V40));

                            for (int i = 0; i < dwAChanTotalNum; i++)
                            {
                                iChannelNum[i] = i + (int)DeviceInfo.byStartChan;
                            }

                            byte byStreamType;
                            uint iDChanNum = 64;

                            if (dwDChanTotalNum < 64)
                            {
                                iDChanNum = dwDChanTotalNum; //如果设备IP通道小于64路，按实际路数获取
                            }

                            for (int i = 0; i < iDChanNum; i++)
                            {
                                iChannelNum[i + dwAChanTotalNum] = i + (int)m_struIpParaCfgV40.dwStartDChan;

                                byStreamType = m_struIpParaCfgV40.struStreamMode[i].byGetStreamType;
                                m_unionGetStream = m_struIpParaCfgV40.struStreamMode[i].uGetStream;

                                switch (byStreamType)
                                {
                                    //目前NVR仅支持0- 直接从设备取流一种方式
                                    case 0:
                                        dwSize = (uint)Marshal.SizeOf(m_unionGetStream);
                                        IntPtr ptrChanInfo = Marshal.AllocHGlobal((Int32)dwSize);
                                        Marshal.StructureToPtr(m_unionGetStream, ptrChanInfo, false);
                                        m_struChanInfo = (CHCNetSDK.NET_DVR_IPCHANINFO)Marshal.PtrToStructure(ptrChanInfo, typeof(CHCNetSDK.NET_DVR_IPCHANINFO));

                                        Marshal.FreeHGlobal(ptrChanInfo);
                                        break;

                                    default:
                                        break;
                                }
                            }
                        }

                        #endregion
                    }
                    else
                    {
                        for (int i = 0; i < dwAChanTotalNum; i++)
                        {
                            iChannelNum[i] = i + (int)DeviceInfo.byStartChan;
                        }
                    }
                    ExceptionLogHelper.WriteLog("完成通道获取");

                    for (int i = 0; i < iChannelNum.Length; i++)
                    {
                        if (iChannelNum[(int)i] != data.channel) { continue; } //通道判断,是否等于当前通道
                        uint dcSize = (uint)Marshal.SizeOf(m_struIpParaCfgV40);
                        m_unionGetStream = m_struIpParaCfgV40.struStreamMode[i].uGetStream;

                        dcSize = (uint)Marshal.SizeOf(m_unionGetStream);
                        IntPtr ptrChanInfo = Marshal.AllocHGlobal((Int32)dcSize);
                        Marshal.StructureToPtr(m_unionGetStream, ptrChanInfo, false);
                        m_struChanInfo = (CHCNetSDK.NET_DVR_IPCHANINFO)Marshal.PtrToStructure(ptrChanInfo, typeof(CHCNetSDK.NET_DVR_IPCHANINFO));
                        if (m_struChanInfo.byIPID == 0) { throw new Exception("当前通道为空状态，请检查摄像头硬件"); } //通道状态判断，不能为空闲状态

                        CHCNetSDK.NET_DVR_VOD_PARA struVodPara = new CHCNetSDK.NET_DVR_VOD_PARA();
                        struVodPara.dwSize = (uint)Marshal.SizeOf(struVodPara);
                        struVodPara.struIDInfo.dwChannel = (uint)data.channel; //通道号 Channel number
                        struVodPara.hWnd = (IntPtr)(0x00121);

                        //设置回放的开始时间 Set the starting time to search video files
                        struVodPara.struBeginTime.dwYear = (uint)data.starttime.Year;
                        struVodPara.struBeginTime.dwMonth = (uint)data.starttime.Month;
                        struVodPara.struBeginTime.dwDay = (uint)data.starttime.Day;
                        struVodPara.struBeginTime.dwHour = (uint)data.starttime.Hour;
                        struVodPara.struBeginTime.dwMinute = (uint)data.starttime.Minute;
                        struVodPara.struBeginTime.dwSecond = (uint)data.starttime.Second;

                        //设置回放的结束时间 Set the stopping time to search video files
                        struVodPara.struEndTime.dwYear = (uint)data.endtime.Year;
                        struVodPara.struEndTime.dwMonth = (uint)data.endtime.Month;
                        struVodPara.struEndTime.dwDay = (uint)data.endtime.Day;
                        struVodPara.struEndTime.dwHour = (uint)data.endtime.Hour;
                        struVodPara.struEndTime.dwMinute = (uint)data.endtime.Minute;
                        struVodPara.struEndTime.dwSecond = (uint)data.endtime.Second;

                        m_lPlayHandle = CHCNetSDK.NET_DVR_PlayBackByTime_V40(m_lUserID, ref struVodPara);
                        if (m_lPlayHandle < 0)
                        {
                            errorCode = CHCNetSDK.NET_DVR_GetLastError();
                            throw new Exception("开始回放失败，错误代码：" + errorCode); //回放失败，输出错误号
                        }

                        uint iOutValue = 0;
                        if (!CHCNetSDK.NET_DVR_PlayBackControl_V40(m_lPlayHandle, CHCNetSDK.NET_DVR_PLAYSTART, IntPtr.Zero, 0, IntPtr.Zero, ref iOutValue))
                        {
                            errorCode = CHCNetSDK.NET_DVR_GetLastError();
                            throw new Exception("回放控制失败，错误代码：" + errorCode); //回放控制失败，输出错误号
                        }

                        if (!CHCNetSDK.NET_DVR_PlayBackCaptureFile(m_lPlayHandle, data.bmpaddress))
                        {
                            errorCode = CHCNetSDK.NET_DVR_GetLastError();
                            throw new Exception("抓图失败，错误代码：" + errorCode); //抓图失败，输出错误号
                        }
                        else
                        {
                            DateTime t = DateTime.Now.AddMinutes(1);      //循环等待60秒
                            while (DateTime.Now < t)
                            {
                                if (File.Exists(data.bmpaddress))
                                {
                                    ExceptionLogHelper.WriteLog("抓图成功");
                                    refdata.status = true;
                                    t = DateTime.Now;
                                }
                            }
                        }
                    }
                    refdata.errorInfo = "下载成功";
                    refdata.starttime = data.starttime;
                    refdata.endtime = data.starttime.AddSeconds(2);
                    refdata.bmpaddress = data.bmpaddress;
                }


            }
            catch (Exception e)
            {
                e.WriteLog();
                refdata.errorInfo = e.Message;
                refdata.status = false;
                ExceptionLogHelper.WriteLog(e.Message);
                ExceptionLogHelper.WriteLog("下载失败");
                return refdata;
            }
            return refdata;
        }
