1，查看现有磁盘容量情况

# df -h
Filesystem               Size  Used Avail Use% Mounted on
devtmpfs                  32G     0   32G   0% /dev
tmpfs                     32G     0   32G   0% /dev/shm
tmpfs                     32G  8.9M   32G   1% /run
tmpfs                     32G     0   32G   0% /sys/fs/cgroup
/dev/mapper/centos-root   50G   27G   24G  54% /
/dev/sda1               1014M  151M  864M  15% /boot
/dev/mapper/centos-home  142G  1.1G  141G   1% /home
tmpfs                    6.3G     0  6.3G   0% /run/user/0

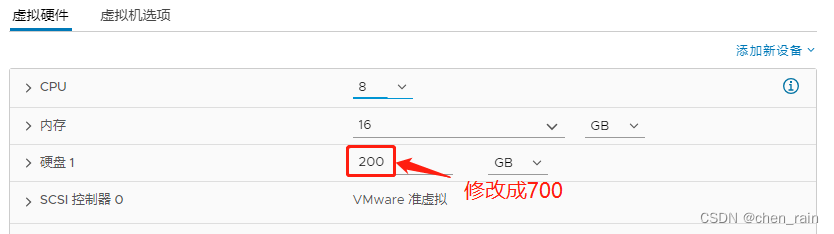

2，虚机关机，通过vsphere给虚机分配资源计划增加500G容量，分配给根分区：

3，虚机开机，进入操作系统，查看增加的磁盘信息

# fdisk -l

Disk /dev/sda: 751.6 GB, 751619276800 bytes, 1468006400 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x000aa991

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048     2099199     1048576   83  Linux
/dev/sda2         2099200   419430399   208665600   8e  Linux LVM

Disk /dev/mapper/centos-root: 53.7 GB, 53687091200 bytes, 104857600 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/mapper/centos-swap: 8455 MB, 8455716864 bytes, 16515072 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/mapper/centos-home: 151.5 GB, 151523426304 bytes, 295944192 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes

4，根据以上信息，使用fdisk给新增的磁盘进行分区

# fdisk /dev/sda
Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.


Command (m for help): q

[root@tymh-test ~]# ll /dev/sda
sda   sda1  sda2
[root@tymh-test ~]# ll /dev/sda^C
[root@tymh-test ~]# fdisk /dev/sda
sda   sda1  sda2
[root@tymh-test ~]# fdisk /dev/sda
sda   sda1  sda2
[root@tymh-test ~]# fdisk /dev/sda
Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.


Command (m for help): p

Disk /dev/sda: 751.6 GB, 751619276800 bytes, 1468006400 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x000aa991

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048     2099199     1048576   83  Linux
/dev/sda2         2099200   419430399   208665600   8e  Linux LVM

Command (m for help): n
Partition type:
   p   primary (2 primary, 0 extended, 2 free)
   e   extended
Select (default p): p
Partition number (3,4, default 3):
First sector (419430400-1468006399, default 419430400):
Using default value 419430400
Last sector, +sectors or +size{K,M,G} (419430400-1468006399, default 1468006399):
Using default value 1468006399
Partition 3 of type Linux and of size 500 GiB is set

Command (m for help): t
Partition number (1-3, default 3):
Hex code (type L to list all codes): L

 0  Empty           24  NEC DOS         81  Minix / old Lin bf  Solaris
 1  FAT12           27  Hidden NTFS Win 82  Linux swap / So c1  DRDOS/sec (FAT-
 2  XENIX root      39  Plan 9          83  Linux           c4  DRDOS/sec (FAT-
 3  XENIX usr       3c  PartitionMagic  84  OS/2 hidden C:  c6  DRDOS/sec (FAT-
 4  FAT16 <32M      40  Venix 80286     85  Linux extended  c7  Syrinx
 5  Extended        41  PPC PReP Boot   86  NTFS volume set da  Non-FS data
 6  FAT16           42  SFS             87  NTFS volume set db  CP/M / CTOS / .
 7  HPFS/NTFS/exFAT 4d  QNX4.x          88  Linux plaintext de  Dell Utility
 8  AIX             4e  QNX4.x 2nd part 8e  Linux LVM       df  BootIt
 9  AIX bootable    4f  QNX4.x 3rd part 93  Amoeba          e1  DOS access
 a  OS/2 Boot Manag 50  OnTrack DM      94  Amoeba BBT      e3  DOS R/O
 b  W95 FAT32       51  OnTrack DM6 Aux 9f  BSD/OS          e4  SpeedStor
 c  W95 FAT32 (LBA) 52  CP/M            a0  IBM Thinkpad hi eb  BeOS fs
 e  W95 FAT16 (LBA) 53  OnTrack DM6 Aux a5  FreeBSD         ee  GPT
 f  W95 Ext'd (LBA) 54  OnTrackDM6      a6  OpenBSD         ef  EFI (FAT-12/16/
10  OPUS            55  EZ-Drive        a7  NeXTSTEP        f0  Linux/PA-RISC b
11  Hidden FAT12    56  Golden Bow      a8  Darwin UFS      f1  SpeedStor
12  Compaq diagnost 5c  Priam Edisk     a9  NetBSD          f4  SpeedStor
14  Hidden FAT16 <3 61  SpeedStor       ab  Darwin boot     f2  DOS secondary
16  Hidden FAT16    63  GNU HURD or Sys af  HFS / HFS+      fb  VMware VMFS
17  Hidden HPFS/NTF 64  Novell Netware  b7  BSDI fs         fc  VMware VMKCORE
18  AST SmartSleep  65  Novell Netware  b8  BSDI swap       fd  Linux raid auto
1b  Hidden W95 FAT3 70  DiskSecure Mult bb  Boot Wizard hid fe  LANstep
1c  Hidden W95 FAT3 75  PC/IX           be  Solaris boot    ff  BBT
1e  Hidden W95 FAT1 80  Old Minix
Hex code (type L to list all codes): 8e
Changed type of partition 'Linux' to 'Linux LVM'

Command (m for help): p

Disk /dev/sda: 751.6 GB, 751619276800 bytes, 1468006400 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x000aa991

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048     2099199     1048576   83  Linux
/dev/sda2         2099200   419430399   208665600   8e  Linux LVM
/dev/sda3       419430400  1468006399   524288000   8e  Linux LVM

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.

WARNING: Re-reading the partition table failed with error 16: Device or resource busy.
The kernel still uses the old table. The new table will be used at
the next reboot or after you run partprobe(8) or kpartx(8)
Syncing disks.

5，分区完成，创建物理卷

# pvcreate /dev/sda3
  Device /dev/sda3 not found.

提示找不到/dev/sda3，使用partprobe重新读取分区表，然后重新执行

# partprobe
# pvcreate /dev/sda3
  Physical volume "/dev/sda3" successfully created.

6，查看物理卷信息

# pvdisplay
  --- Physical volume ---
  PV Name               /dev/sda2
  VG Name               centos
  PV Size               <199.00 GiB / not usable 3.00 MiB
  Allocatable           yes
  PE Size               4.00 MiB
  Total PE              50943
  Free PE               1
  Allocated PE          50942
  PV UUID               CIuud9-8WCH-elPc-pMfH-M4Bl-W2d0-QOA3if

  "/dev/sda3" is a new physical volume of "500.00 GiB"
  --- NEW Physical volume ---
  PV Name               /dev/sda3
  VG Name
  PV Size               500.00 GiB
  Allocatable           NO
  PE Size               0
  Total PE              0
  Free PE               0
  Allocated PE          0
  PV UUID               ZzghgJ-FJFm-lfiT-039x-Ny2x-I6K1-LvdGAU

7，查看卷组相关信息

# vgdisplay
  --- Volume group ---
  VG Name               centos
  System ID
  Format                lvm2
  Metadata Areas        1
  Metadata Sequence No  4
  VG Access             read/write
  VG Status             resizable
  MAX LV                0
  Cur LV                3
  Open LV               3
  Max PV                0
  Cur PV                1
  Act PV                1
  VG Size               <199.00 GiB
  PE Size               4.00 MiB
  Total PE              50943
  Alloc PE / Size       50942 / 198.99 GiB
  Free  PE / Size       1 / 4.00 MiB
  VG UUID               MPXIpV-Xdfb-dn3X-tRTc-fYS3-ocOj-fsxDX2

8，将新增的分区增加到根目录分区centos中

# vgextend centos /dev/sda3
  Volume group "centos" successfully extended

9，进行扩容

# lvextend -l +100%FREE /dev/mapper/centos-root
  Size of logical volume centos/root changed from 50.00 GiB (12800 extents) to 550.00 GiB (140800 extents).
  Logical volume centos/root successfully resized.

10，调整卷分区大小

# xfs_growfs /dev/mapper/centos-root
meta-data=/dev/mapper/centos-root isize=512    agcount=4, agsize=3276800 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=1        finobt=0 spinodes=0
data     =                       bsize=4096   blocks=13107200, imaxpct=25
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
log      =internal               bsize=4096   blocks=6400, version=2
         =                       sectsz=512   sunit=0 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
data blocks changed from 13107200 to 144179200

11，重新查看磁盘分区情况，根分区已完成扩容

# df -h
Filesystem               Size  Used Avail Use% Mounted on
devtmpfs                  32G     0   32G   0% /dev
tmpfs                     32G     0   32G   0% /dev/shm
tmpfs                     32G  8.9M   32G   1% /run
tmpfs                     32G     0   32G   0% /sys/fs/cgroup
/dev/mapper/centos-root  550G   27G  524G   5% /
/dev/sda1               1014M  151M  864M  15% /boot
/dev/mapper/centos-home  142G  1.1G  141G   1% /home
tmpfs                    6.3G     0  6.3G   0% /run/user/0
