本文详细介绍了ORM框架Hibernate中的一对多、多对多关联映射方式，包括实体类设计、配置文件编写及测试类实现，展示了如何在Java项目中有效管理和操作数据库关系。

今天我们来对昨天的知识来做一个补充！

一对多(自关联)

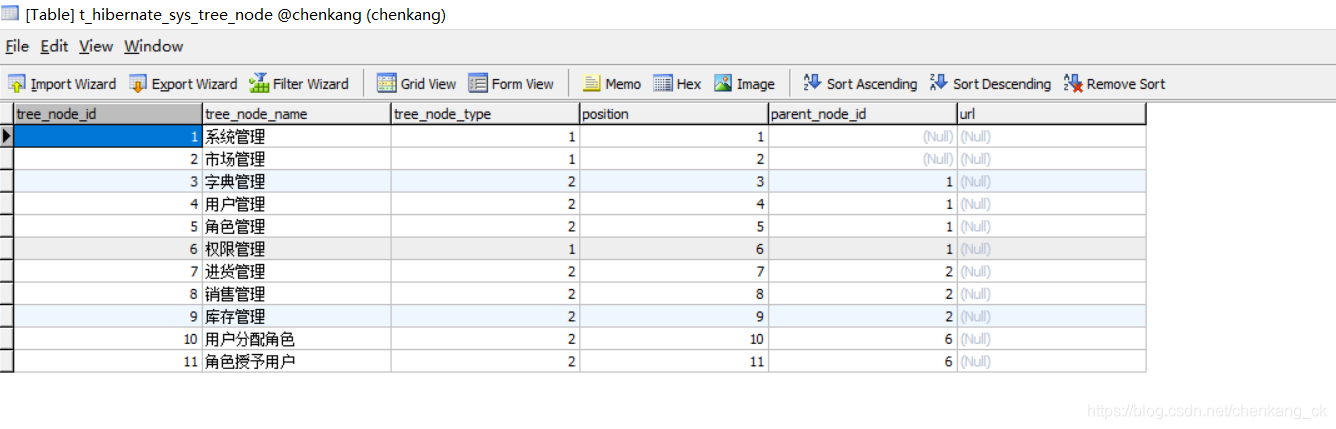

自关联所用到就是就是这个权限表
在这里插入图片描述然后我们根据这张表来写一个实体类跟配置文件、

TreeNode：

package com.chenkang.four.entity;
import java.util.HashSet;
import java.util.Set;

public class TreeNode {
	private Integer nodeId;
	private String nodeName;
	private Integer treeNodeType;
	private Integer position;
	private String url;
	private TreeNode parent;
	private Set<TreeNode> children = new HashSet<TreeNode>();
	private Integer initChildren = 0;

	public Integer getNodeId() {
		return nodeId;
	}

	public void setNodeId(Integer nodeId) {
		this.nodeId = nodeId;
	}

	public String getNodeName() {
		return nodeName;
	}

	public void setNodeName(String nodeName) {
		this.nodeName = nodeName;
	}

	public Integer getTreeNodeType() {
		return treeNodeType;
	}

	public void setTreeNodeType(Integer treeNodeType) {
		this.treeNodeType = treeNodeType;
	}

	public Integer getPosition() {
		return position;
	}

	public void setPosition(Integer position) {
		this.position = position;
	}

	public String getUrl() {
		return url;
	}

	public void setUrl(String url) {
		this.url = url;
	}

	public TreeNode getParent() {
		return parent;
	}

	public void setParent(TreeNode parent) {
		this.parent = parent;
	}

	public Set<TreeNode> getChildren() {
		return children;
	}

	public void setChildren(Set<TreeNode> children) {
		this.children = children;
	}

	public Integer getInitChildren() {
		return initChildren;
	}

	public void setInitChildren(Integer initChildren) {
		this.initChildren = initChildren;
	}

//	@Override
//	public String toString() {
//		return "TreeNode [nodeId=" + nodeId + ", nodeName=" + nodeName + ", treeNodeType=" + treeNodeType
//				+ ", position=" + position + ", url=" + url + ", children=" + children + "]";
//	}

	@Override
	public String toString() {
		return "TreeNode [nodeId=" + nodeId + ", nodeName=" + nodeName + ", treeNodeType=" + treeNodeType
				+ ", position=" + position + ", url=" + url + "]";
	}


}

TreeNode.hbm.xml：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC
    "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
    "http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<hibernate-mapping>
	<class name="com.chenkang.four.entity.TreeNode" table="t_hibernate_sys_tree_node">
		<id name="nodeId" type="java.lang.Integer" column="tree_node_id">
			<generator class="increment" />
		</id>
		<property name="nodeName" type="java.lang.String"
			column="tree_node_name">
		</property>
		<property name="treeNodeType" type="java.lang.Integer"
			column="tree_node_type">
		</property>
		<property name="position" type="java.lang.Integer"
			column="position">
		</property>
		<property name="url" type="java.lang.String"
			column="url">
		</property>

		<many-to-one name="parent" class="com.chenkang.four.entity.TreeNode" column="parent_node_id"/>

		<set name="children" cascade="save-update" inverse="true">
			<key column="parent_node_id"></key>
			<one-to-many class="com.chenkang.four.entity.TreeNode"/>
		</set>
	</class>
</hibernate-mapping>

因为我们在实体类中用到的是set集合
所以我们在配置文件中也要用到与他相对应得set，。

接下来就是我们得测试类：
TreeNodeDao:
这个是测试所用到的方法

package com.chenkang.four.dao;

import org.hibernate.Hibernate;
import org.hibernate.Session;
import org.hibernate.Transaction;

import com.chenkang.four.entity.TreeNode;
import com.chenkang.two.util.SessionFactoryUtils;


public class TreeNodeDao {
	public TreeNode load(TreeNode treeNode) {
		Session session = SessionFactoryUtils.openSession();
		Transaction transaction = session.beginTransaction();
		TreeNode t = session.load(TreeNode.class, treeNode.getNodeId());
		if(t != null && new Integer(1).equals(treeNode.getInitChildren())) {
			Hibernate.initialize(t.getChildren());
			Hibernate.initialize(t.getParent());
		}
		transaction.commit();
		session.close();
		return t;
	}
}

TreeNodeDaoTest:

package com.chenkang.four.dao;

import org.junit.Test;

import com.chenkang.four.entity.TreeNode;


public class TreeNodeDaoTest {
	private TreeNodeDao treeNodeDao = new TreeNodeDao();

//	@Before
//	public void setUp() throws Exception {
//	}
//
//	@After
//	public void tearDown() throws Exception {
//	}

	@Test
	public void testLoad() {
		TreeNode treeNode = new TreeNode();
		treeNode.setNodeId(6);
		treeNode.setInitChildren(1);

		TreeNode t = this.treeNodeDao.load(treeNode);
		System.out.println(t);
		System.out.println(t.getParent());
		System.out.println(t.getChildren());
	}

}

测试结果：
在这里插入图片描述

多对多

多对多我们需要建立两个实体类和两个配置文件

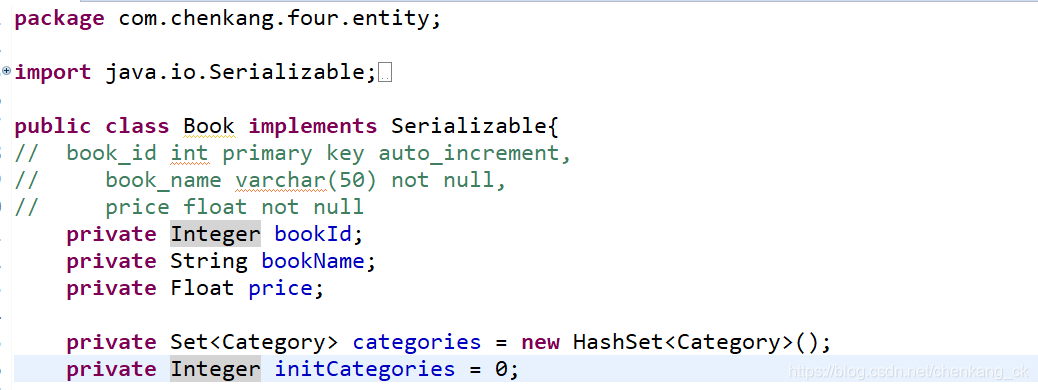

Book:
在这里插入图片描述

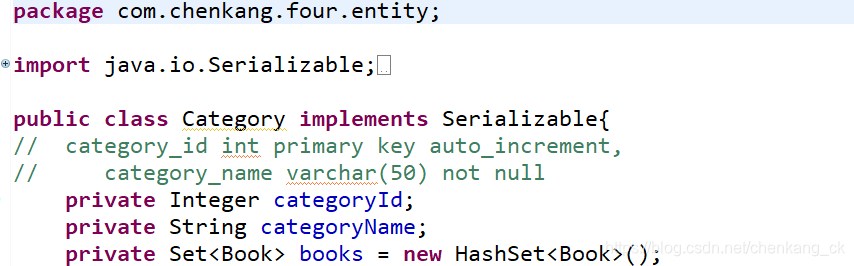

Category:

接下来就是两个xml文件
book.hbm.xml：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC
    "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
    "http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<hibernate-mapping>
	<class name="com.chenkang.four.entity.Book" table="t_hibernate_book">
		<cache usage="read-only" region="com.chenkang.five.entity.Book"/>
		<id name="bookId" type="java.lang.Integer" column="book_id">
			<generator class="increment" />
		</id>
		<property name="bookName" type="java.lang.String"
			column="book_name">
		</property>
		<property name="price" type="java.lang.Float"
			column="price">
		</property>

		<set table="t_hibernate_book_category" name="categories" cascade="save-update" inverse="false">
			<!-- one -->
			<key column="bid"></key>
			<!-- many -->
			<many-to-many column="cid" class="com.chenkang.four.entity.Category"></many-to-many>
		</set>
	</class>
</hibernate-mapping>

我们来简单了解一下这里面的意思！
set:标签：
table:对应的是中间表没有实体类，意味着靠两张主表对应的映射文件联合管理数据
name:当前映射文件对应的实体类对应的属性
cascade:级联新增修改，说白了就是实体类对应的表删除能否影响关联表的数据
inverse:中间表的数据维护的权力交给对方
key标签：
column:当前表t_hibernate_book的主键book_id在中间表的列段bid；
many-to-many：
column：代表中间表对应的出去当前表t_hibernate_book的非主键的中间表列段
class:cid对应的类

然后就是category.hbm.xml：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-mapping PUBLIC
    "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
    "http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<hibernate-mapping>
	<class name="com.chenkang.four.entity.Category" table="t_hibernate_category">
		<id name="categoryId" type="java.lang.Integer" column="category_id">
			<generator class="increment" />
		</id>
		<property name="categoryName" type="java.lang.String"
			column="category_name">
		</property>

		<set table="t_hibernate_book_category" name="books" cascade="save-update" inverse="true">
			<key column="cid"></key>
			<many-to-many column="bid" class="com.chenkang.four.entity.Book"></many-to-many>
		</set>
	</class>
</hibernate-mapping>

在这里大家也别忘记了这两个xml文件包括上面的我们都需要配置到Hibernate核心配置文件中去！！
测试：
BookDao：

package com.chenkang.four.dao;


import org.hibernate.Hibernate;
import org.hibernate.Session;
import org.hibernate.Transaction;

import com.chenkang.four.entity.Book;
import com.chenkang.four.entity.Category;
import com.chenkang.two.util.SessionFactoryUtils;



public class BookDao{
	public Integer addBook(Book book) {
		Session session = SessionFactoryUtils.openSession();
		Transaction transaction = session.beginTransaction();
		Integer bid = (Integer) session.save(book);
		transaction.commit();
		session.close();
		return bid;
	}

	public Integer addCategory(Category category) {
		Session session = SessionFactoryUtils.openSession();
		Transaction transaction = session.beginTransaction();
		Integer cid = (Integer) session.save(category);
		transaction.commit();
		session.close();
		return cid;
	}

	public Category getCategory(Category category) {
		Session session = SessionFactoryUtils.openSession();
		Transaction transaction = session.beginTransaction();
		Category c = session.get(Category.class, category.getCategoryId());
		transaction.commit();
		session.close();
		return c;
	}

	public Book getBook(Book book) {
		Session session = SessionFactoryUtils.openSession();
		Transaction transaction = session.beginTransaction();
		Book b = session.get(Book.class, book.getBookId());
		if (b != null && new Integer(1).equals(book.getInitCategories())) {
			Hibernate.initialize(b.getCategories());
		}
		transaction.commit();
		session.close();
		return b;
	}

	public void delBook(Book book) {
		Session session = SessionFactoryUtils.openSession();
		Transaction transaction = session.beginTransaction();
		session.delete(book);
		transaction.commit();
		session.close();
	}

	public void delCategory(Category category) {
		Session session = SessionFactoryUtils.openSession();
		Transaction transaction = session.beginTransaction();
		Category c = session.get(Category.class, category.getCategoryId());
		if(c!=null) {
			for (Book b : c.getBooks()) {
//				通过在被控方通过主控方来解除关联关系，最后被控方再做删除
				b.getCategories().remove(c);
			}
		}
		session.delete(c);
		transaction.commit();
		session.close();
	}



}

BookDaoTest：

package com.chenkang.four.dao;

import org.junit.Test;

import com.chenkang.four.entity.Book;
import com.chenkang.four.entity.Category;


public class BookDaoTest {
	private BookDao bookDao = new BookDao();

	@Test
	public void testGetBook() {
		Book book = new Book();
		book.setBookId(8);
		book.setInitCategories(1);
		Book b = this.bookDao.getBook(book );
		System.out.println(b.getBookName());
		System.out.println(b.getCategories());
	}

	/**
	 * book.hbm.xml	inverse=fasle
	 * category.hbm.xml inverse=true
	 * 数据添加正常
	 * 书籍表、桥接表各新增一条数据
	 */
	@Test
	public void test1() {
		Book book = new Book();
		book.setBookName("chenkang111111");
		book.setPrice(10f);
		Category category = new Category();
		category.setCategoryId(5);
//		直接将category对象加入到新建的book中是错误的，因为此时的category是临时态的，hibernate是不会管理的
//		book.getCategories().add(category);
		Category c = this.bookDao.getCategory(category);

//		c.getBooks().add(book);
		book.getCategories().add(c);
		this.bookDao.addBook(book);
	}

	/**
	 * book.hbm.xml	inverse=true
	 * category.hbm.xml inverse=true
	 * 只增加书籍表数据
	 * 桥接表不加数据
	 * 原因：双方都没有去维护关系
	 */
	@Test
	public void test2() {
		Book book = new Book();
		book.setBookName("c");
		book.setPrice(10f);
		Category category = new Category();
		category.setCategoryId(5);
		Category c = this.bookDao.getCategory(category);

		book.getCategories().add(c);
		this.bookDao.addBook(book);
//		c.getBooks().add(book);
	}


}

测试结果已经写在上面了我们就不看了哈！！
