适配器模式

适配器模式（Adapter Pattern）是指将一个类的接口转换成客户期望的另一个接口，使原本的接口不兼容的类可以一起工作。

属于结构型设计模式

适用场景: 1 已经存在的类，它的方法和需求不匹配（方法结果相同或相似）的情况

               2 适配器模式不是软件设计阶段考虑的设计模式，是随着软件维护，由于不同产品、不同厂家造成功能类似而接口不相同情况下的解决方案

public class AC220 {

    public int outputAC220V() {
        int output = 220;
        System.out.println("输出电流" + output + "V");
        return output;
    }
}

public interface DC5 {
    /**
     * 转换为直流电压
     * @return 直流电压
     */
    int outPutDC5V();
}

public class PowerAdapter implements DC5 {

   private AC220 ac220;

    public PowerAdapter(AC220 ac220) {
        this.ac220 = ac220;
    }

    @Override
    public int outPutDC5V() {
        int adapterInput = ac220.outputAC220V();
        int adapterOutput = adapterInput / 44;
        System.out.println("使用PowerAdapter输入AC:" + adapterInput + "V,输出DC：" + adapterOutput + "V");
        return adapterOutput;
    }
}

public static void main(String[] args) {
    DC5 dc5 = new PowerAdapter(new AC220());
    dc5.outPutDC5V();
}

优点: 1  能提高类的透明性和复用，现有的类复用但不需要改变

        2 目标类和适配器类解耦，提高程序的扩展性

        3 在很多业务场景中符合开闭原则

缺点: 1 适配器编写过程需要全面考虑，可能会增加系统的复杂性

         2  增加代码阅读难度，降低代码可读性，过多使用适配器会使系统代码变得凌乱

public class Member {

    private String username;
    private String password;
    private String mid;
    private String info;

}

public class ResultMsg {

    private int code;
    private String msg;
    private Object data;

}

public class SignService {

    /**
     * 注册方法
     *
     * @param username
     * @param password
     * @return
     */
    public ResultMsg regist(String username, String password) {
        return new ResultMsg(200, "注册成功", new Member());
    }


    /**
     * 登录的方法
     *
     * @param username
     * @param password
     * @return
     */
    public ResultMsg login(String username, String password) {
        return null;
    }

}

public class SignForThirdService extends SignService {

    public ResultMsg loginForQQ(String openId) {
        //1、openId是全局唯一，我们可以把它当做是一个用户名(加长)
        //2、密码默认为QQ_EMPTY
        //3、注册（在原有系统里面创建一个用户）

        //4、调用原来的登录方法

        return loginForRegister(openId, null);
    }

    public ResultMsg loginForWechat(String openId) {
        return null;
    }

    public ResultMsg loginForToken(String token) {
        //通过token拿到用户信息，然后再重新登陆了一次
        return null;
    }

    public ResultMsg loginForTelphone(String telphone, String code) {

        return null;
    }

    public ResultMsg loginForRegister(String username, String password) {
        super.regist(username, null);
        return super.login(username, null);
    }
}

public static void main(String[] args) {
    SignForThirdService service = new SignForThirdService();
    service.login("tom", "123456");
    service.loginForQQ("sdfasdfasf");
    service.loginForWechat("sdfasfsa");
}

工厂、策略、适配器:

public class Member {

    private String username;
    private String password;
    private String mid;
    private String info;

}

public class ResultMsg {

    private int code;
    private String msg;
    private Object data;

}

public class SignService {

    /**
     * 注册方法
     *
     * @param username
     * @param password
     * @return
     */
    public ResultMsg regist(String username, String password) {
        return new ResultMsg(200, "注册成功", new Member());
    }


    /**
     * 登录的方法
     *
     * @param username
     * @param password
     * @return
     */
    public ResultMsg login(String username, String password) {
        return null;
    }

}

/**
 * 在适配器里面，这个接口是可有可无，不要跟模板模式混淆
 * 模板模式一定是抽象类，而这里仅仅只是一个接口
 * @author
 */
public interface LoginAdapter {

    /**
     * 判断是否兼容
     * @param adapter
     * @return
     */
    boolean support(Object adapter);

    /**
     * 登录是否成功
     * @param id
     * @param adapter
     * @return
     */
    ResultMsg login(String id,Object adapter);

}

public class LoginForQQAdapter implements LoginAdapter {
    @Override
    public boolean support(Object adapter) {
        return adapter instanceof LoginForQQAdapter;
    }

    @Override
    public ResultMsg login(String id, Object adapter) {
        return null;
    }
}

public class LoginForSinaAdapter implements LoginAdapter {
    @Override
    public boolean support(Object adapter) {
        return adapter instanceof LoginForSinaAdapter;
    }
    @Override
    public ResultMsg login(String id, Object adapter) {
        return null;
    }
}

public class LoginForTelAdapter implements LoginAdapter {
    @Override
    public boolean support(Object adapter) {
        return adapter instanceof LoginForTelAdapter;
    }
    @Override
    public ResultMsg login(String id, Object adapter) {
        return null;
    }
}

public class LoginForTokenAdapter implements LoginAdapter {

    @Override
    public boolean support(Object adapter) {
        return adapter instanceof LoginForTokenAdapter;
    }

    @Override
    public ResultMsg login(String id, Object adapter) {
        return null;
    }
}

public class LoginForWechatAdapter implements LoginAdapter {
    @Override
    public boolean support(Object adapter) {
        return adapter instanceof LoginForWechatAdapter;
    }
    @Override
    public ResultMsg login(String id, Object adapter) {
        return null;
    }
}

public interface IPassportForThird {

    /**
     * QQ登录
     * @param id
     * @return
     */
    ResultMsg loginForQQ(String id);

    /**
     * 微信登录
     * @param id
     * @return
     */
    ResultMsg loginForWechat(String id);

    /**
     * 记住登录状态后自动登录
     * @param token
     * @return
     */
    ResultMsg loginForToken(String token);

    /**
     * 手机号登录
     * @param telphone
     * @param code
     * @return
     */
    ResultMsg loginForTelphone(String telphone, String code);

    /**
     * 注册后自动登录
     * @param username
     * @param passport
     * @return
     */
    ResultMsg loginForRegist(String username, String passport);
}

/**
 * 结合策略模式、工厂模式、适配器模式
 * Created by Tom on 2019/3/16.
 * @author
 */
public class PassportForThirdAdapter extends SignService implements IPassportForThird {

    @Override
    public ResultMsg loginForQQ(String id) {
        //  return processLogin(id,RegistForQQAdapter.class);
        return processLogin(id, LoginForQQAdapter.class);
    }

    @Override
    public ResultMsg loginForWechat(String id) {
        return processLogin(id, LoginForWechatAdapter.class);
    }

    @Override
    public ResultMsg loginForToken(String token) {
        return processLogin(token, LoginForTokenAdapter.class);
    }

    @Override
    public ResultMsg loginForTelphone(String telphone, String code) {
        return processLogin(telphone, LoginForTelAdapter.class);
    }

    @Override
    public ResultMsg loginForRegist(String username, String passport) {
        super.regist(username, passport);
        return super.login(username, passport);
    }

    /**
     * 简单工厂模式
     * @param key
     * @param clazz
     * @return
     */
    private ResultMsg processLogin(String key, Class<? extends LoginAdapter> clazz) {
        try {
            //适配器不一定要实现接口
            LoginAdapter adapter = clazz.newInstance();

            //判断传过来的适配器是否能处理指定的逻辑
            if (adapter.support(adapter)) {
                return adapter.login(key, adapter);
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }
}

public static void main(String[] args) {

    IPassportForThird passportForThird = new PassportForThirdAdapter();

    passportForThird.loginForQQ("");


}

源码中运用:

public interface AdvisorAdapter {

   boolean supportsAdvice(Advice advice);

   MethodInterceptor getInterceptor(Advisor advisor);

}

class MethodBeforeAdviceAdapter implements AdvisorAdapter, Serializable {

   @Override
   public boolean supportsAdvice(Advice advice) {
      return (advice instanceof MethodBeforeAdvice);
   }

   @Override
   public MethodInterceptor getInterceptor(Advisor advisor) {
      MethodBeforeAdvice advice = (MethodBeforeAdvice) advisor.getAdvice();
      return new MethodBeforeAdviceInterceptor(advice);
   }

}

class AfterReturningAdviceAdapter implements AdvisorAdapter, Serializable {

   @Override
   public boolean supportsAdvice(Advice advice) {
      return (advice instanceof AfterReturningAdvice);
   }

   @Override
   public MethodInterceptor getInterceptor(Advisor advisor) {
      AfterReturningAdvice advice = (AfterReturningAdvice) advisor.getAdvice();
      return new AfterReturningAdviceInterceptor(advice);
   }

}

class ThrowsAdviceAdapter implements AdvisorAdapter, Serializable {

   @Override
   public boolean supportsAdvice(Advice advice) {
      return (advice instanceof ThrowsAdvice);
   }

   @Override
   public MethodInterceptor getInterceptor(Advisor advisor) {
      return new ThrowsAdviceInterceptor(advisor.getAdvice());
   }

}

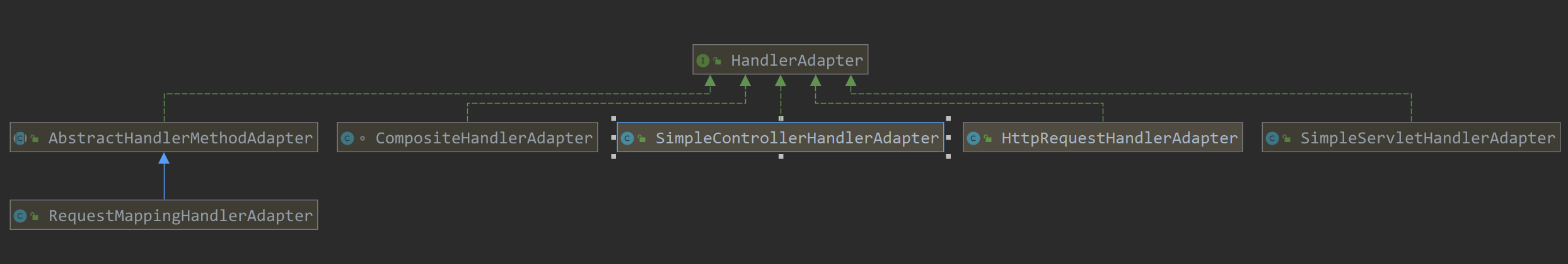

public class SimpleControllerHandlerAdapter implements HandlerAdapter {

   @Override
   public boolean supports(Object handler) {
      return (handler instanceof Controller);
   }

   @Override
   @Nullable
   public ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
         throws Exception {

      return ((Controller) handler).handleRequest(request, response);
   }

   @Override
   public long getLastModified(HttpServletRequest request, Object handler) {
      if (handler instanceof LastModified) {
         return ((LastModified) handler).getLastModified(request);
      }
      return -1L;
   }

}

AbstractHandlerMethodAdapter
@Override
public final boolean supports(Object handler) {
   return (handler instanceof HandlerMethod && supportsInternal((HandlerMethod) handler));
}

class CompositeHandlerAdapter implements HandlerAdapter {

   private final ListableBeanFactory beanFactory;

   private List<HandlerAdapter> adapters;

   CompositeHandlerAdapter(ListableBeanFactory beanFactory) {
      this.beanFactory = beanFactory;
   }

   @Override
   public boolean supports(Object handler) {
      return getAdapter(handler).isPresent();
   }

   @Override
   public ModelAndView handle(HttpServletRequest request, HttpServletResponse response,
         Object handler) throws Exception {
      Optional<HandlerAdapter> adapter = getAdapter(handler);
      if (adapter.isPresent()) {
         return adapter.get().handle(request, response, handler);
      }
      return null;
   }

   @Override
   public long getLastModified(HttpServletRequest request, Object handler) {
      Optional<HandlerAdapter> adapter = getAdapter(handler);
      if (adapter.isPresent()) {
         return adapter.get().getLastModified(request, handler);
      }
      return 0;
   }

   private Optional<HandlerAdapter> getAdapter(Object handler) {
      if (this.adapters == null) {
         this.adapters = extractAdapters();
      }
      return this.adapters.stream().filter((a) -> a.supports(handler)).findFirst();
   }

   private List<HandlerAdapter> extractAdapters() {
      List<HandlerAdapter> list = new ArrayList<>();
      list.addAll(this.beanFactory.getBeansOfType(HandlerAdapter.class).values());
      list.remove(this);
      AnnotationAwareOrderComparator.sort(list);
      return list;
   }

}

public class HttpRequestHandlerAdapter implements HandlerAdapter {

   @Override
   public boolean supports(Object handler) {
      return (handler instanceof HttpRequestHandler);
   }

   @Override
   @Nullable
   public ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
         throws Exception {

      ((HttpRequestHandler) handler).handleRequest(request, response);
      return null;
   }

   @Override
   public long getLastModified(HttpServletRequest request, Object handler) {
      if (handler instanceof LastModified) {
         return ((LastModified) handler).getLastModified(request);
      }
      return -1L;
   }

}

public class SimpleServletHandlerAdapter implements HandlerAdapter {

   @Override
   public boolean supports(Object handler) {
      return (handler instanceof Servlet);
   }

   @Override
   @Nullable
   public ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
         throws Exception {

      ((Servlet) handler).service(request, response);
      return null;
   }

   @Override
   public long getLastModified(HttpServletRequest request, Object handler) {
      return -1;
   }

}
