手势密码。

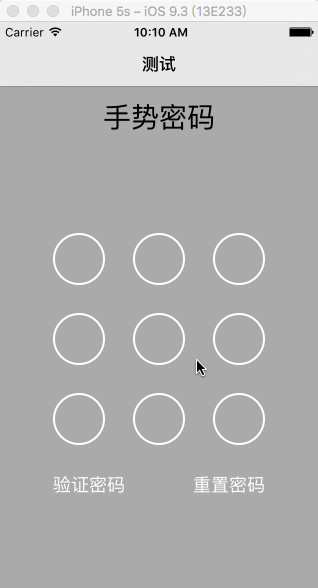

界面：

画面主要代码：

buttonArray = [[NSMutableArray alloc]init];
    for (int i = 0; i< 9; i++) {
        int row = (i/3);
        int col = (i%3);

        int distance = (view.frame.size.width/3);
        int size = ((distance)/1.5);
        int margin = (size/4);


        GesturePasswordButton * gesturePasswordButton = [[GesturePasswordButton alloc] initWithFrame:CGRectMake(col*distance+margin, row*distance, size, size) ];

        gesturePasswordButton.tag = i;


        [view addSubview:gesturePasswordButton];

        [buttonArray addObject:gesturePasswordButton];
    }

    tentacleView = [[TentacleView alloc] initWithFrame:view.frame];
    tentacleView.buttonArray = buttonArray;
    tentacleView.tentacleDelegate = self;
    [self.view addSubview:tentacleView];

就是画面上九个button和手势界面tentacleview。

tentacleview.m的代码：

#import "TentacleView.h"
#import "GesturePasswordButton.h"




@implementation TentacleView
@synthesize buttonArray;
@synthesize touchedArray;
@synthesize touchesArray;
@synthesize success;
@synthesize drawed;
@synthesize style;
@synthesize tentacleDelegate;
- (instancetype)initWithFrame:(CGRect)frame{
    self = [super initWithFrame:frame];
    if (self) {
        [self setBackgroundColor:[UIColor clearColor]];
        touchesArray=[[NSMutableArray alloc] init];
        touchedArray=[[NSMutableArray alloc] init];
        success = false;
        drawed = false;
        style = 2;
    }
    return self;

}

-(void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    CGPoint touchPoint;
    UITouch *touch = touches.allObjects[0];

    [touchesArray removeAllObjects];
    [touchedArray removeAllObjects];


    success = true;
    drawed = false;

    if(touch != nil){



        touchPoint = [touch locationInView:self];


        for (int i=0; i<buttonArray.count;i++) {

            GesturePasswordButton * buttonTemp = buttonArray[i];
            buttonTemp.success = true;
            buttonTemp.selected = false;


            if ([buttonTemp contains:touchPoint]) {


                CGRect frameTemp = buttonTemp.frame;

                CGPoint point = CGPointMake(frameTemp.origin.x+frameTemp.size.width/2,frameTemp.origin.y+frameTemp.size.height/2);


                NSDictionary *model = [[NSDictionary alloc] initWithObjectsAndKeys:[NSNumber numberWithFloat:  point.x ],@"x",[ NSNumber numberWithFloat:point.y],@"y",nil];


                [touchesArray addObject:model];

            }


            [buttonTemp setNeedsDisplay];

        }


        [self setNeedsDisplay];

    }


}

-(void)touchesMoved:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    CGPoint touchPoint;
    UITouch *touch = touches.allObjects[0];


    if(touch != nil){


        touchPoint = [touch locationInView:self];
        for (int i=0; i<buttonArray.count;i++) {

            GesturePasswordButton *buttonTemp = buttonArray[i];

            if ([buttonTemp contains:touchPoint]){
                buttonTemp.selected = true;

                id wid = nil;
                for(id obj in touchedArray){
                    if ([[NSString stringWithFormat:@"num%d",i] isEqual:obj]) {
                        wid = obj;
                    }


                }


                if(wid){

                    lineEndPoint = touchPoint;
                    [self setNeedsDisplay];
                    return;
                }

                [touchedArray addObject:[NSString stringWithFormat:@"num%d",i]];


                [buttonTemp setNeedsDisplay];

                CGRect frameTemp = buttonTemp.frame;
                CGPoint point = CGPointMake(frameTemp.origin.x+frameTemp.size.width/2, frameTemp.origin.y+frameTemp.size.height/2);

                NSDictionary *model = [[NSDictionary alloc] initWithObjectsAndKeys:[NSNumber numberWithFloat:  point.x ],@"x",[ NSNumber numberWithFloat:point.y],@"y",[ NSNumber numberWithFloat:i],@"num",nil];

                [touchesArray addObject:model];
                break;

            }
        }

        lineEndPoint = touchPoint;
        [self setNeedsDisplay];

    }


}

-(void)touchesEnded:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event{
    NSString * resultString = @"";


    for(NSDictionary *p in touchesArray ){
        if([p objectForKey:@"num"] == nil){
            continue;
        }
        int num=[[p objectForKey:@"num"] intValue];
        resultString = [resultString stringByAppendingString:[NSString stringWithFormat:@"%d",num]];
    }
    drawed = true;
    if(style==1){

        success = [self.tentacleDelegate verification:resultString];

    }else{
        success = [self.tentacleDelegate resetPassword:resultString];
    }

    for (int i=0; i<touchesArray.count;i++ ){

        if([touchesArray[i] objectForKey:@"num"] == nil){
            continue;
        }

        int selection = [[touchesArray[i] objectForKey:@"num"] intValue];
        GesturePasswordButton * buttonTemp = buttonArray[selection];
        buttonTemp.success = success;
        [buttonTemp setNeedsDisplay];
    }
    [self setNeedsDisplay];



}

-(void)drawRect:(CGRect)rect{
    if(touchesArray.count<=0){
        return;
    }
    NSLog(@"drawRect==%@",touchesArray);
    for (int i =0; i<touchesArray.count; i++) {
        CGContextRef context = UIGraphicsGetCurrentContext();
        CGContextSetLineWidth(context, 3.0);
        CGContextSetLineCap(context, kCGLineCapSquare);

        if([touchesArray[i] objectForKey:@"num"] == nil){

            [touchesArray removeObjectAtIndex:i];
            //i = i-1;
            continue;
        }
        if (success) {
            NSLog(@"drawRect==success1");
            CGContextSetRGBStrokeColor(context, 0.0, 0.0, 1.0, 0.3);
            //CGContextSetStrokeColorWithColor(context, color);
        }
        else {
            NSLog(@"drawRect==success0");
            CGContextSetRGBStrokeColor(context, 1.0, 0.0, 0.0, 0.3);

        }
        CGContextAddRect(context, rect);
        //CGContextBeginPath(context);

        //连接线裁剪，注释掉，连接线连结圆心。
        for (GesturePasswordButton *btn in  buttonArray) {
            CGContextAddEllipseInRect(context, btn.frame);
        }

        CGContextEOClip(context);
        CGContextMoveToPoint(context,[[touchesArray[i] objectForKey:@"x"] floatValue],[[touchesArray[i] objectForKey:@"y"] floatValue]);

        if(i<touchesArray.count-1){
            NSLog(@"drawRect==i<touchesArray.count-1");

            CGContextAddLineToPoint(context, [[touchesArray[i+1] objectForKey:@"x"] floatValue], [[touchesArray[i+1] objectForKey:@"y"] floatValue]);
        }
        else{

            if(success && drawed != true){
                NSLog(@"drawRect==success && drawed != true");

                CGContextAddLineToPoint(context,lineEndPoint.x,lineEndPoint.y);
            }
        }

        CGContextStrokePath(context);

    }

}

-(void)enterArgin{

    [touchesArray removeAllObjects];
    [touchedArray removeAllObjects];

    for( int i=0; i<buttonArray.count;i++ ){

        GesturePasswordButton * buttonTemp = buttonArray[i];
        buttonTemp.success = true;
        buttonTemp.selected = false;
        [buttonTemp setNeedsDisplay];
    }
    [self setNeedsDisplay];
}


@end

九个button不是xcode中标准控件，看代码：

#import <UIKit/UIKit.h>
#import <QuartzCore/QuartzCore.h>
#import "GesturePasswordButton.h"

#define PI 3.14159265358979323846

@implementation GesturePasswordButton
@synthesize selected;
@synthesize success;

- (instancetype)initWithFrame:(CGRect)frame{

    self = [super initWithFrame:frame];
    if (self) {

        selected = false;
        success = true;
        [self setBackgroundColor:[UIColor clearColor]];
    }
    return self;


}

- (void)drawRect:(CGRect)rect{

    CGContextRef context= UIGraphicsGetCurrentContext();
    if(selected){
        if(success){
            CGColorSpaceRef colorspace = CGColorSpaceCreateDeviceRGB();
            CGFloat components[] = {0.0,0.0,1.0,0.5};//颜色元素
            CGColorRef color = CGColorCreate(colorspace, components);//这两行创建颜色
            CGContextSetStrokeColorWithColor(context, color);
            CGContextSetFillColorWithColor(context, color);
        }else{

            CGColorSpaceRef colorspace = CGColorSpaceCreateDeviceRGB();
            CGFloat components[] = {1.0,0.0,0.0,0.5};//颜色元素
            CGColorRef color = CGColorCreate(colorspace, components);//这两行创建颜色
            CGContextSetStrokeColorWithColor(context, color);
            CGContextSetFillColorWithColor(context, color);
        }


        CGRect rectangle = CGRectMake(self.bounds.size.width/2-self.bounds.size.width/8+1, self.bounds.size.height/2-self.bounds.size.height/8, self.bounds.size.width/4, self.bounds.size.height/4);
        //CGContextAddEllipse(in: frame);
        CGContextAddEllipseInRect(context, rectangle);
        CGContextFillPath(context);

    }else{
        //线条颜色
        CGColorSpaceRef colorspace = CGColorSpaceCreateDeviceRGB();
        CGFloat components[] = {1.0,1.0,1.0,1.0};//颜色元素
        CGColorRef color = CGColorCreate(colorspace, components);//这两行创建颜色
        CGContextSetStrokeColorWithColor(context, color);
    }
    CGContextSetLineWidth(context, 2.0);


    CGRect frame = CGRectMake(2,2,self.bounds.size.width-3,self.bounds.size.height-3);
    CGContextAddEllipseInRect(context, frame);


    CGContextStrokePath(context);
    /*>>>>>>>>
    if(success){
        //context.setFillColor(red: 30/225, green: 175/255, blue: 235/255, alpha: 0.3)
        CGColorSpaceRef colorspace = CGColorSpaceCreateDeviceRGB();
        //CGFloat components[] = {30/225,175/255,235/255,1.0};//颜色元素
        CGFloat components[] = {0.0,0.0,1.0,0.5};//颜色元素
        CGColorRef color = CGColorCreate(colorspace, components);//这两行创建颜色
        CGContextSetFillColorWithColor(context, color);
    }else{
        CGColorSpaceRef colorspace = CGColorSpaceCreateDeviceRGB();
        //CGFloat components[] = {208/225,36/255,36/255,1.0};//颜色元素
        CGFloat components[] = {1.0,0.0,0.0,0.5};//颜色元素
        CGColorRef color = CGColorCreate(colorspace, components);//这两行创建颜色
        CGContextSetFillColorWithColor(context, color);
        //context.setFillColor(red: 208/225, green: 36/255, blue: 36/255, alpha: 0.3)
    }

    //context.addEllipse(in: frame)
    CGContextAddEllipseInRect(context, frame);

    if(selected){

        CGContextFillPath(context);
    }
   *///<<<<<<

   }

-(BOOL)contains:(CGPoint)touchPoint{


    return CGRectContainsPoint(self.frame,touchPoint);


}


@end

核心的原理就在tentacleview.m和GesturePasswordButton.m里。仔细看下就会明白。

我也是参考网友写的。大家的原理都大同小异。
