进程之VMA

概念

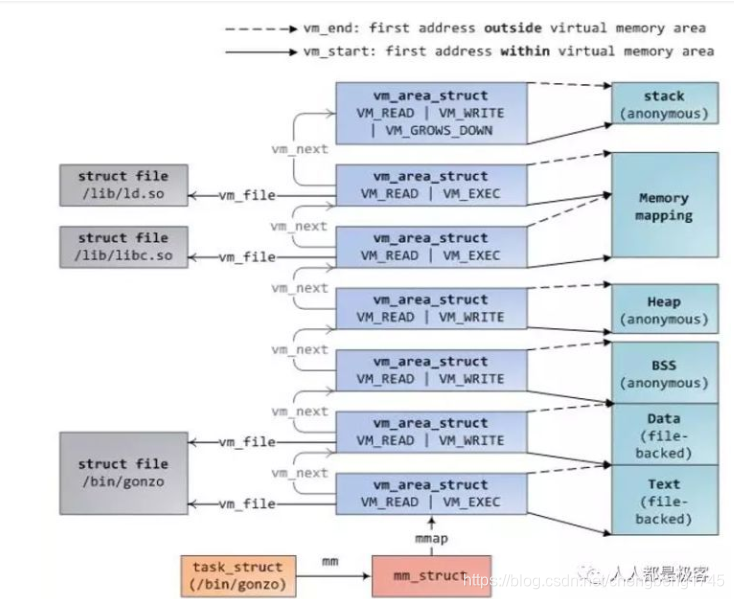

mmap指针指向的vm_area_struct链表的每一个节点就代表进程的一个虚拟地址空间，即一个VMA。一个VMA最终可能对应ELF可执行程序的数据段、代码段、堆、栈、或者动态链接库的某个部分。

struct mm_struct {
    struct vm_area_struct * mmap;       /* list of VMAs */
    struct rb_root mm_rb;
    struct vm_area_struct * mmap_cache; /* last find_vma result */
    unsigned long (*get_unmapped_area) (struct file *filp,
                unsigned long addr, unsigned long len,
                unsigned long pgoff, unsigned long flags);
    void (*unmap_area) (struct vm_area_struct *area);
    unsigned long mmap_base;        /* base of mmap area */
    unsigned long free_area_cache;      /* first hole */
    pgd_t * pgd;
    atomic_t mm_users;          /* How many users with user space? */
    atomic_t mm_count;          /* How many references to "struct mm_struct" (users count as 1) */
    int map_count;              /* number of VMAs */
    struct rw_semaphore mmap_sem;
    spinlock_t page_table_lock;     /* Protects page tables, mm->rss, mm->anon_rss */

    struct list_head mmlist;        /* List of maybe swapped mm's.  These are globally strung
                         * together off init_mm.mmlist, and are protected
                         * by mmlist_lock
                         */

    unsigned long start_code, end_code, start_data, end_data;
    unsigned long start_brk, brk, start_stack;
    unsigned long arg_start, arg_end, env_start, env_end;
    unsigned long rss, anon_rss, total_vm, locked_vm, shared_vm;
    unsigned long exec_vm, stack_vm, reserved_vm, def_flags, nr_ptes;

    unsigned long saved_auxv[42]; /* for /proc/PID/auxv */
 }

问题：
1）在结构mm_struct中，mmap（vm_area_struct）中，每个VMA对应着BSS,HEAP,STACK。

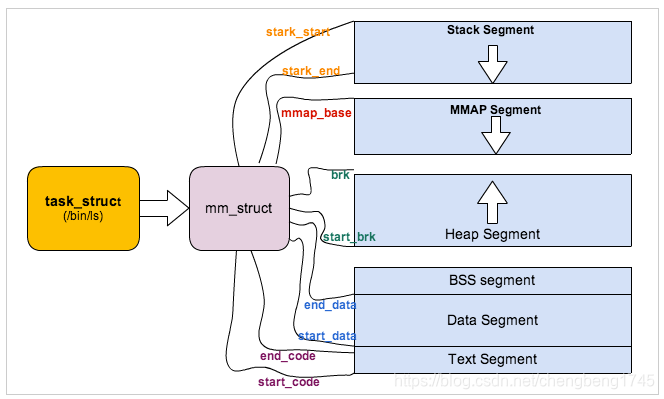

在mm_struct中，start_stack和end_stack；start_code和end_code；start_data和end_data，对应的栈，代码和数据段和上面有些重复？
计划：写个程序，然后查看静态变量，或者malloc，或者brk或者mmap的内存都分布在这些结构的那些地方。
