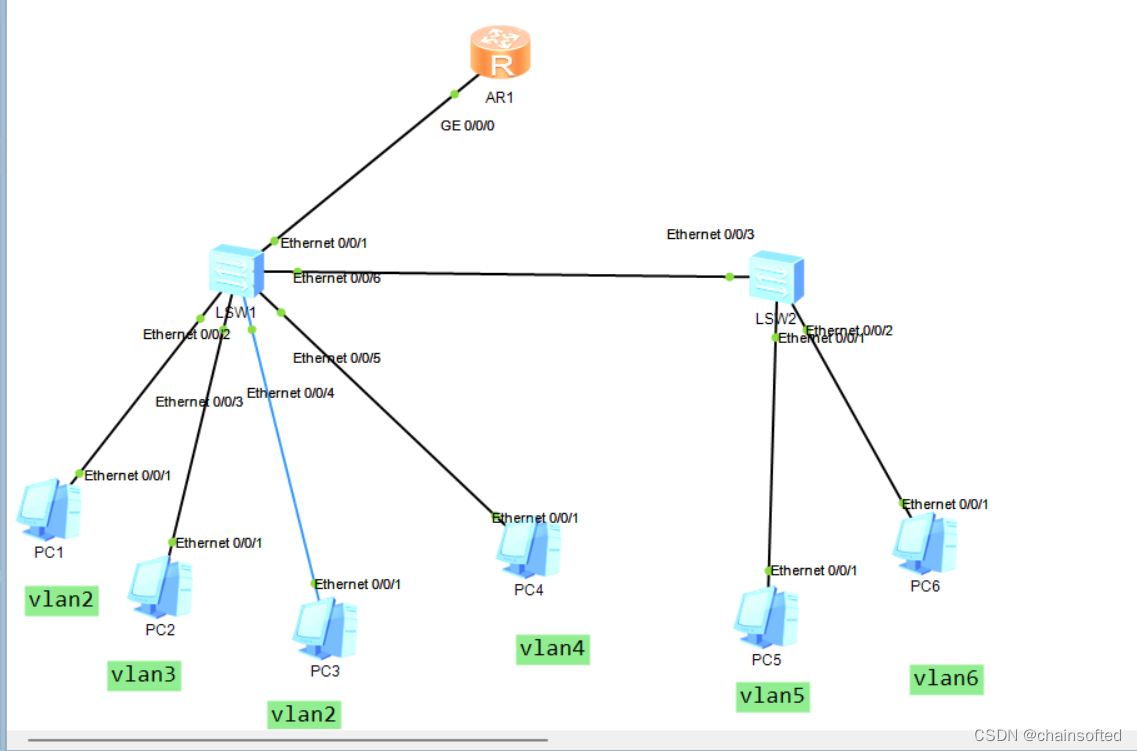

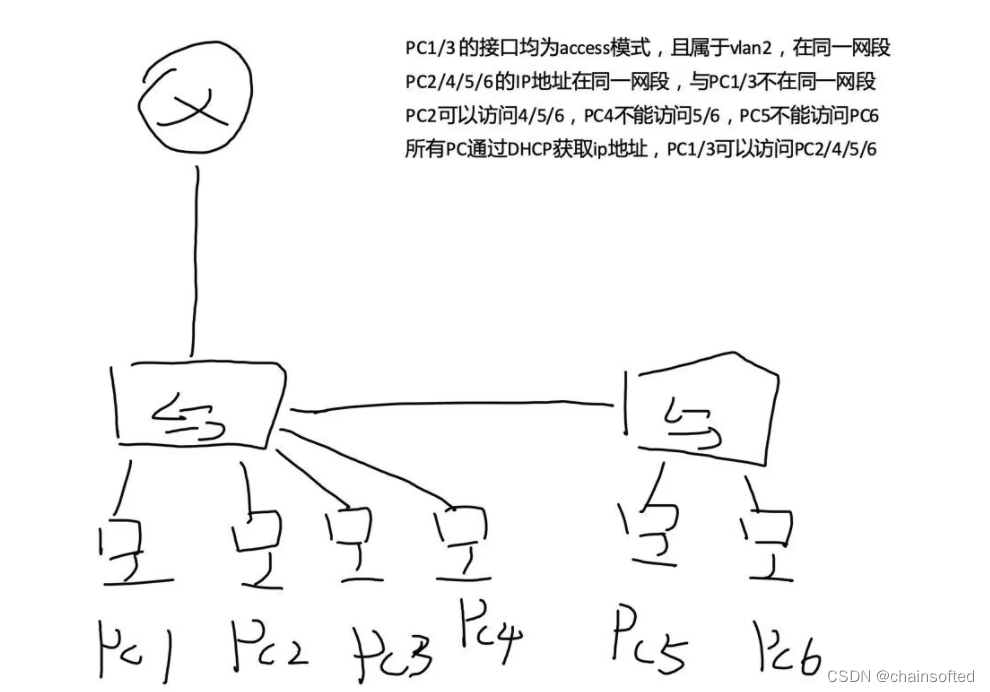

VLAN实验

创建vlan

[SW1]vlan batch 2 to 6

[SW2]vlan batch 2 to 6

将PC1和3配置为access接口

[SW1]int e0/0/2

[SW1-Ethernet0/0/2]port link-type access

[SW1-Ethernet0/0/2]port default vlan 2

[SW1-Ethernet0/0/2]int e0/0/4

[SW1-Ethernet0/0/4]port link-type access

[SW1-Ethernet0/0/4]port default vlan 2

PC2访问4 5 6，PC4不能访问5 6，PC5不能访问PC6,PC1和3可以访问2 4 5 6

[SW1]int e0/0/3

[SW1-Ethernet0/0/3]port hybrid untagged vlan 3 to 6

[SW1-Ethernet0/0/3]port hybrid pvid vlan 3

[SW1-Ethernet0/0/3]int e0/0/5

[SW1-Ethernet0/0/5]port hybrid pvid vlan 4

[SW1-Ethernet0/0/5]port hybrid untagged vlan 1 to 4

[SW2]int e0/0/1

[SW2-Ethernet0/0/1]port hybrid pvid vlan 5

[SW2-Ethernet0/0/1]port hybrid untagged vlan 3 to 5

[SW2-Ethernet0/0/1]int e0/0/2

[SW2-Ethernet0/0/2]port hybrid pvid vlan 6

[SW2-Ethernet0/0/2]port hybrid untagged vlan 3 6

配置sw1和sw2接口

[SW1]int e0/0/6

[SW1-Ethernet0/0/6]port link-type trunk

[SW1-Ethernet0/0/6]port trunk allow-pass vlan 2 to 6

[SW1]int e0/0/1

[SW1-Ethernet0/0/1]port hybrid tagged vlan 2

[SW1-Ethernet0/0/1]port hybrid untagged vlan 3 to 6

[SW2]int e0/0/3

[SW2-Ethernet0/0/3]port link-type trunk

[SW2-Ethernet0/0/3]port trunk allow-pass vlan 2 to 6

DHCP动态获取PC端IP地址

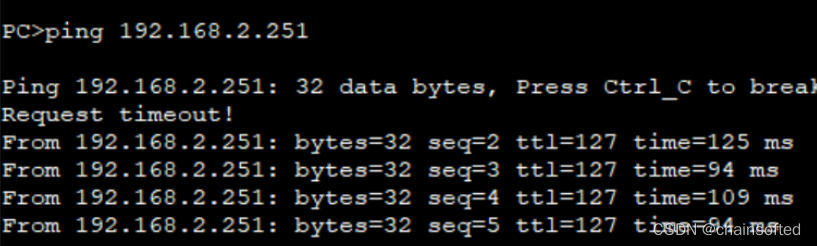

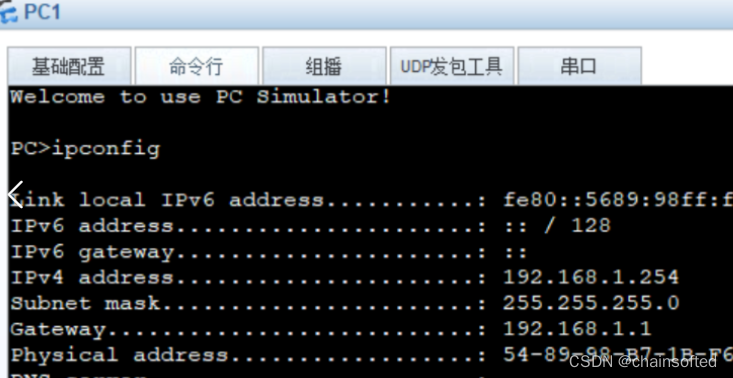

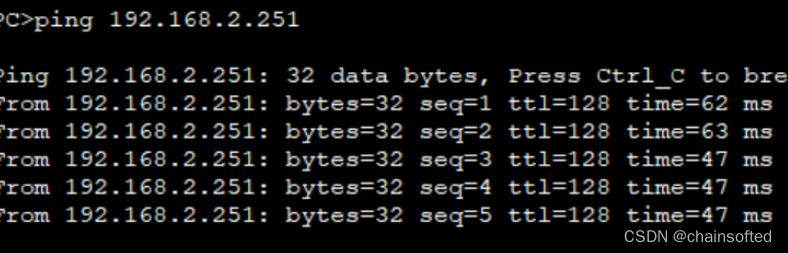

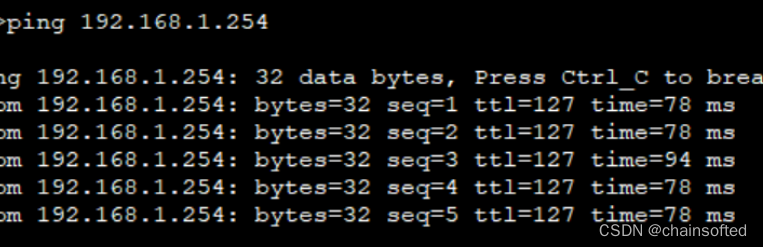

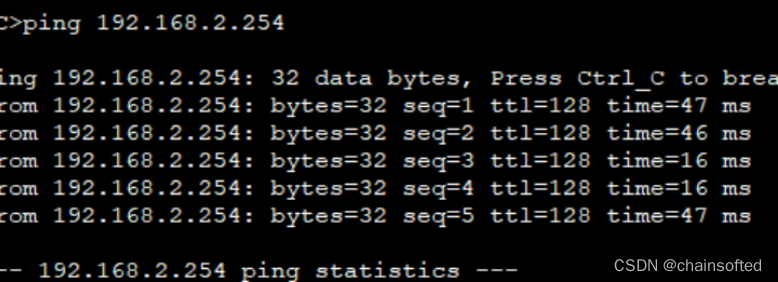

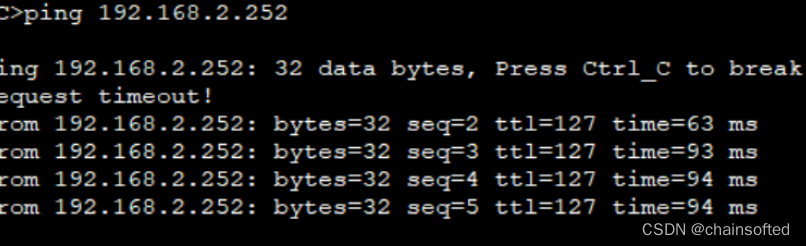

PC1上

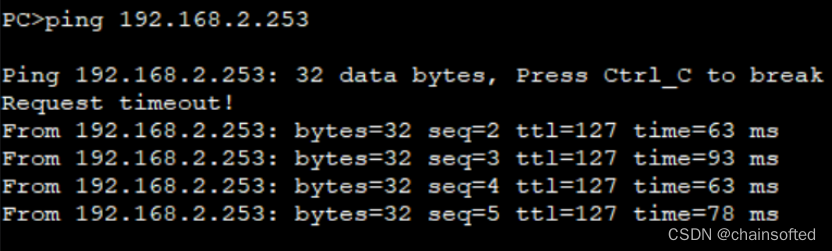

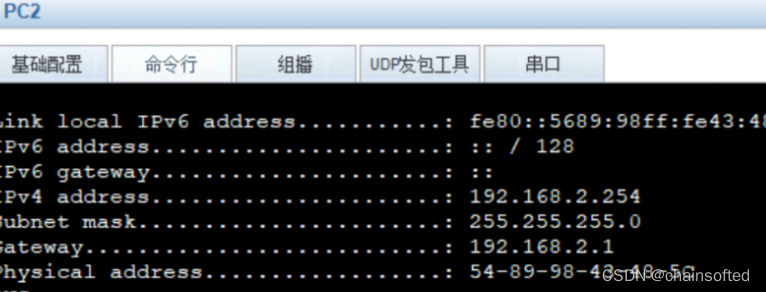

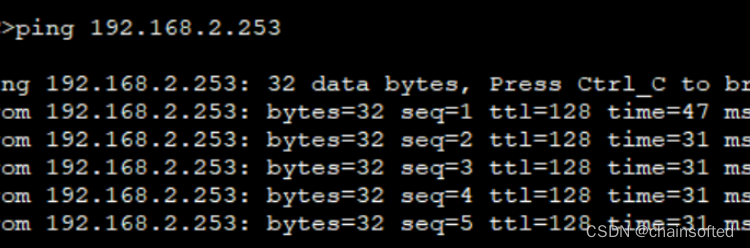

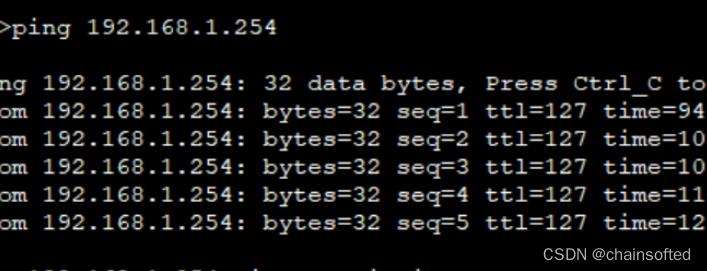

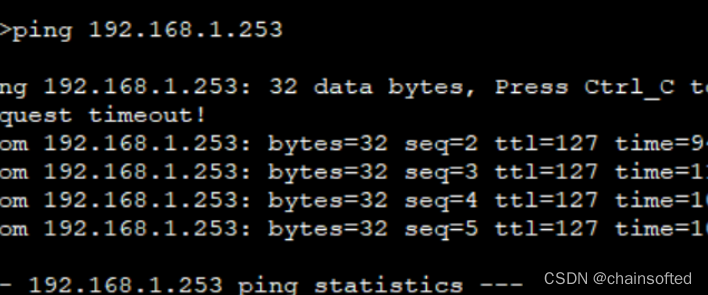

PC2上

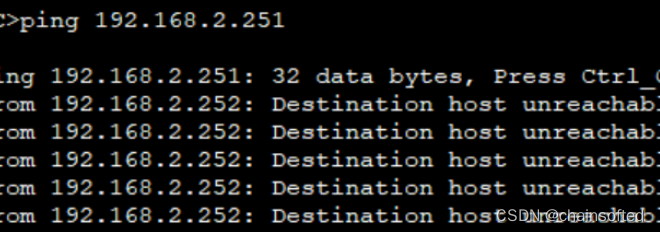

PC4上

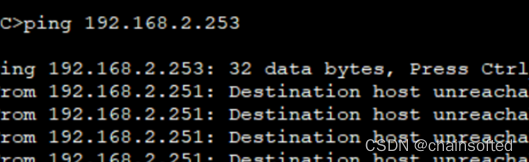

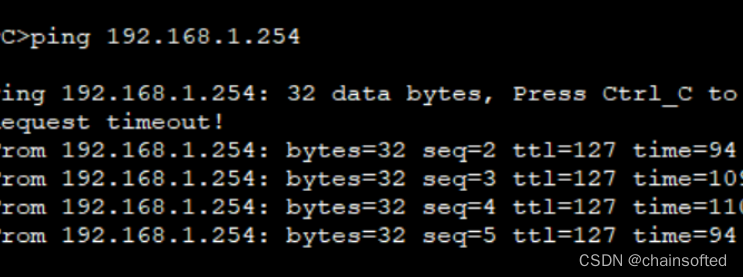

PC5上

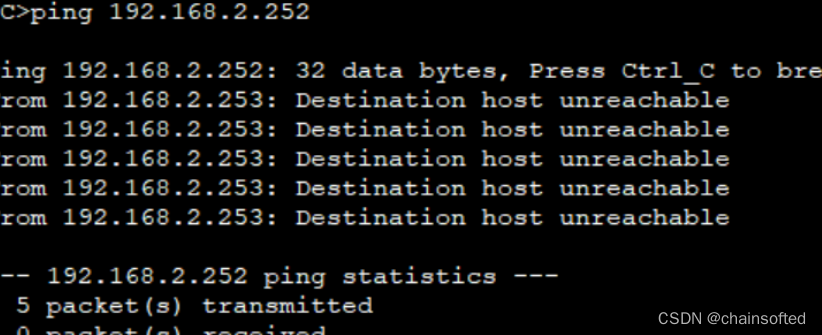

PC6上
