android线程等待和线程唤醒和Fragment简单使用

于 2019-09-16 16:34:42 发布
阅读量1.2k 收藏 1
点赞数
CC 4.0 BY-SA版权
分类专栏： android 学习 文章标签： android
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/cf8833/article/details/100892511
本文展示了如何在Android应用中实现线程等待、唤醒功能，结合Fragment进行操作。通过点击按钮控制线程的暂停与启动，实现实时进度条更新。同时，还介绍了一个独立的Activity用于更深入的线程等待和唤醒操作，通过日志观察具体效果。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

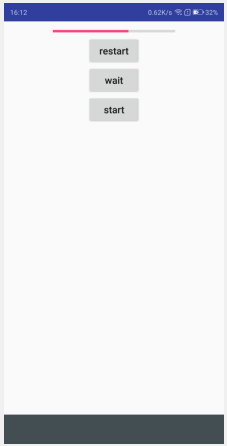

1.效果图：打开app，会自动执行线程，自动增加进度条，直到加满停止

点击restart，清空进度条，重新开始

点击wait，暂停线程，进度条不在增加

点击start，开启线程，进度条在刚才停止的地方，继续启动线程

2.

ui_fragment
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical"
    android:padding="8dp" >

    <ProgressBar
        android:id="@+id/progress_horizontal"
        style="?android:attr/progressBarStyleHorizontal"
        android:layout_width="200dip"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:max="500" />

    <Button
        android:id="@+id/restart"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:textAllCaps="false"
        android:text="restart" />

    <Button
        android:id="@+id/waittime"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:textAllCaps="false"
        android:text="wait" />

    <Button
        android:id="@+id/start"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:textAllCaps="false"
        android:text="start" />

</LinearLayout>

3.

MainActivity主界面
package com.example.administrator.testz;


import android.os.Bundle;
import android.support.v4.app.FragmentActivity;

public class MainActivity extends FragmentActivity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        if (savedInstanceState == null) {
            getSupportFragmentManager().beginTransaction()
                    .add(android.R.id.content, new UiFragment()).commit();
        }
    }
}

4.

UiFragment
package com.example.administrator.testz;


import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;

public class UiFragment extends Fragment {
    private static final String LOG_TAG = UiFragment.class.getSimpleName();


    private WorkerFragment mWorkerFragment;

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        super.onCreateView(inflater, container, savedInstanceState);
        View v = inflater.inflate(R.layout.ui_fragment, container, false);
        v.findViewById(R.id.restart).setOnClickListener(new OnClickListener() {
            public void onClick(View v) {
                mWorkerFragment.restart();
            }
        });

        v.findViewById(R.id.start).setOnClickListener(new OnClickListener() {
            public void onClick(View v) {
                mWorkerFragment.start();
            }
        });

        v.findViewById(R.id.waittime).setOnClickListener(new OnClickListener() {
            public void onClick(View v) {
                mWorkerFragment.waitTime();
            }
        });
        return v;
    }

    @Override
    public void onActivityCreated(Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        FragmentManager fm = getFragmentManager();
        mWorkerFragment = (WorkerFragment) fm.findFragmentByTag("worker");
        if (mWorkerFragment == null) {
            mWorkerFragment = new WorkerFragment();
            mWorkerFragment.setTargetFragment(this, 0);
            fm.beginTransaction().add(mWorkerFragment, "worker").commit();
        }
    }
}

5.

WorkerFragment
package com.example.administrator.testz;


import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.widget.ProgressBar;

public class WorkerFragment extends Fragment {
    private static final String LOG_TAG = UiFragment.class.getSimpleName();


    private ProgressBar mProgressBar;
    private int mProgress;
    private boolean mReady;
    private boolean mQuiting;

    final Thread mThread = new Thread() {
        @Override
        public void run() {
            int maxProgress = 10000;
            while (true) {
                synchronized (this) {
                    while (!mReady || mProgress >= maxProgress) {
                        if (mQuiting) {
                            return;
                        }
                        try {
                            wait();
                        } catch (InterruptedException e) {
                            throw new RuntimeException(e);
                        }
                    }

                    maxProgress = mProgressBar.getMax();
                    mProgressBar.setProgress(++mProgress);

                    try {
                        wait(50);
                    } catch (InterruptedException e) {
                        throw new RuntimeException(e);
                    }
                }
            }
        }
    };

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setRetainInstance(true);
        mThread.start();
    }

    @Override
    public void onActivityCreated(Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);
        mProgressBar = (ProgressBar) getTargetFragment().getView()
                .findViewById(R.id.progress_horizontal);

        synchronized (mThread) {
            mReady = true;
            mThread.notify();
        }
    }

    @Override
    public void onDestroy() {
        synchronized (mThread) {
            mQuiting = true;

            mReady = false;
            mThread.notify();
        }

        super.onDestroy();
    }

    @Override
    public void onDetach() {
        synchronized (mThread) {
            mReady = false;
            mThread.notify();
        }

        super.onDetach();
    }

    public void restart() {
        synchronized (mThread) {
            mProgress = 0;
            mReady = true;
            mThread.notify();
        }
    }

    public void waitTime() {
        synchronized (mThread) {
            mReady = false;
        }
    }


    public void start() {
        synchronized (mThread) {
            mReady = true;
            mThread.notify(); //唤醒线程
        }
    }
}

end

新增一个activity，独立出来的线程等待和唤醒 ,switch开控制线程的等待和唤醒，可以通过日志详细看出效果

package com.example.administrator.testz;

import android.os.Bundle;
import android.support.v4.app.FragmentActivity;
import android.util.Log;
import android.widget.CompoundButton;
import android.widget.Switch;


public class TextActivity extends FragmentActivity {
    private Switch aSwitch;
    private boolean mReady;
    private boolean mQuiting;
    private int mProgress = 0;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        aSwitch = (Switch) findViewById(R.id.switch_main);

        //启动线程
        mThread.start();
        aSwitch.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {
            @Override
            public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
                if (!buttonView.isPressed()) {
                    //如果不是手动点击的switch开关  忽略
                    return;
                }
                if (isChecked) {
                    synchronized (mThread) {
                        mReady = true;
                        mThread.notify(); //唤醒线程
                    }
                } else {
                    synchronized (mThread) {
                        //线程等待
                        mReady = false;
                    }
                }

            }
        });

    }

    @Override
    protected void onStart() {
        super.onStart();
        synchronized (mThread) {
            mReady = true;
            mThread.notify();
        }
    }

    final Thread mThread = new Thread() {
        @Override
        public void run() {
            while (true) {
                synchronized (this) {
                    while (!mReady) {
                        if (mQuiting) {
                            return;
                        }
                        try {
                            wait();
                        } catch (InterruptedException e) {
                            throw new RuntimeException(e);
                        }
                    }

                    try {
                        ++mProgress;
                        Log.e("TextActivity", "mProgress: " + mProgress);
                        Thread.sleep(1000);
                        wait(50);
                    } catch (InterruptedException e) {
                        throw new RuntimeException(e);
                    }
                }
            }
        }
    };


    @Override
    protected void onStop() {
        super.onStop();
        synchronized (mThread) {
            mQuiting = true;
            mReady = false;
            mThread.notify();
        }
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        synchronized (mThread) {
            mReady = false;
            mThread.notify();
        }
    }
}

布局效果：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.example.administrator.testz.MainActivity">


    <Switch
        android:id="@+id/switch_main"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentRight="true"
        android:checked="true" />
</LinearLayout>
