JavaFX布局-HBox

• HBox按照水平方向排列其子节点
• 改变窗口大小,不会该部整体布局
• 窗口太小会遮住内部元素，不会产生滚动条


常用属性

alignment

对齐方式

new HBox().setAlignment(Pos.CENTER_RIGHT);
public enum Pos {
   /**
    * Represents positioning on the top vertically and on the left horizontally.
    */
   TOP_LEFT(TOP, LEFT),

   /**
    * Represents positioning on the top vertically and on the center horizontally.
    */
   TOP_CENTER(TOP, HPos.CENTER),

   /**
    * Represents positioning on the top vertically and on the right horizontally.
    */
   TOP_RIGHT(TOP, RIGHT),

   /**
    * Represents positioning on the center vertically and on the left horizontally.
    */
   CENTER_LEFT(VPos.CENTER, LEFT),

   /**
    * Represents positioning on the center both vertically and horizontally.
    */
   CENTER(VPos.CENTER, HPos.CENTER),

   /**
    * Represents positioning on the center vertically and on the right horizontally.
    */
   CENTER_RIGHT(VPos.CENTER, RIGHT),

   /**
    * Represents positioning on the bottom vertically and on the left horizontally.
    */
   BOTTOM_LEFT(BOTTOM, LEFT),

   /**
    * Represents positioning on the bottom vertically and on the center horizontally.
    */
   BOTTOM_CENTER(BOTTOM, HPos.CENTER),

   /**
    * Represents positioning on the bottom vertically and on the right horizontally.
    */
   BOTTOM_RIGHT(BOTTOM, RIGHT),

   /**
    * Represents positioning on the baseline vertically and on the left horizontally.
    */
   BASELINE_LEFT(BASELINE, LEFT),

   /**
    * Represents positioning on the baseline vertically and on the center horizontally.
    */
   BASELINE_CENTER(BASELINE, HPos.CENTER),

   /**
    * Represents positioning on the baseline vertically and on the right horizontally.
    */
   BASELINE_RIGHT(BASELINE, RIGHT);
}

spacing

子节点间的水平间距

new HBox().setSpacing(10);

children

子节点数据

new HBox().getChildren().add(null);
for (Node child : hBox.getChildren()) {
    // todo
}

margin

子节点边距

HBox.setMargin(hbox.getChildren().get(0), new Insets(5, 10, 5, 10));

padding

容器边缘与其子节点之间的距离

new HBox().setPadding(new Insets(5, 10, 5, 10));

hgrow

设置额外的水平空间填充属性

HBox.setHgrow(hBox.getChildren().get(0), Priority.ALWAYS);

实现方式

Java实现

HBox hBox = new HBox();
// 设置子节点间的垂直间距
hBox.setSpacing(10);
// 设置子节点在hBox中对齐方式
hBox.setAlignment(Pos.CENTER_RIGHT);
// 容器边缘与其子节点之间的距离
hBox.setPadding(new Insets(10, 5, 10, 5));

Label label = new Label("label1");
HBox.setMargin(label, new Insets(10, 5, 10, 5));
hBox.getChildren().add(label);

for (int i = 0; i < 5; i++) {
    Button button = new Button();
    button.setId("btn_" + i);
    button.setText("按钮-" + i);
    HBox.setMargin(button, new Insets(10, 5, 10, 5));
    hBox.getChildren().add(button);
}

// 最后一个节点填充剩余空间
HBox.setHgrow(hBox.getChildren().get(0), Priority.ALWAYS);

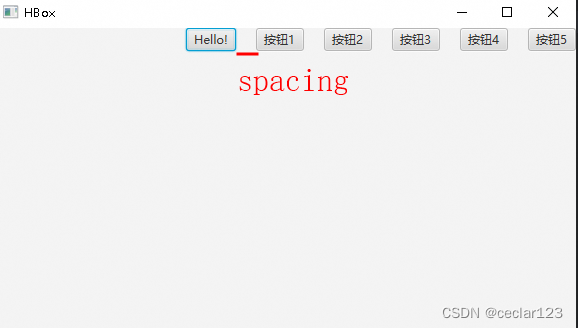

Xml实现

<HBox xmlns:fx="http://javafx.com/fxml" fx:controller="org.a.b.c.d.fx.demo.controller.HBoxController"
      alignment="CENTER_RIGHT" spacing="20">
    <Button text="Hello!"/>
    <Button text="按钮1"/>
    <Button text="按钮2"/>
    <Button text="按钮3"/>
    <Button text="按钮4"/>
    <Button text="按钮5"/>
</HBox>

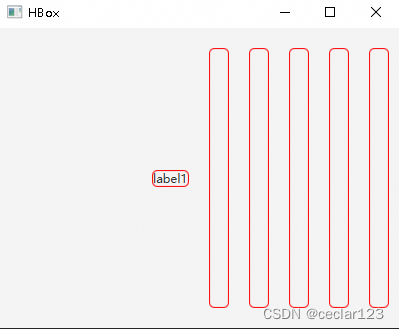

综合案例

BorderStroke borderStroke = new BorderStroke(Color.RED, BorderStrokeStyle.SOLID, new CornerRadii(5), new BorderWidths(1));
Border border = new Border(borderStroke);

HBox hBox = new HBox();
// 设置子节点间的垂直间距
hBox.setSpacing(10);
// 设置子节点在hBox中对齐方式
hBox.setAlignment(Pos.CENTER_RIGHT);
// 容器边缘与其子节点之间的距离
hBox.setPadding(new Insets(10, 5, 10, 5));

Label label = new Label("label1");
label.setBorder(border);
HBox.setMargin(label, new Insets(10, 5, 10, 5));
hBox.getChildren().add(label);

for (int i = 0; i < 5; i++) {
    Pane pane = new Pane();
    pane.setId("pane_" + i);
    pane.setMinWidth(20);
    pane.setBorder(border);
    // 设置Pane边距
    HBox.setMargin(pane, new Insets(10, 5, 10, 5));
    hBox.getChildren().add(pane);
}

// 第一个节点填充剩余空间
HBox.setHgrow(hBox.getChildren().get(0), Priority.ALWAYS);
