0.前言

如前面的helloworld_demo中所说，平台架构分为两大部分：始化部分app_init和主体部分app_start。zigbee的准备工作是放在app_init中的，主体部分是放在app_start中的。本文说明的是app_init中对zigbee的初始化。

1.全局变量

（1）ZigBee_Demo_Context

/* Structure representing the main ZigBee demo context information. */
typedef struct ZigBee_Demo_Context_s
{
   QCLI_Group_Handle_t   QCLI_Handle;                     /*< QCLI handle for the main ZigBee demo. */
   qapi_ZB_Handle_t      ZigBee_Handle;                   /*< Handle provided by the ZigBee stack when initialized. */
   ZB_Device_ID_t        DevIDList[DEV_ID_LIST_SIZE + 1]; /*< List of devices */
   uint8_t               ZCL_Sequence_Num;                /*< Sequence number used for sending packets. */
   qapi_Persist_Handle_t PersistHandle;                   /*< Persist handle used by the ZigBee demo. */
} ZigBee_Demo_Context_t;

/* The ZigBee demo context. */
static ZigBee_Demo_Context_t ZigBee_Demo_Context;

（2）ZDP_Demo_Context

主要用于保存ZDP demo的上下文。

/* Structure representing the main ZigBee demo context information. */
typedef struct ZigBee_ZDP_Demo_Context_s
{
   QCLI_Group_Handle_t QCLI_Handle;     /*< QCLI handle for the main ZigBee demo. */
} ZigBee_ZDP_Demo_Context_t;

/* The ZigBee ZDP demo context. */
static ZigBee_ZDP_Demo_Context_t ZDP_Demo_Context;

（3）ZCL_Demo_Context

/* Context information for the ZCL demo. */
typedef struct ZCL_Demo_Context_s
{
   QCLI_Group_Handle_t     QCLI_Handle;                     /* QCLI handle for the cluster demo. */
   uint16_t                Cluster_Count;                   /* The number of the clusters used in the demo. */
   ZCL_Demo_Cluster_Info_t Cluster_List[CLUSTER_LIST_SIZE]; /* The list of the clusters used in the demo. */
   uint16_t                DiscoverAttr_NextId;             /* Keeps track the next start attribute ID for the "DiscoverAttributes" command. */
   qbool_t                 ZCL_CB_Registered;               /* Flag indicating if the general cluster command callback has been registered. */
} ZCL_Demo_Context_t;

static ZCL_Demo_Context_t ZCL_Demo_Context;

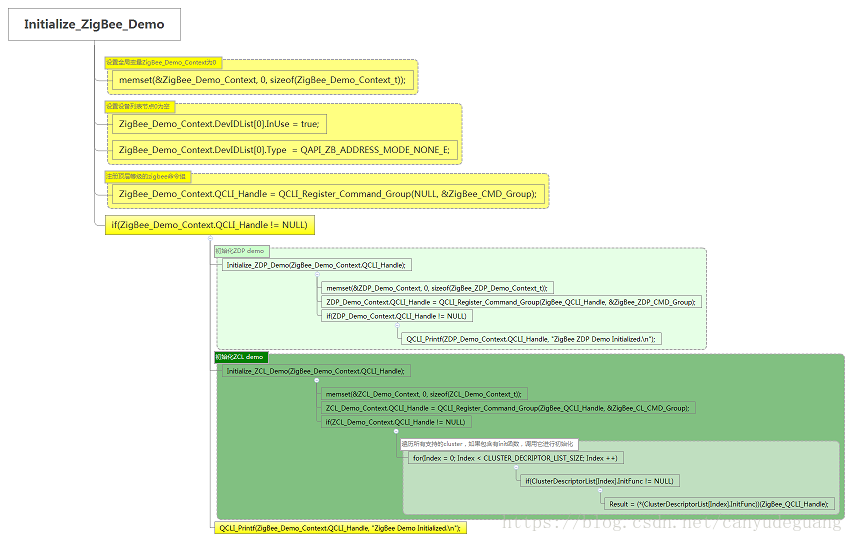

2.源码

从代码来看：主要涉及到Zigbee本身、ZDP、ZCL三个demo，主要做的是初始化相关的全局变量，各自的QCLI 命令组注册

因为ZCL中涉及到cluster，所以遍历了所有支持的cluster，进行初始化。
