记一次原生socket导致的连接中断

出现的现象：

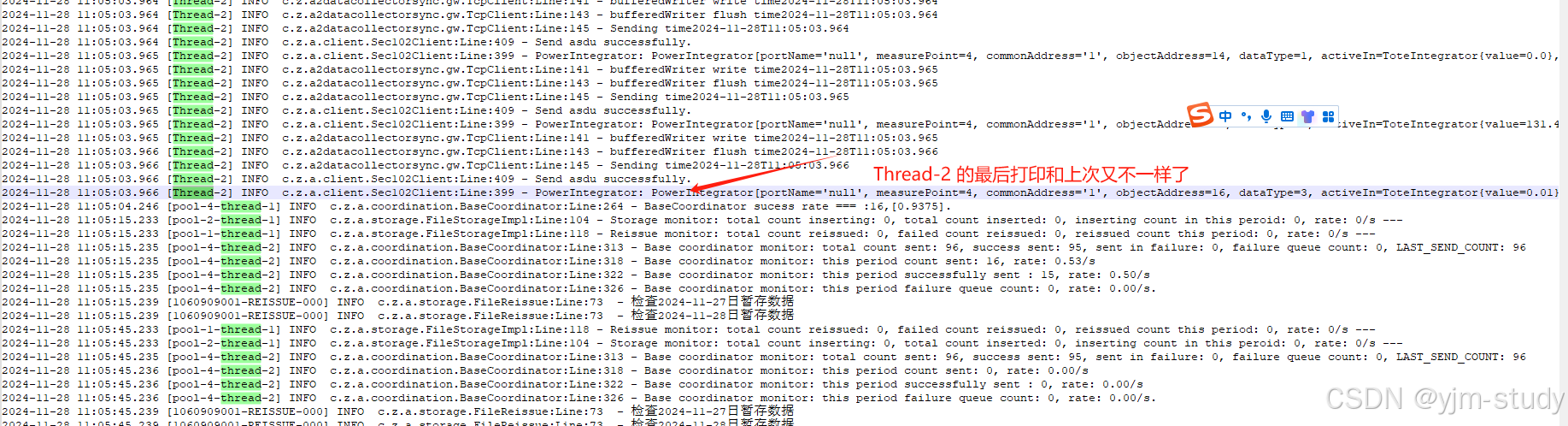

102采集程序半小时获取一次数据，第二次发送下游没收到数据，监控日志如下

可观察到[Thread2]线程被阻塞了

@Slf4j
public class TcpClient implements OneWayGwClient {

    // 默认连接到端口8189
    private String host;

    // 默认连接到端口8189
    private int port;

    private Socket socket;

    private BufferedWriter bufferedWriter;

    private volatile boolean running = false;


    public TcpClient(String ip, int port) {
        this.host = ip;
        this.port = port;
    }

    private boolean connect() {
        log.info("Connect to ip and port {}-{}.", host, port);

        if (this.isConnected()) {
            log.warn("Socket already connected, ignored.");
            return true;
        }

        try {
            // 连接到服务器
            this.socket = new Socket(host, port);
            log.info("Connect socket successfully.");
            this.bufferedWriter = new BufferedWriter(
                    new OutputStreamWriter(this.socket.getOutputStream())
            );
            return true;
        } catch (IOException e) {
            //捕获异常
            log.error("Connect socket failed.",e);
            return false;
        }
    }

    public void disconnect() {
        log.info("Disconnect to ip and port {}-{}.", host, port);
        try {
            if (!Objects.isNull(this.bufferedWriter)) {
                this.bufferedWriter.close();
            }
            if (!Objects.isNull(this.socket) && !this.socket.isClosed()) {
                log.info("Socket to close.");
                socket.close();
            }
            //关闭Socket监听
        } catch (IOException e) {
            log.error("Close socket failed.",e);
        }
    }

    @Override
    public boolean isIdle() {
        return false;
    }

    @Override
    public void start() throws IOException {
        log.info("Start to run.");
        if (isRunning()) {
            log.warn("Already running, ignored.");
            return;
        }
        this.running = true;
        connect();
    }

    @Override
    public boolean isRunning() {
        return this.running;
    }

    private boolean isConnected() {
        if (Objects.isNull(this.bufferedWriter)) {
            return false;
        }

        if (!Objects.isNull(this.socket) && this.socket.isConnected() && !this.socket.isClosed()) {
            return true;
        }

        return false;
    }

    @Override
    public OneWayGwResponse send(OneWayGwRequest oneWayGwRequest) {
        if (!isRunning()) {
            log.error("Not running.");
            return OneWayGwResponse.ofFailed();
        }

        if (!isConnected()) {
            log.error("Not connected.");
            throw new OneWayGwException("Not connected.");
        }

        byte[] payload = oneWayGwRequest.getPayload();

        try {
            this.bufferedWriter.write(Arrays.toString(payload) + "\n");
            this.bufferedWriter.flush();
        } catch (IOException e) {
            throw new OneWayGwException(e);
        }
        return OneWayGwResponse.ofSuccess();
    }

    @Override
    public void close() throws IOException {
        log.info("Stop to run.");
        if (!isRunning()) {
            log.warn("Already closed, ignored.");
            return;
        }
        this.running = false;
        disconnect();
    }
}

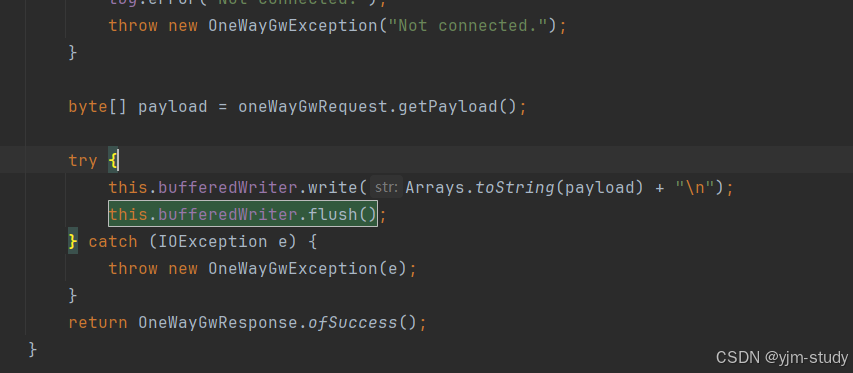

通过代码走查发现，发送数据的方法这里可能会发生阻塞。以前程序没出现过这个问题，估计是这个现场网络比较不稳定造成的，没处理好原生socket连接异常的情况，长连接没有保活

处理方式

根据socket keepalive加了心跳机制

// 创建Socket对象

Socket socket = new Socket();

// 获取Socket选项对象

SocketOptions socketOptions = socket.getOptions();

// 设置SO_KEEPALIVE选项为true

socketOptions.setKeepAlive(true);

// 设置Keepalive间隔和时间（单位：秒）

socketOptions.setTcpKeepAlive(true);

socketOptions.setTcpKeepAliveTime(60);

socketOptions.setTcpKeepAliveInterval(30);

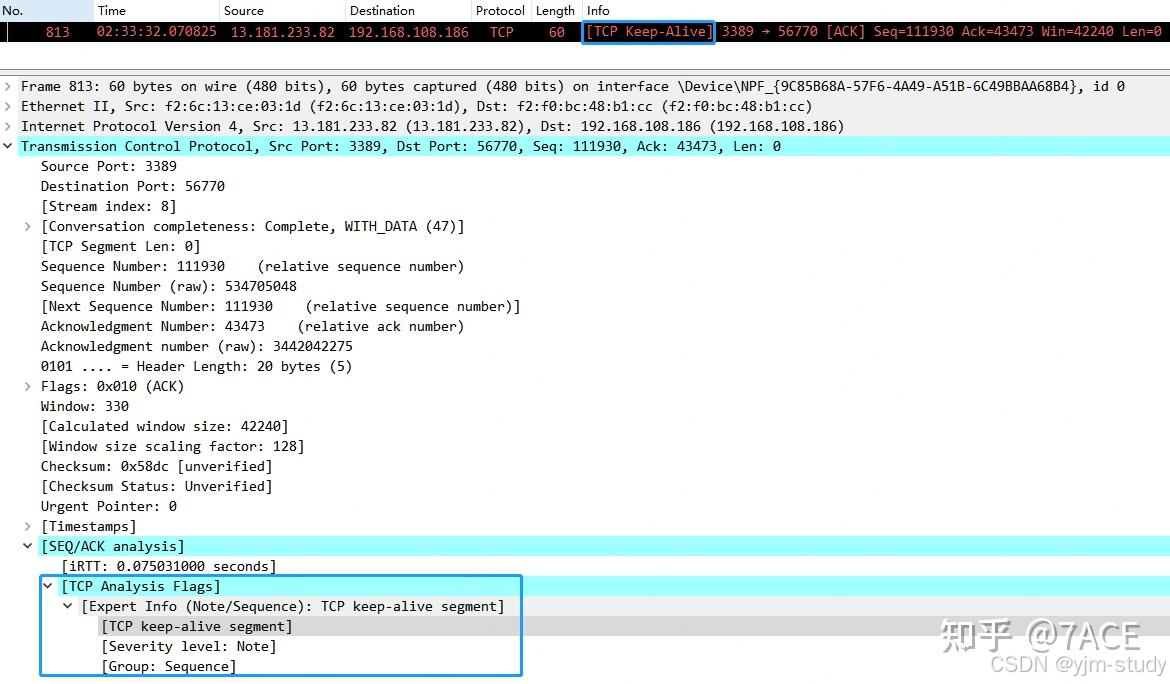

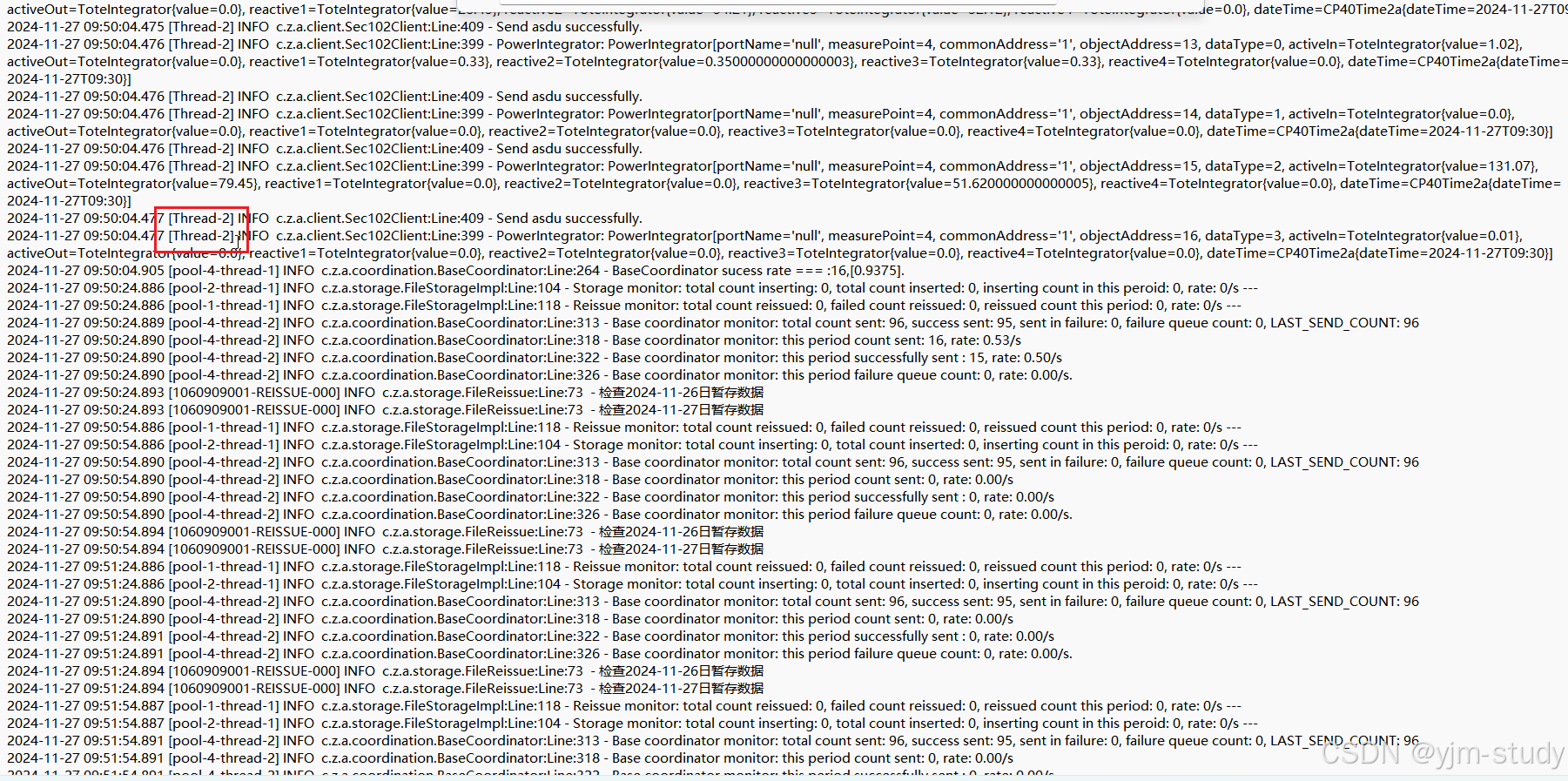

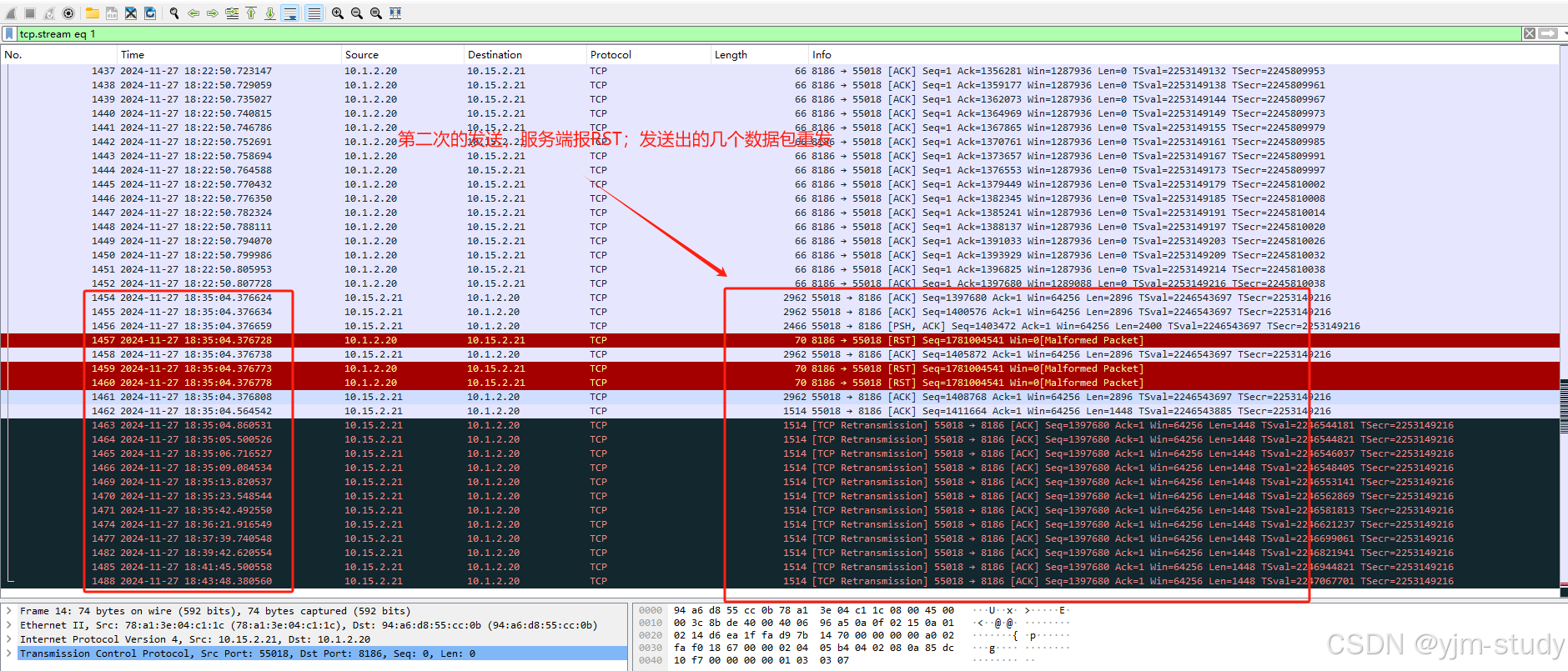

然后通过tcp dump抓包查看情况，以及查看日志

预期的报文没出现

需要修改操作系统的参数

# cat /etc/sysctl.conf
net.ipv4.tcp_keepalive_time = 60
net.ipv4.tcp_keepalive_probes = 2
net.ipv4.tcp_keepalive_intvl = 30

# 使得生效
sysctl -p

观察系统没有再出现断连丢数据情况

最好还是用netty作为通信的底层框架
