今天来搭建一个简单的springmvc+mybatis项目，数据库使用mysql。

项目使用Dynamic Web Project

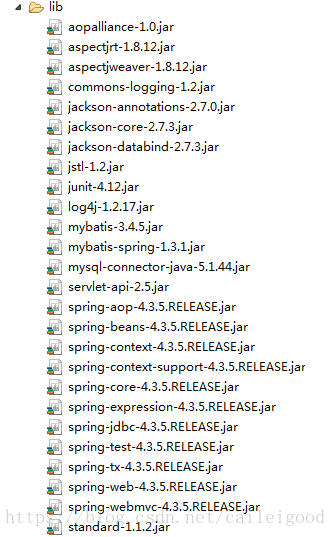

1、项目使用jar包

2、建表语句

create table t_member
    (
        id varchar(20) NOT NULL,
        member_name varchar(20) not null,
        member_age varchar(20) not null,
		member_addr varchar(100),
        PRIMARY KEY (id)
    )ENGINE=InnoDB DEFAULT CHARSET=utf8;

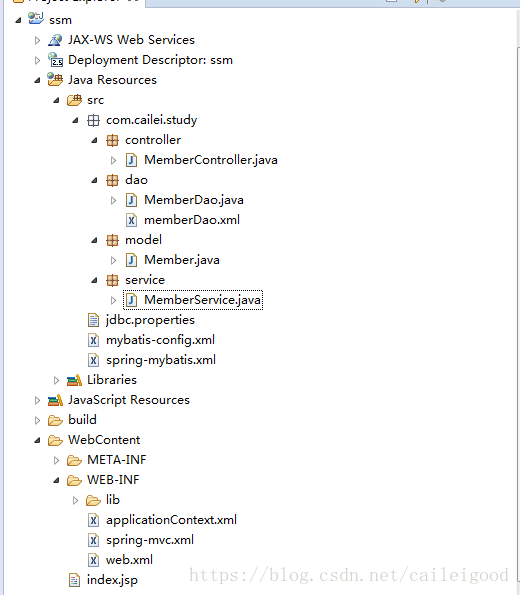

3、项目结构

4、配置文件

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
    http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

	<!-- 配置ContextLoaderListener表示，该工程要以spring的方式启动。启动时会默认在/WEB-INF目录下查找applicationContext.xml
		作为spring容器的配置文件，该文件里可以初始化一些bean -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- 字符集过滤器 -->
	<filter>
		<filter-name>encodingFilter</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>encodingFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

	<!-- spring mvc 配置 -->
	<!-- 配置DispatcherServlet表示，该工程将采用springmvc的方式。启动时也会默认在/WEB-INF目录下查找XXX-servlet.xml作为配置文件，
		XXX就是DispatcherServlet的名字，该文件中将配置两项重要的mvc特性：HandlerMapping,负责为DispatcherServlet这个前端控制器的请求查找Controller；
		ViewResolver,负责为DispatcherServlet查找ModelAndView的视图解析器。 此处使用指定的配置文件spring-mvc.xml -->
	<servlet>
		<servlet-name>contacts</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<!--<param-value>/WEB-INF/classes/spring-mvc-servlet.xml</param-value> -->
			<param-value>/WEB-INF/spring-mvc.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>contacts</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<welcome-file-list>
		<welcome-file>index.jsp</welcome-file>
	</welcome-file-list>
</web-app>

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/mvc"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">


	<!-- DispatcherServlet Context: defines this servlet's request-processing
		infrastructure -->

	<!-- Enables the Spring MVC @Controller programming model -->
	<context:component-scan base-package="com.cailei" />
	 <aop:aspectj-autoproxy proxy-target-class="true" />

	<annotation-driven />

	<!-- Handles HTTP GET requests for /resources/** by efficiently serving
		up static resources in the ${webappRoot}/resources directory -->
	<resources mapping="/resources/**" location="/resources/" />

	<!-- Resolves views selected for rendering by @Controllers to .jsp resources
		in the /WEB-INF/views directory -->
	<beans:bean
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<beans:property name="prefix" value="/" />
		<beans:property name="suffix" value=".jsp" />
	</beans:bean>

	<!-- Configure to plugin JSON as request and response in method handler -->
	<beans:bean
		class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter">
		<beans:property name="messageConverters">
			<beans:list>
				<beans:ref bean="jsonMessageConverter" />
			</beans:list>
		</beans:property>
	</beans:bean>

	<!-- Configure bean to convert JSON to POJO and vice versa -->
	<beans:bean id="jsonMessageConverter"
		class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
	</beans:bean>

</beans:beans>

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

	<import resource="classpath:spring-mybatis.xml" />

</beans>

spring-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
         http://www.springframework.org/schema/context
         http://www.springframework.org/schema/context/spring-context-3.0.xsd
         http://www.springframework.org/schema/tx
         http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
         http://www.springframework.org/schema/aop
         http://www.springframework.org/schema/aop/spring-aop-3.0.xsd">

	<bean
		class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
		<property name="location" value="classpath:jdbc.properties" />
	</bean>

	<bean id="dataSource"
		class="org.springframework.jdbc.datasource.DriverManagerDataSource">
		<property name="driverClassName" value="${jdbc.driverClassName}" />
		<property name="url" value="${jdbc.url}" />
		<property name="username" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />
	</bean>

	<!-- 2. mybatis的SqlSession的工厂: SqlSessionFactoryBean dataSource:引用数据源 MyBatis定义数据源,同意加载配置 -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource"></property>
		<property name="configLocation" value="classpath:mybatis-config.xml" />
		<property name="mapperLocations" value="classpath:com/cailei/study/dao/*.xml" />
	</bean>


	<!-- 3. mybatis自动扫描加载Sql映射文件/接口 : MapperScannerConfigurer sqlSessionFactory
		basePackage:指定sql映射文件/接口所在的包（自动扫描） -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="com/cailei/study/dao/"></property>
		<!-- <property name="sqlSessionFactory" ref="sqlSessionFactory"></property>  -->
	</bean>

	<!-- 4. 事务管理 : DataSourceTransactionManager dataSource:引用上面定义的数据源 -->
	<bean id="txManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"></property>
	</bean>

	<!-- 5. 使用声明式事务 transaction-manager：引用上面定义的事务管理器 -->
	<tx:annotation-driven transaction-manager="txManager" />
</beans>

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
    <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
    "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

	<!-- 实体类,简称 -设置别名 -->
	<typeAliases>
		<typeAlias alias="User" type="com.cailei.study.model.User" />
	</typeAliases>
	<!-- 实体接口映射资源 -->
	<!-- 说明：如果xxMapper.xml配置文件放在和xxMapper.java统一目录下，mappers也可以省略，因为org.mybatis.spring.mapper.MapperFactoryBean默认会去查找与xxMapper.java相同目录和名称的xxMapper.xml -->
	<!-- <mappers>
		<mapper resource="com/cailei/study/mapper/UserMapper.xml" />
	</mappers> -->

</configuration>

jdbc.properties

jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssm?useUnicode=true&characterEncoding=utf8&autoReconnect=True
jdbc.username=root
jdbc.password=root

5、java代码

Member.java

package com.cailei.study.model;

public class Member {

	private String id;

	private String age;

	private String name;

	private String addr;

	public String getId() {
		return id;
	}

	public void setId(String id) {
		this.id = id;
	}

	public String getAge() {
		return age;
	}

	public void setAge(String age) {
		this.age = age;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getAddr() {
		return addr;
	}

	public void setAddr(String addr) {
		this.addr = addr;
	}

	public Member(String id, String age, String name, String addr) {
		super();
		this.id = id;
		this.age = age;
		this.name = name;
		this.addr = addr;
	}

	public Member() {
		super();
		// TODO Auto-generated constructor stub
	}

	@Override
	public String toString() {
		// TODO Auto-generated method stub
		return "id="+id+";age="+age+";name="+name+";addr="+addr;
	}



}

MemberDao.java

package com.cailei.study.dao;

import com.cailei.study.model.Member;

public interface MemberDao {

	public Member searchById(String id);

	public void addMember(Member member);
}

memberDao.xml

<?xml version="1.0" encoding="UTF-8"?>
    <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
    "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- namespace：必须与对应的接口全类名一致 id:必须与对应接口的某个对应的方法名一致 -->
<mapper namespace="com.cailei.study.dao.MemberDao">

	<insert id="addMember" parameterType="com.cailei.study.model.Member">
		insert into t_member(id, member_age, member_name, member_addr)
		values(#{id},#{age},#{name},#{addr})
	</insert>

	<select id="searchById" parameterType="string" resultType="com.cailei.study.model.Member">
		select id,member_age age,member_name name, member_addr addr from t_member where
		id=#{id}
	</select>

</mapper>

MemberService.java

package com.cailei.study.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.cailei.study.dao.MemberDao;
import com.cailei.study.model.Member;


@Service
public class MemberService {

	@Autowired
	private MemberDao memberDao;

	public Member searchById(String id) {
		return memberDao.searchById(id);
	}

	public void addMember(Member member) {
		memberDao.addMember(member);
	}
}

MemberController.java

package com.cailei.study.controller;

import javax.servlet.http.HttpServletRequest;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import com.cailei.study.model.Member;
import com.cailei.study.service.MemberService;

@Controller
@RequestMapping("/member")
public class MemberController {

	@Autowired
	private MemberService memberService;

	@RequestMapping("/search")
	public String searchMemberById(HttpServletRequest request) {
		String id = request.getParameter("id");
		Member member = memberService.searchById(id);
		System.out.println("#########" + member.toString());
		return member.toString();
	}

	@RequestMapping("/add")
	public String addMember(HttpServletRequest request) {
		String id = request.getParameter("id");
		String age = request.getParameter("age");
		String name = request.getParameter("name");
		String addr = request.getParameter("addr");
		Member member = new Member(id, age, name, addr);
		memberService.addMember(member);
		return "true";
	}

}

启动工程，使用下面两个链接进行测试

添加数据：http://localhost:8080/ssm/member/add?id=13119188579&age=19&name=李四&addr=陕西渭南

查询数据：http://localhost:8080/ssm/member/search?id=13119188579

这个简单的项目的全部代码都已经贴上了，博客中只有代码，后面会有几篇博客专门用来介绍代码中的配置注解
