本文详细介绍了如何在JFinal项目中集成Swagger，包括下载Swagger UI文件、修改POM依赖、创建SwaggerController、配置路由及修改index.html文件。通过具体代码示例展示了如何使用Swagger注解参数。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

参考了 ideabobo 的文章， https://blog.youkuaiyun.com/ideabobo/article/details/82465638

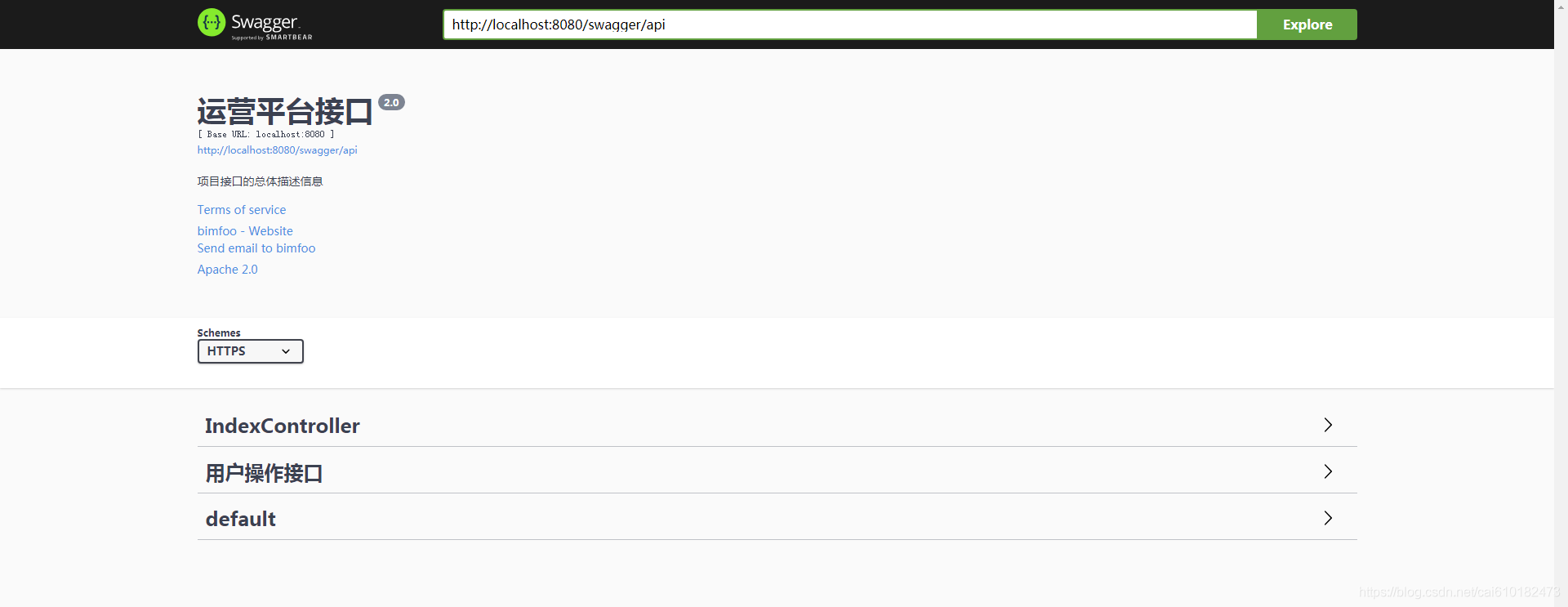

先看下实现的效果

第一步

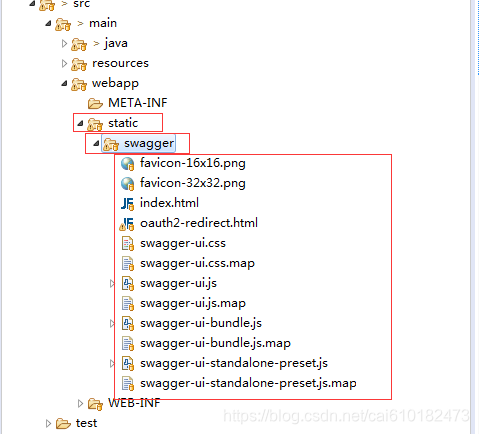

到swagger 官网下载 https://github.com/swagger-api/swagger-ui.git 下载UI文件，然后把文件中 dist 件文件夹里面所有的内容拷贝到你的jfinal项目中，目录参照我的即可，注意下

第二步

修改 pom.xml

新增依赖

<dependency>
			<groupId>com.jfinal</groupId>
			<artifactId>jfinal</artifactId>
			<version>${jfinal.version}</version>
		</dependency>

		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.2.2</version>
		</dependency>
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.2.2</version>
		</dependency>

		<dependency>
			<groupId>com.google.code.gson</groupId>
			<artifactId>gson</artifactId>
			<version>2.8.5</version>
		</dependency>

第三步

新建一个 Controller

需要修改扫描的包，把里面的 BASE_PACKAGE 改为你自己的的接口包

package cn.yingguang.swagger;

import com.jfinal.core.Controller;

import com.google.gson.Gson;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiImplicitParam;
import io.swagger.annotations.ApiImplicitParams;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiResponse;
import io.swagger.annotations.ApiResponses;
import io.swagger.models.Contact;
import io.swagger.models.Info;
import io.swagger.models.License;
import io.swagger.models.Operation;
import io.swagger.models.Path;
import io.swagger.models.Response;
import io.swagger.models.Scheme;
import io.swagger.models.Swagger;
import io.swagger.models.Tag;
import io.swagger.models.parameters.Parameter;
import io.swagger.models.parameters.PathParameter;

import java.io.File;
import java.io.FileFilter;
import java.lang.annotation.Annotation;
import java.lang.reflect.Method;
import java.net.JarURLConnection;
import java.net.URL;
import java.util.ArrayList;
import java.util.Enumeration;
import java.util.HashMap;
import java.util.HashSet;
import java.util.List;
import java.util.Map;
import java.util.Set;
import java.util.jar.JarEntry;
import java.util.jar.JarFile;

import org.eclipse.jetty.util.StringUtil;

public class SwaggerController extends Controller {
    //设置需要扫描哪个包里面的类生产api
	public static final String BASE_PACKAGE="cn.yingguang.index";
	public void index() {
		render("index.html");
	}

	public void api() {
		Swagger doc = new Swagger();
		Info info = new Info();
		Contact contact = new Contact();
		contact.setEmail("admin@bimfoo.com");
		contact.setName("bimfoo");
		contact.setUrl("http://www.baidu.com");

		info.setDescription("项目接口的总体描述信息");
		License license = new License();
		license.setName("Apache 2.0");
		license.setUrl("http://www.baidu.com");
		info.setLicense(license);
		info.setTitle("运营平台接口");
		info.setTermsOfService("http://www.baidu.com");
		info.setVersion("2.0");
		info.setContact(contact);

		List<Scheme> schemes = new ArrayList<>();
		schemes.add(Scheme.HTTP);
		schemes.add(Scheme.HTTPS);

		Map<String, Path> paths = new HashMap<>();

		Set<Class<?>> classSet = getClassSet(BASE_PACKAGE);
		List<Tag> tags = new ArrayList<>();
		for (Class<?> cls : classSet) {
			if (cls.isAnnotationPresent(Api.class)) {
				Api api = cls.getAnnotation(Api.class);
				String[] apitags = api.tags();
				String apiValue = api.value();

				if (apitags.length > 0) {
					for (String tag : apitags) {
						Tag tagobj = new Tag();
						tagobj.setName(tag);
						tags.add(tagobj);
					}
				} else {
					Tag tagobj = new Tag();
					tagobj.setName(apiValue);
					tags.add(tagobj);
				}

				Method[] methods = cls.getMethods();

				for (Method method : methods) {
					Annotation[] annotations = method.getAnnotations();
					Path path = new Path();

					for (Annotation annotation : annotations) {
						// Class<?> aclass = annotation.annotationType();
						Operation option = new Operation();
						String opvalue = "";
						if (method.isAnnotationPresent(ApiOperation.class)) {
							ApiOperation opertion = method.getAnnotation(ApiOperation.class);
							ArrayList<String> produces = new ArrayList<>();
							String producesStr = opertion.produces();
							produces.add(producesStr);

							opvalue = opertion.value();
							String notes = opertion.notes();
							/*
							 * String consumesStr = opertion.consumes();
							 * String[] ptagsarray = opertion.tags();
							 */
							List<String> ptags = new ArrayList<>();
							ptags.add(apitags[0]);
							/*
							 * if(ptagsarray.length>0){ for(String
							 * tag:ptagsarray){ ptags.add(tag); } }
							 */

							option.setConsumes(new ArrayList<String>());
							option.setDescription(notes);
							option.setSummary(notes);
							option.setTags(ptags);

						}
						List<Parameter> parameters = new ArrayList<>();
						if (method.isAnnotationPresent(ApiImplicitParams.class)) {
							ApiImplicitParams apiImplicitParams = method.getAnnotation(ApiImplicitParams.class);
							ApiImplicitParam[] apiImplicitParamArray = apiImplicitParams.value();

							for (ApiImplicitParam param : apiImplicitParamArray) {
								PathParameter parameter = new PathParameter();
								String in = param.paramType();
								String name = param.name();
								String value = param.value();
								boolean required = param.required();
								String dataType = param.dataType();

								parameter.setType(dataType);
								parameter.setDefaultValue("");
								parameter.setDescription(value);
								parameter.setRequired(required);
								parameter.setIn(in);
								parameter.setName(name);
								parameters.add(parameter);
							}
						}
						option.setParameters(parameters);

						Map<String, Response> responseMap = new HashMap<>();
						if (method.isAnnotationPresent(ApiResponses.class)) {
							ApiResponses responses = method.getAnnotation(ApiResponses.class);
							ApiResponse[] responseArray = responses.value();
							for (ApiResponse response : responseArray) {
								String code = response.code() + "";
								String msg = response.message();
								Response res = new Response();
								res.setDescription(msg);
								responseMap.put(code, res);

							}

						}

						option.setResponses(responseMap);
						path.setGet(option);
						paths.put(opvalue, path);
					}

				}
				doc.setSchemes(schemes);
				doc.setSwagger("2.0");
//				doc.setBasePath("/user");
				doc.setInfo(info);
				doc.setHost("localhost:8080");
				doc.setTags(tags);
				doc.setPaths(paths);

			}

		}
		Gson gson = new Gson();
		String json = gson.toJson(doc);
		renderText(json);
	}

	/**
	 * 获取指定包名下所有类
	 *
	 * @param packageName
	 * @return
	 */
	public static Set<Class<?>> getClassSet(String packageName) {
		Set<Class<?>> classSet = new HashSet<Class<?>>();
		try {
			Enumeration<URL> urls = getClassLoader().getResources(packageName.replace(".", "/"));
			while (urls.hasMoreElements()) {
				URL url = urls.nextElement();
				if (url != null) {
					String protocol = url.getProtocol();
					if (protocol.equals("file")) {
						String packagePath = url.getPath().replace("%20", " ");
						addClass(classSet, packagePath, packageName);
					} else if (protocol.equals("jar")) {
						JarURLConnection jarURLConnection = (JarURLConnection) url.openConnection();
						if (jarURLConnection != null) {
							JarFile jarFile = jarURLConnection.getJarFile();
							if (jarFile != null) {
								Enumeration<JarEntry> jarEntries = jarFile.entries();
								while (jarEntries.hasMoreElements()) {
									JarEntry jarEntry = jarEntries.nextElement();
									String jarEntryName = jarEntry.getName();
									if (jarEntryName.endsWith(".class")) {
										String className = jarEntryName.substring(0, jarEntryName.lastIndexOf("."))
												.replaceAll("/", ".");
										doAddClass(classSet, className);
									}
								}
							}
						}
					}
				}
			}
		} catch (Exception e) {
			throw new RuntimeException(e);
		}
		return classSet;
	}

	/**
	 * 获取类加载器
	 *
	 * @return
	 */
	public static ClassLoader getClassLoader() {
		return Thread.currentThread().getContextClassLoader();
	}

	private static void addClass(Set<Class<?>> classSet, String packagePath, String packageName) {
		File[] files = new File(packagePath).listFiles(new FileFilter() {
			public boolean accept(File file) {
				return (file.isFile() && file.getName().endsWith(".class")) || file.isDirectory();
			}
		});
		for (File file : files) {
			String fileName = file.getName();
			if (file.isFile()) {
				String className = fileName.substring(0, fileName.lastIndexOf("."));
				if (StringUtil.isNotBlank(packageName)) {
					className = packageName + "." + className;
				}
				doAddClass(classSet, className);
 			} else {
				String subPackagePath = fileName;
				if (StringUtil.isNotBlank(packagePath)) {
					subPackagePath = packagePath + "/" + subPackagePath;
				}
				String subPackageName = fileName;
				if (StringUtil.isNotBlank(packageName)) {
					subPackageName = packageName + "." + subPackageName;
				}
				addClass(classSet, subPackagePath, subPackageName);
			}
		}
	}

	private static void doAddClass(Set<Class<?>> classSet, String className) {
		Class<?> cls = loadClass(className, false);
		classSet.add(cls);
	}

	/**
	 * 加载类
	 *
	 * @param className
	 * @param isInitialized
	 *            false 代表装载类的时候 不进行初始化工作[不会执行静态代码块]
	 * @return
	 */
	public static Class<?> loadClass(String className, boolean isInitialized) {
		Class<?> cls;
		try {
			cls = Class.forName(className, isInitialized, getClassLoader());
		} catch (ClassNotFoundException e) {
			throw new RuntimeException(e);
		}
		return cls;
	}
}

第四步

配置路由

	public void configRoute(Routes me) {
		//推荐拆分方式 如果需要就解开注释 创建对应的 Routes
		//me.add(new AdminRoutes());//配置后台管理系统路由
		//me.add(new FrontRoutes());//配置网站前台路由
		me.add(new ApiRoutes());//配置API访问路由
		me.add(new SwaggerRoutes());
		//me.add(new WechatRoutes());//配置微信端访问路由


		//普通不拆分的方式配置 如下
		//设置默认访问首页路由 可使用http://localhost:port 直接访问 如果80端口 port可以省略
		me.add("/",IndexController.class);
	}

import com.jfinal.config.Routes;

import cn.yingguang.swagger.SwaggerController;

public class SwaggerRoutes extends Routes{
	 @Override
     public void config() {
         setBaseViewPath("/static");
         add("/swagger", SwaggerController.class);
     }
}

第五步

修改第一步中拷贝的文件夹中的 index.html 文件

修改 SwaggerUIBundle 下的请求的URL，改为你第三步中的类下的 SwaggerController api接口地址，

第六步

运行项目

swagger 注解参数我这里给一个demo，大家可以模仿下

*****参数必须要使用 paramType="query" 用否则无法再页面上请求参数

import org.springframework.web.bind.annotation.RestController;

import com.jfinal.core.Controller;

import io.swagger.annotations.Api;
import io.swagger.annotations.ApiImplicitParam;
import io.swagger.annotations.ApiImplicitParams;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiResponse;
import io.swagger.annotations.ApiResponses;


@Api(value="index",tags={"IndexController"})
@RestController
public class IndexController extends Controller {
	/**
	 * 首页Action
	 */
	@ApiOperation(value = "/index", httpMethod = "POST",  notes = "方法1")
	@ApiImplicitParams({@ApiImplicitParam(paramType="query", required = false, name = "pname", value = "项目的名称",dataType="string"),
						@ApiImplicitParam(paramType="query",required = false, name = "pname2", value = "项目的名称2",dataType="string")})
	public void index() {
		String params = getPara("pname");
		String pname2 = getPara("pname2");
		 renderJson("{name:caiming,"+params+":"+pname2+"}");
	}

	@ApiOperation(value = "/getProjectByID", httpMethod = "POST",  notes = "方法2")
	@ApiImplicitParams({@ApiImplicitParam(paramType="query", required = true, name = "pname", value = "项目的名称",dataType="string"),
						@ApiImplicitParam(paramType="query",required = true, name = "pname2", value = "项目的名称2",dataType="string")})
	public void getProjectByID() {

		String params = getPara("pname");
		String pname2 = getPara("pname2");

		 renderJson("{name:caiming,"+params+":"+pname2+"}");	}
}
