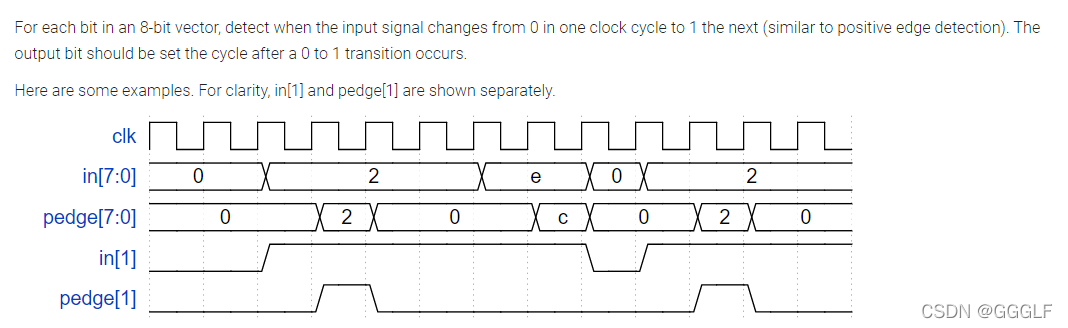

边沿检测Verilog

module top_module(
	input clk,
	input [7:0] in,
	output reg [7:0] pedge);

	reg [7:0] d_last;

	always @(posedge clk) begin
		d_last <= in;			// Remember the state of the previous cycle
		pedge <= in & ~d_last;	// A positive edge occurred if input was 0 and is now 1.
	end

endmodule



或者以下方法

module top_module (
    input clk,
    input [7:0] in,
    output [7:0] pedge
);
    integer i;
    reg [7:0]temp;
    always@(posedge clk)begin
        for(i=0;i<8;i++)begin
            if(temp[i]==1'b0&&in[i]==1'b1)begin
                pedge[i]=1;
            end
        else begin
            pedge[i]=0;
        end
        temp[i]=in[i];
    end
    end

endmodule
