文章目录
代码location:https://github.com/NVIDIA/nccl/blob/master/src/group.cc
1. nccl-test alltoall define
先看nccltest内alltoall的写法：
NCCLCHECK(ncclGroupStart());
for (int r=0; r<nRanks; r++) {
NCCLCHECK(ncclSend(((char*)sendbuff)+r*rankOffset, count, type, r, comm, stream));
NCCLCHECK(ncclRecv(((char*)recvbuff)+r*rankOffset, count, type, r, comm, stream));
}
NCCLCHECK(ncclGroupEnd());
2. GroupStart
alltoall的多个send recv放到nccl的group内，执行完ncclGroupStart() 的时候不会直接启动任务，只会统计ncclGroupDepth，大于0的时候告诉NCCL现在是在收集一大组操作。
inline ncclResult_t ncclGroupStartInternal() {
ncclGroupDepth++;
return ncclSuccess;
}
当走到ncclGroupEnd() ，才开始。
3. GroupEnd
3.1 groupLaunch前
// group.cc
ncclResult_t ncclGroupEndInternal(ncclSimInfo_t* simInfo) {
// ... simInfo关于模拟nccl的略过
if (ncclGroupDepth == 0) {
WARN("ncclGroupEnd: not in a group call.");
ret = ncclInvalidUsage;
goto exit;
}
if ((--ncclGroupDepth) > 0) goto exit;
//
if (ncclGroupCommHead != nullptr || !ncclIntruQueueEmpty(&ncclAsyncJobs) || ncclGroupCommPreconnectHead != nullptr) {
ncclGroupJobMain.groupCommHeadPtr = &ncclGroupCommHead;
ncclGroupJobMain.asyncJobsPtr = &ncclAsyncJobs;
//...
ncclGroupJobMain.initialized = true;
ncclGroupJobMainPtr = &ncclGroupJobMain;
//...
}
if (ncclGroupBlocking == 0) {
// 非阻塞执行 拿不到alltoall结果
...
} else {
// 阻塞执行 结束就拿到alltoall结果
int savedDev;
CUDACHECKGOTO(cudaGetDevice(&savedDev), ret, fail);
NCCLCHECKGOTO(groupLaunch(&ncclGroupJobMainPtr->base, internalSimInfoPtr), ret, fail);
CUDACHECKGOTO(cudaSetDevice(savedDev), ret, fail);
if (simInfo) memcpy((void*)simInfo, (void*)internalSimInfoPtr, realSize);
groupResetJobState(ncclGroupJobMainPtr);
}
}
- 代码先看
ncclGroupDepth如果直接是0，说明没有ncclGroupStart直接退出。然后--ncclGroupDepth>0确保当前的ncclGroupEnd是最外层的。 - 然后把当前需要执行的通信任务、异步任务、错误状态等，打包成一个 job 结构。放到
ncclGroupJobMainPtr。 - 假设这是阻塞的alltoall，那么现在会把
ncclGroupJobMainPtr->base(就是ncclAsyncJob)传给groupLaunch。
这里的上层ncclSend和ncclRecv怎么把他们的任务和数据关联到groupStart和groupEnd上的？仔细去看了发和收的cc实现，在collectives.cc里面。把ncclSend的参数（buffer，count，type，目标peer，comm，和用哪个stream）这些包装成了ncclInfo结构放到ncclEnqueueCheck这个API上(在enqueue.cc内)。
// enqueue.cc
ncclResult_t ncclEnqueueCheck(struct ncclInfo* info) {
ncclGroupStartInternal() // 保证 group 是开启的
CommCheck(...) // 检查 comm 合法性
ncclCommEnsureReady(...) // 保证 comm 初始化完
ArgsCheck(...) // 参数检查（count、datatype 等）
taskAppend(comm, info) // 核心：将任务加入队列（放入 ncclAsyncJobs）
ncclGroupEndInternal() // 如果 depth==1，这里触发实际执行
ncclCommGetAsyncError(...) // 如果是非阻塞，查一下有没有出错
}
这个API内部用了一次组开始和一次结束，保证上层代码的groupEnd是最外层的。直接看核心的操作taskAppend，同样在当前的cc代码当中。
// enqueue.cc
static ncclResult_t taskAppend(struct ncclComm* comm, struct ncclInfo* info) {
struct ncclKernelPlanner *planner = &comm->planner;
if (info->coll == ncclFuncSend || info->coll == ncclFuncRecv) {
int peer = info->root;
ssize_t nBytes = info->count*ncclTypeSize(info->datatype);
bool isSendNotRecv = info->coll == ncclFuncSend;
// Must be in thread local group before tasks can be alloc'd in `comm->memScoped`.
ncclGroupCommJoin(info->comm);
struct ncclTaskP2p* p2p = ncclMemoryPoolAlloc<struct ncclTaskP2p>(&comm->memPool_ncclTaskP2p, &comm->memPermanent);
p2p->func = info->coll;
p2p->buff = (void*)info->recvbuff;
p2p->count = info->count;
p2p->datatype = info->datatype;
p2p->root = info->root;
p2p->bytes = nBytes;
p2p->eActivationMask = __atomic_load_n(&ncclProfilerEventMask, __ATOMIC_RELAXED);
ncclIntruQueueEnqueue(isSendNotRecv ? &planner->peers[peer].sendQueue : &planner->peers[peer].recvQueue,p2p);
planner->nTasksP2p += 1;
if (comm->rank != peer) {
...
while (peer != (isSendNotRecv ? comm->p2pSchedule[round].sendRank
: comm->p2pSchedule[round].recvRank)) {
round += 1;
}
uint8_t base = ncclP2pChannelBaseForRound(comm, round);
for (int c=0; c < comm->p2pnChannelsPerPeer; c++) {
int channelId = ncclP2pChannelForPart(comm->p2pnChannels, base, c);
if (isSendNotRecv) {
if (comm->channels[channelId].peers[peer]->send[1].hasSeen == 0) { // P2P uses only 1 connector
// the send/recv connector is shared among split shared comms. We need to set hasSeen to
// 1 in order to avoid duplicate connection setup if user group sendrecv ops with split
// shared comms together.
comm->channels[channelId].peers[peer]->send[1].hasSeen = 1;
comm->connectSend[peer] |= (1UL<<channelId);
ncclGroupCommPreconnect(comm);
}
} else {
// 和发送的反过来的操作
}
} else {
...
// 是 Collective 操作（AllReduce、Broadcast 等）
}
// 把当前操作的stream记录下来
if (info->stream != planner->streamRecent || planner->streams == nullptr) {
planner->streamRecent = info->stream;
struct ncclCudaStreamList* l = planner->streams;
while (true) {
if (l == nullptr) { // Got to the end, this must be a new stream.
struct ncclCudaGraph graph;
NCCLCHECK(ncclCudaGetCapturingGraph(&graph, info->stream));
if (planner->streams != nullptr && !ncclCudaGraphSame(planner->capturingGraph, graph)) {
WARN("Streams given to a communicator within a NCCL group must either be all uncaptured or all captured by the same graph.");
return ncclInvalidUsage;
}
planner->capturingGraph = graph; // C++ struct assignment
// Add stream to list
l = ncclMemoryStackAlloc<struct ncclCudaStreamList>(&comm->memScoped);
l->stream = info->stream;
l->next = planner->streams;
planner->streams = l;
break;
}
if (l->stream == info->stream)
break; // Already seen stream.
l = l->next;
}
}
}
-
定义了planner（
ncclKernelPlanner格式的struct），当前我是P2P的任务，那我就是走第一个if的true分支（这里通过ncclFuncSend和ncclFuncRecv这俩枚举成员变量看现在是ncclSend还是ncclRecv）。 -
进入这个分支后，重点是
ncclGroupCommJoin(info->comm);这一行inline void ncclGroupCommJoin(struct ncclComm* comm) { if (comm->groupNext == reinterpret_cast<struct ncclComm*>(0x1)) { // Insert comm into ncclGroupCommHead adjacent to sibling comms. This preserves // the users program order yet insures siblings occur consecutively. This // is required by doLaunches() in "group.cc". struct ncclComm** pp = &ncclGroupCommHead; while (*pp != nullptr && comm->intraComm0 != (*pp)->intraComm0) pp = &(*pp)->groupNext; // didn't find its clique, we need to insert it with ascending order based on commHash if (*pp == nullptr) { pp = &ncclGroupCommHead; while (*pp != nullptr && (*pp)->commHash < comm->commHash) pp = &(*pp)->groupNext; } comm->groupNext = *pp; *pp = comm; // Comms gets a new memory stack scope upon joining. Each task batched for // this comm is allocated there. ncclMemoryStackPush(&comm->memScoped); // Initialize planner ncclKernelPlanner::Peer* tmp = comm->planner.peers; memset(&comm->planner, 0, sizeof(comm->planner)); comm->planner.peers = tmp; } ncclGroupBlocking = comm->config.blocking; }- 由while内的条件控制comm与兄弟comm是相邻的，可以保留住用户程序中comm的顺序和连续。这是doLaunch前的必要条件。
- 如果没找到 sibling / clique(兄弟 / 同nvlink互联的gpu)，就按
commHash升序插入，保持链表有序。然后comm给pp链表，pp是ncclGroupCommHead，所以就会找到一组操作内comm的头。 - comm随后插入到链表当中。然后给comm创建一个新的memory栈，后续任务来了就放这。peers数组保留后清空planner。
接着定义了
ncclTaskP2p结构的结构体p2p，把info里面的数据都取出来，这样后面不同的send或者recv任务我就能用p2p结构体内的原子变量来保证数据安全。然后每个p2p差不多等价一个info，ncclIntruQueueEnqueue把这个p2p丢进planner内的peers的发送队列。planner内的nTasksP2p来计算整个alltoall我当前这个gpu上有多少次发和收的任务。 -
不同rank间的连接，通过planner内的
sendSeen布尔值来保证这个peer只连接一次，一个group内不会重复连同一个。p2pSchedule[round]表示每轮用哪条channel做p2p，这个while循环就能在从p2pSchedule中查到，当前这个 peer 是在哪一轮（round）被我（这个 rank）安排发送。有了round和comm通过ncclP2pChannelBaseForRound这个API就能得到这个 round 使用的 base channel。接着for loop给每个channel上准备connector(两张网卡NIC之间得有这个，nccl在这上面完成具体的RDMA读写操作)。并给这个comm放到了ncclGroupCommPreconnect的API内，同样会找到一组操作内的预连接的comm的头。 -
collective集合通讯的部分略过，接下来就是关于stream上的操作了，会把当前stream和planner里面的最近出现过的stream进行判断，出现新的就加入到planner内的streams链表头（
struct ncclCudaStreamList* streams;，所有当前任务的用户流汇总列表）。新的这个stream会和CUDA Graph捕获的做检查，出现别的Graph的stream就报错。
现在所有任务都在planner内的peers的发送队列或者接收队列。一组操作内的一群comm的头和一群预连接的comm的头现在是ncclGroupCommHead和ncclGroupCommPreconnectHead。现在groupLaunch(&ncclGroupJobMainPtr->base, internalSimInfoPtr) 启动的时候没有看到planner，是从外层管理的send和recv的具体任务队列，这里传进去的只有当前comm（看上去是ncclGroupJobMainPtr->base），ncclGroupJobMainPtr是一个指针，共享使用当前线程的 group 任务上下文结构。这玩意进入groupLaunch后又被强制转换回struct ncclGroupJob
3.2 groupLaunch
static ncclResult_t groupLaunch(struct ncclAsyncJob *job_, ncclSimInfo_t* simInfo = NULL) {
ncclResult_t ret = ncclSuccess;
struct ncclGroupJob *gjob = (struct ncclGroupJob*) job_;
struct ncclComm *groupCommHeadMain = *gjob->groupCommHeadPtr;
struct ncclComm *groupCommPreconnectHeadMain = *gjob->groupCommPreconnectHeadPtr;
struct ncclIntruQueue<struct ncclAsyncJob, &ncclAsyncJob::next> *asyncJobsMain = gjob->asyncJobsPtr;
bool *groupAbortFlag = gjob->abortFlagPtr;
if (!simInfo && groupCommPreconnectHeadMain != nullptr) {
struct ncclComm* comm = groupCommPreconnectHeadMain;
do {
struct ncclPreconnectJob* job;
NCCLCHECKGOTO(ncclCalloc(&job, 1), ret, fail);
job->base.func = ncclP2PPreconnectFunc;
job->base.undo = nullptr;
job->base.destructor = free;
job->base.state = ncclGroupJobRunning;
job->base.abortFlag = comm->abortFlag;
job->base.abortFlagDev = comm->abortFlagDev;
job->comm = comm;
ncclIntruQueueEnqueue(asyncJobsMain, (struct ncclAsyncJob*)job); // 加入async queue
struct ncclComm* next = comm->preconnectNext;
comm->preconnectNext = reinterpret_cast<struct ncclComm*>(0x1);
comm = next;
} while (comm != nullptr); // 遍历comm，加入preconnect queue
}
NCCLCHECKGOTO(asyncJobLaunch(asyncJobsMain, groupAbortFlag), ret, fail);
/* Connect channels at runtime if cumem is supported */
if (groupCommHeadMain != nullptr) {
struct ncclComm* cliqueHead = groupCommHeadMain;
struct ncclComm* comm = NULL;
struct ncclIntruQueue<struct ncclAsyncJob, &ncclAsyncJob::next> asyncCollJobs;
ncclIntruQueueConstruct(&asyncCollJobs);
do {
// We need to preconnect connections for collectives clique by clique to avoid
// race condition for split shared comms which can connect the same connections
// at the same time.
comm = cliqueHead;
do {
bool needConnect = false;
bool algoNeedConnect[NCCL_NUM_ALGORITHMS];
memset(algoNeedConnect, 0, sizeof(bool) * NCCL_NUM_ALGORITHMS);
CUDACHECKGOTO(cudaSetDevice(comm->cudaDev), ret, fail);
NCCLCHECKGOTO(ncclPrepareTasks(comm, algoNeedConnect, &needConnect, simInfo), ret, fail);
if (comm->cuMemSupport && needConnect) {
struct ncclPreconnectJob* job;
NCCLCHECKGOTO(ncclCalloc(&job, 1), ret, fail);
job->base.func = ncclCollPreconnectFunc;
job->base.undo = nullptr;
job->base.destructor = free;
job->base.state = ncclGroupJobRunning;
job->base.abortFlag = comm->abortFlag;
job->base.abortFlagDev = comm->abortFlagDev;
job->comm = comm;
NCCLCHECKGOTO(ncclCalloc(&job->algoNeedConnect, NCCL_NUM_ALGORITHMS), ret, fail);
memcpy(job->algoNeedConnect, algoNeedConnect, sizeof(bool) * NCCL_NUM_ALGORITHMS);
ncclIntruQueueEnqueue(&asyncCollJobs, &job->base);
}
comm = comm->groupNext;
} while (comm != nullptr && comm->intraComm0 == cliqueHead->intraComm0);
// connect
NCCLCHECKGOTO(asyncJobLaunch(&asyncCollJobs, groupAbortFlag), ret, fail);
while (!ncclIntruQueueEmpty(&asyncCollJobs)) {
struct ncclAsyncJob* job = ncclIntruQueueDequeue(&asyncCollJobs);
if (job->destructor) job->destructor((void*)job);
}
cliqueHead = comm;
} while (cliqueHead != nullptr);
// done with all buffer allocation, start registration and enqueue
comm = groupCommHeadMain;
do {
CUDACHECKGOTO(cudaSetDevice(comm->cudaDev), ret, fail);
NCCLCHECKGOTO(ncclTasksRegAndEnqueue(comm), ret, fail); // **************关键点，注册并enqueue
comm = comm->groupNext;
} while (comm);
}
if ((!simInfo) && (groupCommHeadMain != nullptr)) {
NCCLCHECKGOTO(doLaunches(groupCommHeadMain), ret, fail);
}
while (!ncclIntruQueueEmpty(asyncJobsMain)) {
struct ncclAsyncJob* job = ncclIntruQueueDequeue(asyncJobsMain);
if (!job->destroyFlag && job->comm && !job->comm->config.blocking)
(void) ncclCommSetAsyncError(job->comm, ret);
if (job->destructor) job->destructor((void*)job);
}
while (groupCommHeadMain != nullptr) {
struct ncclComm* comm = groupCommHeadMain;
struct ncclComm* next = comm->groupNext;
// Poll for callbacks sent to us from other threads. Typically these free
// resources from to our memory pools and UB
NCCLCHECKGOTO(ncclCommPollCallbacks(comm, /*waitSome=*/false), ret, fail);
(void) ncclGroupCommLeave(comm);
if (!comm->config.blocking) {
(void) ncclCommSetAsyncError(comm, ret);
}
groupCommHeadMain = next;
}
exit:
return ret;
fail:
groupCleanup(gjob->groupCommHeadPtr, gjob->groupCommPreconnectHeadPtr, gjob->asyncJobsPtr, gjob->groupErrorPtr, gjob->groupBlockingPtr, gjob->abortFlagPtr, ret);
goto exit;
}
- 传进来的
struct ncclGroupJob *gjob = (struct ncclGroupJob*) job_现在强制转成了ncclGroupJob格式的gjob，gjob在这个函数里接下来只和出现错误的时候清理资源有关了。所以groupLaunch内是有整个group级别的信息的。（ps：具体收发任务则是从job里面找到当前这个comm再去操作。 - 接着，定义预连接job，并给job的函数指针绑定上ncclP2PPreconnectFunc（job结构体里面有comm，comm里面有nranks，知道自己是哪个gpu也知道一共多少gpu后就可以fully connect了，ps：intra-node），job的状态绑定了ncclGroupJobRunning，job的通讯器绑定了当前的comm。。。。。此时把job强制转换为了
ncclAsyncJob*格式入队到asyncJobsMain这个侵入式队列（ncclIntruQueue）中。 NCCLCHECKGOTO(asyncJobLaunch(asyncJobsMain, groupAbortFlag), ret, fail);preconnect job 在这里被真正 launch。job 类型由.func = ncclP2PPreconnectFunc决定，这里还会包括ring，tree，collnet，nvls等选择。- 再往下出现了clique（比如我定义了comm0，又基于它定义了comm0_1和comm0_2，此时每个comm都预连接会出现rank0和rank1相同channel建立两次）用于给子comm排序执行以避免反复建立连接。
- 然后comm，algoNeedConnect，needConnect和simInfo丢进
ncclPrepareTasksAPI（每个 ncclGroup 调用一次来组织用户在 comm->planner 中提交的任务，以便将它们剥离到计划表中）。[这一步我是alltoall是p2p任务，ncclPrepareTasksAPI对于我来说是空转]。之后comm丢进ncclTasksRegAndEnqueue。里面一看也没有对planner->peers[].sendQueue和planner->peers[].recvQueue中的所有实际任务取出，所以p2p的任务直接来到了doLaunches函数内。
3.3 doLaunches
真正launch前的准备，ncclLaunchPrepare（enqueue.cc内）。
// enqueue.cc
ncclResult_t ncclLaunchPrepare(struct ncclComm* comm) {
ncclResult_t result = ncclSuccess;
struct ncclKernelPlanner* planner = &comm->planner;
bool persistent = ncclCudaGraphValid(planner->capturingGraph);
planner->persistent = persistent;
int nPlans = 0;
if (planner->nTasksColl + planner->nTasksP2p != 0) {
do {
memset(&planner->wipPlan, 0, sizeof(planner->wipPlan));
struct ncclKernelPlan* plan = ncclMemoryPoolAlloc<struct ncclKernelPlan>(&comm->memPool_ncclKernelPlan, &comm->memPermanent);
plan->comm = comm;
plan->reclaimer.fn = reclaimPlan;
plan->persistent = persistent;
// finishPlan() promotes ncclDevWorkStorageType[Fifo|Persistent]->Args if the work can fit.
plan->workStorageType = persistent ? ncclDevWorkStorageTypePersistent
: ncclDevWorkStorageTypeFifo;
struct ncclKernelPlanBudget budget;
budget.inArgsBytes = comm->workArgsBytes - sizeof(struct ncclDevKernelArgs);
// Non-persistent kernels fill up at most half of our fifo per kernel.
budget.outArgsBytes = plan->persistent ? (1<<30) : comm->workFifoBytes/2;
// Drain coll tasks first. This is essential since we partition tasks based
// on the work budget and p2p work isn't collective. If we were to drain p2p
// first, the place where we cut the kernel could vary by rank which would
// cause the "shortest channel first" channel picker to have divergent results.
if (planner->nTasksColl != 0) {
NCCLCHECKGOTO(scheduleCollTasksToPlan(comm, plan, &budget), result, failure);
}
// And only drain p2p tasks once colls are depleted.
if (planner->nTasksColl == 0 && planner->nTasksP2p != 0) {
NCCLCHECKGOTO(scheduleP2pTasksToPlan(comm, plan, &budget), result, failure);
//..... 部分代码
}
planner 内已经收集了所有任务，plan负责打包任务变成kernel launch，是从 NCCL 内部 memory pool 中 分配出一个新的 plan，用于装填要launch的工作的内容（workFifo）。这里还会计算一个budget与comm 和 plan一起放到scheduleP2pTasksToPlan内。这里就是从 planner.peers[rank].sendQueue / recvQueue把任务搬运到 plan.p2pTaskQueue并同步把参数填入 plan->workFifo，供 GPU kernel 执行。
// enqueue.cc
static ncclResult_t scheduleP2pTasksToPlan(
struct ncclComm* comm, struct ncclKernelPlan* plan, struct ncclKernelPlanBudget* budget
) {
struct ncclKernelPlanner::Peer* peers = comm->planner.peers;
plan->threadPerBlock = std::max(plan->threadPerBlock, NCCL_MAX_NTHREADS);
if (!plan->kernelSpecialized) {
plan->kernelFn = ncclDevKernelForFunc[ncclDevFuncId_P2p()];
plan->kernelSpecialized = ncclDevKernelForFuncIsSpecialized[ncclDevFuncId_P2p()];
}
while (nChannelsMin*nRanks > comm->p2pnChannels && nChannelsMin > 1) nChannelsMin /= 2;
while (comm->planner.nTasksP2p != 0) {
// ...... 一大坨代码
}
}
-
peers内有前面说到的sendQue和recvQue。接着给plan初始化了kernel内核是P2P类型的内核。nChannelsMin和nChannelsMax记录通道合适范围，避免超过硬件承受力。
-
核心的搬运p2p任务是while一直检测
comm->planner.nTasksP2p != 0，有任务就遍历通信表p2pSchedule。这里的头任务send和recv是通过ncclIntruQueueHead(&peers[comm->p2pSchedule[round].sendRank].sendQueue)找到，sendRank是查p2pSchedule表得到。自己发送给自己的时候直接free，跳过，任务计数减2。 -
自己发送给别人的时候会用
testBudgetapi检查当前plan能塞入的任务，超过budget就会重开一个plan。struct ncclTaskP2p* p2pTasks[2] = { recv, send };，反的。 -
然后
addP2pToPlan将具体任务放到plan内，大致就是planner内一对send recv组合位一条ncclDevWorkP2p，并通过addWorkBatchToPlan放到当前plan，并看是否跨NIC buffer传输，生成相应的proxyOp做辅助调度。// enqueue.cc 内的addP2pToPlan API static ncclResult_t addP2pToPlan( ...) { for (int part=0; part < nChannelsMax; part++) { // ........ protoLL[dir] &= conn->conn.buffs[NCCL_PROTO_LL] != nullptr; network[dir] |= conn->transportComm == (dir ? &netTransport.send : &netTransport.recv); proxySameProcess[dir] &= conn->proxyConn.sameProcess; } } // 计算了下面两样 1.netRegistered[dir] / 2.ipcRegistered[dir] struct ncclWorkList* workNode = ncclMemoryStackAllocInlineArray<ncclWorkList, ncclDevWorkP2p>(&comm->memScoped, 1); workNode->workType = ncclDevWorkTypeP2p; workNode->size = sizeof(struct ncclDevWorkP2p); ncclIntruQueueEnqueue(&plan->workQueue, workNode); uint32_t workOffset = plan->workBytes; plan->workBytes += sizeof(struct ncclDevWorkP2p); struct ncclDevWorkP2p* work = (struct ncclDevWorkP2p*)(workNode+1); // ... 一堆填写的代码 struct ncclProxyOp proxyOps[2] = {}; // ... 一堆填写的代码 for (int part=0; part < nChannelsMax; part++) { int channelId = ncclP2pChannelForPart(comm->p2pnChannels, base, part); addWorkBatchToPlan(...); addProxyOpIfNeeded(...); } }- 先看了一些辅助信息决定后面是否注册buffer和用什么协议通信，
protoLL[0/1]表示当前这对任务是否可以使用 LL 协议（更快）；network[]表示这是否是跨节点通信；proxySameProcess[]表示是否在同一个进程内。 - 要是1.netRegistered这个东西是true，那就调用
ncclRegisterP2pNetBuffer跨节点网络通信。2.ipcRegistered是true就得用IPC buffer走ncclRegisterP2pIpcBufferapi完成跨GPU同节点通信，并写到后面的work和proxyOp。（这里一大串代码当中穿插了chunkDataSize[dir]，nChannels[dir]，stepSize等等的计算，为了后面每个channel上分配多大数据用于通信） - 接下来填写
ncclDevWorkP2p到plan内，将前面send/recv rank、地址、大小、chunk 大小、协议类型、是否注册 buffer 都填进work，然后插入plan->workQueue中。这里还对跨NIC生成proxyOp，并把 chunk 步数、offset、buffer handle 等等填进去。 - for loop给每个channel内分配batch任务和对应的proxyOp。
综上，
ncclDevWorkP2p就是 “这个 rank 要干的一对活（收+发）”，用work描述。为什么已经是一对p2p任务了还要编出batch再to plan，因为：workncclDevWorkP2p描述了一对 p2p（发送/接收）任务的实际内容（地址、大小、谁发谁收） batchncclDevWorkBatch描述 GPU kernel 一次能执行多少 work，类型（p2p/coll），在哪个 channel 现在，work 在 plan 的 workQueue（供后续 kernel launch 使用），channel内的workBatchQueue内有当前 channel 对这个
work的 batch 组织（也可以理解成 launch 批次/分组信息）。// scheduleP2pTasksToPlan API的剩下一小部分 if (send != nullptr) { ncclIntruQueueDequeue(&peers[sendRank].sendQueue); ncclIntruQueueEnqueue(&plan->p2pTaskQueue, send); comm->planner.nTasksP2p -= 1; } if (recv != nullptr) { ncclIntruQueueDequeue(&peers[recvRank].recvQueue); ncclIntruQueueEnqueue(&plan->p2pTaskQueue, recv); comm->planner.nTasksP2p -= 1; } // scheduleP2pTasksToPlan至此结束plan->workQueue / plan->p2pTaskQueue 等数据结构都准备好了。
- 先看了一些辅助信息决定后面是否注册buffer和用什么协议通信，
现在回到ncclLaunchPrepare API内剩下的代码。
让主 launchStream 等待所有参与的 user stream 上的任务完成，
ncclResult_t ncclLaunchPrepare(struct ncclComm* comm) {
//....
struct ncclKernelPlan* planHead = ncclIntruQueueHead(&planner->planQueue);
planner->unlaunchedPlansHead = planHead;
cudaStream_t launchStream = planner->streams->stream;
cudaStream_t deviceStream, launchOrder;
for (struct ncclCudaStreamList* l=planner->streams->next; l != nullptr; l = l->next) {
CUDACHECKGOTO(cudaEventRecord(comm->sharedRes->scratchEvent, l->stream), result, failure);
CUDACHECKGOTO(cudaStreamWaitEvent(launchStream, comm->sharedRes->scratchEvent, 0), result, failure);
}
...
}
首先重点是记住这里的planner->unlaunchedPlansHead是planner->planQueue这个队列的头（后面真正launch的时候会用到）。让主 launchStream 等待所有参与的 user stream 上的任务完成，强行设置了stream依赖。也就是说你在groupStart和groupEnd之内自定义的其他stream会被加入planner→streams，streams里面第一个stream会等待其他stream上的时间完成再执行kernel。
回到group.cc的dolaunches代码：
static ncclResult_t doLaunches(struct ncclComm* head) {
// ... 准备完毕了
if (useBarrier) ncclCommIntraBarrierIn(comm, 1);
comm = comm->groupNext;
while (true) { // Iterate rounds of launches for clique.
bool moreRounds = false;
comm = cliqueHead;
do { // Iterate clique members.
struct ncclComm* next = comm->groupNext;
if (useBarrier) {
// Barrier reduction result tells us if this was the final round.
moreRounds = 0 != ncclCommIntraBarrierOut(comm);
} else {
moreRounds |= comm->planner.unlaunchedPlansHead != nullptr;
}
if (moreRounds) {
// Pop next unlaunched kernel
struct ncclKernelPlan* plan = comm->planner.unlaunchedPlansHead;
if (plan != nullptr) {
comm->planner.unlaunchedPlansHead = plan->next;
CUDACHECKGOTO(cudaSetDevice(comm->cudaDev), result, failure);
NCCLCHECKGOTO(ncclLaunchKernelBefore_NoUncapturedCuda(comm, plan), result, failure);
NCCLCHECKGOTO(ncclLaunchKernel(comm, plan), result, failure);
}
// Barrier reduction input indicates if we require further rounds.
if (useBarrier) ncclCommIntraBarrierIn(comm, comm->planner.unlaunchedPlansHead != nullptr ? 1 : 0);
if (plan != nullptr) {
NCCLCHECKGOTO(ncclLaunchKernelAfter_NoCuda(comm, plan), result, failure);
}
} else { // Final round.
CUDACHECKGOTO(cudaSetDevice(comm->cudaDev), result, failure);
NCCLCHECKGOTO(ncclLaunchFinish(comm), result, failure);
}
comm = next;
} while (comm != cliqueNextHead);
if (!moreRounds) break;
}
cliqueHead = cliqueNextHead;
} while (cliqueHead != nullptr);
}
一个comm内的多个p2p任务结束后要barrier一下再去启动下一个comm（sibling / clique comm）。一共三个核心发射，ncclLaunchKernelBefore_NoUncapturedCuda，ncclLaunchKernel，ncclLaunchKernelAfter_NoCuda。
- 第一个：这里底层是将comm和plan放到uploadWork()函数内部，主要是将plan中的数据准备好，内核直接使用这些数据进行计算。这里会根据workStorageType确定存储类型，但是这个是怎么计算得出的暂时不详。先细看如果是ncclDevWorkStorageTypeFifo类型的情况。
4 模拟
abstract：假设4个rank的alltoall任务
官方的实现：
NCCLCHECK(ncclGroupStart());
for (int r=0; r<nRanks; r++) {
NCCLCHECK(ncclSend(((char*)sendbuff)+r*rankOffset, count, type, r, comm, stream));
NCCLCHECK(ncclRecv(((char*)recvbuff)+r*rankOffset, count, type, r, comm, stream));
}
NCCLCHECK(ncclGroupEnd());
-
第一步收集所有send和recv任务放到planner的sendQue和RecvQue。具体操作在taskAppend()内；rank0在alltoall中的p2p任务总计就是下面三对send recv。
rank0 peers sendQueue recvQueue 0“S0→0” 自发后面会跳过“R0←0” 自收后面会跳过1 “S0→1” “R0←1” 2 “S0→2” “R0←2” 3 “S0→3” “R0←3” 这里rank1在alltoall中的p2p任务如下（rank1发rank1没了，自发自收跳过）：
rank1 peers sendQueue recvQueue 0 “S1→0” “R1←0” 2 “S1→2” “R1←2” 3 “S1→3” “R1←3” 同理，rank2和rank3的发和收类似上面。。。。。。
-
跳过辅助的操作，现在直接到scheduleP2pTasksToPlan()内。由for循环内的迭代变量round查p2pSchedule表（见第5节对这个表的详解），上面rank0到rank4收集到的任务会变。现在列举round=1时，四个rank上的第一次send和recv任务会变为什么：
// scheduleP2pTasksToPlan（）查表的操作 int sendRank = comm->p2pSchedule[round].sendRank; int recvRank = comm->p2pSchedule[round].recvRank; struct ncclTaskP2p* send = ncclIntruQueueHead(&peers[sendRank].sendQueue); struct ncclTaskP2p* recv = ncclIntruQueueHead(&peers[recvRank].recvQueue);-
结合第五节表得出round1四个rank的发和收的任务如下：
rank sendPeer从 sendQueue 取出的卡 recvPeer从 recvQueue 取出的卡 0 1 “S0→1” 3 “R0←3” 1 2 “S1→2” 0 “R1←0” 2 3 “S2→3” 1 “R2←1” 3 0 “S3→0” 2 “R3←2” -
struct ncclTaskP2p* p2pTasks[2] = { recv, send };会将当前rank的任务变成{“R0←3”, “S0→1”}。这里的ncclTaskP2p进入addp2ptoPlan对每个rank当前**“收谁 + 发谁”** 写进同一个 work，得到1条ncclDevWorkP2p（里面的sendRank = 1， recvRank = 3）。这个会被重新排布为 workQueue / p2pTaskQueue，并把需要给 GPU 的原始参数序列化到 workFifo。 -
接着
uploadWork()+ncclLaunchKernelBefore_*把plan 中的 workFifo 拷到 comm->devWorkFifo（UVA 或cudaMemcpyAsync），并生成kernelArg结构。这两步的操作:
host: addP2pToPlan() ← 填这些字段 uploadWork() ← 把 work 写进 FIFO GPU: ncclKernel_P2p └──── doOneP2p() ├─ runSend<Proto>() | ↘ 根据 sendChunkSize/nSendChannels 写多通道 └─ runRecv<Proto>() ↘ 根据 recvChunkSize/nRecvChannels 读多通道 proxy 线程(若启用) └──── netSend / netRecv ↘ 用 sendNetReg/recvNetReg 判断是否走注册缓冲 -
ncclLaunchKernel┌──────── workMask (=fifoBytes-1) kernelArgs │ workBuf (指向同一个 FIFO 映射) ───────────┼─────────────────────────────────────────────── fifoCursor = 起点 batch[0] │ struct ncclDevWorkBatch (24 B) ← channel 0 batch[1] │ struct ncclDevWorkBatch (24 B) ← channel 1 batch[2] │ struct ncclDevWorkBatch (24 B) ← channel 2 ───────────┼─────────────────────────────────────────────── fifoCursor = 3×24 = 72 work #0 │ 16 B ncclDevWorkP2p (ch0, round0) work #1 │ 16 B ncclDevWorkP2p (ch1, round1) work #2 │ 16 B ncclDevWorkP2p (ch2, round2) ───────────┼─────────────────────────────────────────────── fifoCursor = 72+3×16 = 120-
batch 数组：每行告诉 GPU
- 这批 work 属于哪条 channel
- 从 FIFO offsetBase 处开始
offsetBitset标哪些 slot 已经塞了 work
-
work 数组：真正的指令，每条 16 B，对齐到 16。
其中包含
directionMask（SEND / RECV）sendRank/recvRank- 每方向
conn地址、chunkSize 等
偏移量都在 uploadWork() 里加上 fifoCursor，于是变成 FIFO 内的绝对地址。
-
-
5 p2p schedule
init.cc内对这个调度表的初始化的代码(nccl 2.22版本之后)
do { // Build p2p schedule
int node = comm->node;
int nNodes = comm->nNodes;
int nRanks = comm->nRanks;
int local = comm->localRank;
int nLocals = comm->maxLocalRanks;
struct ncclNodeRanks* nodeRanks = comm->nodeRanks;
bool flat = false;
for (int node = 0; node < nNodes; node++) {
if (nodeRanks[node].localRanks != nLocals) {
flat = true;
nNodes = 1; node = 0;
nLocals = nRanks; local = rank;
break;
}
}
int nNodesPow2 = pow2Up(nNodes);
int nLocalsPow2 = pow2Up(nLocals);
comm->p2pSchedule = ncclMemoryStackAlloc<ncclComm::P2pSchedulePair>(&comm->memPermanent, nRanks);
comm->planner.peers = ncclMemoryStackAlloc<ncclKernelPlanner::Peer>(&comm->memPermanent, nRanks);
uint32_t nodeRound = 0;
uint32_t nodeDelta = 0;
int round = 0;
// When enumerating peer deltas we use the quadratic formula (x*x+x)/2 mod N.
// Since that formula only produces valid permutations when N is a pow of 2,
// we let N = pow2Up(n) and filter out results greater-eq to n.
// Example sequence for 16 ranks: 0, 1, 3, 6, 10, 15, 5, 12, 4, 13, 7, 2, 14, 11, 9, 8
do {
if (nodeDelta < nNodes) { // Filter nonsensical node deltas
int sendNode = (node + nodeDelta) % nNodes;
int recvNode = (node - nodeDelta + nNodes) % nNodes;
uint32_t localRound = 0;
uint32_t localDelta = 0;
do {
if (localDelta < nLocals) { // Filter nonsensical node-local deltas
int sendLocal = (local + localDelta) % nLocals;
int recvLocal = (local - localDelta + nLocals) % nLocals;
comm->p2pSchedule[round].sendRank = flat ? sendLocal : nodeRanks[sendNode].localRankToRank[sendLocal];
comm->p2pSchedule[round].recvRank = flat ? recvLocal : nodeRanks[recvNode].localRankToRank[recvLocal];
round += 1;
}
localRound += 1;
localDelta = (localDelta + localRound) & (nLocalsPow2 - 1); // Quadratic update
} while (localRound != nLocalsPow2);
}
nodeRound += 1;
nodeDelta = (nodeDelta + nodeRound) & (nNodesPow2 - 1); // Quadratic update
} while (nodeRound != nNodesPow2);
if (round != nRanks) {
WARN("P2p schedule creation has bugs.");
ret = ncclInternalError;
goto fail;
}
} while (0);
中间这个do循环，是表示节点间的循环，nodeRound从0迭代到nNodesPow2（这个是nNodes的最小二次幂）。最内层的do循环是节点内的循环，计算了localDelta = (localDelta + localRound) & (nLocalsPow2 - 1)来算出每次round当前rank发给谁（sendLocal）和接收谁（recvLocal）。假设四个rank：[计算这个最小二次幂就是为了算的更快，等价于直接mod 4，但是用这里是& 3]。下面是所有迭代展开后p2p schedule表初始化后每个rank的任务：
| Rank | round 0 | round 1 | round 2 | round 3 |
|---|---|---|---|---|
| 0 | (0, 0) | (1, 3) | (3, 1) | (2, 2) |
| 1 | (1, 1) | (2, 0) | (0, 2) | (3, 3) |
| 2 | (2, 2) | (3, 1) | (1, 3) | (0, 0) |
| 3 | (3, 3) | (0, 2) | (2, 0) | (1, 1) |
(ps: 括号内第一个值是send who，第二个值是recv who，这俩通过下面的公式算出来)
int sendLocal = (local + localDelta) % nLocals; // 发送的本地rank
int recvLocal = (local - localDelta + nLocals) % nLocals; // 接收的本地rank
6 introduction
6.1 FIFO
nccl的comm中存储即将device执行ncclDevWork数据的一块共享区域。多个kerne启动使用的“任务指令”就是放在这个FIFO内，防止多次mlloc和memcpy。这是一个环形缓冲区，使用mask快速wrap-around（回到起点）。
6.2 ncclDevKernelArgs
struct alignas(16) ncclDevKernelArgs {
struct ncclDevComm* comm; //指向设备端通信上下文 ncclDevComm，包含 rank、channels、buffers 等设备端状态
uint64_t channelMask; //标记哪些 channel 启用了（64 位掩码，最多 64 个 channel）
enum ncclDevWorkStorageType workStorageType;//表示工作缓冲区存储类型（Args、Fifo、Persistent）
uint32_t workMask;//用于实现 FIFO wrap-around 的掩码值（通常为 size-1）
void* workBuf;//指向设备端的工作数据数组（由 host 在 uploadWork 中准备好并复制过去）
// A channel's first batch is at `blockIdx.x`. Use `nextJump` to follow rest of list.
// struct ncclDevWorkBatch batches[];
};

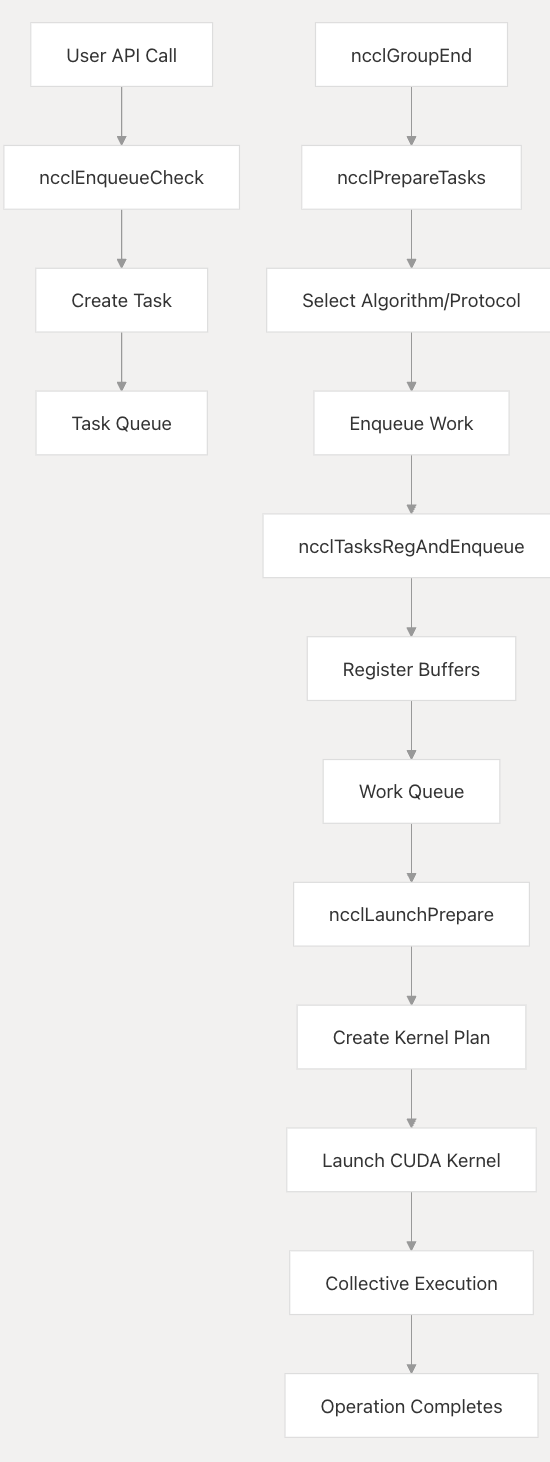

7. Figure
扫一扫
227
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
