步骤如下：

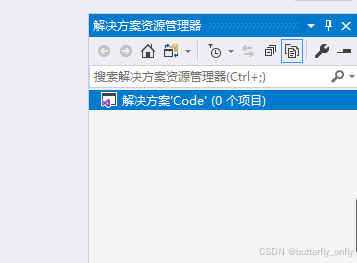

1、打开VS2019，创建一个空白的解决方案

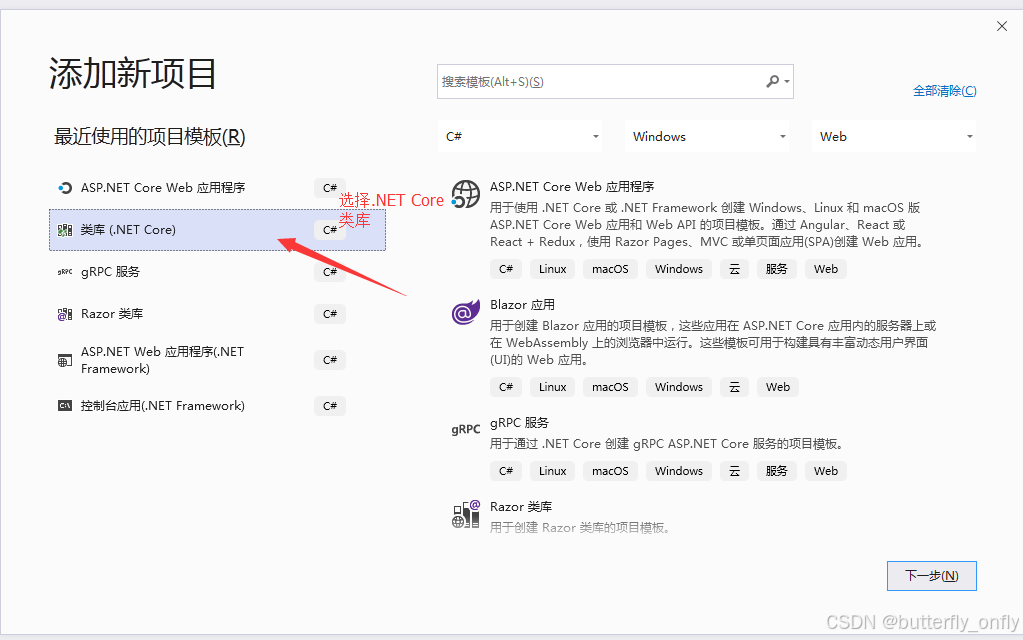

2、添加新建项目，选择类库（.NET Core）

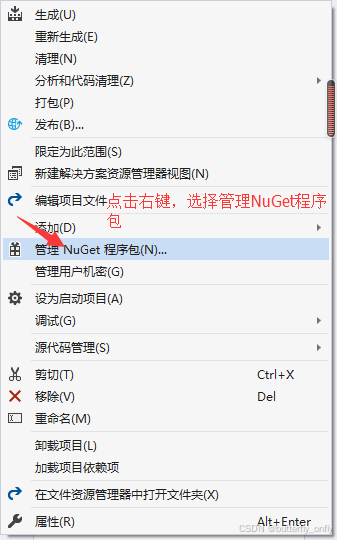

3、点击右键选择管理NuGet程序包

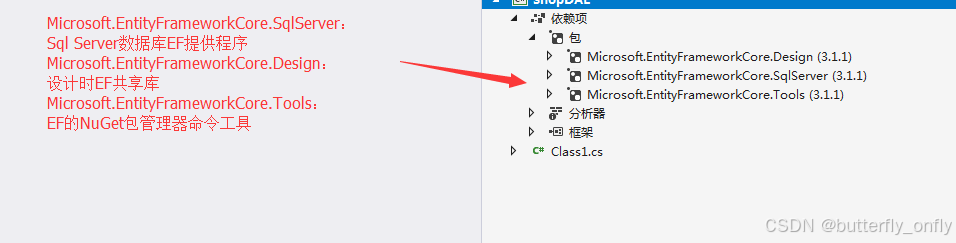

4、.导入EF Core相关包

Microsoft.EntityFrameworkCore.SqlServer：Sql Server数据库EF提供程序

Microsoft.EntityFrameworkCore.Design：设计时EF共享库

Microsoft.EntityFrameworkCore.Tools：EF的NuGet包管理器命令工具

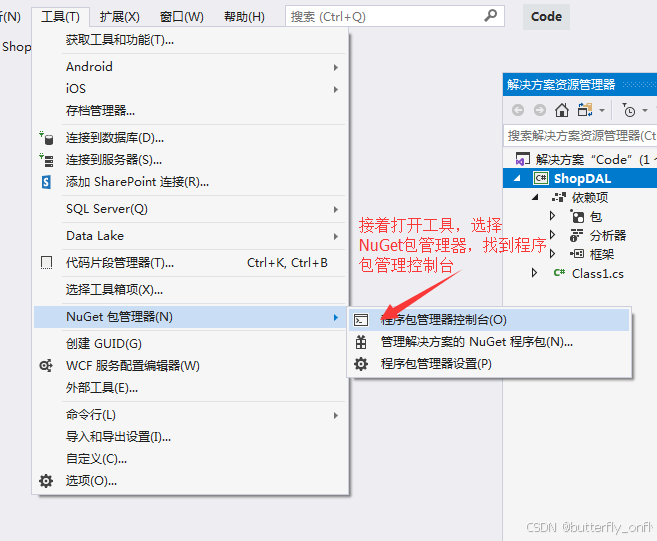

5、选择工具的NuGet包管理→程序包管理器控制台

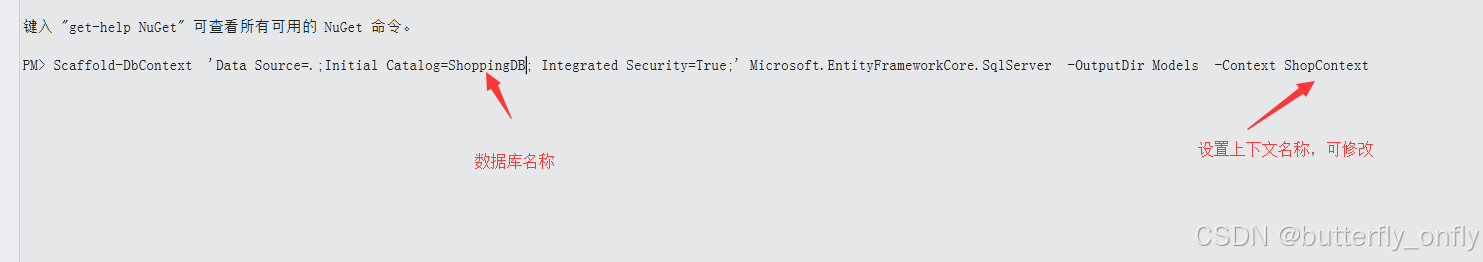

6、执行NuGet命令，通过数据库生成实体模型

Scaffold-DbContext 'Data Source=.;Initial Catalog=ShoppingDB; Integrated Security=True;' Microsoft.EntityFrameworkCore.SqlServer -OutputDir Models -Context ShopContext

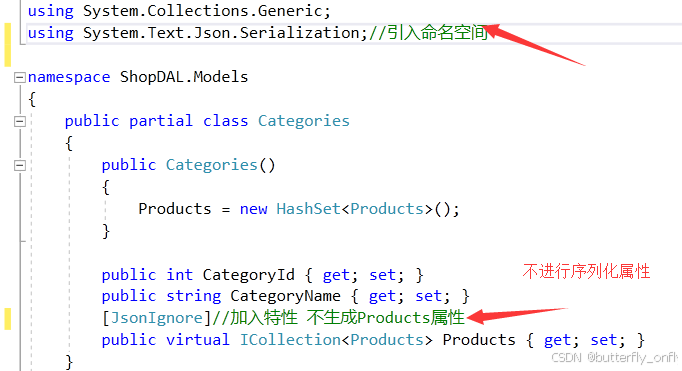

7、添加命名空间和不序列化的属性

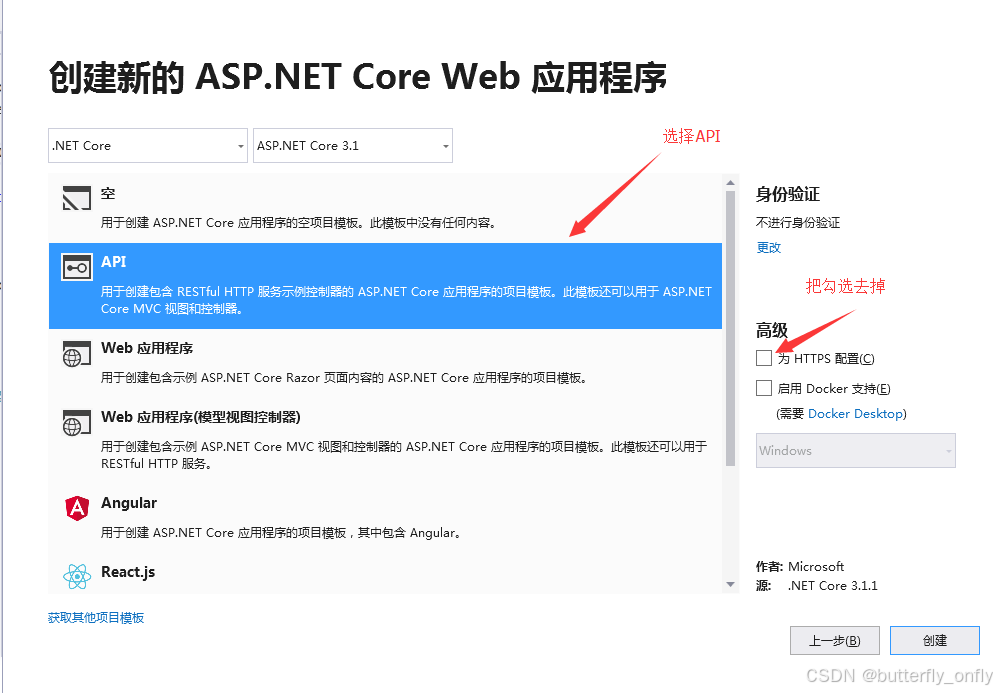

8、接下来创建APT，把高级处的为HTTPS勾选去掉

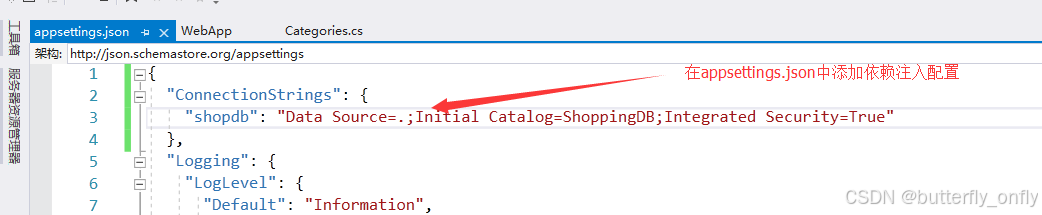

9、找到appsettings.json文件，添加依赖注入配置

"ConnectionStrings": {

"shopdb": "Data Source=.;Initial Catalog=ShoppingDB;Integrated Security=True"

},

10、找到Startup.cs 文件，在ConfigureServices方法里添加

   //注册上下文
			services.AddDbContext<ShopContext>(option =>
			{
				option.UseSqlServer(Configuration.GetConnectionString("shopdb"));
			});

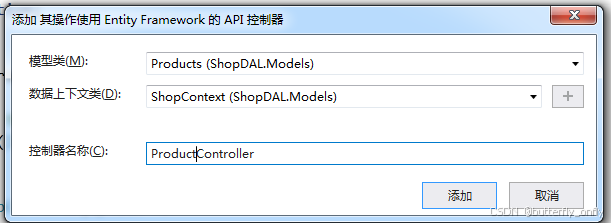

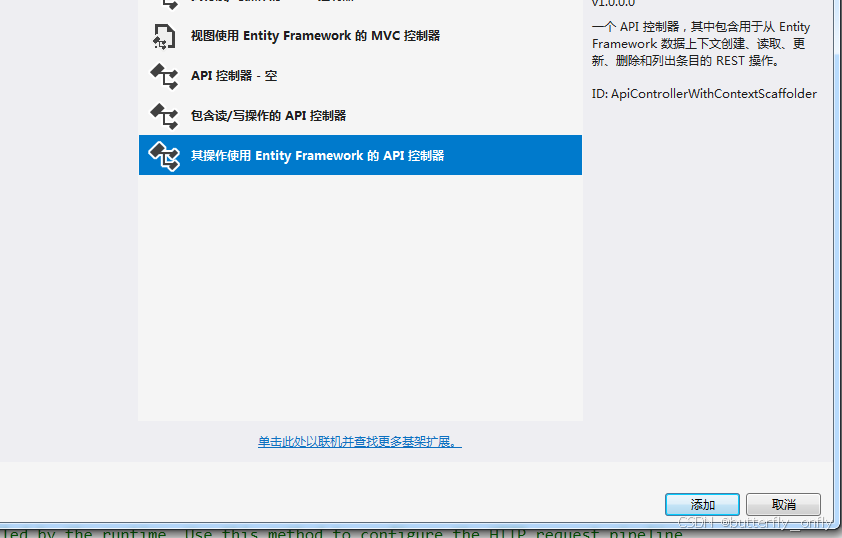

11、创建控制器，选择其操作使用Entity Framework的API控制器

12、选择上下文类和模型类

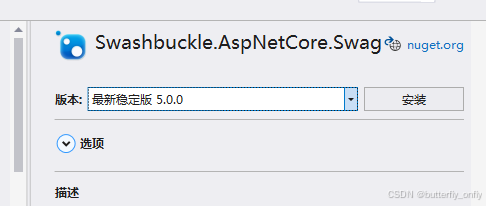

13、添加swagger的管理程序包，选择第一个

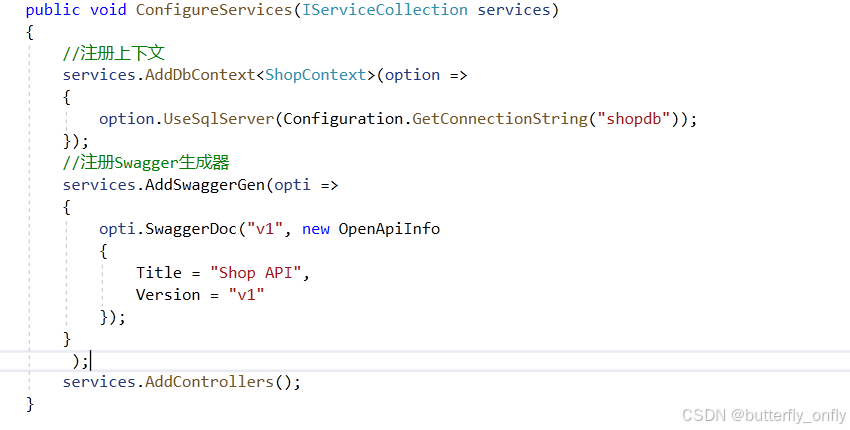

14、结下来在Startup.cs的ConfigureServices方法里面添加

//注册Swagger生成器
			services.AddSwaggerGen(opti =>
			{
				opti.SwaggerDoc("v1", new OpenApiInfo
				{
					Title = "Shop API",
					Version = "v1"
				});
			}
			 );

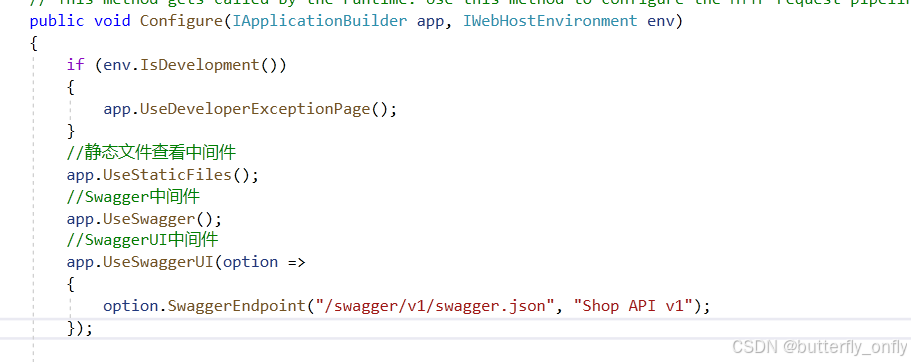

15、在Startup.cs的Configure方法里面添加//静态文件查看中间件

app.UseStaticFiles();
			//Swagger中间件
			app.UseSwagger();
			//SwaggerUI中间件
			app.UseSwaggerUI(option =>
			{
				option.SwaggerEndpoint("/swagger/v1/swagger.json", "Shop API v1");
			});

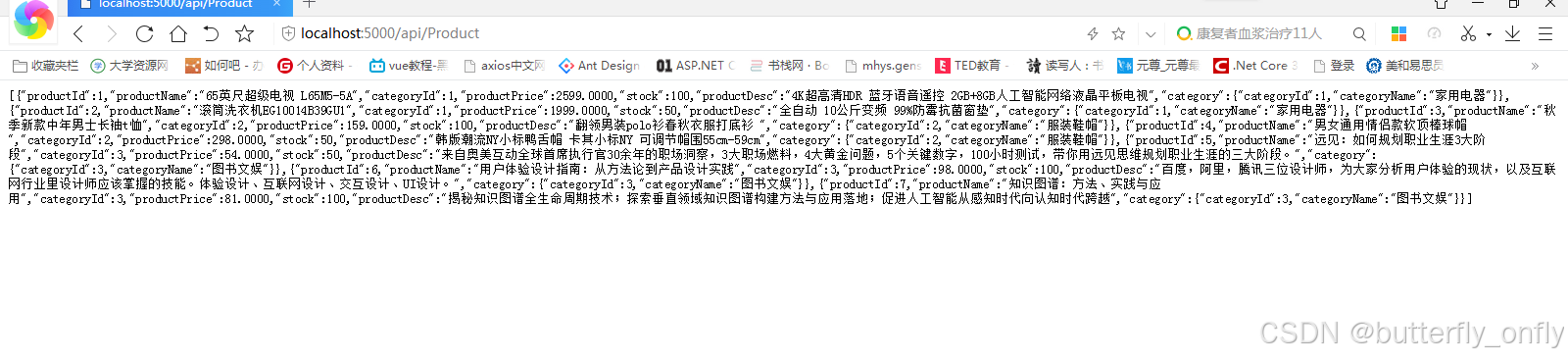

16、运行不调试API程序，输入http://localhost:5000/api/Product,API接口OK了

17、输入http://localhost:5000/swagger/index.html，可以看到swagger的文档，以及API写好的方法

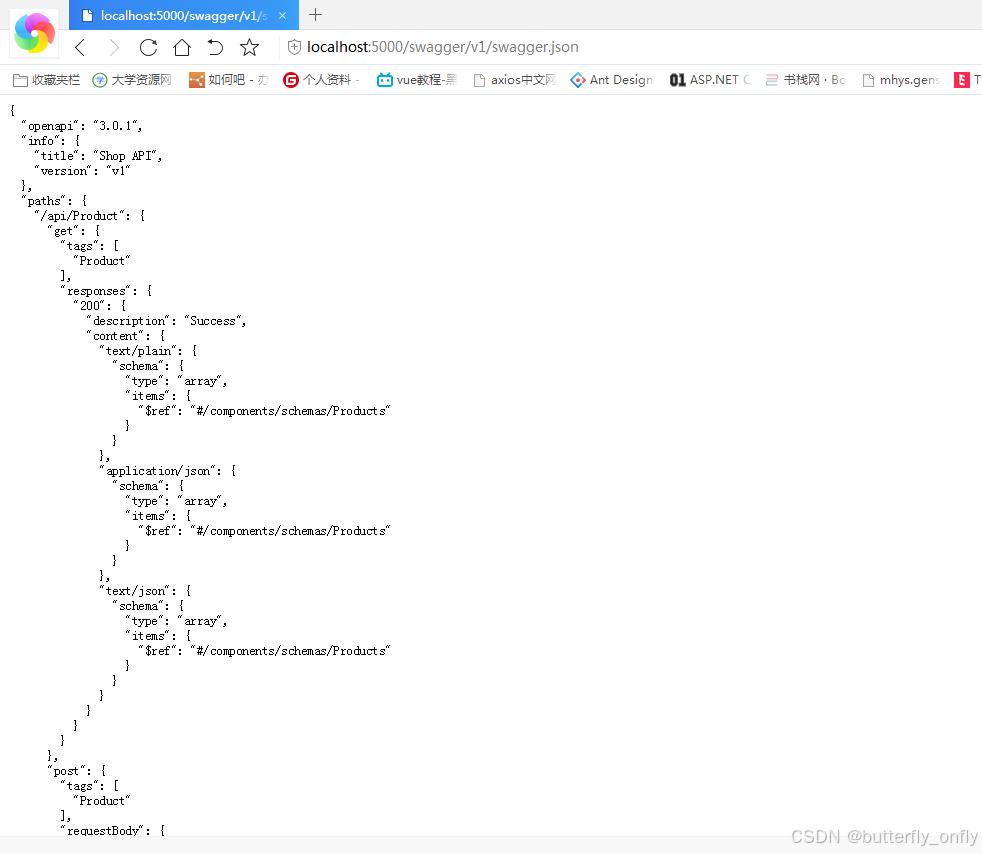

18、重点是打开http://localhost:5000/swagger/v1/swagger.json能否正常显示，后面其它地方需要调用

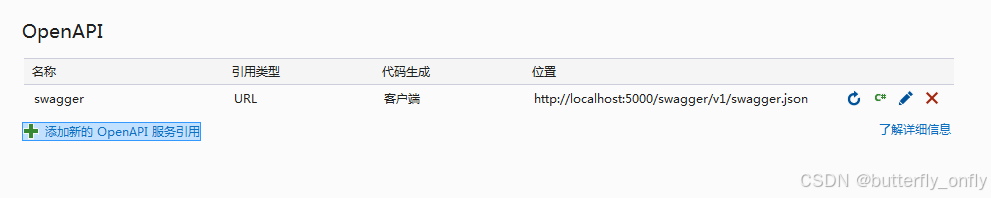

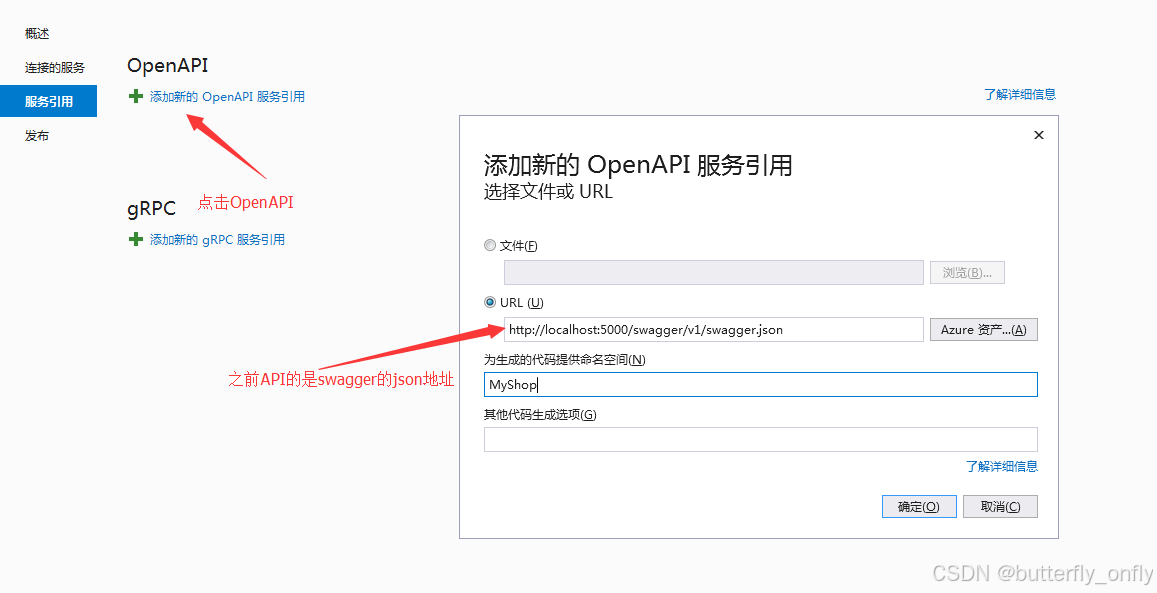

19、创建一个asp.net Core MVC 点右键添加服务引用，选择OpenAPI，点击添加新的服务引用，在URL里面输入上面查看的http://localhost:5000/swagger/v1/swagger.json，在输入命名空间

20、在HomeController添加using MyShop;的引用

using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Logging;
using SwaggerShopUI.Models;

using System.Net.Http;

using MyShop;

namespace SwaggerShopUI.Controllers
{
    public class HomeController : Controller
    {
        private readonly ILogger<HomeController> _logger;

        public HomeController(ILogger<HomeController> logger)
        {
            _logger = logger;
        }

        // 查询全部商品数据
        public async Task<IActionResult> Index()
        {
            var client = new swaggerClient("http://localhost:5000/", new HttpClient());
            var pro = await client.ProductsAllAsync();
            return View(pro);
        }
        //添加商品
        [HttpGet]
        public async Task<IActionResult> Add()
        {
            var client = new swaggerClient("http://localhost:5000/", new HttpClient());
            var pro = await client.CategoriesAllAsync();
            return View(pro);
        }
        //添加商品
        [HttpPost]
        public async Task<IActionResult> Add(Products p)
        {
            var client = new swaggerClient("http://localhost:5000/", new HttpClient());
            var pro = await client.ProductsAsync(p);
            return RedirectToAction("Index");
        }
        //修改商品
        [HttpGet]
        public async Task<IActionResult> Edit(int id)
        {
            var client = new swaggerClient("http://localhost:5000/", new HttpClient());
            ViewBag.Categories=await client.CategoriesAllAsync();
            var pro =await client.Products2Async(id);
            return View(pro);
        }
        //修改商品
        [HttpPost]
        public async Task<IActionResult> Edit(Products p)
        {
            var client = new swaggerClient("http://localhost:5000/", new HttpClient());
             await client.Products3Async(p.ProductId,p);
            return RedirectToAction("Index");
        }
        //删除
        public async Task<IActionResult> Remove(int id)
        {
            var client = new swaggerClient("http://localhost:5000/", new HttpClient());
            var pro = await client.Products4Async(id);
            return RedirectToAction("Index");
        }

        public IActionResult Privacy()
        {
            return View();
        }

        [ResponseCache(Duration = 0, Location = ResponseCacheLocation.None, NoStore = true)]
        public IActionResult Error()
        {
            return View(new ErrorViewModel { RequestId = Activity.Current?.Id ?? HttpContext.TraceIdentifier });
        }
    }
}

对应的view视图代码：

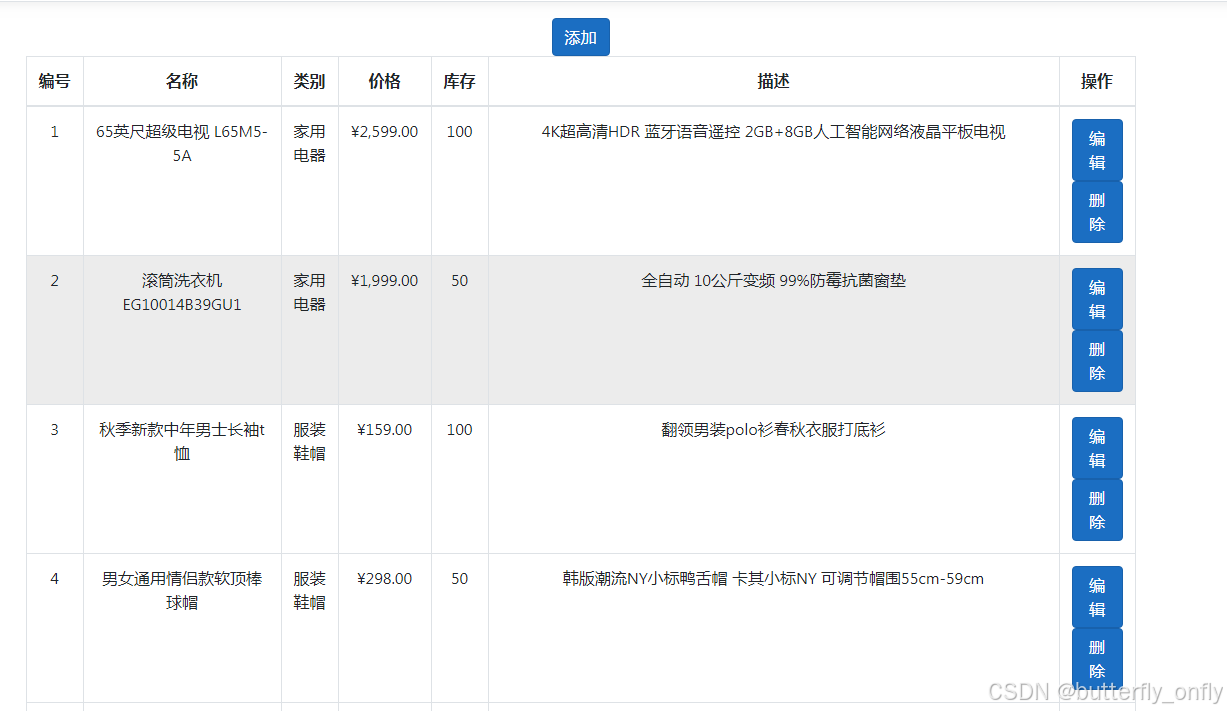

首页：Index.cshtml

@{
    ViewData["Title"] = "Home Page";
}

<div class="text-center">
    @Html.ActionLink("添加","Add","Home",null,new { @class="btn btn-primary"})
    <table class="table table-hover table-bordered  col-lg-12" align="center">
        <thead class="thead-blue text-nowrap">

            <tr>
                <th>编号</th>
                <th>名称</th>
                <th>类别</th>
                <th>价格</th>
                <th>库存</th>
                <th>描述</th><th>操作</th>
            </tr>
        </thead>
        @foreach (var item in Model)
        {
            <tr>
                <td>@item.ProductId</td>
                <td>@item.ProductName</td>
                <td>@item.CategoryId + [@item.Category.CategoryName]</td>
                <td>@string.Format("{0:C}", @item.ProductPrice)</td>
                <td>@item.Stock</td>
                <td>@item.ProductDesc</td>
                <td>
                    @Html.ActionLink("编辑", "Edit", "Home", new { id = item.ProductId },new { @class = "btn btn-primary" })
                    @Html.ActionLink("删除", "Remove", "Home", new { id = item.ProductId }, new { @class = "btn btn-primary", onclick = "return confirm('确认删除？')" })
                </td>
            </tr>
        }
    </table>
</div>

添加页：Add.cshtml

@{
    ViewData["Title"] = "添加数据";
}

<h1>添加数据</h1>
@using (Html.BeginForm("Add", "Home", FormMethod.Post))
{
    <p><label>名称</label><input type="text" name="ProductName" placeholder="请输入商品名称" class="form-control" value="" /></p>
    <p><label>价格</label><input type="number" name="ProductPrice" placeholder="请输入商品价格" class="form-control" value="" /></p>
    <p>
        <label>类别</label>

        <select name="CategoryId" class="form-control">
            @foreach (var item in Model)
            {
                <option value="@item.CategoryId">@item.CategoryName</option>
            }

        </select>
    </p>
    <p><label>库存</label><input type="number" name="Stock" placeholder="请输入商品库存" class="form-control" value="" /></p>
    <p><label>描述</label><input type="text" name="ProductDesc" placeholder="请输入商品描述" class="form-control" value="" /></p>
    <p><input type="submit" name="name" value="保存" class="btn btn-primary" /></p>
}

修改的页面：Edit.cshtml

@model MyShop.Products
@{
    ViewData["Title"] = "修改数据";
}

<h1>修改数据</h1>
@using (Html.BeginForm("Edit", "Home", FormMethod.Post))
{
    <p>
        @Html.HiddenFor(model => model.ProductId)
        <label>名称</label>

        @Html.EditorFor(model => model.ProductName, new { htmlAttributes = new { @class = "form-control", placeholder = "请输入商品名称" } })
    </p>
    <p>
        <label>价格</label>

        @Html.EditorFor(model => model.ProductPrice, new { htmlAttributes = new { @class = "form-control", placeholder = "请输入商品价格" } })
    </p>
    <p>
        <label>类别</label>

        <select name="CategoryId" class="form-control">
            @foreach (var item in ViewBag.Categories)
            {
                <option value="@item.CategoryId">@item.CategoryName</option>
            }

        </select>
    </p>
    <p>
        <label>库存</label>

        @Html.EditorFor(model => model.Stock, new { htmlAttributes = new { @class = "form-control", placeholder = "请输入商品库存" } })
    </p>
    <p>
        <label>描述</label>

        @Html.EditorFor(model => model.ProductDesc, new { htmlAttributes = new { @class = "form-control", placeholder = "请输入商品库存" } })
    </p>
    <p><input type="submit" name="name" value="保存" class="btn btn-primary" /></p>
}
