ISIS连接的配置过程

最新推荐文章于 2022-05-12 17:39:53 发布

原创

最新推荐文章于 2022-05-12 17:39:53 发布 · 1k 阅读

1 ·

CC 4.0 BY-SA版权

文章标签：

#网络

本文档详细介绍了如何配置ISIS网络，包括在R1、R2、R3和R4路由器上进行isis、接口IP地址设置、启用isis服务等步骤，以实现网络的连通性。

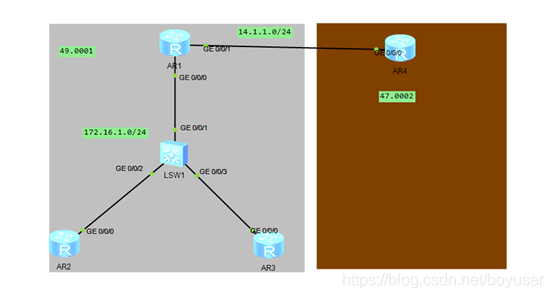

在这里插入图片描述
R1
undo terminal monitor
Info: Current terminal monitor is off.
sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys R1
[R1]user-interface console 0
[R1-ui-console0]idle-timeout 0 0
[R1-ui-console0]quit
[R1]isis
[R1-isis-1]network-entity 49.0001.1111.1111.1111.00
[R1-isis-1]quit
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 172.16.1.1 24
[R1-GigabitEthernet0/0/0]undo shutdown
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[R1-GigabitEthernet0/0/0]isis enable
[R1-GigabitEthernet0/0/0]int loop 0
[R1-LoopBack0]ip add 1.1.1.1 32
[R1-LoopBack0]isis enable
[R1-LoopBack0]int g0/0/1
[R1-GigabitEthernet0/0/1]ip add 14.1.1.1 24
[R1-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[R1-GigabitEthernet0/0/1]isis enable
[R1-GigabitEt
