ExtJS调用WCF-----实现JSON传递

http://www.cnblogs.com/xiaozhuang/archive/2007/12/07/987092.html

首先我们打开我们的VS 新建一个Asp.Net WebApplication Project，(不要给我说新建网站，我讨厌那个东东) 命名为ExtJSAndWCFChapter1 如图：

接下来我们在该项目中新建一个实体类文件和一个AJAX—Enabled WCF SERVICE，分别命名为Employee.cs 和EmployeeService.svc

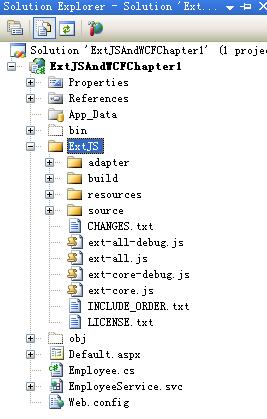

下面去ExtJS.Com网站下载一个ExtJS 2.0 ，解压缩后拷贝至Default.aspx相同目录下，并包括在项目中。如图：

下面开始编写代码：先编写Employee.cs的代码，代码如下：

using  System;
using  System.Data;
using  System.Configuration;
using  System.Linq;
using  System.Web;
using  System.Web.Security;
using  System.Web.UI;
using  System.Web.UI.HtmlControls;
using  System.Web.UI.WebControls;
using  System.Web.UI.WebControls.WebParts;
using  System.Xml.Linq;
using  System.Runtime.Serialization;

namespace  ExtJSAndWCFChapter1
{
    [DataContract]
     public  class  Employee
     {
            [DataMember]
             public  Guid EmployeeID  {  set ;  get ; }
            [DataMember]
             public  string  CnName  {  set ;  get ; }
            [DataMember]
             public  bool  Sex  {  set ;  get ; }
            [DataMember]
             public  int  Age  {  set ;  get ; }
            [DataMember]
             public  DateTime Birthday  {  set ;  get ; }
            [DataMember]
             public  string  Email  {  set ;  get ; }

    }
}

接下来编写EmployeeService.cs的代码，代码如下：

using  System;
using  System.Linq;
using  System.Runtime.Serialization;
using  System.ServiceModel;
using  System.ServiceModel.Activation;
using  System.ServiceModel.Web;
using  System.Collections.Generic;

namespace  ExtJSAndWCFChapter1
{
    [ServiceContract(Namespace  =  "" )]
    [AspNetCompatibilityRequirements(RequirementsMode  =  AspNetCompatibilityRequirementsMode.Allowed)]
     public  class  EmployeeService
     {
         //  Add [WebGet] attribute to use HTTP GET
        [OperationContract]
         public  void  DoWork()
         {
             //  Add your operation implementation here
             return ;
        }

         //  Add more operations here and mark them with [OperationContract]
         ///  <summary>
         ///  创建一个实体，实体由客户端传递
         ///  </summary>
         ///  <param name="emp"></param>
         ///  <returns></returns>
        [OperationContract]
        [WebInvoke(BodyStyle  =  WebMessageBodyStyle.Wrapped, RequestFormat  =  WebMessageFormat.Json, ResponseFormat  =  WebMessageFormat.Json, UriTemplate  =  " /Create " )]
         public  Guid Create(Employee emp)
         {
            NotNull(emp.CnName,  " CnName " );
             return  Guid.NewGuid();
        }

         ///  <summary>
         ///  获取一个实体
         ///  </summary>
         ///  <param name="id"></param>
         ///  <returns></returns>
        [OperationContract]
        [WebInvoke(BodyStyle  =  WebMessageBodyStyle.Bare, RequestFormat  =  WebMessageFormat.Json, ResponseFormat  =  WebMessageFormat.Json, UriTemplate  =  " /Get " )]
         public  Employee Get( int  id)
         {
             if  (id  !=  1 )  throw  new  ArgumentException( " Expected 1 for ID " );
             return  new  Employee()  { EmployeeID  =  Guid.NewGuid(), CnName  =  " Xiaozhuang " , Sex  =  true , Age  =  28 , Email  =  " iamxiaozhuang@163.com " , Birthday  =  new  DateTime( 1979 ,  02 ,  02 ) } ;
        }

         ///  <summary>
         ///  获取所有实体
         ///  </summary>
         ///  <returns></returns>
        [OperationContract]
        [WebInvoke(BodyStyle  =  WebMessageBodyStyle.Wrapped, RequestFormat  =  WebMessageFormat.Json, ResponseFormat  =  WebMessageFormat.Json, UriTemplate  =  " /GetAll " )]
         public  List < Employee >  GetAll()
         {
             return  new  List < Employee >
             {
                 new  Employee() {EmployeeID  =  Guid.NewGuid(),CnName = " CnName " ,Sex = true ,Age = 28 ,Email = " email@saf.com " ,Birthday = new  DateTime( 1979 , 02 , 02 )} ,
                 new  Employee() {EmployeeID  =  Guid.NewGuid(),CnName = " CnName1 " ,Sex = false ,Age = 28 ,Email = " email1@saf.com " ,Birthday = new  DateTime( 1979 , 02 , 02 )}
            } ;
        }

         ///  <summary>
         ///  获取num个实体
         ///  </summary>
         ///  <param name="num"></param>
         ///  <returns></returns>
        [OperationContract]
        [WebInvoke(BodyStyle  =  WebMessageBodyStyle.Bare, RequestFormat  =  WebMessageFormat.Json, ResponseFormat  =  WebMessageFormat.Json, UriTemplate  =  " /GetByNum " )]
         public  List < Employee >  GetByNum( int  num)
         {
             if  (num.ToString()  ==  "" )  throw  new  ArgumentException( " 参数错误！ " );
            List < Employee >  emplist  =  new  List < Employee > ();
             for  ( int  i  =  1 ; i  <=  num; i ++ )
             {
                Employee emp  =  new  Employee()  { EmployeeID  =  Guid.NewGuid(), CnName  =  i  +  " CnName " , Sex  =  true , Age  =  i  *  10 , Email  =  i  +  " email@163.com " , Birthday  =  new  DateTime( 1979 ,  02 ,  02 ) } ;
                emplist.Add(emp);
            }
             return  emplist;
        }

         private  static  void  NotNull < T > (T o,  string  paramName) where T :  class
         {
             if  (o  ==  null )  throw  new  ArgumentNullException(paramName);
        }
    }
}

主 要就是这一句        [WebInvoke(BodyStyle = WebMessageBodyStyle.Wrapped, RequestFormat = WebMessageFormat.Json, ResponseFormat = WebMessageFormat.Json, UriTemplate = "/Create")]
意思就是说这个方法传递输入和输出参数都是Json形式，并且可以用后面加Create的形式来访问该方法，至于前面那个BodyStyle = WebMessageBodyStyle.Wrapped是什么意思留着下节详细说明

接下来修改Web.Config文件，其实只是是把<enableWebScript /> 替换为<webHttp/>代码如下(一部分)



< system.serviceModel >
         < behaviors >
             < endpointBehaviors >
                 < behavior name = " ExtJSAndWCFChapter1.EmployeeServiceAspNetAjaxBehavior " >
                     <!--< enableWebScript  />-->
                     < webHttp />
                 </ behavior >
             </ endpointBehaviors >
         </ behaviors >
         < serviceHostingEnvironment aspNetCompatibilityEnabled = " true " />
         < services >
             < service name = " ExtJSAndWCFChapter1.EmployeeService " >
                 < endpoint address = ""  behaviorConfiguration = " ExtJSAndWCFChapter1.EmployeeServiceAspNetAjaxBehavior "  binding = " webHttpBinding "  contract = " ExtJSAndWCFChapter1.EmployeeService " />
             </ service >
         </ services >
     </ system.serviceModel >

现在可以编译并访问那个EmployeeService.svc文件，后面加上 UriTemplate的值：例如http://localhost:1481/EmployeeService.svc/get。会得到“Method not allowed”的提示。如果访问出现错误，请确认修改的Web.Config是否正确。
接下来编写Default.aspx的代码：代码如下

<% @ Page Language = " C# "  AutoEventWireup = " true "  CodeBehind = " Default.aspx.cs "  Inherits = " ExtJSAndWCFChapter1._Default "   %>

<! DOCTYPE html PUBLIC  " -//W3C//DTD XHTML 1.0 Transitional//EN "   " http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd " >

< html xmlns = " http://www.w3.org/1999/xhtml "   >
< head runat = " server " >
     < title > Untitled Page </ title >
     < link rel = " stylesheet "  type = " text/css "  href = " ExtJS/resources/css/ext-all.css "   />
     <!--  GC  -->
     <!--  LIBS  -->

     < script type = " text/javascript "  src = " ExtJS/adapter/ext/ext-base.js " ></ script >

     < script type = " text/javascript "  src = " ExtJS/ext-all-debug.js " ></ script >
     < script type = " text/javascript "  src = " ExtJS/ext-all.js " ></ script >

     <!--  ENDLIBS  -->

     < script type = " text/javascript "  language = " javascript " >
     Ext.onReady(function()  {
      // 设置Content-Type为application/json形式
     Ext.lib.Ajax.defaultPostHeader  =  ' application/json ' ;
      // 访问失败的统一回调函数
     var onFailure  =  function(r, opts)
      {
      Ext. get ( " errors " ).insertHtml( ' afterend ' ,  ' <br/><br/> '  +  r.responseText,  false );
    }
     // 客户端创建一个实体
    var request = {
    emp: {     CnName: ' xiaozhuang ' ,
              Sex: 1 ,
              Age: 28 ,
              Birthday: ' /Date(62831853071)/ ' ,
              Email: ' Iamxiaozhuang@hotmail.com '
    }
    }
    Ext.Ajax.request( {
    url:  ' /EmployeeService.svc/Create ' , // 要访问的方法地址
     method:  ' POST ' ,
      params : Ext.util.JSON.encode(request),  // 把输入参数进行JSON编码
     success: function(response, options)  { Ext. get ( ' create-p ' ).update(response.responseText);  } ,  // 输出方法返回结果
     failure: onFailure
     } );
     Ext.Ajax.request( {
     url:  ' /EmployeeService.svc/Get ' ,
     method:  ' POST ' ,
      params : Ext.util.JSON.encode( 1 ),
     success: function(response, options)  { Ext. get ( ' get-p ' ).update(response.responseText); } ,
     failure: onFailure
     } );
     Ext.Ajax.request( {
     url:  ' EmployeeService.svc/GetAll ' ,
     method:  ' POST ' ,
     success: function(response, options)  { Ext. get ( ' getall-p ' ).update(response.responseText);} ,
     failure: onFailure
     } );
     Ext.Ajax.request( {
     url:  ' EmployeeService.svc/GetByNum ' ,
     method:  ' POST ' ,
      params : Ext.util.JSON.encode( 8 ),
     success: function(response, options)  { Ext. get ( ' GetByNum-p ' ).update(response.responseText);} ,
     failure: onFailure
     } );
     } );
     </ script >
</ head >
< body >
     < form id = " form1 "  runat = " server " >
      < div >
         < h3 >
            Create: </ h3 >
         < p id = " create-p " >
         </ p >
         < h3 >
            Get: </ h3 >
         < p id = " get-p " >
         </ p >
         < h3 >
            GetAll: </ h3 >
         < p id = " getall-p " >
         </ p >
         < h3 >
            GetByNum: </ h3 >
         < p id = " GetByNum-p " >
         </ p >
         < p id = " errors " >
         </ p >
     </ div >
     </ form >
</ body >
</ html >

最终的运行效果：

源代码下载在这里
