FastDFS+Nginx

每台存储节点都要部署Nginx
nginx版本必须要>=1.8.1

解决依赖关系
yum -y install pcre-devel openssl-devel

安装Nginx
[root@tom01 tools]# useradd www -s /sbin/nologin -M
[root@tom01 tools]# tar xf nginx-1.15.8.tar.gz
[root@tom01 tools]# git clone https://github.com/happyfish100/fastdfs-nginx-module.git
[root@tom01 tools]# cd nginx-1.15.8

./configure --prefix=/usr/local/nginx --user=www --group=www --with-http_ssl_module --with-http_stub_status_module --add-module=/tools/fastdfs-nginx-module/src/ --without-http_rewrite_module

注：–add-module=/tools/fastdfs-nginx-module/src/ fastdfs-nginx绝对路径

[root@tom01 nginx-1.15.8]# make && make install

复制 fastdfs-nginx-module 源码中的配置文件到/etc/fdfs 目录
[root@tom01 tools]#cp /tools/fastdfs-nginx-module/src/mod_fastdfs.conf /etc/fdfs/

复制 FastDFS 的部分配置文件到/etc/fdfs 目录
[root@tom01 tools]# cd /tools/fastdfs/conf/
[root@tom01 conf]# cp anti-steal.jpg http.conf mime.types /etc/fdfs/

修改nginx配置文件
[root@tom01 conf]# vim /usr/local/nginx/conf/nginx.conf
location /group1/M00 {
root /data/fdfs_storage/store;
ngx_fastdfs_module;
}

注：/group1/M00 group1 为创建的存储卷名
/data/fdfs_storage/store 为设置的存储路径

[root@tom01 conf]# /usr/local/nginx/sbin/nginx -t
ngx_http_fastdfs_set pid=6689
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful

[root@tom01 conf]# vim /etc/fdfs/mod_fastdfs.conf
40 tracker_server=192.168.56.7:22122
53 url_have_group_name = true url中是否包含group名称 可以开启
62 store_path0=/data/fdfs_storage/store 设置的存储路径

修改跟踪服务器配置文件 http访问端口
[root@tom01 ~]# vim /etc/fdfs/tracker.conf
261 http.server_port=80

启动nginx
[root@tom01 ~]# /usr/local/nginx/sbin/nginx
ngx_http_fastdfs_set pid=6722
出现ngx_http_fastdfs_set pid 表示成功

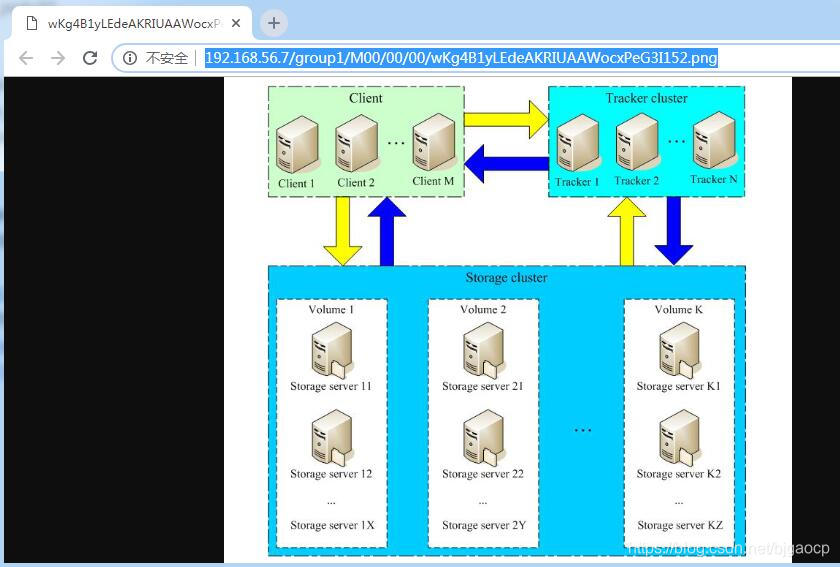

浏览器访问
[root@tom01 ~]# fdfs_upload_file /etc/fdfs/client.conf 24.png
group1/M00/00/00/wKg4B1yLEdeAKRIUAAWocxPeG3I152.png

http://192.168.56.7/group1/M00/00/00/wKg4B1yLEdeAKRIUAAWocxPeG3I152.png
