Revit二开--视图中隐藏revit链接

Revit二开–视图中隐藏revit链接

在Revit中隐藏类别 BuiltInCategory.OST_RvtLinks 会出现错误提示，原因是revit不支持隐藏这个类别。解决方法是隐藏RevitLinkInstance或者RevitLinkType。

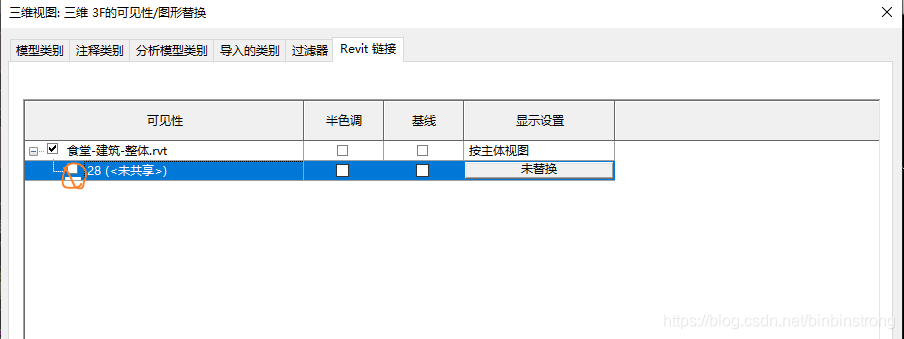

隐藏RevitLinkInstance相当于在视图显示里面隐藏链接实例

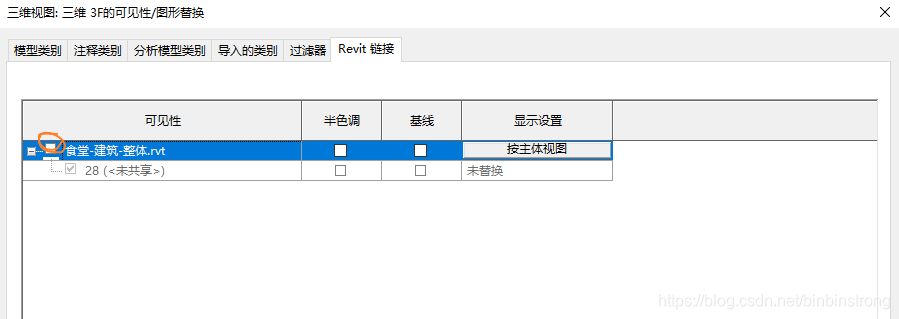

隐藏RevitLinkType相当于在视图可见性里面隐藏链接类别

隐藏Revit链接类别 代码如下

  /// <summary>
    /// 隐藏revit链接
    /// </summary>
    [Transaction(TransactionMode.Manual)]
    class Cmd_HideRevitInstance:IExternalCommand
    {
        public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements)
        {
            var uiapp = commandData.Application;
            var uidoc = uiapp.ActiveUIDocument;
            var doc = uidoc.Document;

            var acview = doc.ActiveView;

            var collector = new FilteredElementCollector(doc);
            var revitlinktypes = collector.OfClass(typeof(RevitLinkType)).ToList();


            Transaction ts = new Transaction(doc, "hide revitlink");
            ts.Start();
            acview.HideElements(revitlinktypes.Select(m => m.Id).ToList());
            ts.Commit();
            return Result.Succeeded;
        }
    }

更多Revit二开知识尽在唐僧课堂！QQ群:166072827
