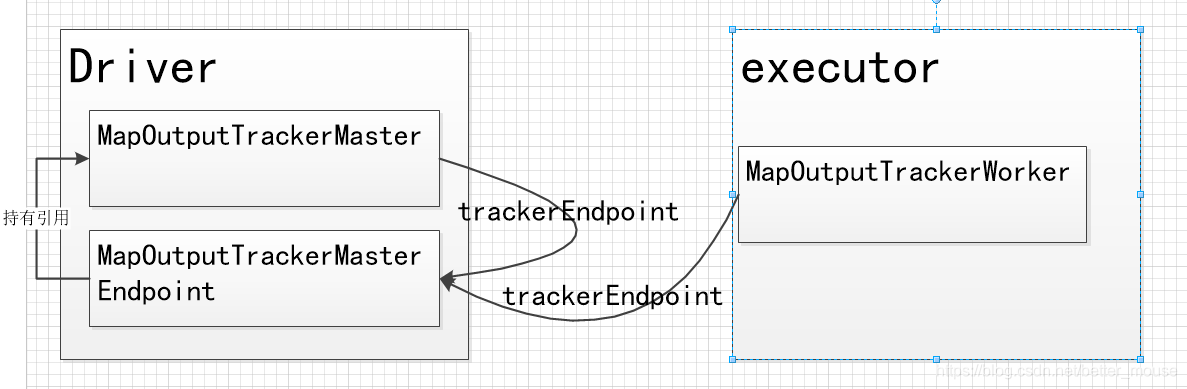

MapOutputTracker 图
简述
MapOutputTracker
保持追踪一个阶段map输出的位置的类.这个类是抽像的,因为driver和executor有不同的MapOutputTracker版本
MapOutputTrackerMaster
Driver-side的类,跟踪一个stage map输出的位置
DAGScheduler用这个类来 注册/取消注册 map输出的状态,查看任务位置感知来减少任务的调度
ShuffleMapStage 用这个类来追踪可用的/错过的outputs,来决定那个任务需要被运行
MapOutputTrackerWorker
Executor端的client从drive 的MapOutputTrackerMaster抓取map输出信,注意这不用在local-mode,local模式可以直接访问MapOutputTrackerMaster
在mapreduce任务中,发了生shuffle,reduce依赖于前一个map任务的结果,这些类就是用来缓存某一次shuffle后,map每个分区的结果.
方法
// DAGScheduler的createShuffleMapStage方法调用
// 在DAGScheduler切分stage的时候,向MapOutputTrackerMaster注册stage,
def registerShuffle(shuffleId: Int, numMaps: Int) {
if (shuffleStatuses.put(shuffleId, new ShuffleStatus(numMaps)).isDefined) {
throw new IllegalArgumentException("Shuffle ID " + shuffleId + " registered twice")
}
}
// DAGScheduler的handleTaskCompletion方法调用
//当DAGScheduler监听到任务完成时,会调用registerMapOutput,写入这个map输出的对应分区的数据
def registerMapOutput(shuffleId: Int, mapId: Int, status: MapStatus) {
shuffleStatuses(shuffleId).addMapOutput(mapId, status)
}
//以remove unregister开头的方法
//当executor挂点,主机结点挂掉的时候,都要丢弃对应的数据.
//同时该用 incrementEpoch()方法
/**
* Removes all shuffle outputs associated with this host. Note that this will also remove
* outputs which are served by an external shuffle server (if one exists).
*/
def removeOutputsOnHost(host: String): Unit = {
shuffleStatuses.valuesIterator.foreach { _.removeOutputsOnHost(host) }
incrementEpoch()
}
//epoch 是一个数据的版本快照,如果数据有变化,版本快照应该+1.
def incrementEpoch() {
epochLock.synchronized {
epoch += 1
logDebug("Increasing epoch to " + epoch)
}
}
/**
在ShuffleMapStage中被调用.
* Returns the sequence of partition ids that are missing (i.e. needs to be computed), or None
* if the MapOutputTrackerMaster doesn't know about this shuffle.
* 返回缺失的partition,需要再次计算
*/
def findMissingPartitions(shuffleId: Int): Option[Seq[Int]] = {
shuffleStatuses.get(shuffleId).map(_.findMissingPartitions())
}
