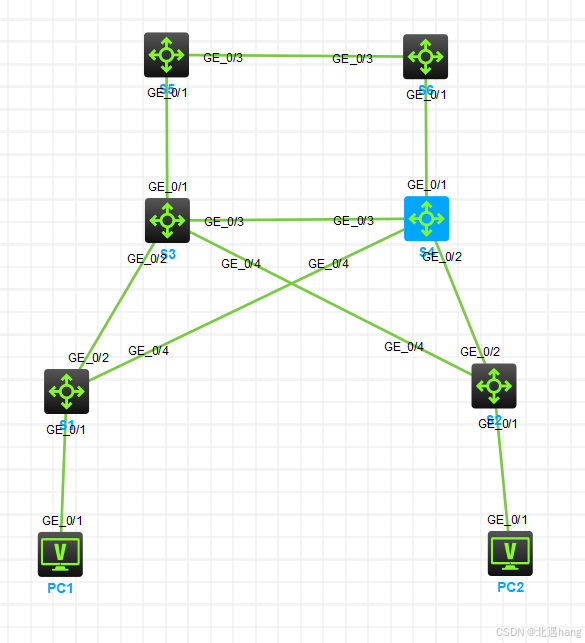

MSTP VRRP部署

s1
vlan 10
port g1/0/1
quit
stp mode mstp
stp region-configuration
region-name H3C
revision-level 1
instance 10 vlan 10
instance 20 vlan 20
active region-configuration
quit

s2
vlan 20
port g1/0/1
quit
stp mode mstp
stp region-configuration
region-name H3C
revision-level 1
instance 10 vlan 10
instance 20 vlan 20
active region-configuration
quit

s3
vlan 10
vlan 20
quit
stp mode mstp
stp region-configuration
region-name H3C
revision-level 1
instance 10 vlan 10
instance 20 vlan 20
active region-configuration
quit
stp instance 10 root primary
stp instance 20 root secondary

s4
vlan 10
vlan 20
quit
stp mode mstp
stp region-configuration
region-name H3C
revision-level 1
instance 10 vlan 10
instance 20 vlan 20
active region-configuration
quit
stp instance 20 root primary
stp instance 10 root secondary

VRRP
S3
interface vlan 10
ip address 10.30.1.252 24
quit
interface vlan 20
ip address 10.30.2.252 24
quit
interface vlan 10
vrrp vrid 10 virtual-ip 10.30.1.254
vrrp vrid 10 priority 120
vrrp vrid 10 preempt-mode delay 100
quit
interface vlan 20
vrrp vrid 20 virtual-ip 10.30.2.254
quit
track 10 interface g1/0/1
delay negative 10
interface vlan 10
vrrp vrid 10 track 10 priority reduced 30
quit


s4
interface vlan 10
ip address 10.30.1.253 24
quit
interface vlan 20
ip address 10.30.2.253 24
quit
interface vlan 10
vrrp vrid 10 virtual-ip 10.30.1.254
quit
interface vlan 20
vrrp vrid 20 virtual-ip 10.30.2.254
vrrp vrid 20 priority 120
vrrp vrid 20 preempt-mode delay 100
quit
track 20 interface g1/0/1
delay negative 10
interface vlan 20
vrrp vrid 20 track 20 priority reduced 30
quit

添加ip
s3
interface LoopBack 0
ip address 172.17.1.3 32
interface g1/0/1
port link-mode route
y
ip address 10.20.35.1 30

s4
interface LoopBack 0
ip address 172.17.1.4 32
interface g1/0/1
port link-mode route
y
ip address 10.20.46.1 30

s5
interface LoopBack 0
ip address 172.17.1.5 32
interface g1/0/1
port link-mode route
y
ip address 10.20.35.2 30
interface g1/0/3
port link-mode route
y
ip address 10.20.56.1 30

s6
interface LoopBack 0
ip address 172.17.1.6 32
interface g1/0/1
port link-mode route
y
ip address 10.20.46.2 30
interface g1/0/3
port link-mode route
y
ip address 10.20.56.2 30

RIP
s3
rip
version 2
undo summary
network 10.20.35.0 0.0.0.3
network 10.30.1.0 0.0.0.255

s4
rip
version 2
undo summary
network 10.20.46.0 0.0.0.3
network 10.30.2.0 0.0.0.255

s5
rip
version 2
undo summary
network 10.20.35.0 0.0.0.3
network 10.20.56.0 0.0.0.3

s6
rip
version 2
undo summary
network 10.20.46.0 0.0.0.3
network 10.20.56.0 0.0.0.3


trunk
s1
interface range g1/0/2 g1/0/4
port link-type trunk
port trunk permit vlan 10 20

s2
interface range g1/0/2 g1/0/4
port link-type trunk
port trunk permit vlan 10 20

s3
interface range g1/0/2 g1/0/3 g1/0/4
port link-type trunk
port trunk permit vlan 10 20

s4
interface range g1/0/2 g1/0/3 g1/0/4
port link-type trunk
port trunk permit vlan 10 20


部署联动机制
s3
track 10 interface g1/0/1
delay negative 10
interface vlan 10
vrrp vrid 10 track 10 priority reduce 30
quit

s4
track 20 interface g1/0/1
delay negative 10
interface vlan 20
vrrp vrid 20 track 20 priority reduce 30
quit

bfd监测联动
s3
bfd echo-source-ip 33.33.33.33
track 20 bfd echo interface vlan-interface 20 remote ip 10.30.2.253 local ip 10.30.2.252
interface vlan 20
vrrp vrid 20 track 20 switchover
quit

s4
bfd echo-source-ip 44.44.44.44
track 10 bfd echo interface vlan-interface 10 remote ip 10.30.1.252 local ip 10.30.1.253
interface vlan 10
vrrp vrid 10 track 10 switchover
quit

s1
vlan 10
port g1/0/1
quit
stp mode mstp
stp region-configuration
region-name H3C
revision-level 1
instance 10 vlan 10
instance 20 vlan 20
active region-configuration
quit
vlan 10
port g1/0/1
quit
stp mode mstp
stp region-configuration
region-name H3C
revision-level 1
instance 10 vlan 10
instance 20 vlan 20
active region-configuration
quit

s2
vlan 20
port g1/0/1
quit
stp mode mstp
stp region-configuration
region-name H3C
revision-level 1
instance 10 vlan 10
instance 20 vlan 20
active region-configuration
quit
interface range g1/0/2 g1/0/4
port link-type trunk
port trunk permit vlan 10 20

s3
vlan 10
vlan 20
stp mode mstp
stp region-configuration
region-name H3C
revision-level 1
instance 10 vlan 10
instance 20 vlan 20
active region-configuration
quit
stp instance 10 root primary
stp instance 20 root secondary
interface vlan 10
ip address 10.30.1.252 24
quit
interface vlan 20
ip address 10.30.2.252 24
interface vlan 10
vrrp vrid 10 virtual-ip 10.30.1.254
vrrp vrid 10 priority 120
vrrp vrid 10 preempt-mode delay 100
quit
interface vlan 20
vrrp vrid 20 virtual-ip 10.30.2.254
quit
track 10 interface g1/0/1
delay negative 10
interface vlan 10
vrrp vrid 10 track 10 priority reduced 30
interface LoopBack 0
ip address 172.17.1.3 32
interface g1/0/1
port link-mode route
y
ip address 10.20.35.1 30
quit
rip
version 2
undo summary
network 10.20.35.0 0.0.0.3
network 10.30.1.0 0.0.0.255
quit
interface range g1/0/2 g1/0/3 g1/0/4
port link-type trunk
port trunk permit vlan 10 20
quit
track 10 interface g1/0/1
delay negative 10
interface vlan 10
vrrp vrid 10 track 10 priority reduce 30
quit
bfd echo-source-ip 33.33.33.33
track 20 bfd echo interface vlan-interface 20 remote ip 10.30.2.253 local ip 10.30.2.252
interface vlan 20
vrrp vrid 20 track 20 switchover
quit

s4
vlan 10
vlan 20
quit
stp mode mstp
stp region-configuration
region-name H3C
revision-level 1
instance 10 vlan 10
instance 20 vlan 20
active region-configuration
stp instance 20 root primary
stp instance 10 root secondary
interface vlan 10
ip address 10.30.1.253 24
interface vlan 20
ip address 10.30.2.253 24
quit
interface vlan 10
vrrp vrid 10 virtual-ip 10.30.1.254
interface vlan 20
vrrp vrid 20 virtual-ip 10.30.2.254
vrrp vrid 20 priority 120
vrrp vrid 20 preempt-mode delay 100
quit
track 20 interface g1/0/1
delay negative 10
interface vlan 20
vrrp vrid 20 track 20 priority reduced 30
quit
interface LoopBack 0
ip address 172.17.1.4 32
interface g1/0/1
port link-mode route
y
ip address 10.20.46.1 30
quit
rip
version 2
undo summary
network 10.20.46.0 0.0.0.3
network 10.30.2.0 0.0.0.255
quit
interface range g1/0/2 g1/0/3 g1/0/4
port link-type trunk
port trunk permit vlan 10 20
quit
track 20 interface g1/0/1
delay negative 10
interface vlan 20
vrrp vrid 20 track 20 priority reduce 30
quit
bfd echo-source-ip 44.44.44.44
track 10 bfd echo interface vlan-interface 10 remote ip 10.30.1.252 local ip 10.30.1.253
interface vlan 10
vrrp vrid 10 track 10 switchover
quit

s5
interface LoopBack 0
ip address 172.17.1.5 32
interface g1/0/1
port link-mode route
y
ip address 10.20.35.2 30
interface g1/0/3
port link-mode route
y
ip address 10.20.56.1 30
quit
rip
version 2
undo summary
network 10.20.35.0 0.0.0.3
network 10.20.56.0 0.0.0.3

s6
interface LoopBack 0
ip address 172.17.1.6 32
interface g1/0/1
port link-mode route
y
ip address 10.20.46.2 30
interface g1/0/3
port link-mode route
y
ip address 10.20.56.2 30
quit
rip
version 2
undo summary
network 10.20.46.0 0.0.0.3
network 10.20.56.0 0.0.0.3
