无线学习配对发射模块开发者文档

无线学习配对发射模块ASC51K介绍

模块价值与口号: 让所有单片机快速实现控制433MHz 315MHz 390MHz 418MHz 等所有频率无线家电设备，可以学习发射100组无线指令。
官方文档网站 https://zh1024.com/433 或者 官方文档网站 https://zh1024.hsk.top/433

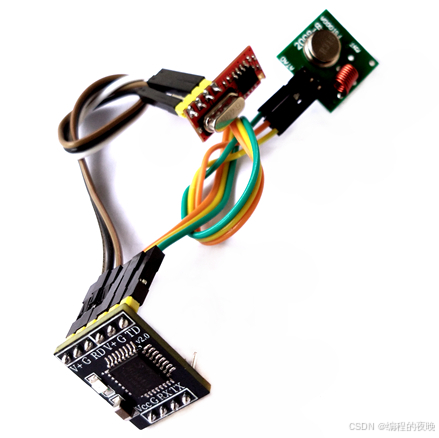

无线学习配对发射模块ASC51K展示

无线学习配对发射模块ASC51K案例视频

天问语音模块结合ASC51K无线学习配对发射模块实现433M等任意频率 智能无线家居控制 物联网控制 手机控制 小程序控制(结尾附源码)

天问语音模块结合ASC51K无线学习配对发射模块实现433M等任意频率 智能无线家居控制 物联网控制 手机控制 小程序控制(结尾附源码) 点击播放

天问语音交互模块结合ASC51K无线学习配对发射模块实现卷帘门控制 智能家居 手机app控制 小程序控制(结尾附源码)

语音交互模块结合ASC51K无线学习配对发射模块实现卷帘门控制 智能家居 手机app控制 小程序控制(结尾附源码) 点击播放

串口助手下载

电脑串口助手软件地址1 点击下载
电脑串口助手软件地址2 点击下载

串口助手收发数据演示

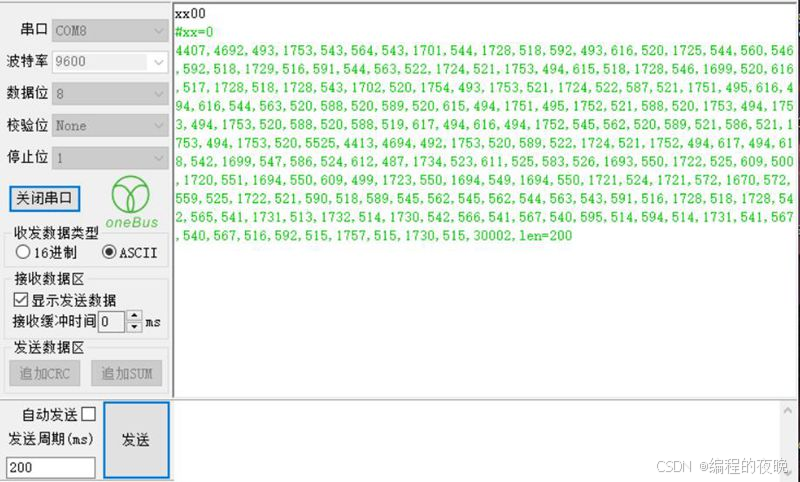

学习指令：串口发送xx00模块红色指示灯常亮15秒左右，在15秒内请对准模块按下需要学习的遥控器按键以完成学习

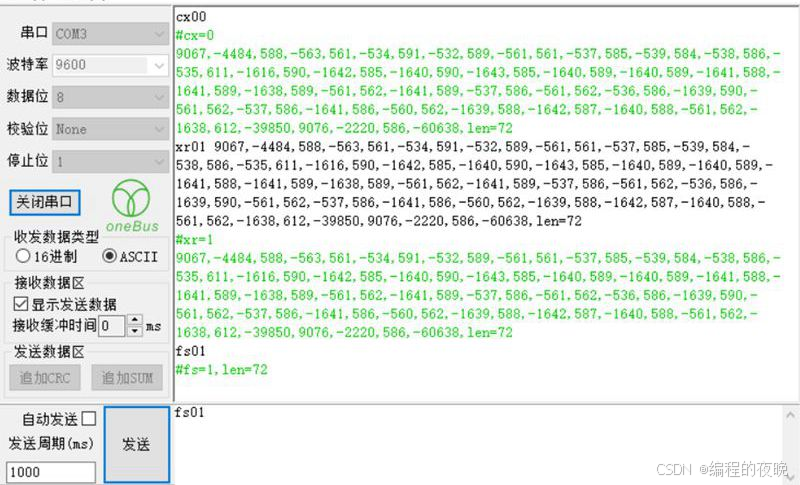

查询指令 发射指令：串口发送cx00如图查询刚刚学习的00编号数据，串口发送fs00就可以发送刚刚学习的00编号指令

写入指令：串口发送xr01+空格+数据 如图写入数据到01编号中，串口发送fs01就可以发送刚刚写入的01编号指令
（写入的数据格式可以没有负号标识,len=长度值可以不写,可以直接len结尾）

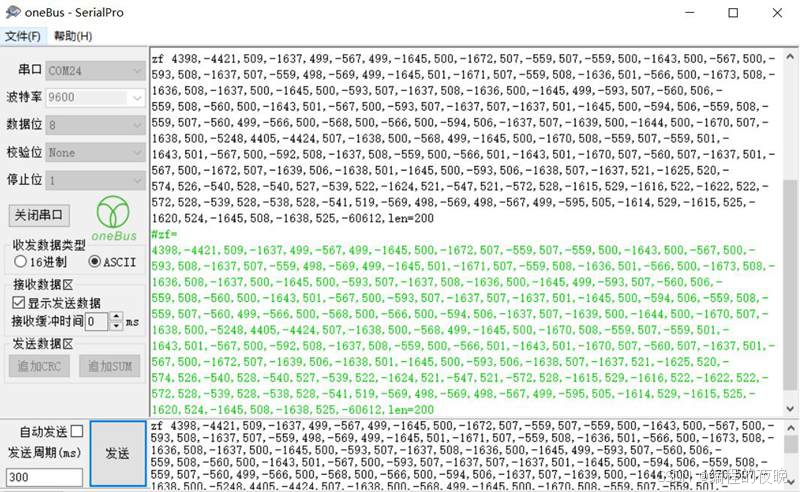

直发指令：串口发送zf+空格+数据 ，就可以直接发送指令，数据不会保存在模块中，属于直接发射数据
（数据格式可以没有负号标识,len=长度值可以不写,可以直接len结尾）

无线学习配对发射模块规格手册

• 存储范围：
  1.可存储100组无线数据，编号00-99
  2.如果你的无线指令很长len>=255长度无线指令 那么学习xx00后下一个学习编码需要跳一个格子是xx02
  3.因为一个编码格子只能存放255长度的数据 ，如果超过这个长度，自动使用2个格子保存。

• 工作电压：
  电压范围：工作电压介于3.3V至5V之间，这为设计电路时提供了一定的灵活性。

• 通信电平：
  匹配电压：在3.3-5V内进行串口通信。

• 载波频率：
  任意值：433MHz 315MHz 390MHz 418MHz 等所有频率，这使得可以模仿发射多种频率信号。

• 编码格式学习与发射：
  灵活性：能够学习并发射几乎任意编码格式，这使得遥控器可以编程模仿多种设备遥控信号。（滚动码可学习但无效）

• 串口通信速度：
  标准设置：9600，这是串口通信中常用的波特率设置，保证了数据传输的稳定性和速度。

• 串口通信格式：
  支持格式：支持ASCII码与16进制，为不同编程语言和通信协议提供了兼容性。
  通信距离与角度：

• 通信距离：可视距离100米左右

无线学习配对发射模块ASC51K结合Arduio单片机示例

void setup() {

  Serial.begin(9600);//定义串口波特率
  Serial.print("xx00");//学习00编号无线，范围00-99

}

void loop(){

delay(5000);
Serial.print("fs00");//发射00编号无线 ，范围00-99

}


遥控器4个键值示例 可写入到无线学习配对发射模块ASC51K测试发射

11088,-381,1051,-1116,341,-1108,355,-363,1070,-368,1046,-371,1068,-373,1062,-376,1062,-376,1059,-379,1059,-381,1054,-1113,347,-1105,357,-363,1073,-1100,360,-1092,368,-355,1081,-357,1078,-363,1073,-1097,363,-1092,371,-349,1086,-355,1081,-360,1076,-365,11099,-379,1059,-1110,349,-1102,357,-363,1076,-365,1070,-368,1068,-373,1065,-376,1062,-376,1059,-381,1057,-381,1057,-1113,349,-1102,357,-365,1073,-1097,363,-1092,368,-352,1084,-357,1078,-363,1076,-1094,365,-1089,371,-352,1084,-355,1081,-360,1076,-365,11096,-379,1059,-1110,349,-1102,357,-363,1076,-363,1073,-368,1068,-373,1065,-373,1062,-379,1059,-379,1059,-379,1057,-1113,347,-1105,357,-365,1073,-1097,363,-1089,371,-352,1084,-357,1078,-363,1076,-1097,363,-1089,371,-349,1086,-357,1078,-360,1078,-363,len=150

11184,-301,1129,-1041,411,-1038,411,-309,1121,-320,1094,-323,1108,-333,1102,-339,1094,-344,1092,-347,1086,-355,1078,-1089,368,-1081,376,-344,1089,-1078,379,-1073,384,-336,1097,-344,1094,-347,1086,-1084,371,-347,1089,-1081,376,-347,1089,-349,1086,-355,11112,-368,1068,-1100,357,-1092,363,-357,1078,-363,1076,-363,1073,-368,1068,-371,1065,-371,1068,-373,1062,-376,1059,-1105,352,-1097,357,-360,1078,-1092,365,-1084,371,-352,1084,-357,1081,-357,1078,-1089,368,-355,1078,-1089,368,-352,1084,-357,1078,-360,11107,-376,1059,-1105,352,-1097,360,-357,1078,-363,1073,-365,1070,-371,1065,-373,1062,-373,1065,-373,1062,-379,1057,-1108,349,-1100,357,-363,1073,-1094,363,-1086,368,-352,1086,-355,1081,-357,1078,-1092,365,-355,1081,-1089,368,-352,1084,-355,1081,-357,len=150

11131,-347,1086,-1081,373,-1073,379,-339,1094,-347,1068,-349,1086,-352,1084,-355,1081,-360,1076,-365,1070,-368,1068,-1097,360,-1089,365,-355,1081,-1089,368,-1081,376,-344,1092,-349,1086,-355,1081,-1086,368,-352,1086,-355,1081,-1089,368,-352,1086,-355,11115,-371,1065,-1102,355,-1094,363,-357,1078,-363,1073,-365,1073,-368,1068,-371,1068,-373,1065,-373,1062,-379,1059,-1105,349,-1100,357,-363,1076,-1092,365,-1086,371,-349,1086,-355,1081,-360,1076,-1092,365,-355,1084,-357,1078,-1092,365,-355,1081,-360,11117,-373,1065,-1102,352,-1097,363,-357,1078,-363,1076,-365,1073,-368,1068,-371,1065,-373,1065,-376,1062,-376,1062,-1105,352,-1097,360,-360,1076,-1094,365,-1086,368,-352,1086,-357,1081,-360,1078,-1092,365,-355,1081,-360,1078,-1092,365,-355,1081,-360,len=150

11131,-352,1081,-1086,368,-1078,376,-344,1092,-347,1068,-352,1084,-355,1081,-360,1078,-363,1076,-365,1070,-368,1070,-1100,357,-1092,365,-357,1081,-1089,368,-1081,376,-347,1089,-352,1084,-357,1081,-1089,368,-352,1086,-357,1078,-363,1076,-1092,365,-355,11123,-371,1065,-1105,352,-1097,360,-360,1081,-360,1078,-363,1073,-368,1070,-371,1068,-371,1068,-373,1065,-376,1059,-1108,352,-1100,360,-360,1078,-1092,365,-1086,371,-349,1086,-357,1081,-357,1081,-1092,368,-352,1084,-360,1076,-365,1076,-1092,365,-357,11117,-373,1065,-1102,355,-1094,363,-360,1078,-363,1076,-363,1073,-368,1073,-371,1068,-373,1062,-376,1062,-379,1059,-1108,349,-1100,360,-360,1078,-1092,365,-1086,371,-352,1086,-352,1084,-360,1078,-1092,365,-355,1081,-360,1078,-363,1076,-1092,365,-357,len=150
