win10在Anaconda3下面安装caffe框架（CPU）Python2.7从入门到放弃

最新更新

https://blog.youkuaiyun.com/baidu_40691432/article/details/121426736

电脑系统重装，在2021年的11月再次在win10系统上安装caffe进行对比实验代码运行。

注意事项：

1. CPU-Only版本安装较为简单。不需要考虑cuda和cudnn相关版本适配等问题。但计算速度要比GPU版本的慢。

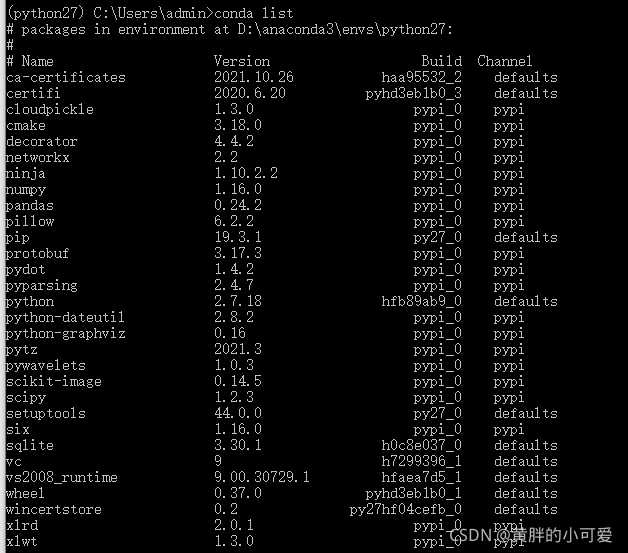

2. python2.7配套visual studio2013进行安装，anaconda新建环境内部安装cmake。新安装环境下的各版本信息：其中，caffe版本在这里不显示。
3. caffe运行的文件夹。其中，caffe是github上下载的文件夹，切到window版本。

   https://github.com/BVLC/caffe/tree/windows

   build_win.cmd代码如下，供参考。ninja安装的版本有点问题，withNinja = 0， CPU_only=1,vs=12

   @echo off
   @setlocal EnableDelayedExpansion

   :: Default values
   if DEFINED APPVEYOR (
       echo Setting Appveyor defaults
       if NOT DEFINED MSVC_VERSION set MSVC_VERSION=12
       if NOT DEFINED WITH_NINJA set WITH_NINJA=0
       if NOT DEFINED CPU_ONLY set CPU_ONLY=1
       if NOT DEFINED CUDA_ARCH_NAME set CUDA_ARCH_NAME=Auto
       if NOT DEFINED CMAKE_CONFIG set CMAKE_CONFIG=Release
       if NOT DEFINED USE_NCCL set USE_NCCL=0
       if NOT DEFINED CMAKE_BUILD_SHARED_LIBS set CMAKE_BUILD_SHARED_LIBS=0
       if NOT DEFINED PYTHON_VERSION set PYTHON_VERSION=2
       if NOT DEFINED BUILD_PYTHON set BUILD_PYTHON=1
       if NOT DEFINED BUILD_PYTHON_LAYER set BUILD_PYTHON_LAYER=1
       if NOT DEFINED BUILD_MATLAB set BUILD_MATLAB=0
       if NOT DEFINED PYTHON_EXE set PYTHON_EXE=python
       if NOT DEFINED RUN_TESTS set RUN_TESTS=1
       if NOT DEFINED RUN_LINT set RUN_LINT=1
       if NOT DEFINED RUN_INSTALL set RUN_INSTALL=1

       :: Set python 2.7 with conda as the default python
       if !PYTHON_VERSION! EQU 2 (
           set CONDA_ROOT=C:\Miniconda-x64
       )
       :: Set python 3.5 with conda as the default python
       if !PYTHON_VERSION! EQU 3 (
           set CONDA_ROOT=C:\Miniconda35-x64
       )
       set PATH=!CONDA_ROOT!;!CONDA_ROOT!\Scripts;!CONDA_ROOT!\Library\bin;!PATH!

       :: Check that we have the right python version
       !PYTHON_EXE! --version
       :: Add the required channels
       conda config --add channels conda-forge
       conda config --add channels willyd
       :: Update conda
       conda update conda -y
       :: Download other required packages
       conda install --yes cmake ninja numpy scipy protobuf==3.1.0 six scikit-image pyyaml pydotplus graphviz

       if ERRORLEVEL 1  (
         echo ERROR: Conda update or install failed
         exit /b 1
       )

       :: Install cuda and disable tests if needed
       if !WITH_CUDA! == 1 (
           call %~dp0\appveyor\appveyor_install_cuda.cmd
           set CPU_ONLY=0
           set RUN_TESTS=0
           set USE_NCCL=1
       ) else (
           set CPU_ONLY=1
       )

       :: Disable the tests in debug config
       if "%CMAKE_CONFIG%" == "Debug" (
           echo Disabling tests on appveyor with config == %CMAKE_CONFIG%
           set RUN_TESTS=0
       )

       :: Disable linting with python 3 until we find why the script fails
       if !PYTHON_VERSION! EQU 3 (
           set RUN_LINT=0
       )

   ) else (
       :: Change the settings here to match your setup
       :: Change MSVC_VERSION to 12 to use VS 2013
       if NOT DEFINED MSVC_VERSION set MSVC_VERSION=12
       :: Change to 1 to use Ninja generator (builds much faster)
       if NOT DEFINED WITH_NINJA set WITH_NINJA=0
       :: Change to 1 to build caffe without CUDA support
       if NOT DEFINED CPU_ONLY set CPU_ONLY=1
       :: Change to generate CUDA code for one of the following GPU architectures
       :: [Fermi  Kepler  Maxwell  Pascal  All]
       if NOT DEFINED CUDA_ARCH_NAME set CUDA_ARCH_NAME=Auto
       :: Change to Debug to build Debug. This is only relevant for the Ninja generator the Visual Studio generator will generate both Debug and Release configs
       if NOT DEFINED CMAKE_CONFIG set CMAKE_CONFIG=Release
       :: Set to 1 to use NCCL
       if NOT DEFINED USE_NCCL set USE_NCCL=0
       :: Change to 1 to build a caffe.dll
       if NOT DEFINED CMAKE_BUILD_SHARED_LIBS set CMAKE_BUILD_SHARED_LIBS=0
       :: Change to 3 if using python 3.5 (only 2.7 and 3.5 are supported)
       if NOT DEFINED PYTHON_VERSION
