【语义分割】CGNet -- A Light-weight Context Guided Network for Semantic Segmentation

Paper：CGNet
Github：Code

---

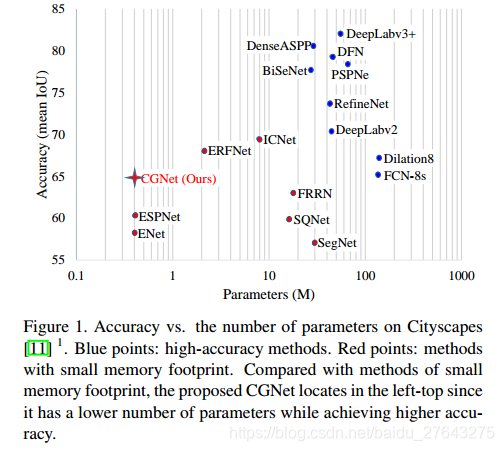

without any post-processing and multi-scale testing, the proposed CGNet achieves 64.8% mean IoU on Cityscapes with less than 0.5 M parameters

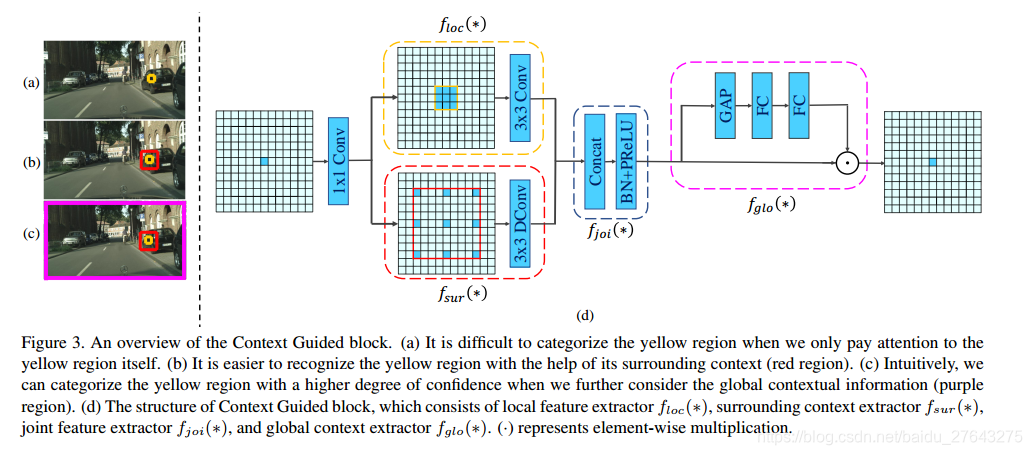

Context Guided Block

Firstly, CG block learns thejoint feature of both local feature and surrounding context. Thus, CG block learns the representation of each object from both itself and its spatially related objects（对象本身及其空间相关对象）, which contains rich co-occurrence relationship.

Secondly, CG block employs the global context to improve the joint feature. The global context is applied to channel-wisely re-weight the joint feature, so as to emphasize useful components and suppress useless ones.

CG block adopts channel-wise convolutions(depth-wise conv)

之前很多工作为减少计算量，使用深度可分离卷积代替普通卷积。与之不同CG block仅使用depthwise conv，去掉pointwise conv。

This design is not suitable for the proposed CG block, since the
local feature and the surrounding context in CG block need to maintain channel independence.

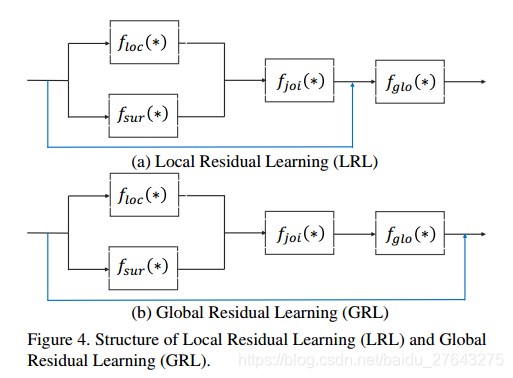

Intuitively, GRL has a stronger capability than LRL to promote the flow of information in the network.

CG block

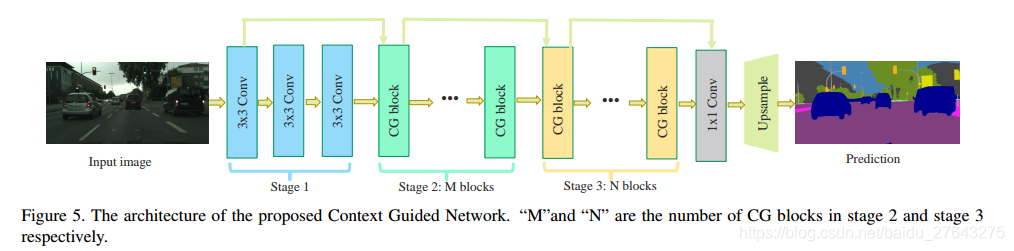

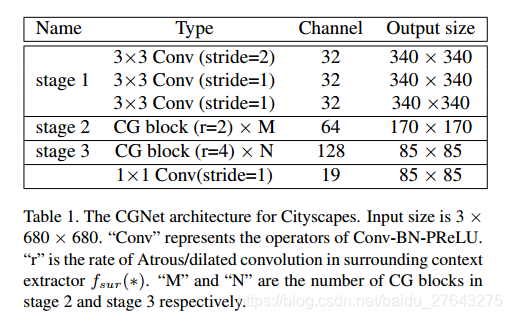

Context Guided Network

CGNet follows the major principle of “deep and thin” to save memory footprint as much as possible.

CG block is utilized in all stages of CGNet. Thus, CGNet captures contextual information in all stages of the network and is specially tailored for increasing segmentation accuracy.

Current mainstream segmentation networks have five down-sampling stages which learn too abstract features of objects and missing lots of the discriminative spatial information, causing over-smoothed segmentation boundaries. Differently, CGNet has only three downsampling stages, which is helpful for preserving spatial information.

Experiment

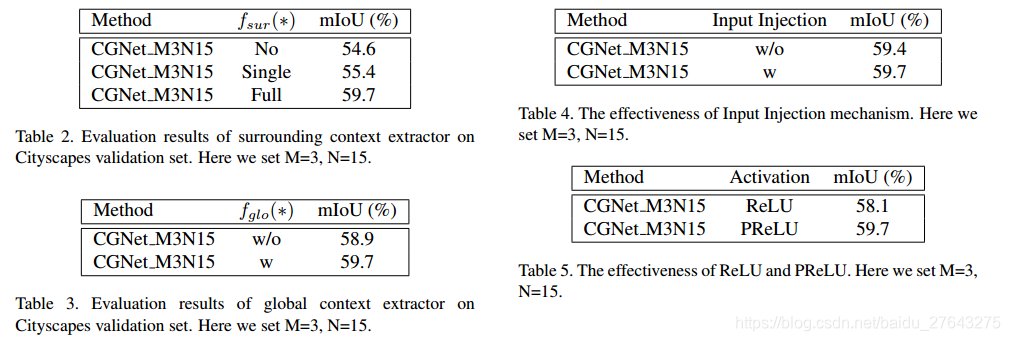

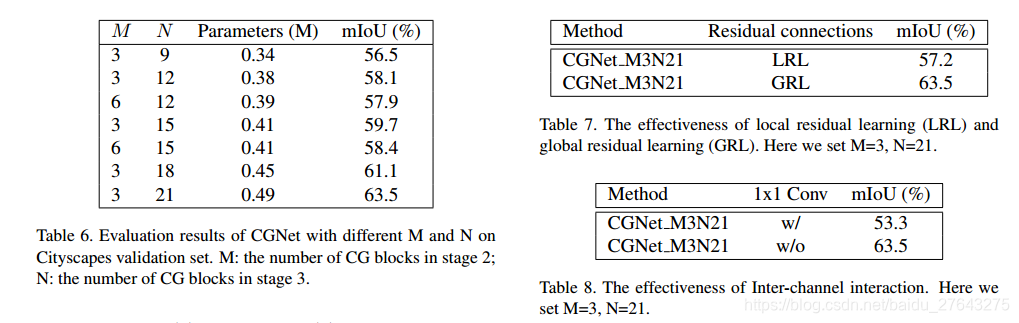

1、Ablation Studies

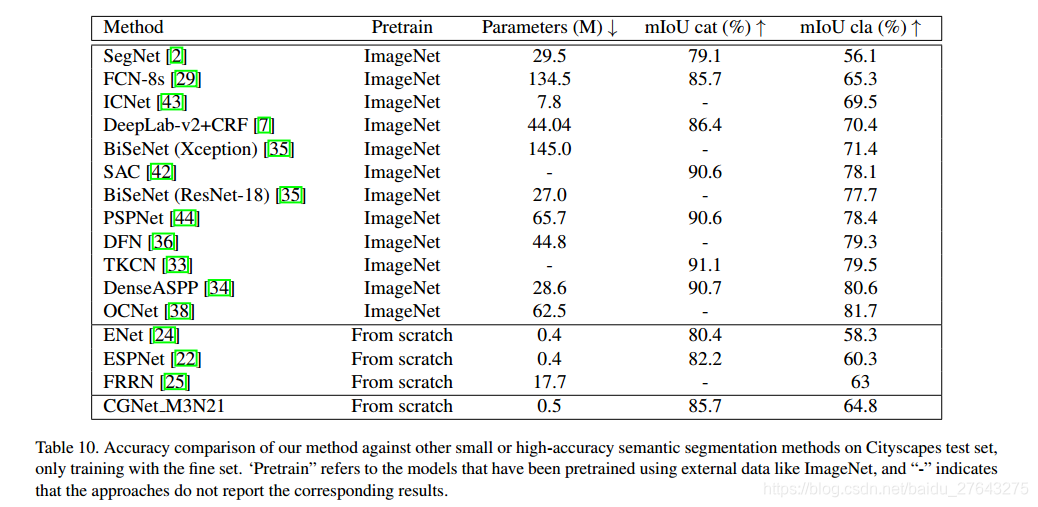

2、Comparison with state-of-the-arts
