Android在滚动列表中实现视频的播放(RecyclerView)-优快云博客

新版的百度贴吧，网易新闻中有看视频的界面。

是随着view的滚动自动加载的。

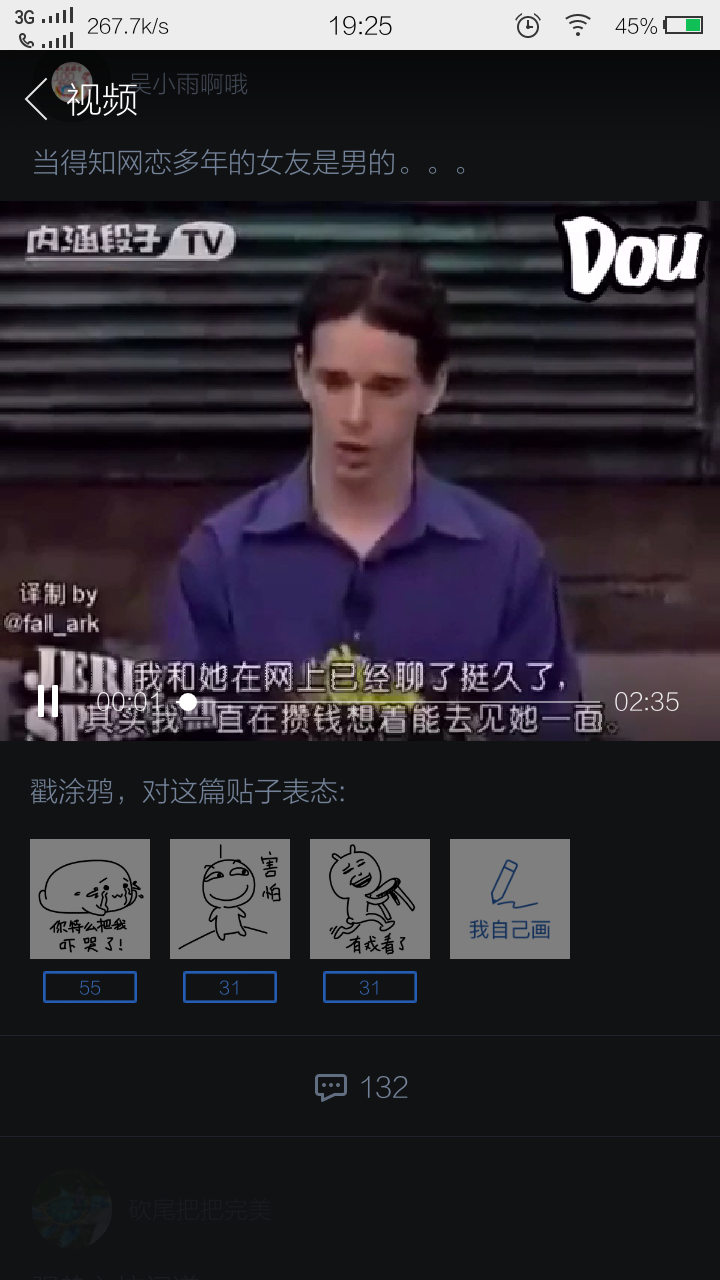

如图所示，很方便查看。

因为项目需要，我在开发一个APP，也需要查看视频，便想实现一个差不多功能的。

经过搜索，我发现GITHUB上有这个开源的东西，可以很方便的实现这样的效果

VideoPlayerManager

试着做了个Demo，在此记录下，以后自己查起来也方便。

要使用这个很方便，只需要在android studio的build.gradle文件里加入以下内容就行了。

dependencies {
    compile 'com.github.danylovolokh:video-player-manager:0.2.0'
    compile 'com.github.danylovolokh:list-visibility-utils:0.2.0'
}

先从布局开始吧！

首先，需要一个recycleview。

所以定义一个布局：

　　video_watch_layout.xml

 1 <?xml version="1.0" encoding="utf-8"?>
 2 <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 3     android:orientation="vertical" android:layout_width="match_parent"
 4     android:layout_height="match_parent">
 5
 6     <android.support.v7.widget.RecyclerView
 7         android:id="@+id/video_watch_list"
 8         android:layout_width="match_parent"
 9         android:layout_height="match_parent">
10
11     </android.support.v7.widget.RecyclerView>
12
13
14
15 </LinearLayout>

然后再定义它的item

video_watch_list_item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="320dp"
    android:layout_marginBottom="4dp"
    android:layout_marginTop="4dp">

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        >

        <!--播放器-->
        <com.volokh.danylo.video_player_manager.ui.VideoPlayerView
            android:id="@+id/item_video_vpv_player"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_above="@+id/item_video_tv_title"/>

        <!--背景-->
        <com.facebook.drawee.view.SimpleDraweeView
            android:id="@+id/item_video_iv_cover"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_above="@+id/item_video_tv_title"
           />

        <!--标题-->
        <TextView
            android:id="@+id/item_video_tv_title"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:padding="10dp"
            android:layout_alignParentBottom="true"/>
    </RelativeLayout>

</LinearLayout>

其中SimpleDraweeView这个控件，可以改成Imageview，用来显示视频封面图的。



下面是展示视频的Activity的代码。

package com.duanqu.Idea.activity;

import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.LinearLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.view.View;

import com.duanqu.Idea.Adapter.OnlineVideoListItem;
import com.duanqu.Idea.Adapter.VideoListItem;
import com.duanqu.Idea.Adapter.VideoWatchAdapter;
import com.duanqu.Idea.R;
import com.volokh.danylo.video_player_manager.manager.PlayerItemChangeListener;
import com.volokh.danylo.video_player_manager.manager.SingleVideoPlayerManager;
import com.volokh.danylo.video_player_manager.manager.VideoItem;
import com.volokh.danylo.video_player_manager.manager.VideoPlayerManager;
import com.volokh.danylo.video_player_manager.meta.MetaData;
import com.volokh.danylo.visibility_utils.calculator.DefaultSingleItemCalculatorCallback;
import com.volokh.danylo.visibility_utils.calculator.ListItemsVisibilityCalculator;
import com.volokh.danylo.visibility_utils.calculator.SingleListViewItemActiveCalculator;
import com.volokh.danylo.visibility_utils.items.ListItem;
import com.volokh.danylo.visibility_utils.scroll_utils.RecyclerViewItemPositionGetter;

import java.util.ArrayList;
import java.util.List;

/**
 * Created by Administrator on 2016/7/28.
 */
public class VideoWatchActivity  extends AppCompatActivity implements View.OnClickListener{
    private RecyclerView mRecyclerView;

    //视频数据，相当于普通adapter里的datas
    private List<VideoListItem> mLists = new ArrayList<>();

    //它充当ListItemsVisibilityCalculator和列表（ListView, RecyclerView）之间的适配器（Adapter）。
    private RecyclerViewItemPositionGetter mItemsPositionGetter;

    //ListItemsVisibilityCalculator可以追踪滑动的方向并在过程中计算每个Item的可见度
    //SingleListViewItemActiveCalculator会在滑动时获取每个View的可见度百分比.
    //所以其构造方法里需要传入mLists，而mLists里的每个item实现了ListItem接口
    //的getVisibilityPercents方法，也就是返回当前item可见度的方法.
    //这样ListItemsVisibilityCalculator就可以计算当前item的可见度了.

    private final ListItemsVisibilityCalculator mVideoVisibilityCalculator =
            new SingleListViewItemActiveCalculator(new DefaultSingleItemCalculatorCallback(), mLists);


    //SingleVideoPlayerManager就是只能同时播放一个视频。
    //当一个view开始播放时，之前那个就会停止
    private final VideoPlayerManager<MetaData> mVideoPlayerManager = new SingleVideoPlayerManager(new PlayerItemChangeListener() {
        @Override
        public void onPlayerItemChanged(MetaData metaData) {
        }
    });

    private int mScrollState;
    private LinearLayoutManager mLayoutManager = new LinearLayoutManager(this);
    private static final String URL =
            "http://dn-chunyu.qbox.me/fwb/static/images/home/video/video_aboutCY_A.mp4";

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.video_watch_layout);
        mRecyclerView = (RecyclerView) findViewById(R.id.video_watch_list);


        //添加视频数据
        for (int i = 0; i < 10; ++i) {
            mLists.add(new OnlineVideoListItem(mVideoPlayerManager, "测试", "http://115.159.159.65:8080/EAsy/cover.jpg", URL));

        }


        mRecyclerView.setLayoutManager(mLayoutManager);
        VideoWatchAdapter adapter = new VideoWatchAdapter(mLists);
        mRecyclerView.setAdapter(adapter);
        //

        //这里是文档上默认的写法，直接复制下来。
        //查看了下源码其中VisibilityCalculator.onScrollStateIdle的这
        //个方法又调用了方法calculateMostVisibleItem，用来计算滑动状态改变时
        //的最大可见度的item.这个方法的计算方法是这样的：当view无论是向上还是
        //向下滚动时，在滚动的过程中，计算可见度最大的item。当滚动状态为空闲时
        //此时最后一个计算得出的可见度最大的item就是当前可见度最大的item
        //而onScroll方法是处理item滚出屏幕后的计算,用于发现新的活动item
        mRecyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {

            @Override
            public void onScrollStateChanged(RecyclerView recyclerView, int scrollState) {
                mScrollState = scrollState;
                if(scrollState == RecyclerView.SCROLL_STATE_IDLE && !mLists.isEmpty()){

                    mVideoVisibilityCalculator.onScrollStateIdle(
                            mItemsPositionGetter,
                            mLayoutManager.findFirstVisibleItemPosition(),
                            mLayoutManager.findLastVisibleItemPosition());
                }
            }

            @Override
            public void onScrolled(RecyclerView recyclerView, int dx, int dy) {
                if(!mLists.isEmpty()){
                    mVideoVisibilityCalculator.onScroll(
                            mItemsPositionGetter,
                            mLayoutManager.findFirstVisibleItemPosition(),
                            mLayoutManager.findLastVisibleItemPosition() - mLayoutManager.findFirstVisibleItemPosition() + 1,
                            mScrollState);
                }
            }
        });

        mItemsPositionGetter = new RecyclerViewItemPositionGetter(mLayoutManager, mRecyclerView);

        /




    }

    //文档上的默认实现，复制下来
    //onResume()中调用方法，使屏幕亮起时启动对View的可见度的计算。
    @Override
    public void onResume() {
        super.onResume();
        if(!mLists.isEmpty()){
            // need to call this method from list view handler in order to have filled list

            mRecyclerView.post(new Runnable() {
                @Override
                public void run() {

                    mVideoVisibilityCalculator.onScrollStateIdle(
                            mItemsPositionGetter,
                            mLayoutManager.findFirstVisibleItemPosition(),
                            mLayoutManager.findLastVisibleItemPosition());

                }
            });
        }
    }

    @Override
    public void onClick(View v) {

    }


    @Override
    public void onStop() {
        super.onStop();
        mVideoPlayerManager.resetMediaPlayer(); // 页面不显示时, 释放播放器
    }
}

其次是

ListItem的实现，其实现的是当前item的可见度计算。
当然也保存了视频数据的一些信息，供Adapter使用

package com.duanqu.Idea.Adapter;

import android.graphics.Rect;
import android.support.annotation.DrawableRes;
import android.view.View;

import com.volokh.danylo.video_player_manager.manager.VideoItem;
import com.volokh.danylo.video_player_manager.manager.VideoPlayerManager;
import com.volokh.danylo.video_player_manager.meta.CurrentItemMetaData;
import com.volokh.danylo.video_player_manager.meta.MetaData;
import com.volokh.danylo.visibility_utils.items.ListItem;


/**
 * 基本视频项, 实现适配项和列表项
 * <p/>
 * Created by wangchenlong on 16/1/27.
 */
public abstract class VideoListItem implements VideoItem, ListItem {

    private final Rect mCurrentViewRect; // 当前视图的方框
    private final VideoPlayerManager<MetaData> mVideoPlayerManager; // 视频播放管理器
    private final String mTitle; // 标题
    private final String CoverImageUrl; // 图片资源

    // 构造器, 输入视频播放管理器
    public VideoListItem(
            VideoPlayerManager<MetaData> videoPlayerManager,
            String title,
            String imageResource) {
        mVideoPlayerManager = videoPlayerManager;
        mTitle = title;
        CoverImageUrl = imageResource;

        mCurrentViewRect = new Rect();
    }

    // 视频项的标题
    public String getTitle() {
        return mTitle;
    }

    public String getCoverImageUrl() {
        return CoverImageUrl;
    }

    // 显示可视的百分比程度
    @Override
    public int getVisibilityPercents(View view) {
        int percents = 100;

        view.getLocalVisibleRect(mCurrentViewRect);
        int height = view.getHeight();

        if (viewIsPartiallyHiddenTop()) {
            percents = (height - mCurrentViewRect.top) * 100 / height;
        } else if (viewIsPartiallyHiddenBottom(height)) {
            percents = mCurrentViewRect.bottom * 100 / height;
        }



        return percents;
    }

    @Override
    public void setActive(View newActiveView, int newActiveViewPosition) {
        VideoWatchAdapter.VideoViewHolder viewHolder =
                (VideoWatchAdapter.VideoViewHolder) newActiveView.getTag();
        playNewVideo(new CurrentItemMetaData(newActiveViewPosition, newActiveView),
                viewHolder.getVpvPlayer(), mVideoPlayerManager);
    }

    @Override
    public void deactivate(View currentView, int position) {
        stopPlayback(mVideoPlayerManager);
    }

    @Override
    public void stopPlayback(VideoPlayerManager videoPlayerManager) {
        videoPlayerManager.stopAnyPlayback();
    }

    // 顶部出现
    private boolean viewIsPartiallyHiddenTop() {
        return mCurrentViewRect.top > 0;
    }

    // 底部出现
    private boolean viewIsPartiallyHiddenBottom(int height) {
        return mCurrentViewRect.bottom > 0 && mCurrentViewRect.bottom < height;
    }
}

对这个类进行继承

package com.duanqu.Idea.Adapter;

import android.support.annotation.DrawableRes;

import com.volokh.danylo.video_player_manager.manager.VideoPlayerManager;
import com.volokh.danylo.video_player_manager.meta.MetaData;
import com.volokh.danylo.video_player_manager.ui.VideoPlayerView;

/**
 * Created by Administrator on 2016/7/28.
 */
public class OnlineVideoListItem extends VideoListItem {

    private final String mOnlineUrl; // 资源文件描述

    public OnlineVideoListItem(
            VideoPlayerManager<MetaData> videoPlayerManager,
            String title,
            String imageResource,
            String onlineUrl
    ) {
        super(videoPlayerManager, title, imageResource);

        mOnlineUrl = onlineUrl;
    }

    @Override
    public void playNewVideo(MetaData currentItemMetaData, VideoPlayerView player, VideoPlayerManager<MetaData> videoPlayerManager) {
        videoPlayerManager.playNewVideo(currentItemMetaData, player, mOnlineUrl);
    }
}

复写一个playNewVideo方法。

最后是recycleview的Adapter方法：

package com.duanqu.Idea.Adapter;


import android.content.Context;
import android.net.Uri;
import android.support.v7.widget.RecyclerView;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.TextView;

import com.duanqu.Idea.R;
import com.volokh.danylo.video_player_manager.ui.MediaPlayerWrapper;
import com.volokh.danylo.video_player_manager.ui.VideoPlayerView;

import java.util.List;


/**
 * Created by Administrator on 2016/7/28.
 */
public class VideoWatchAdapter extends RecyclerView.Adapter<VideoWatchAdapter.VideoViewHolder>{

    private final List<VideoListItem> mList; // 视频项列表

    // 构造器
    public VideoWatchAdapter(List<VideoListItem> list) {
        mList = list;
    }

    @Override
    public VideoWatchAdapter.VideoViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        View view = LayoutInflater.from(parent.getContext()).inflate(R.layout.video_watch_list_item, parent, false);
        // 必须要设置Tag, 否则无法显示
        VideoWatchAdapter.VideoViewHolder holder = new VideoWatchAdapter.VideoViewHolder(view);
        view.setTag(holder);
        return new VideoWatchAdapter.VideoViewHolder(view);
    }

    @Override
    public void onBindViewHolder(final VideoWatchAdapter.VideoViewHolder holder, int position) {
        VideoListItem videoItem = mList.get(position);
        holder.bindTo(videoItem);
    }

    @Override
    public int getItemCount() {
        return mList.size();
    }

    public static class VideoViewHolder extends RecyclerView.ViewHolder {
        VideoPlayerView mVpvPlayer; // 播放控件
        ImageView mIvCover; // 覆盖层
        TextView mTvTitle; // 标题

        private Context mContext;
        private MediaPlayerWrapper.MainThreadMediaPlayerListener mPlayerListener;

        public VideoViewHolder(View itemView) {
            super(itemView);
            mVpvPlayer = (VideoPlayerView) itemView.findViewById(R.id.item_video_vpv_player); // 播放控件
            mTvTitle = (TextView) itemView.findViewById(R.id.item_video_tv_title);
            mIvCover = (ImageView) itemView.findViewById(R.id.item_video_iv_cover);

            mContext = itemView.getContext().getApplicationContext();
            mPlayerListener = new MediaPlayerWrapper.MainThreadMediaPlayerListener() {
                @Override
                public void onVideoSizeChangedMainThread(int width, int height) {
                }

                @Override
                public void onVideoPreparedMainThread() {
                    // 视频播放隐藏前图
                    mIvCover.setVisibility(View.INVISIBLE);
                }

                @Override
                public void onVideoCompletionMainThread() {
                }

                @Override
                public void onErrorMainThread(int what, int extra) {
                }

                @Override
                public void onBufferingUpdateMainThread(int percent) {
                }

                @Override
                public void onVideoStoppedMainThread() {
                    // 视频暂停显示前图
                    mIvCover.setVisibility(View.VISIBLE);
                }
            };

            mVpvPlayer.addMediaPlayerListener(mPlayerListener);
        }

        public void bindTo(VideoListItem vli) {
            mTvTitle.setText(vli.getTitle());
            mIvCover.setImageURI(Uri.parse(vli.getCoverImageUrl()));
        }

        // 返回播放器
        public VideoPlayerView getVpvPlayer() {
            return mVpvPlayer;
        }

    }
}
